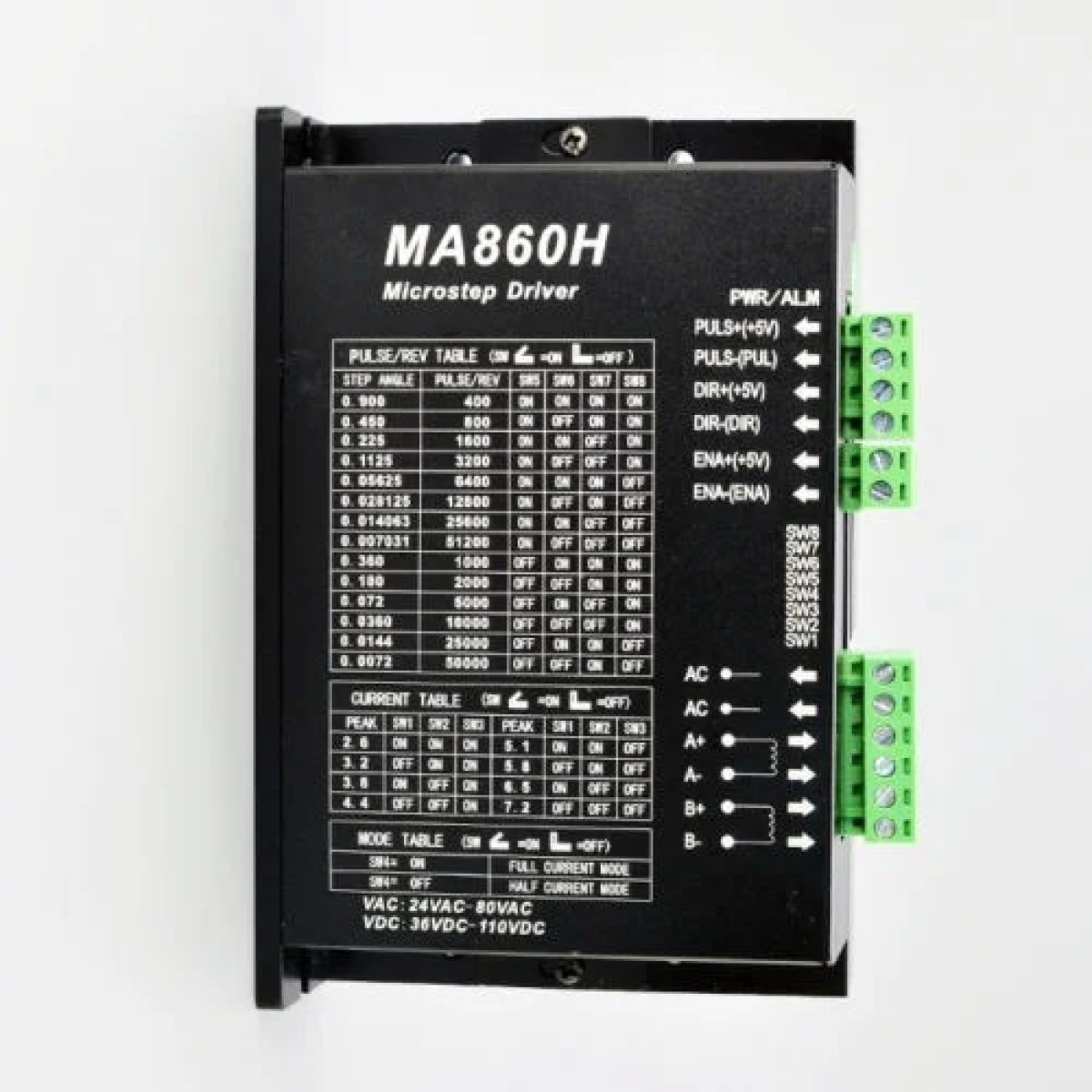

MA860H STEPPER DRIVER

It is a high-performance stepper driver implemented with pure-sinusoidal current control technology. The MA860H Digital Stepper Motor Driver 50-110 VDC with 1.8-7.5A can be used to drive 2-phase or 4-phase motors(from “NEMA 17” or “NEMA 34” size)with less noise and heat. And it can provide better performances at high speed than most of the drivers in the markets.

Add to wishlist
Compare
19 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

  1. Supply voltage up to 80VAC or +110VDC
  2. Output current up to 7.2A
  3. Pulse input frequency up to 300 KHz
  4. 16 selectable resolutions in decimal and binary, up to 51,200 steps/rev
  5. Suitable for 2-phase and 4-phase motors
  6. Dimensions: 118×75.5×34 (LxWxH) mm
Additional information
Input Supply Voltage (VDC)

80 ~ 110
Max. Output Current (Amp)

7.2
Pulse Input Frequency (KHz)

300
Operating Temperature Range (°C):

700
