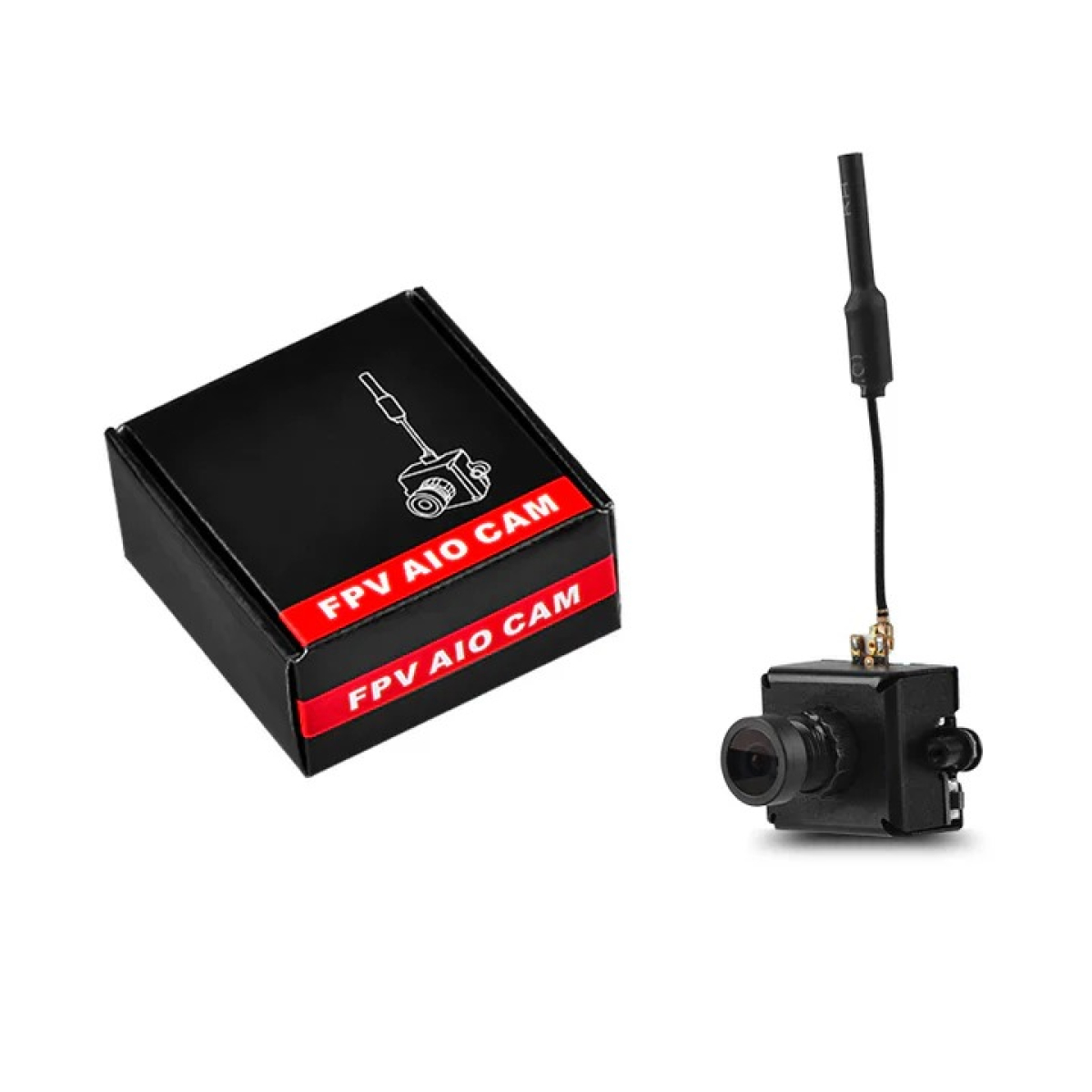

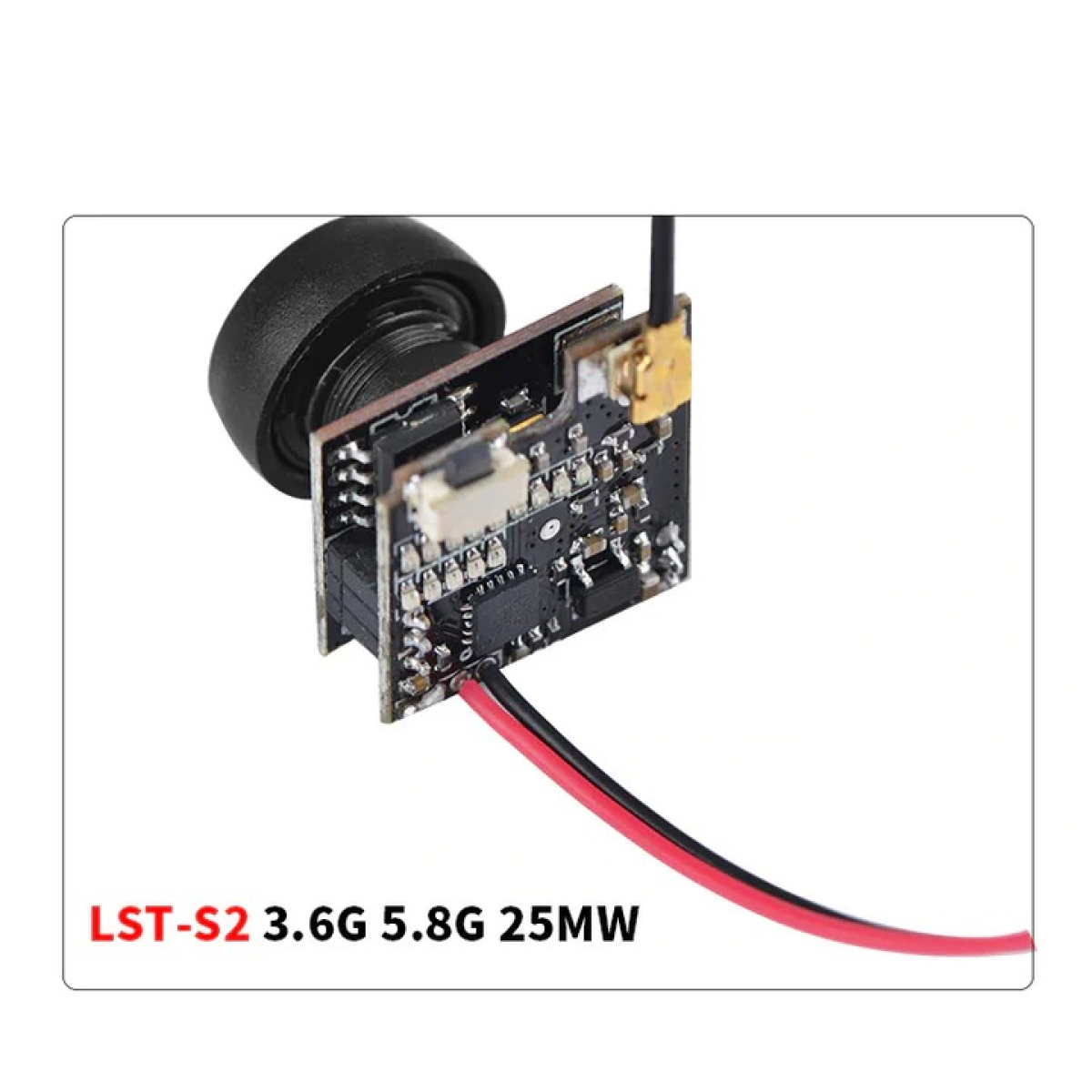

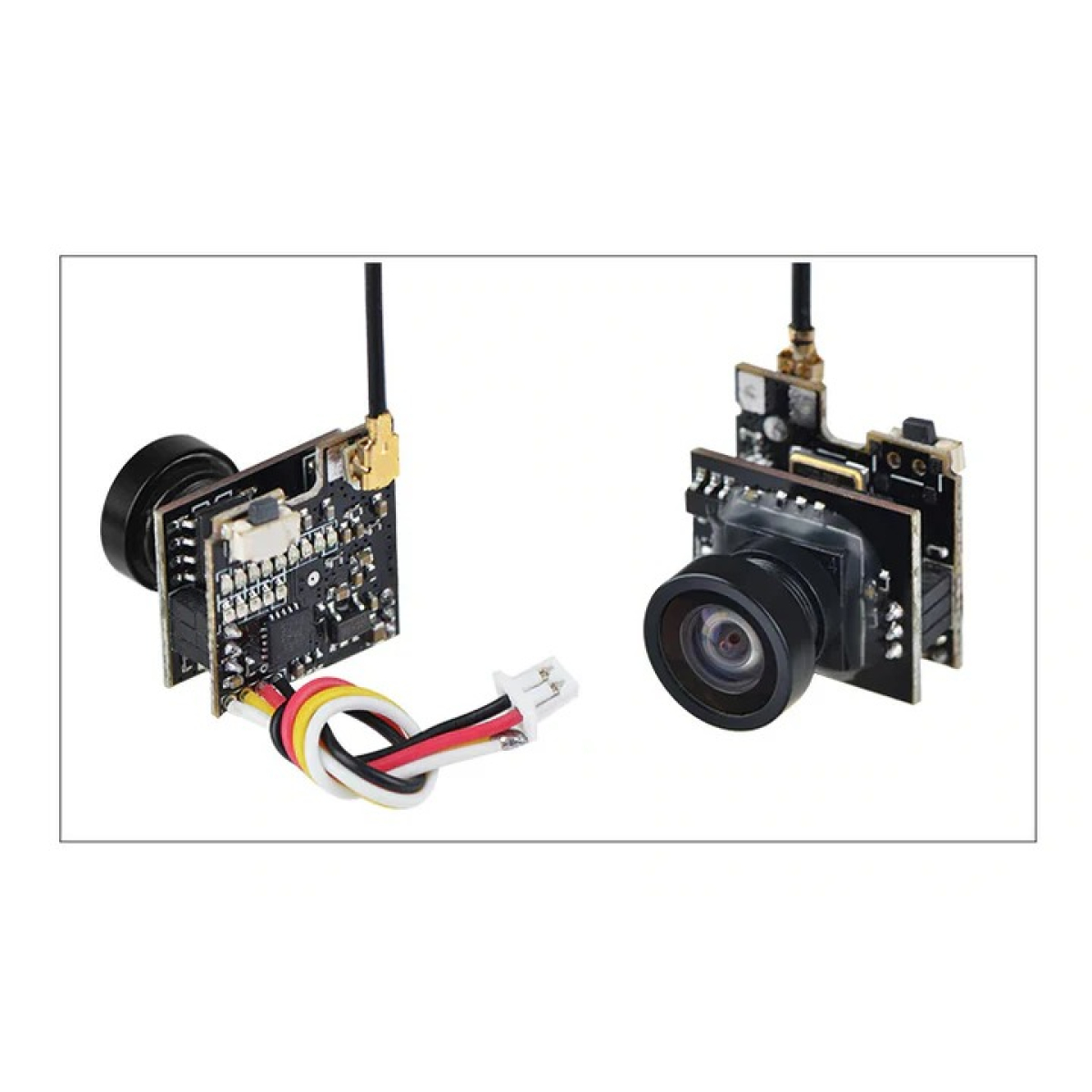

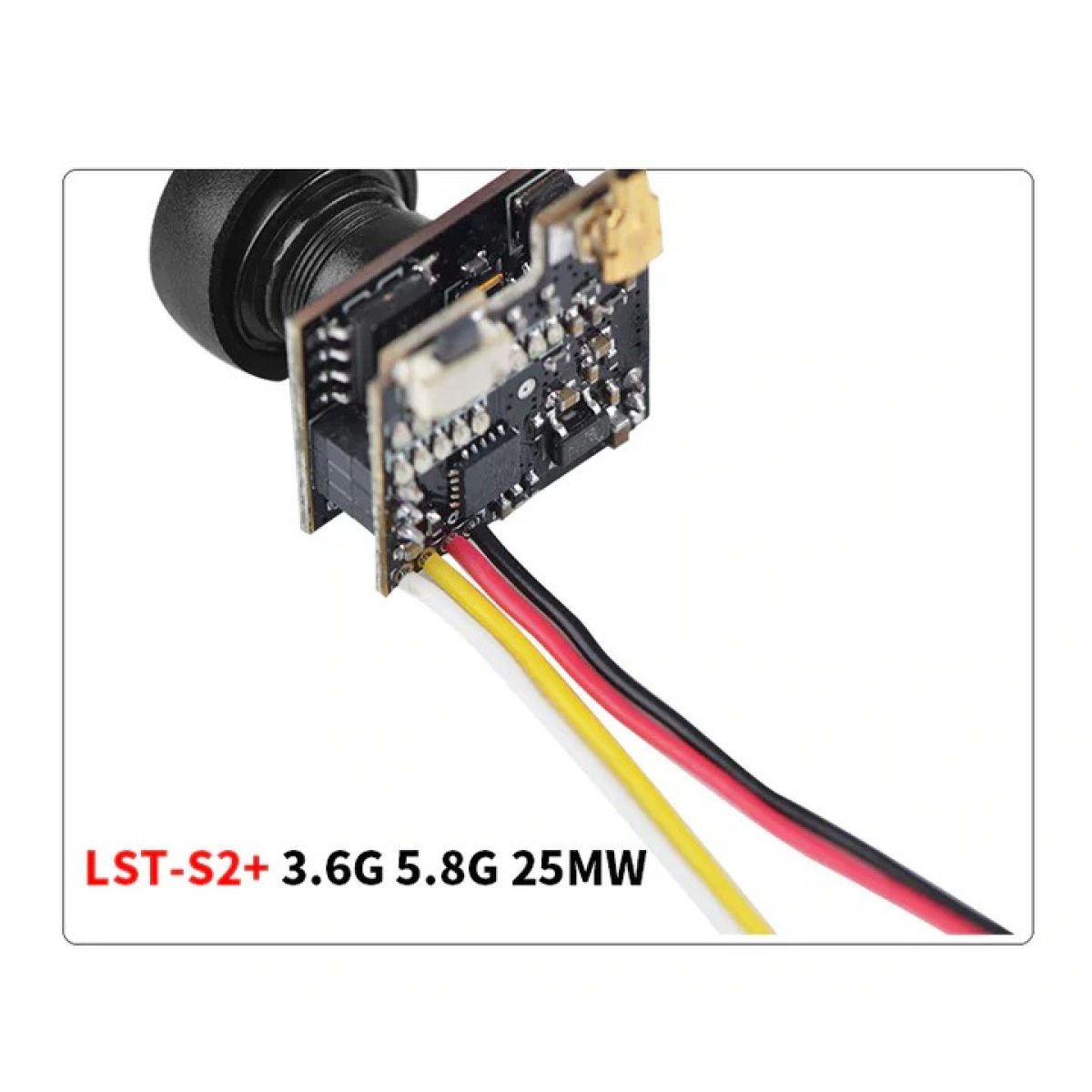

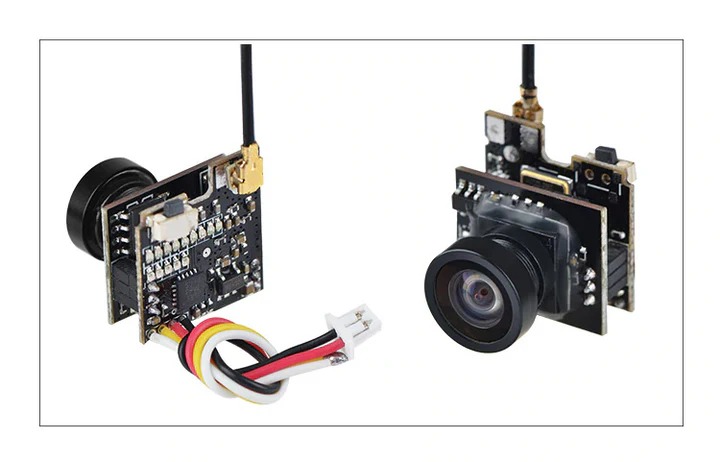

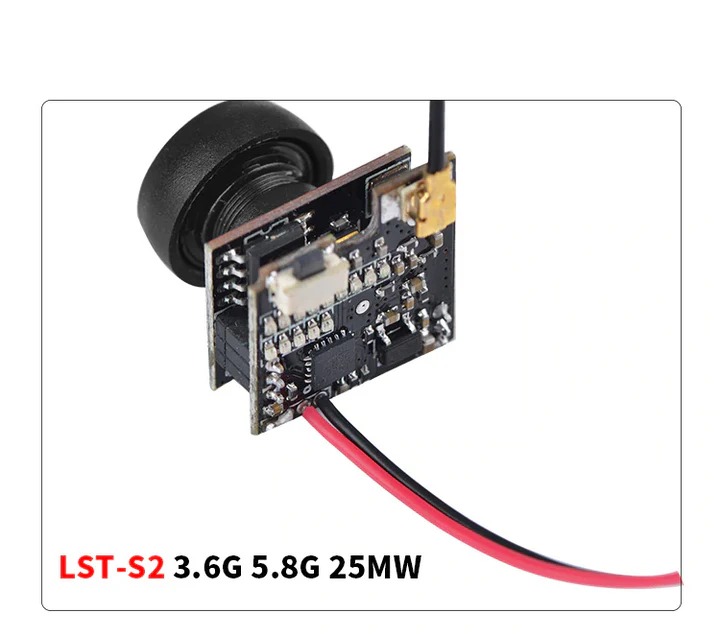

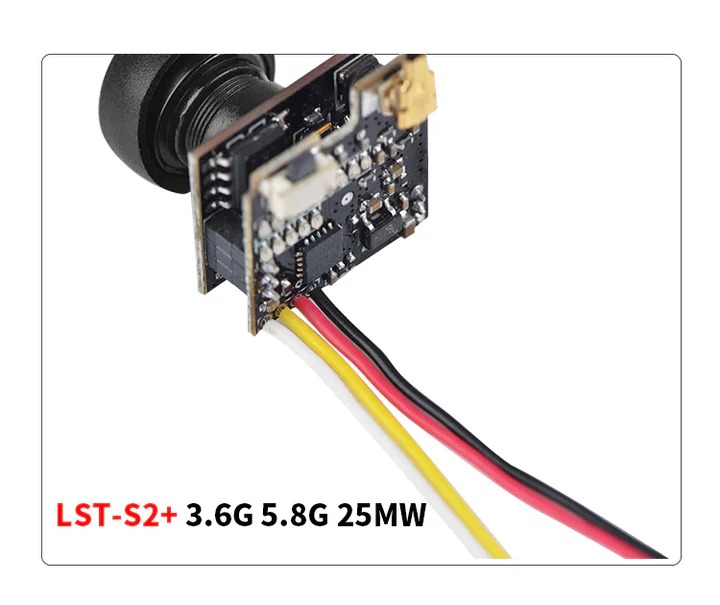

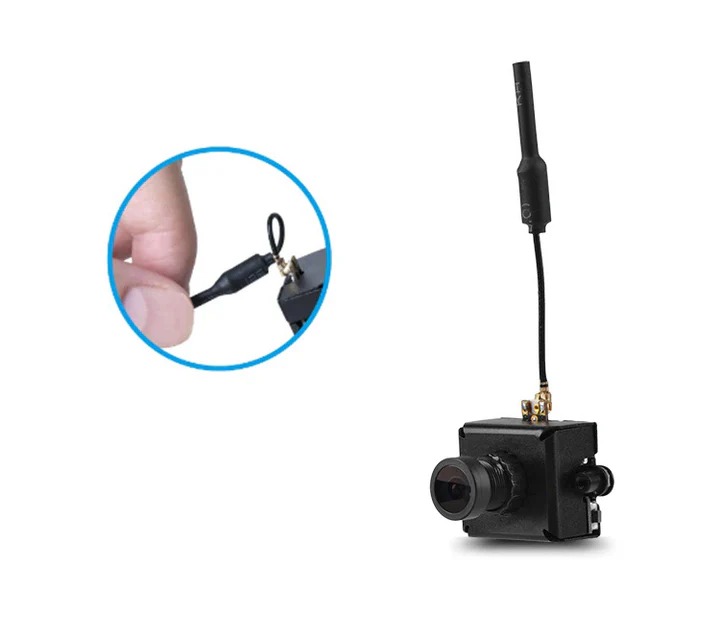

LST-S2 AIO 5.8G 40CH 25mW VTL 800TVL Camera Integrated Transmitte

SKU: ARS - CA - 010

Button Function
Short press ( 1 sec or less ): change channels 1 – 8
Long press ( 1.5 sec ): change bands A – B – E – F – R
Long press ( 3 sec ): change NTSC/PAL system
Blue LED on = NTSC, blue LED off = PAL

10 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

All-in-one FPV video transmitter, super small volume and light weight
Horizontal viewing angle: 150 degree FOV, squint angle: 170 degree DFOV
40 channels with Race band

Video Transmitter
Support video format: NTSC / PAL
Output impedance: 75 ohm
Output signal strength: 23 – 24dBm
Output power: 25mW
Wireless channel: 40CH
Antenna: RHCP circular polarization clover leaf antenna
Operating voltage: 3.6V – 5.5V
Current: 100mA
Audio carrier: 6.5MHz

Additional information
Sensor

1/4 inch CMOS

LENS

M8 800TVL

FORMAT

NTSC / PAL ( switchable )

Power consumption

380mA 3.7V

POWER

3.6 – 5.5V

Lens mirror diameter

2.1mm IR coated FOV 150 degree ( horizontal)
