LR7843 Mosfet Module

SKU: HW-532B

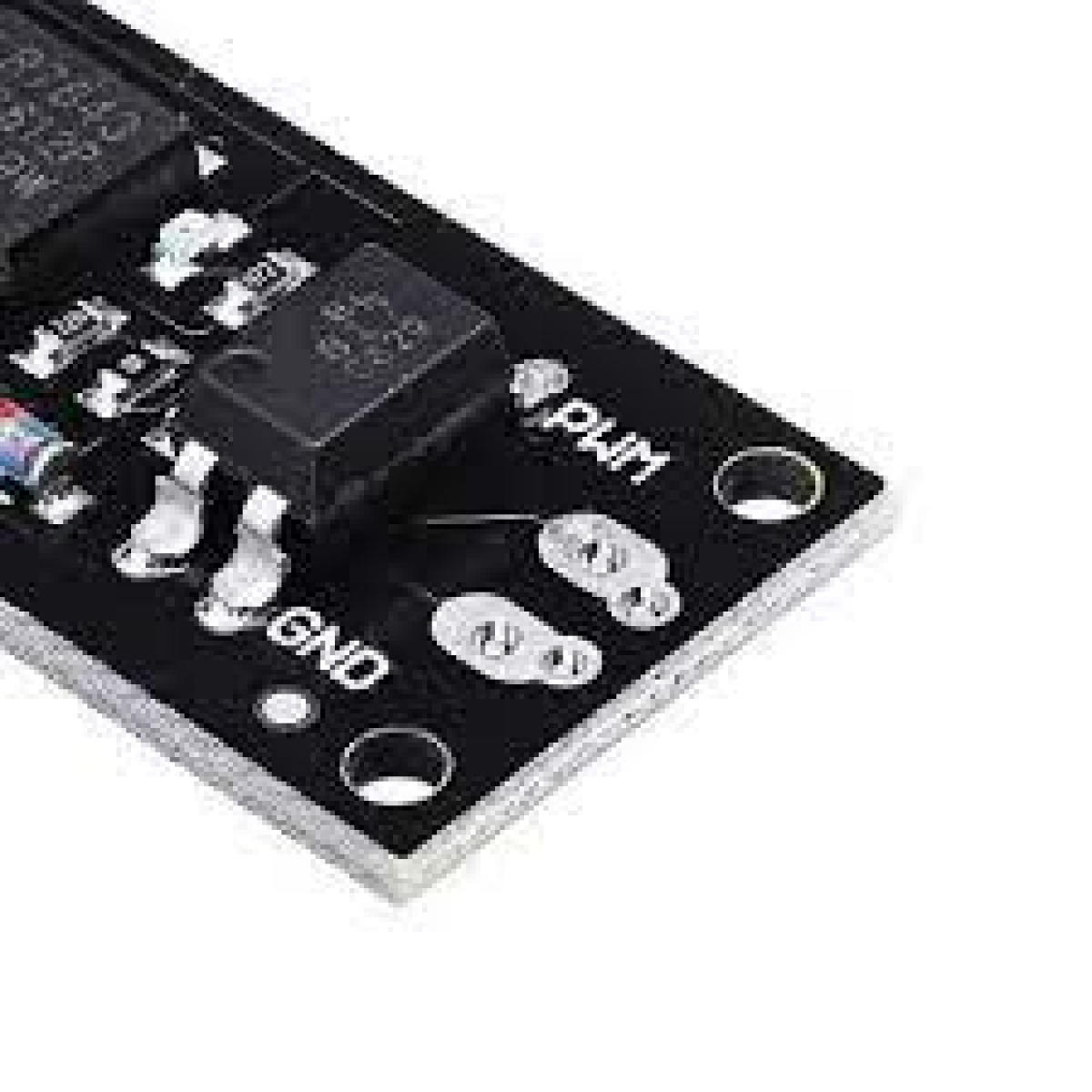

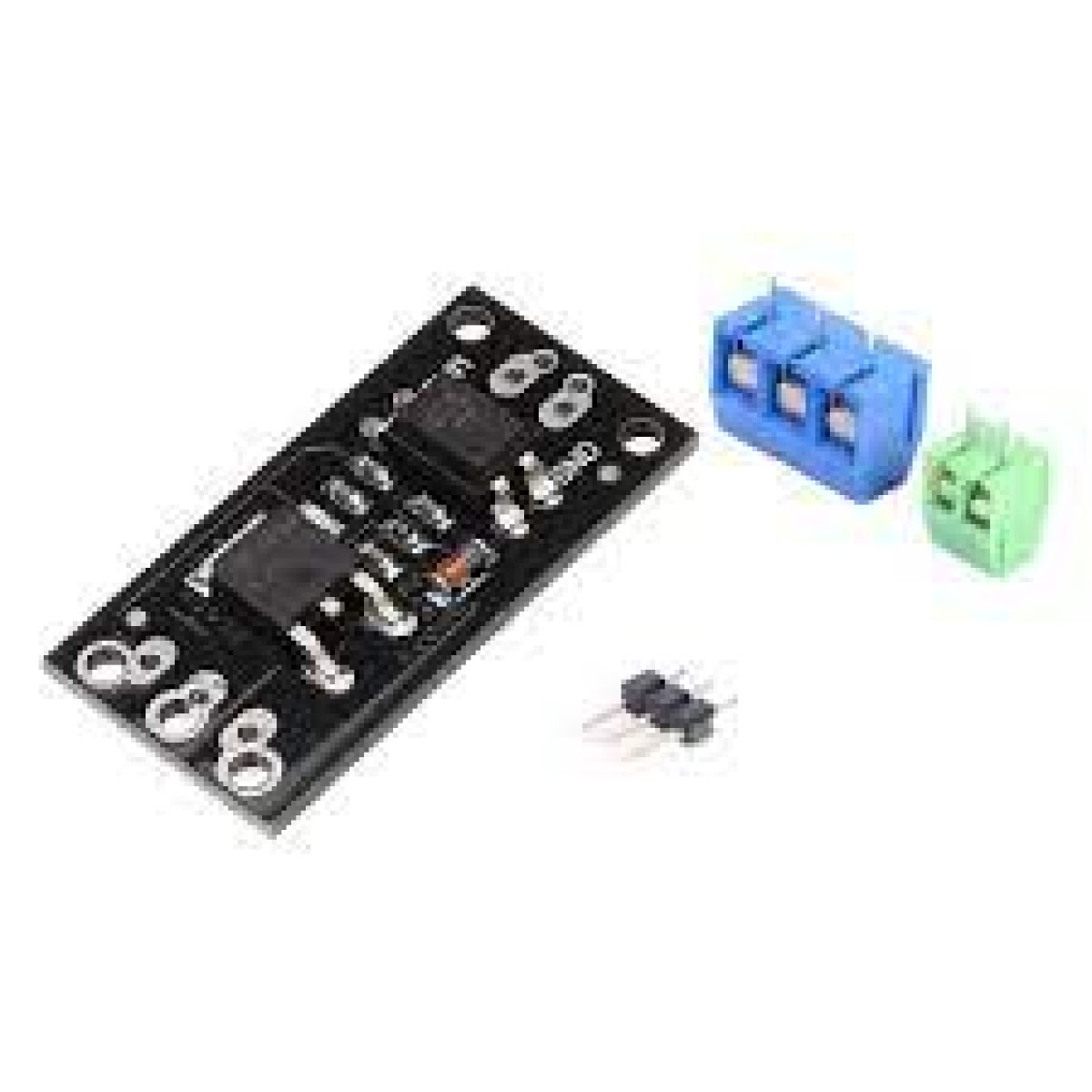

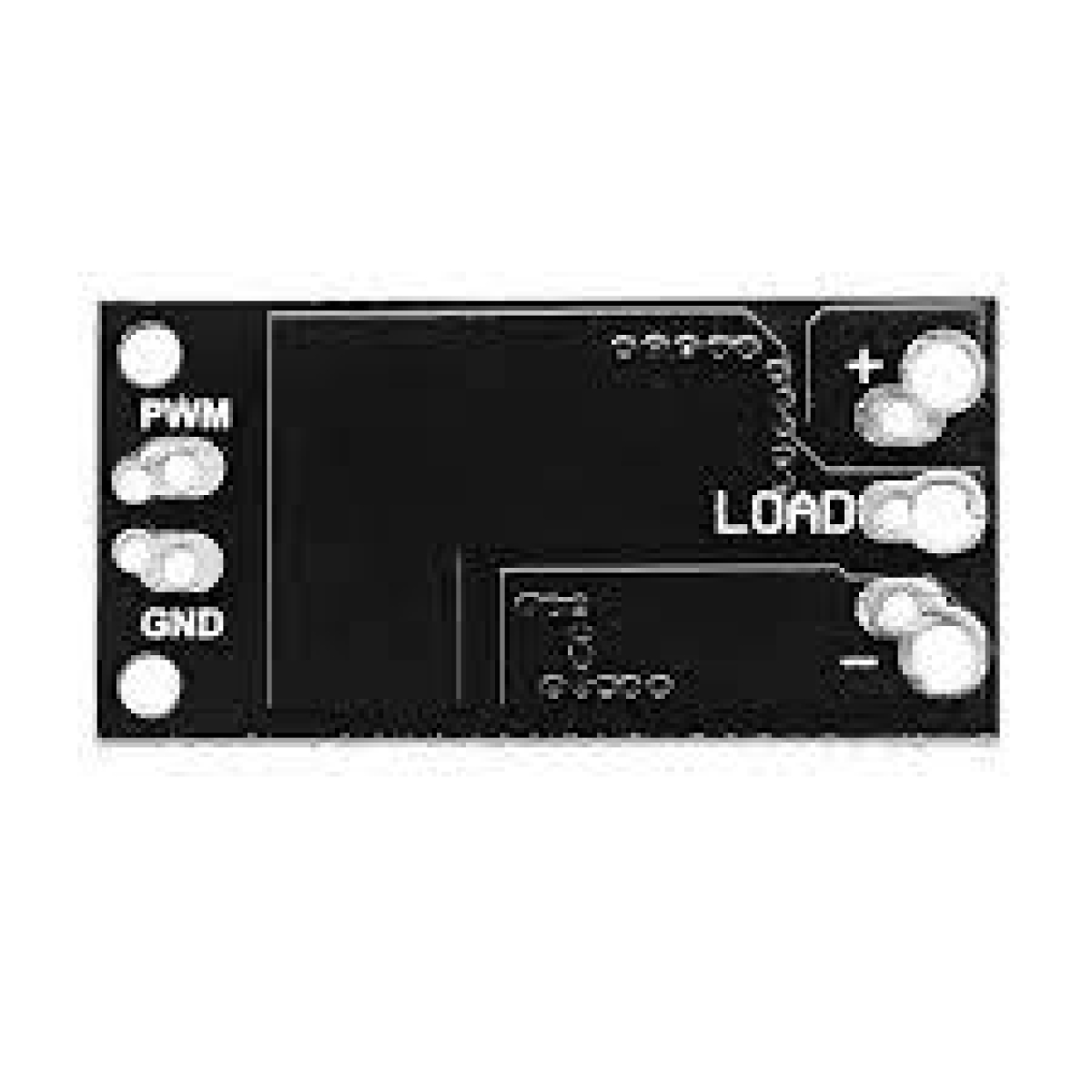

LR7843 Mosfet control Module Replacement Relay comes with optocoupler isolation, the control signal and the power of the controlled device are isolated, which greatly increases the rigidity of the interference. PWM speed regulation widely used to control the start and stop of the motor. The signal input side can be welded to the terminal or pin itself, compatible breadboard output can be soldered to the terminal or direct wire.

15 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

  1. Compatible with MCU and control board, 3V or 5V signal.
  2. High-level start, low-level stop, PWM speed regulation.
  3. Widely used to control the start and stop of the motor, solenoid valve, and other tributary equipment.
  4. The signal input side can be welded to the terminal or pin itself, compatible breadboard.
  5. Output can be soldered to the terminal or direct wire.
Additional information
MOS tube

30V 161A

Dimensions(mm)

23mm X 16mm

Mounting Holes Diameter (mm)

2mm

Shipping Weight

0.015 kg

Shipping Dimensions

3 × 2 × 2 cm
