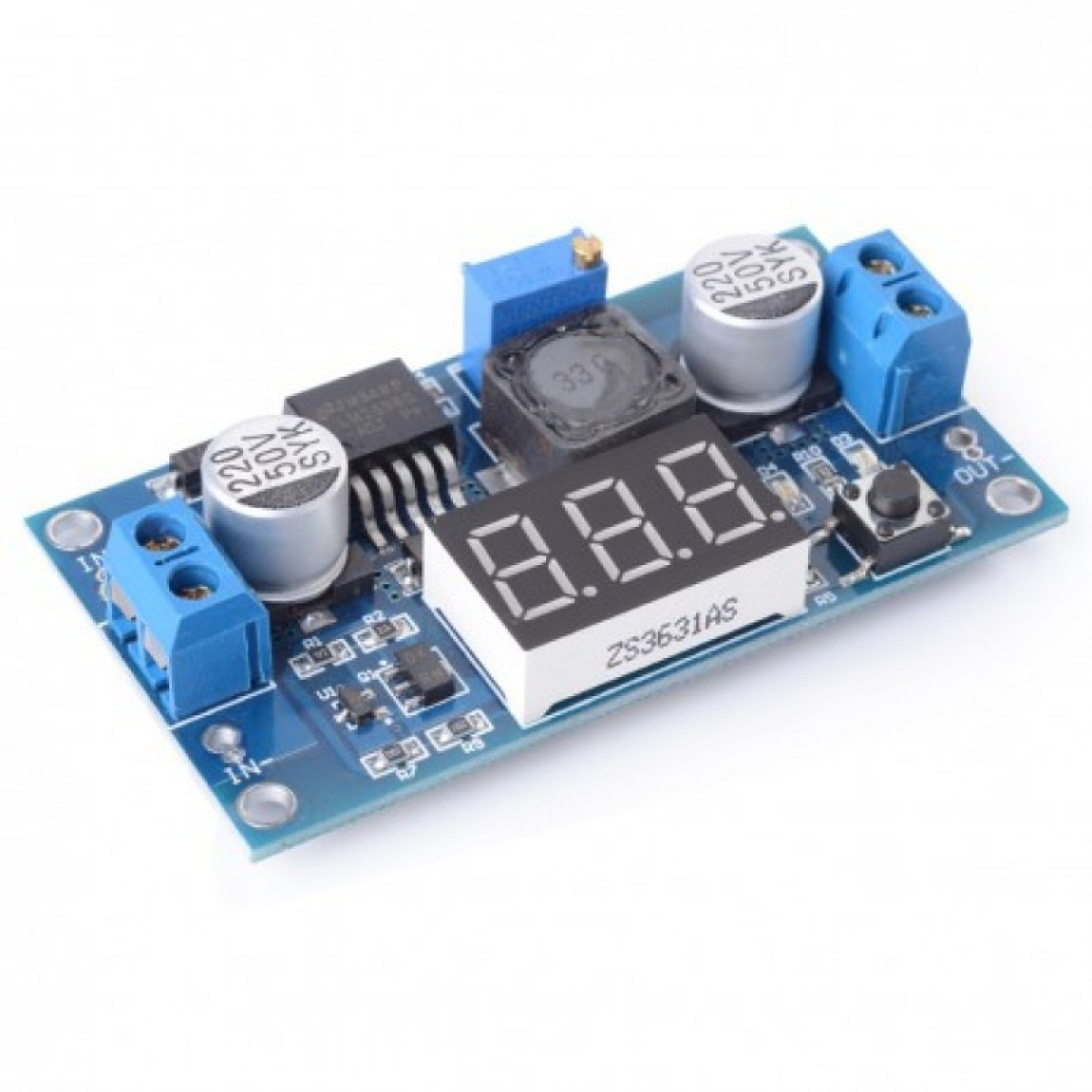

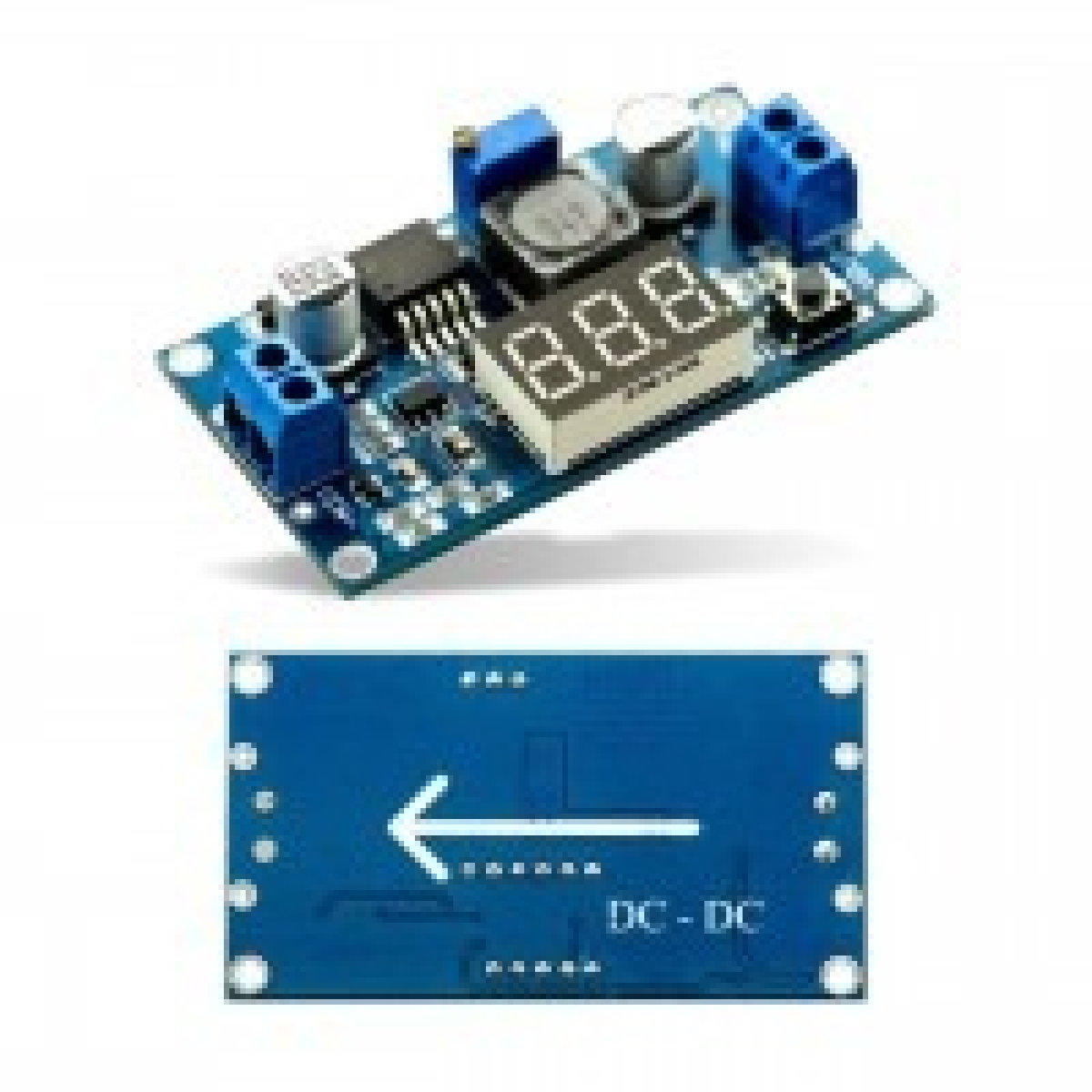

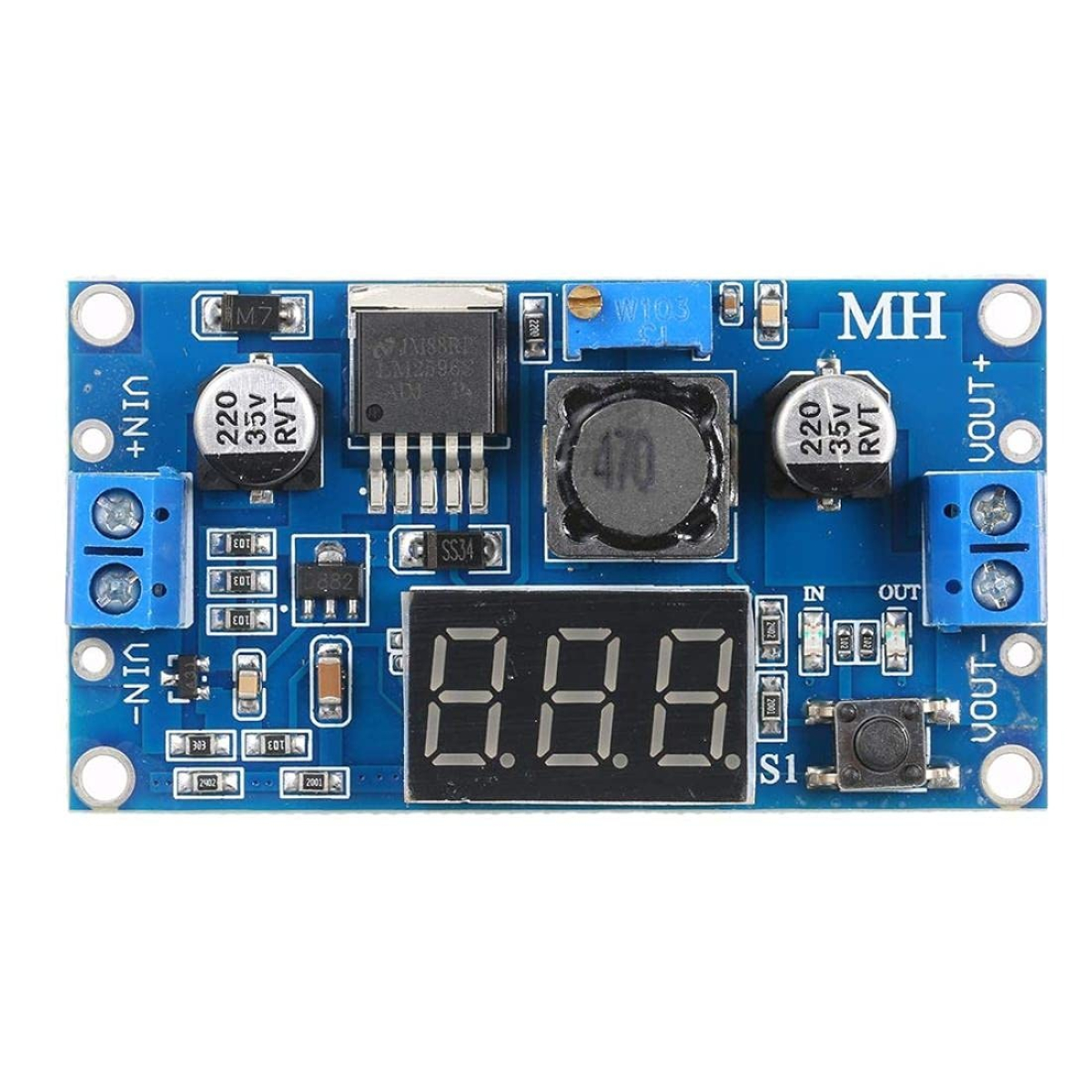

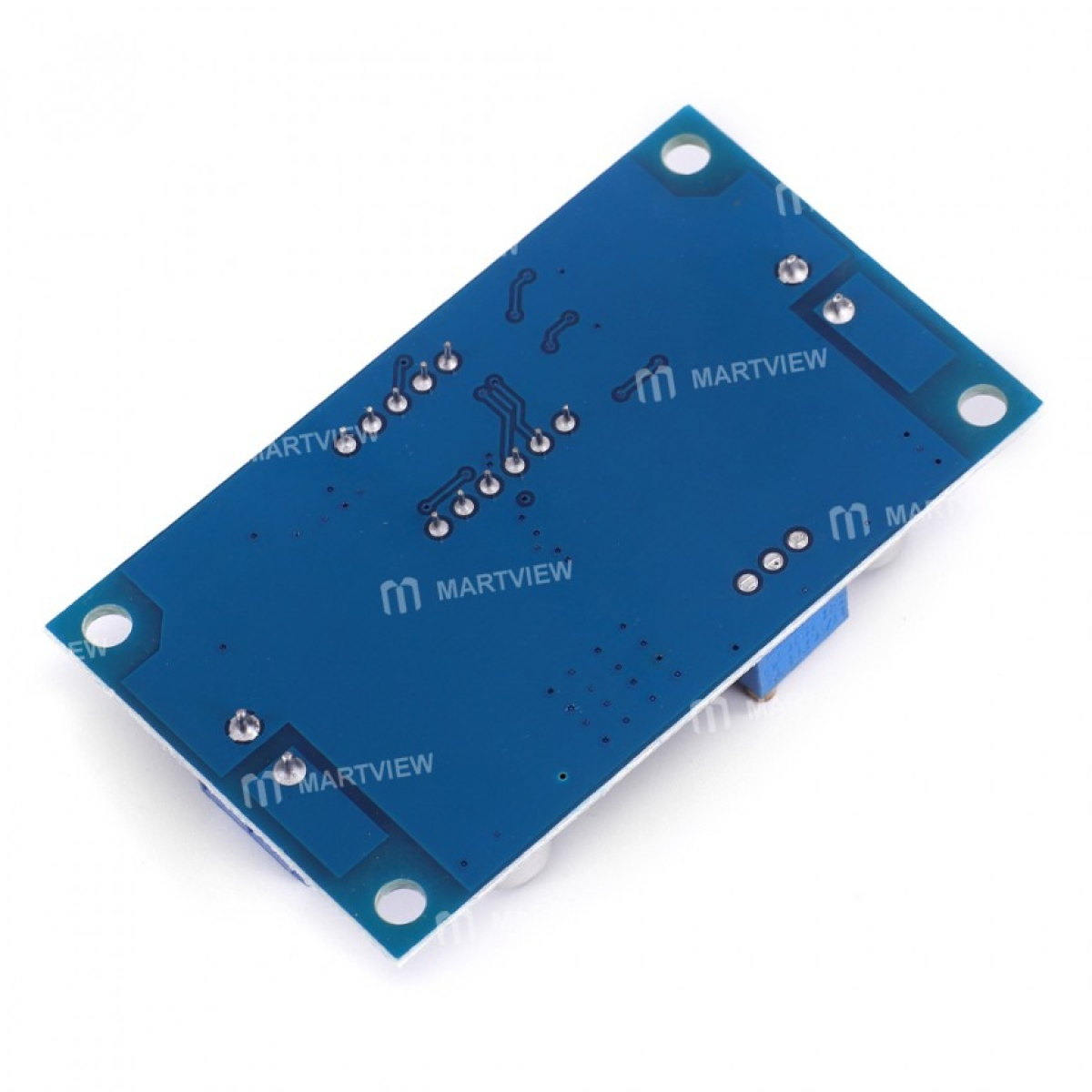

LM2596 WITH DISPLAY

SKU: HW-816

Features :

  1. Input reverse polarity protection
  2. Built-in output short protection function
  3. The built-in thermal shutdown function

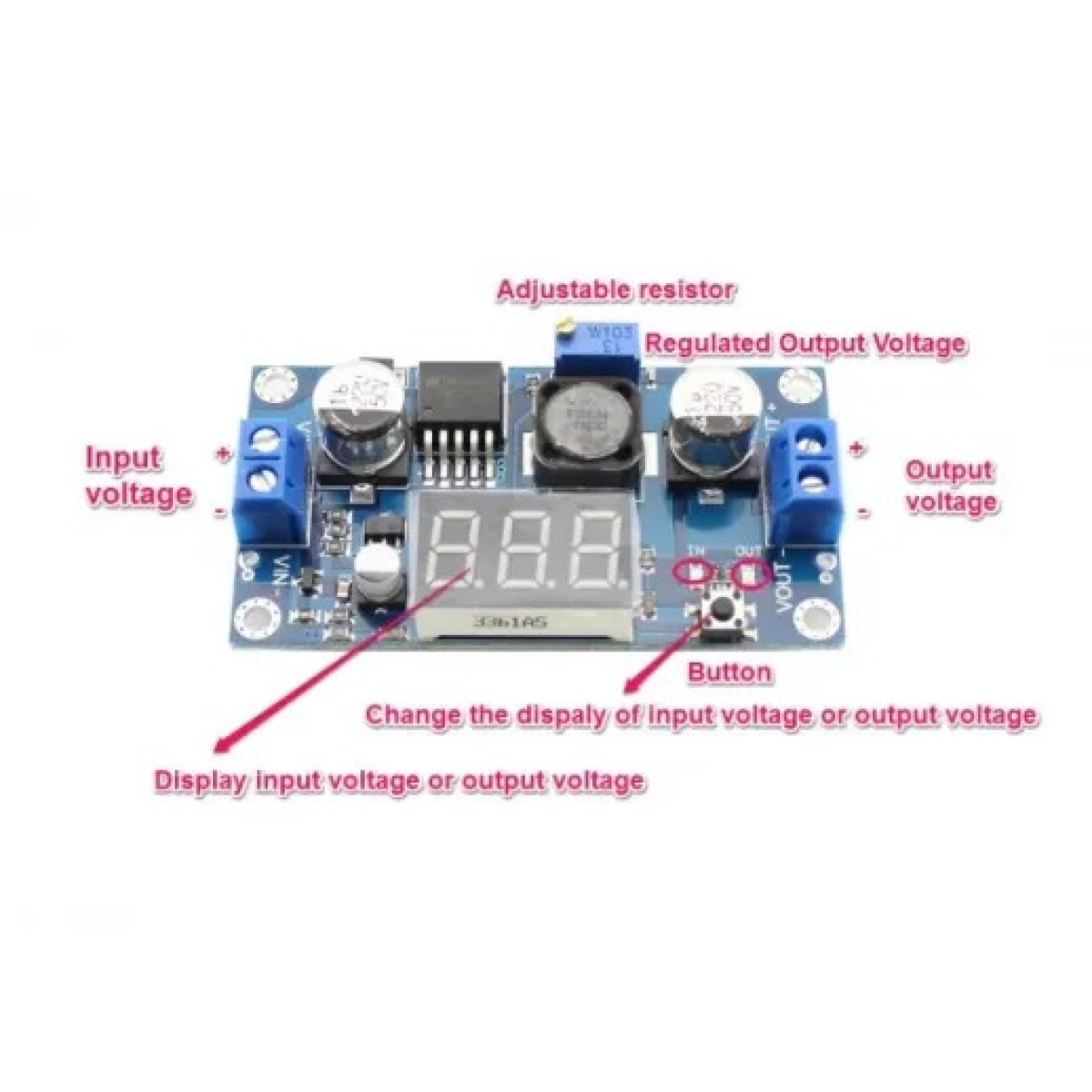

  4. Press the right key to let the display show the input or output voltage. when the right “OUT” led light, it shows output, the left “IN” led show input.
  5. Power-off memory function, show that road after power voltage values measured for the last time
  6. Press the touch button for 3 seconds to turn off the LED display, touch the button again to turn on the LED display
  7. The band terminals, no iron can also be easy to use, and retention wire connection point

Add to wishlist
Compare
20 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

This is Lm2596 2A Buck Step-down Power Converter Module DC 4 ~ 40 to 1.3 ~ 37V, it comes with a built-in voltmeter display and uses an advanced microcontroller.

Together with its high precision multi-turn potentiometer  this means any desired output voltage within its supply range can be set without the need for an external voltage meter. The module also boasts a very high operating range with a DC input supply range of 4 ~ 40V and an adjustable output range of 1.3 ~ 37V.

Notes: Maximum current is dependent on input and output voltages, ambient temperature and cooling. To achieve maximum ratings an external heatsink may be required. Maximum LM2596 operating temperature must not exceed 125°C otherwise permanent thermal damage can occur.
Additional information
Input Voltage (V)

4 ~ 40 VDC
Output Voltage (VDC)

1.3 ~ 37
Max. Output Current (A)

2
Switching Frequency(KHz)

150
Operating Temperature (°C)

-40 to 90
