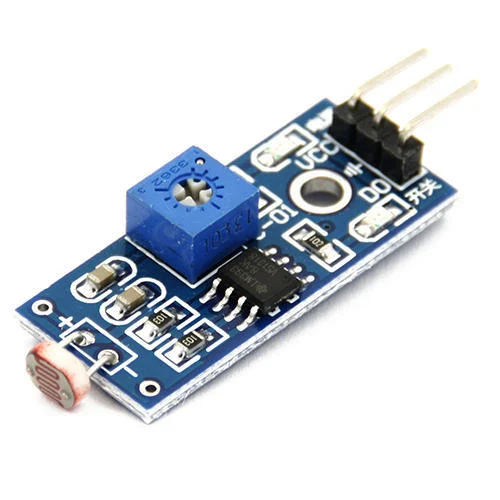

LDR Module

SKU: HW-077

You can adjust the threshold (sensitivity) of the digital output by tuning the onboard variable resistor (potentiometer). Simple usage as it is the digital output, so you will know is the light present and decide what to do with it.

It comes with an M3 mounting hole for ease of attaching it to an object. Onboard, it provides an LDR, high sensitivity and commonly being used for light detection. The module comes with a power LED and a status LED as an indicator.

LDR Module Photosensitive resistor module most sensitive to environmental light intensity is generally used to detect the ambient brightness and light intensity.

Add to wishlist
Compare
19 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

The Digital LDR Module is used to detect the presence of light / measuring the intensity of light. The output of the module goes high in the presence of light and it becomes low in the absence of light. The sensitivity of signal detection can be adjusted using the potentiometer.

  1. LM393 based design.
  2. Can detect ambient brightness and light intensity.
  3. Adjustable sensitivity (via blue digital potentiometer adjustment).
  4. Output Digital – 0V to 5V, Adjustable trigger level from preset.
  5. LEDs indicating output and power.
  6. Operating Voltage: 3.3V to 5V DC.
  7. Operating Current: 15ma.
Additional information
Operating Voltage (VDC)

3.3 ~ 5
Operating Current(mA)

15
Length (mm):

36
Width (mm):

14
