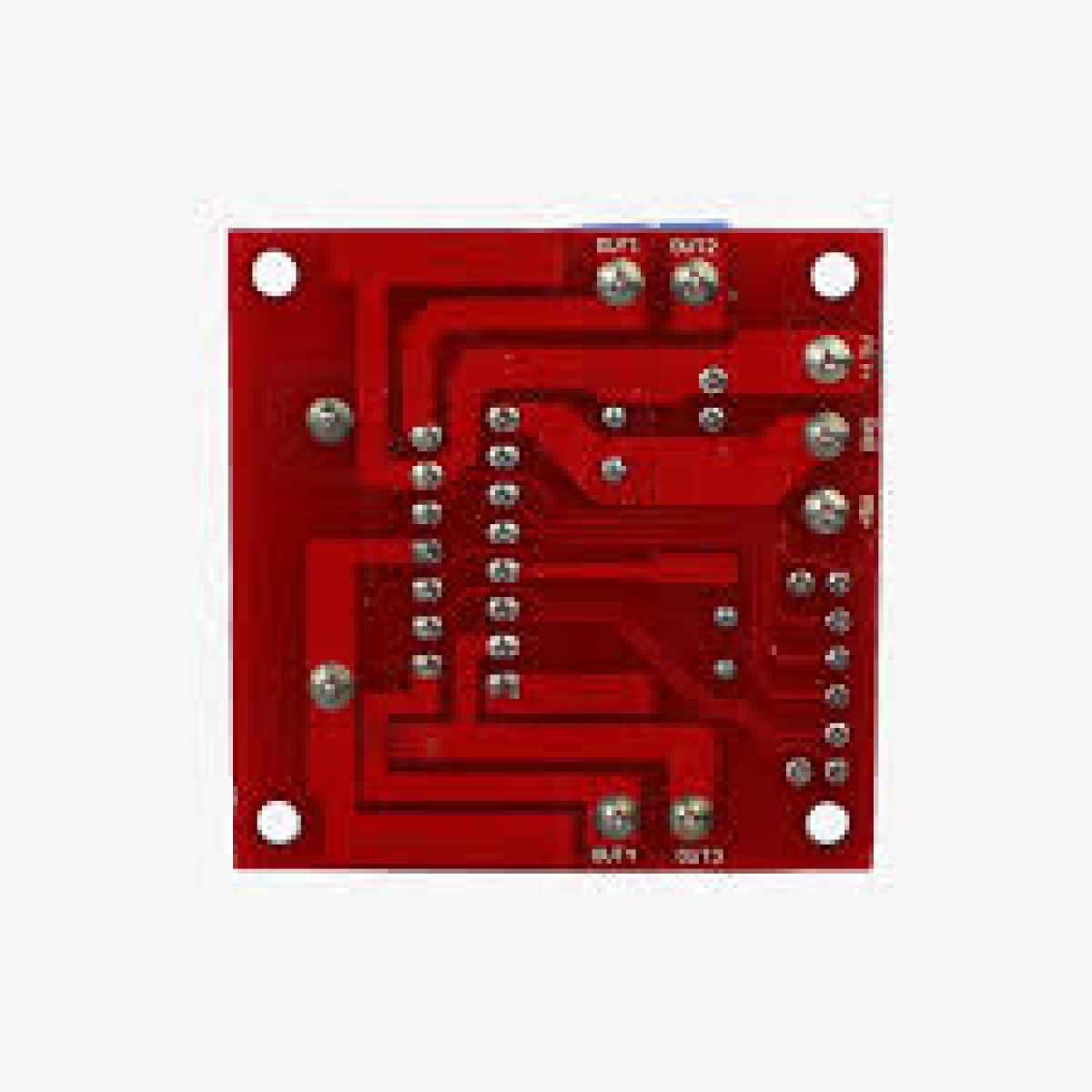

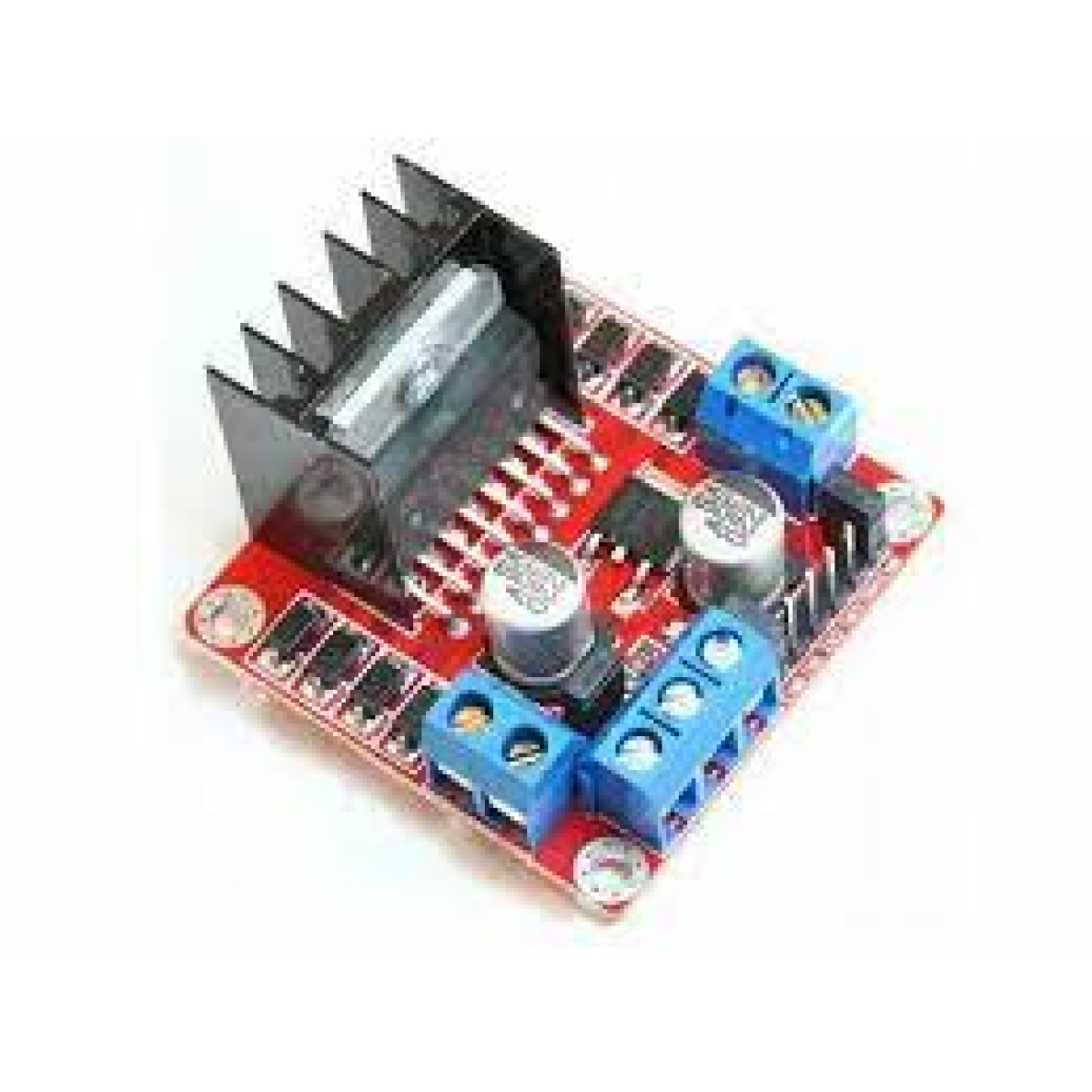

L298 BOARD RED

SKU: HW-095A

Product features:

  • This module USES L298N as the main drive chip, with strong driving ability, low heat, and strong anti-interference ability.
  • Through this module can use the built-in 78 m05 drive power supply parts of their work, but in order to avoid the voltage regulator chip damage, when using the driving voltage greater than 12 v, please use the external power supply 5 v logic.
  • This module USES a large capacity filter capacitance, and a continuation protection diode, which can improve reliability.

16 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

The L298N motor driver is an integrated circuit (IC) that is commonly used to control the speed and direction of motors in robotics and other electronic projects. It is a dual H-bridge motor driver, meaning it can control the speed and direction of two DC motors or one stepper motor.

The L298N is a module that can be controlled by a microcontroller, such as an Arduino or Raspberry Pi. It can be used to interface with a wide range of motors and can supply up to 2A of current per channel. It allows for control of the speed and direction of the motors via PWM and direction control input pins.

The L298N has two input pins for each motor, IN1 and IN2, that are used to control the direction of the motor. It also has a PWM input pin, EN, that is used to control the speed of the motor.

It also has built-in protection features such as thermal shutdown, over-current and short-circuit protection, which helps protect both the IC and the motor.

Additional information
Drive voltage

5V-35V

Logical current

0mA-36mA

Storage temperature

– 20 ℃ to + 135 ℃

Maximum power

25W
