L293D MOTOR DRIVER BOARD SHIELD

SKU: HW-130

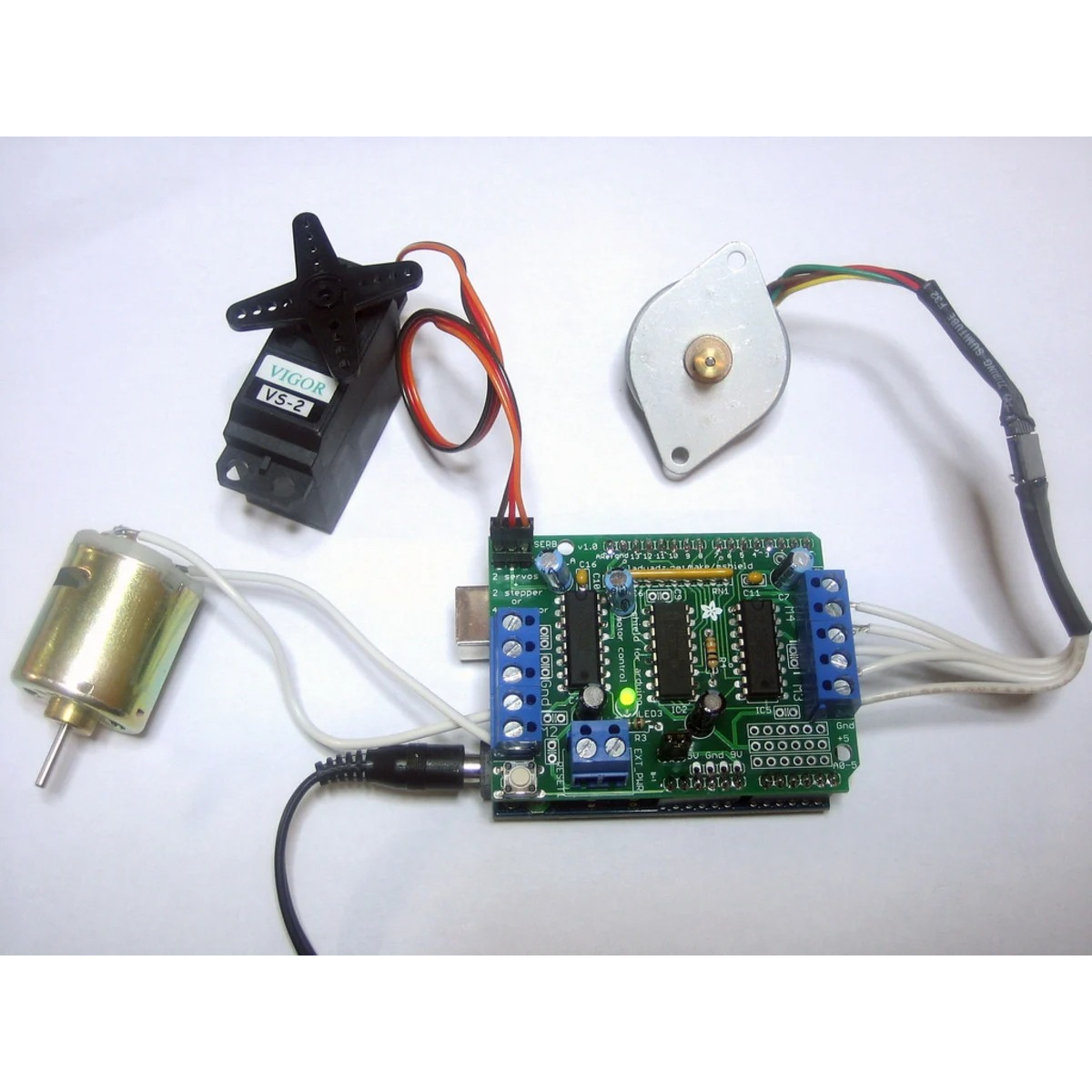

The L293D Motor Driver/Servo Shield for Arduino is probably one of the most versatile on the market and features 2 servo and 4 motor connectors for DC or stepper motors. That makes it a great shield for any robotic project.

16 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

  1. 2 connections for 5V ‘hobby’ servos connected to the Arduino’s high-resolution dedicated timer

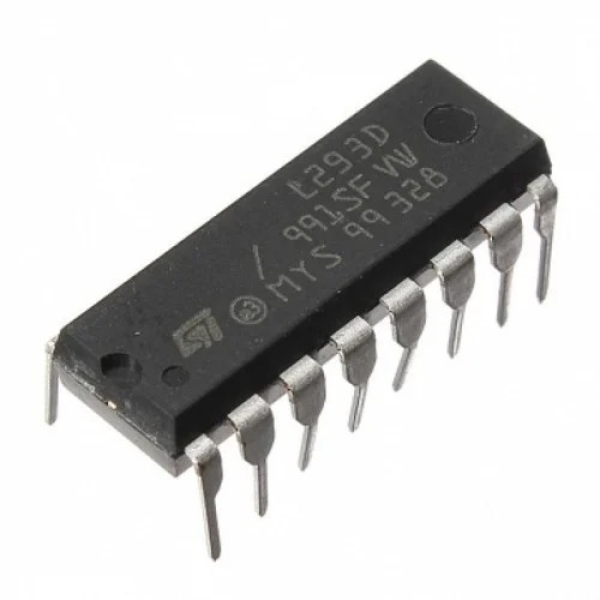

  2. 4 H-Bridges: L293D chipset provides 0.6A per bridge (1.2A peak) with thermal shutdown protection, internal kickback protection diodes.
  3. Can run motors on 4.5VDC to 25VDC.
  4. Up to 4 bi-directional DC motors with individual 8-bit speed selection (so, about 0.5% resolution)
  5. Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil, or interleaved stepping.
Additional information
Logic control voltage Vss

4.5~5.5V

Dimensions in mm (LxWxH)

70 X 15 X 48

Weight (gm)

35

Shipping Weight

0.037 KG
