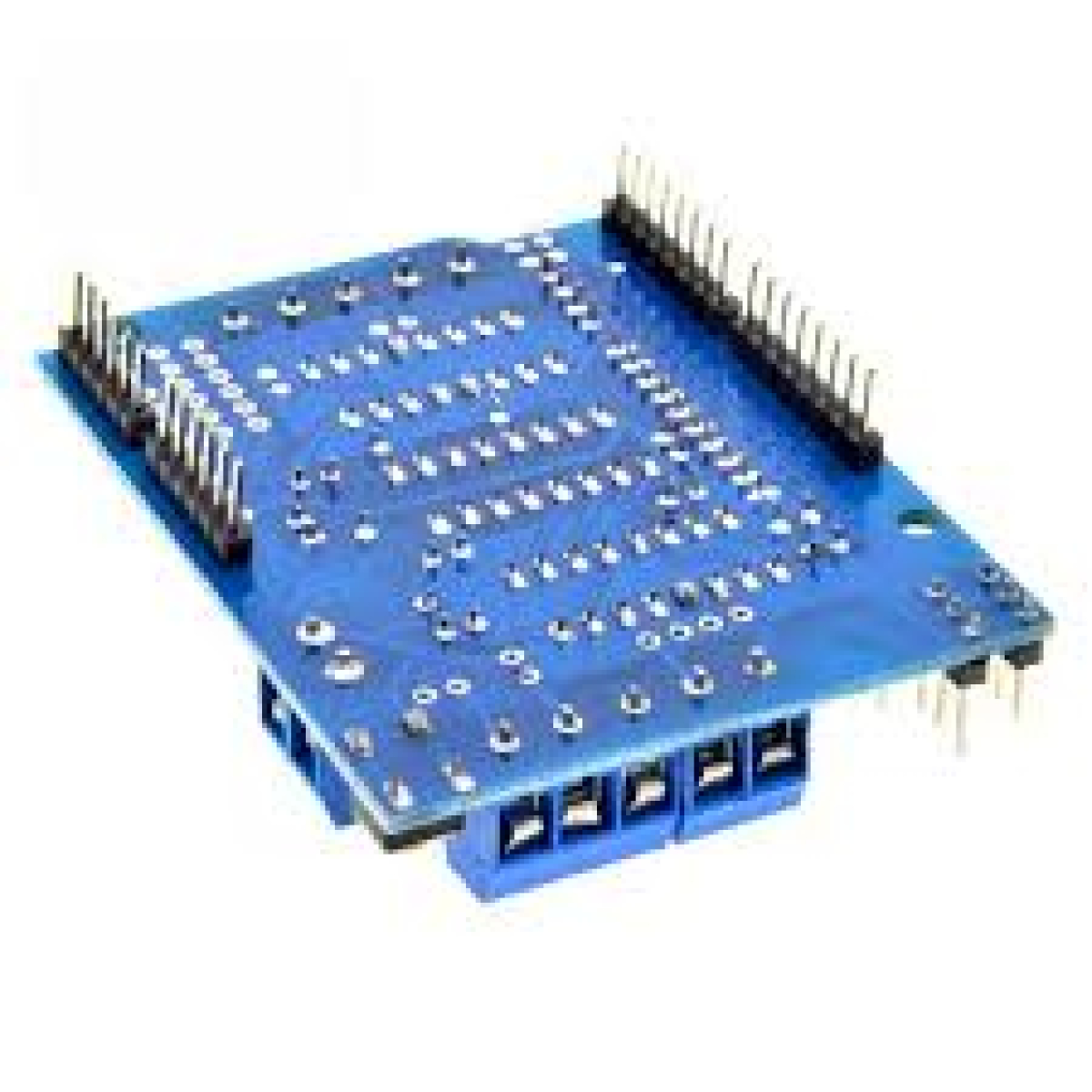

L293D MOTOR DRIVE SHIELD

Features :

  1. 2 connections for 5V ‘hobby’ servos connected to the Arduino’s high-resolution dedicated timer
  2. 4 H-Bridges: L293D chipset provides 0.6A per bridge (1.2A peak) with thermal shutdown protection, internal kickback protection diodes. Can run motors on 4.5VDC to 25VDC.
  3. Up to 4 bi-directional DC motors with individual 8-bit speed selection (so, about 0.5% resolution)
  4. Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil, or interleaved stepping.
  5. Pull-down resistors keep motors disabled during power-up
  6. Big terminal block connectors to easily hook up wires (18-26AWG) and power
  7. Arduino reset button brought up top
  8. 2-pin terminal block and jumper to connect external power, for separate logic/motor supplies
  9. Tested compatible with Arduino Mega 1280 & 2560, Diecimila, Duemilanove, and UNO
  10. Download the easy-to-use Arduino software library, check out the examples and you’re ready to go!

18 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

The L293D Motor Driver/Servo Shield for Arduino is probably one of the most versatile on the market and features 2 servo and 4 motor connectors for DC or stepper motors. That makes it a great shield for any robotic project.

This ARDUINO compatible motor Driver shield is a full-featured product that it can be used to drive 4 DC motor  or two 4 wire steepers and two 5v servos. It drives the DC motor and stepper with the L293D, and it drives the servo with Arduino pin9 and pin10.

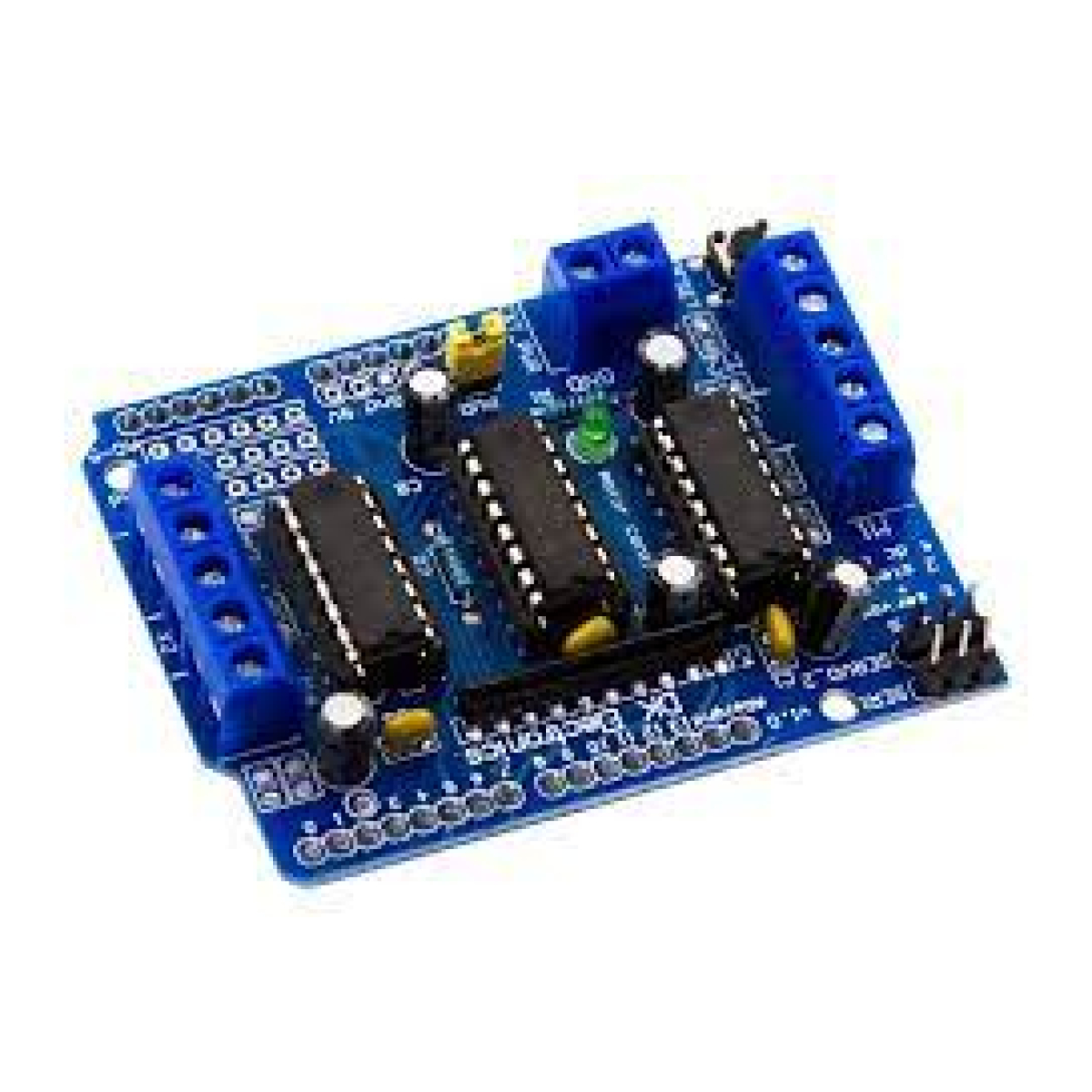

The shield contains two L293D motor drivers and one 74HC595 shift register. The shift register expands 3 pins of the Arduino to 8 pins to control the direction of the motor drivers. The output enables the L293D is directly connected to the PWM outputs of the Arduino.

Firmware
  1. ARDUINO STEPPER/SERVO SOFTWARE LIBRARY WITH MICROSTEPPING SUPPORT.
    To install, click on Download in the top right corner, select zip and uncompress the folder.
    Rename the folder to AF-motor (check that the renamed folder contains the .cpp and .h files) and install it into the Arduino sketches/libraries folder. FOR INFROMATION ON HOW TO USEA ND INSTALL LIBRARIES SEE OUR TUTORIALS This version now works with the Mega. Public domain!
  2. ACCEL STEPPER LIBRARY with AFMotor support. This library allows for advanced stepper control including acceleration and deceleration, and concurrent stepper control!
    To install, click on Download in the top right corner, select zip and uncompress the folder.
    Rename the folder to AF-motor (check that the renamed folder contains the .cpp and .h files) and install it into the Arduino sketches/libraries folder.
Additional information
Logic control voltage Vss

4.5~5.5V

Dimensions in mm (LxWxH)

70 X 54 X 18

Weight (g)

35

Shipping Weight

0.037 KG
