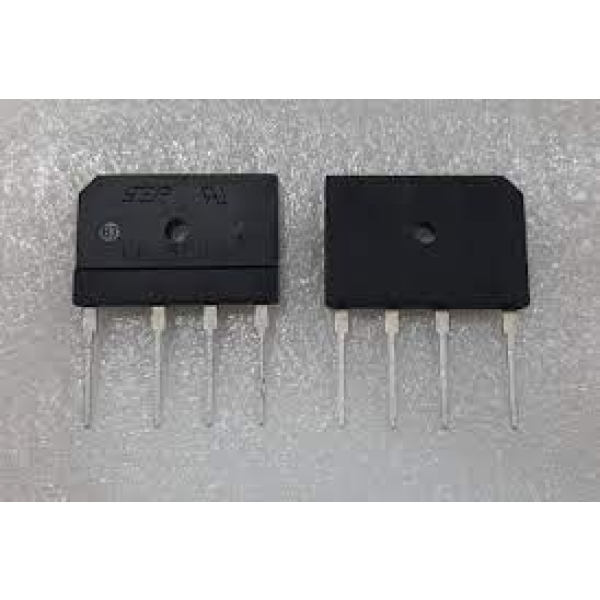

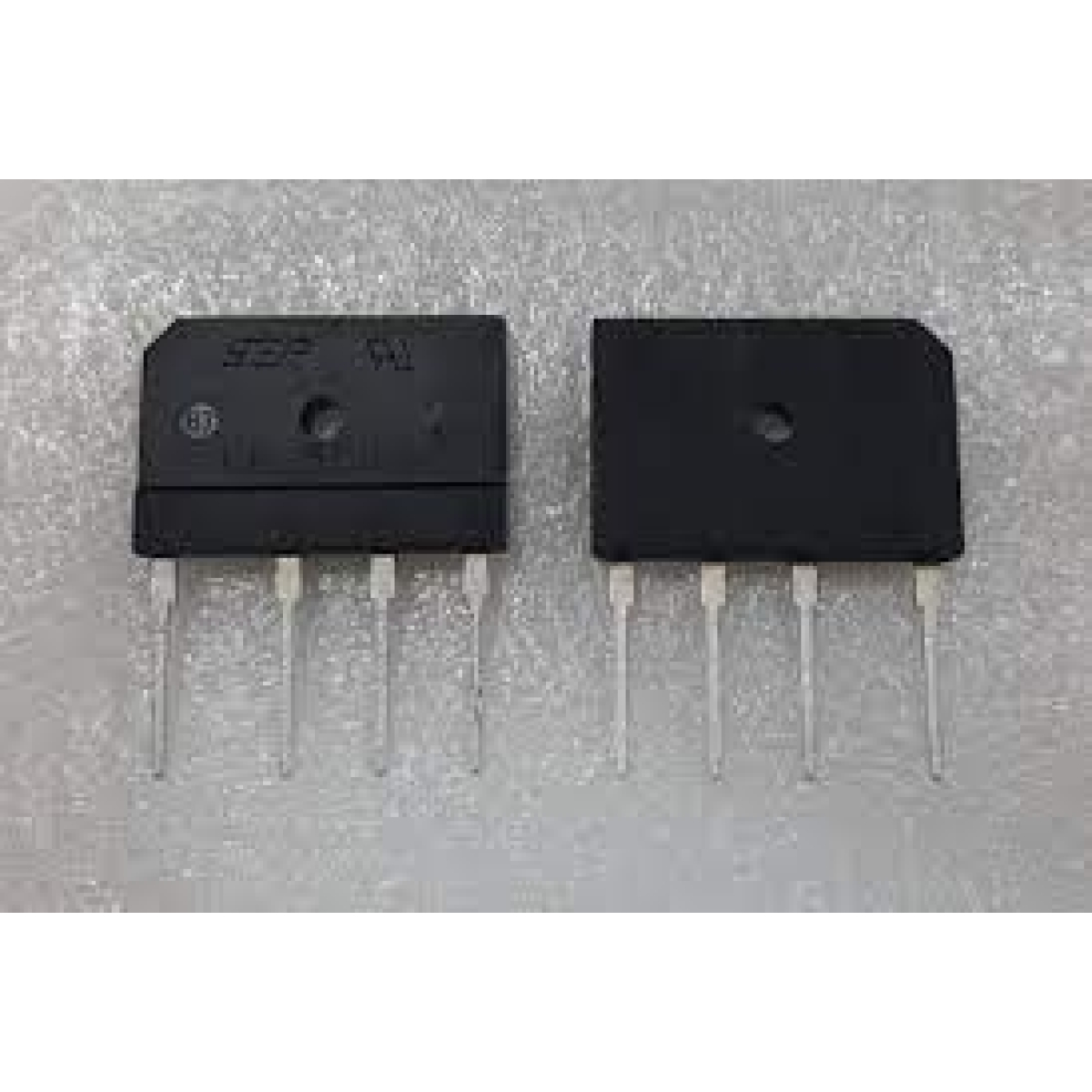

KBJ5010 Bridgediode SEP China/singli

Features

  • Rating to 1000V PRV
  • Ideal for printed circuit board
  • Low forward voltage drop, high current capability
  • Reliable low cost construction utilizing molded plastic  technique results in inexpensive product

20 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

Single Phase Bridge Rectifier is the KBJ5010. This IC can be utilised for a variety of applications because its maximum input AC RMS voltage is 700V. This IC can withstand a maximum average current of about 50A. This IC features a low forward voltage loss of 1.1V and a reverse breakdown value of 1000V. It is highly efficient and can handle 400 A of surge current. This can be a decent option if you’re seeking for a small IC for rectification applications.
The uninterruptible power supply, led and LCD TVs, audio amplifiers, and radios are the principal applications for this single phase bridge rectifier.

Additional information
Working Peak Reverse Voltage

1000V

RMS Reverse Voltage VR(RMS)

700V

Maximum DC Blocking Voltage

1000V

Average Forward Rectified Output Current

50A

Operating and Storage Temperature Range

-40°C TO 150°C
