| Operating voltage (v) |
5 ~ 10 |
|---|---|
| Current consumption |
normal operation < 1.5mA |
| Operating Temperature (°C) |
-40 ~ +85 |
| Length (mm): 34.3 Width (mm): |
34.3 |
| Width (mm): |
20 |

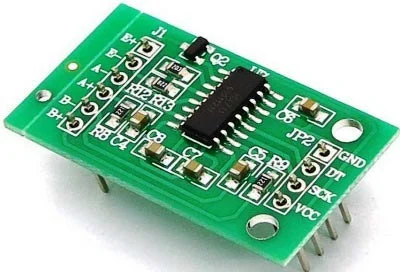

The HX711 Dual-Channel 24 Bit Precision A/D weight Pressure Sensor is a Load Cell Amplifier breakout board; for the HX711 IC that allows you to easily read load cells to measure weight. By connecting the module to your microcontroller you will be able to read the changes in the resistance of the load cell; and with some calibration. You’ll be able to get very accurate weight measurements.
- Output Sensitivity: 1.0 ± 0.1 mV / V.
- Two selectable differential input channels.
- On-chip active low noise PGA with the selectable gain of 32, 64 and 128.
- On-chip oscillator requiring no external component with optional external crystal.
- On-chip power-on-reset.
- Measurement Resolution: 24 bit.
