Thrust Limitation |
11.8kg/Axis (46V, Sea Level) |
---|---|
Weight Lift |
3.5-5.5kg/Axis (46V, Sea Level) |
LiPo Battery Cell Count |
12-14S |
Motor KV |
150rpm/V |
Stator Size (mm) |
62×18 |
Operating Temperature (°C) |
-20~50 |
Compatible Prop (inch) |
2480 |
Shipping Dimensions |
30 × 20 × 10 cm |

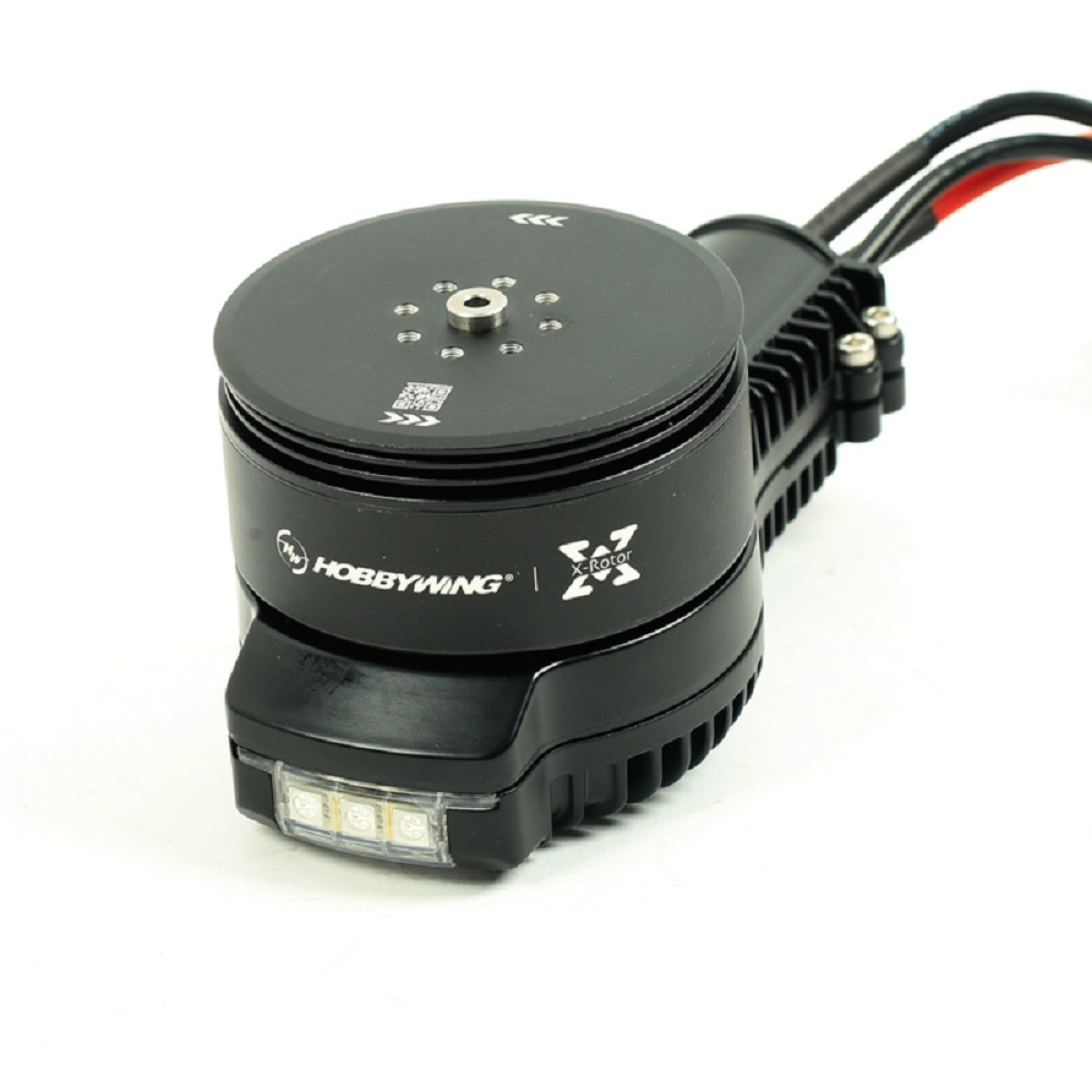

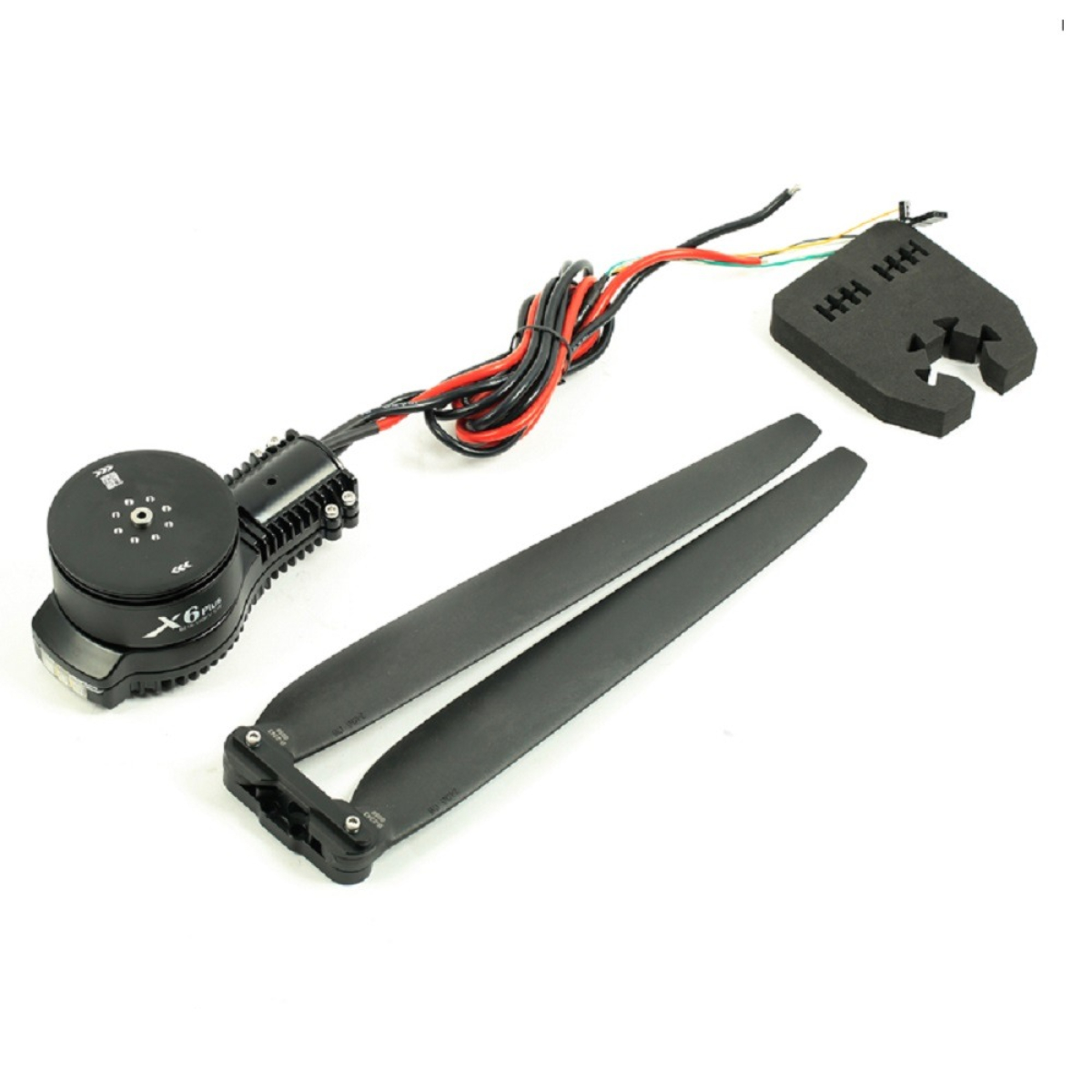

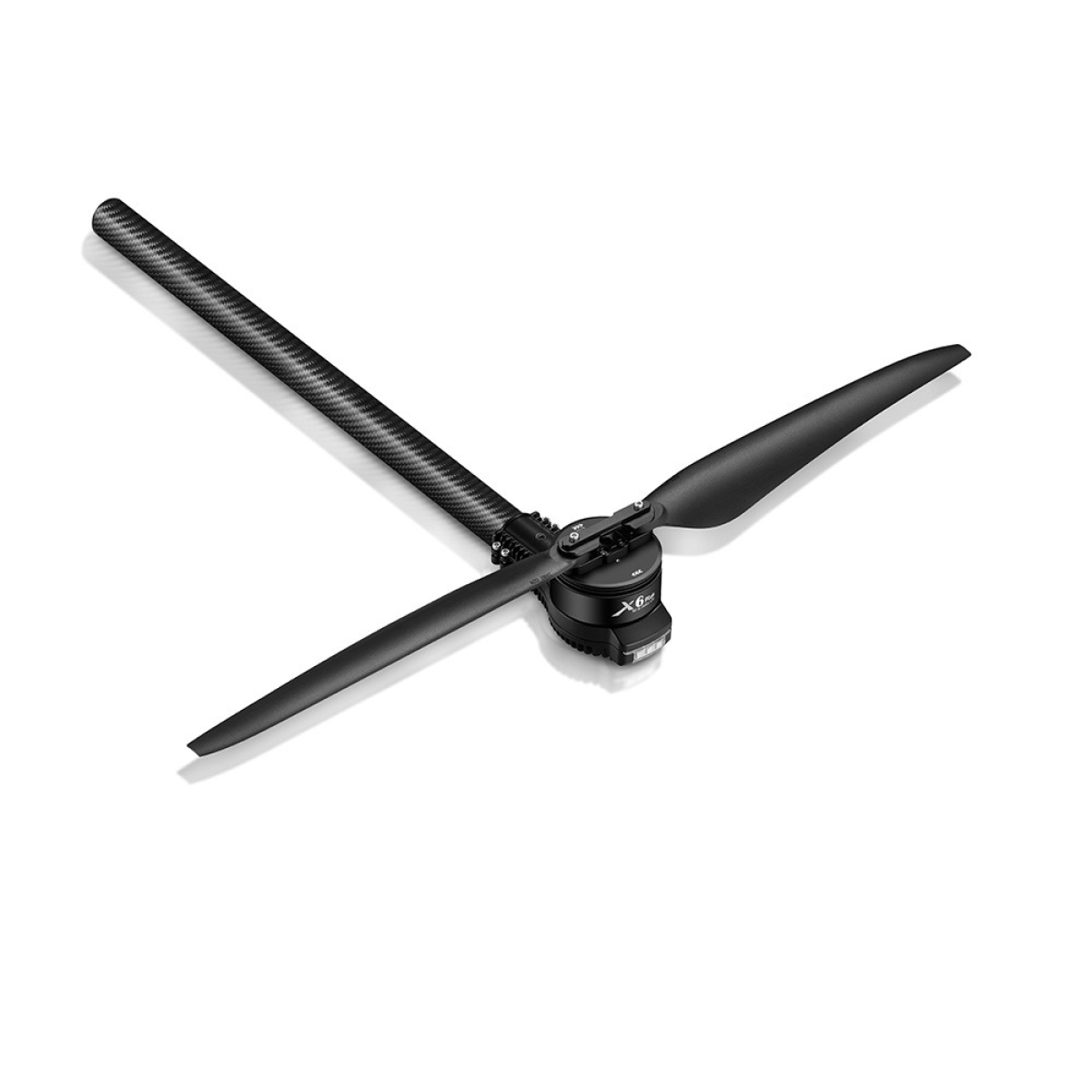

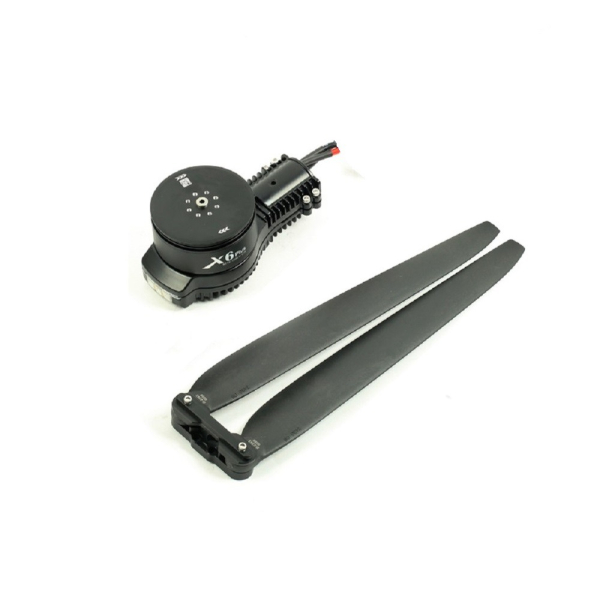

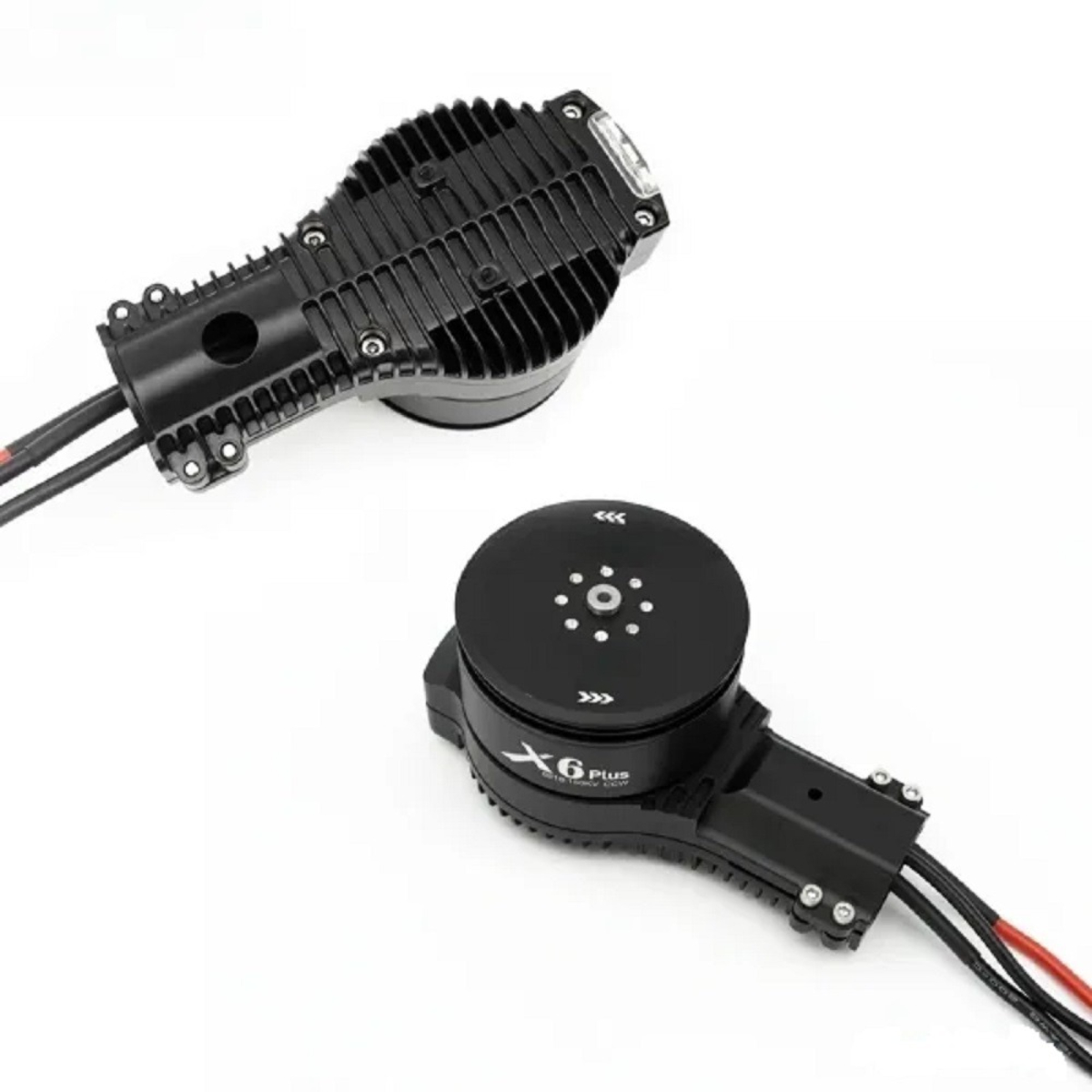

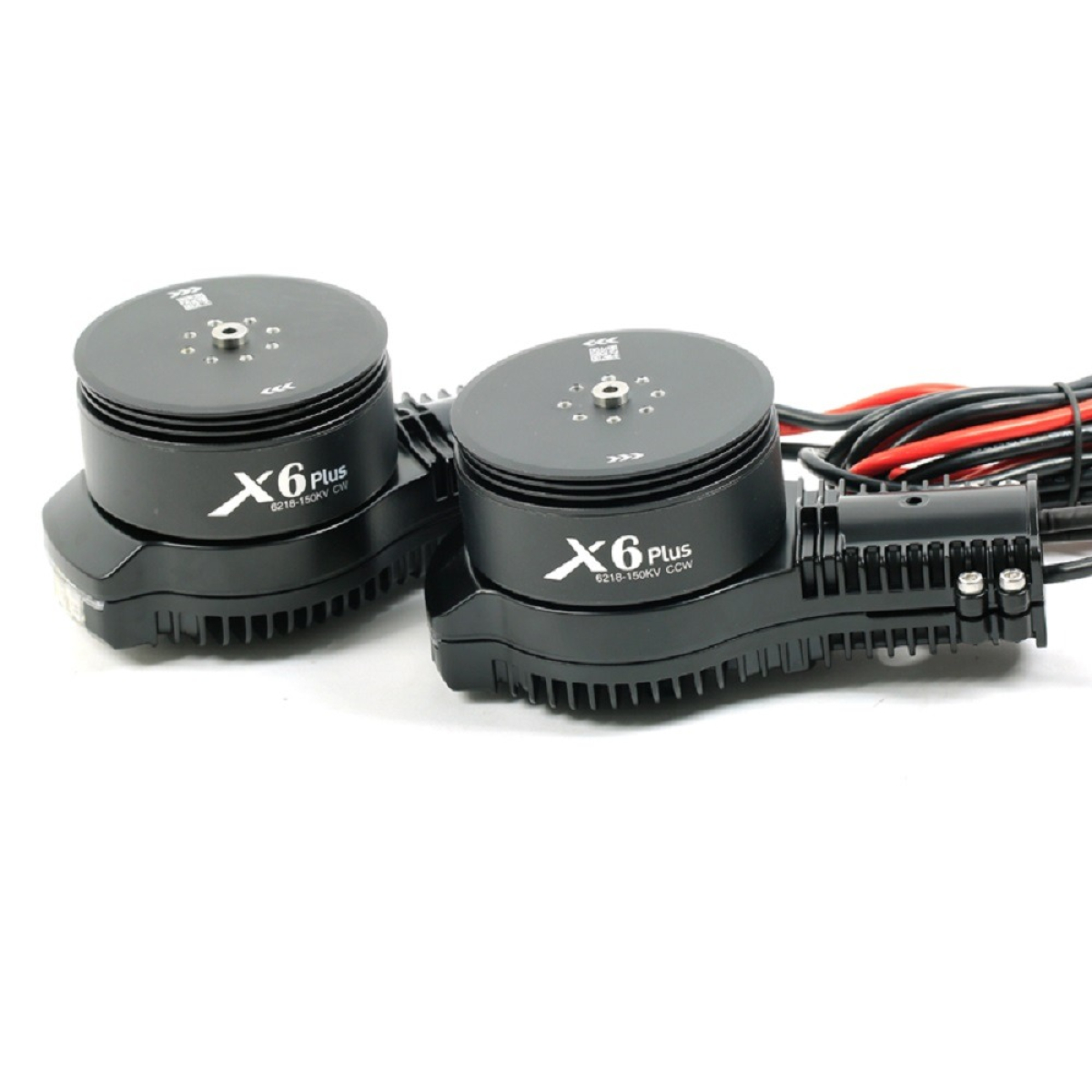

The XRotor X6 brushless power system is a power system capable of carrying a load of 3~5kg (per axis) for agricultural drones. It can provide a thrust of up to 11.9kg and match 28/30mm carbon fiber tube arms. It’s waterproof and dustproof to IPX7 standard and resistant to rainwater, pesticides, salt spray, sand, dust, mud, sandy soil, high temperature, and impact. Hobbywing XRotor X6 Plus also features the algorithm used for optimizing the FOC ESC & motor system and making the system more balanced, multiple protections like power-on self-detection, power-on abnormal voltage, over-current, and motor lock-up, and the real-time data output function.
