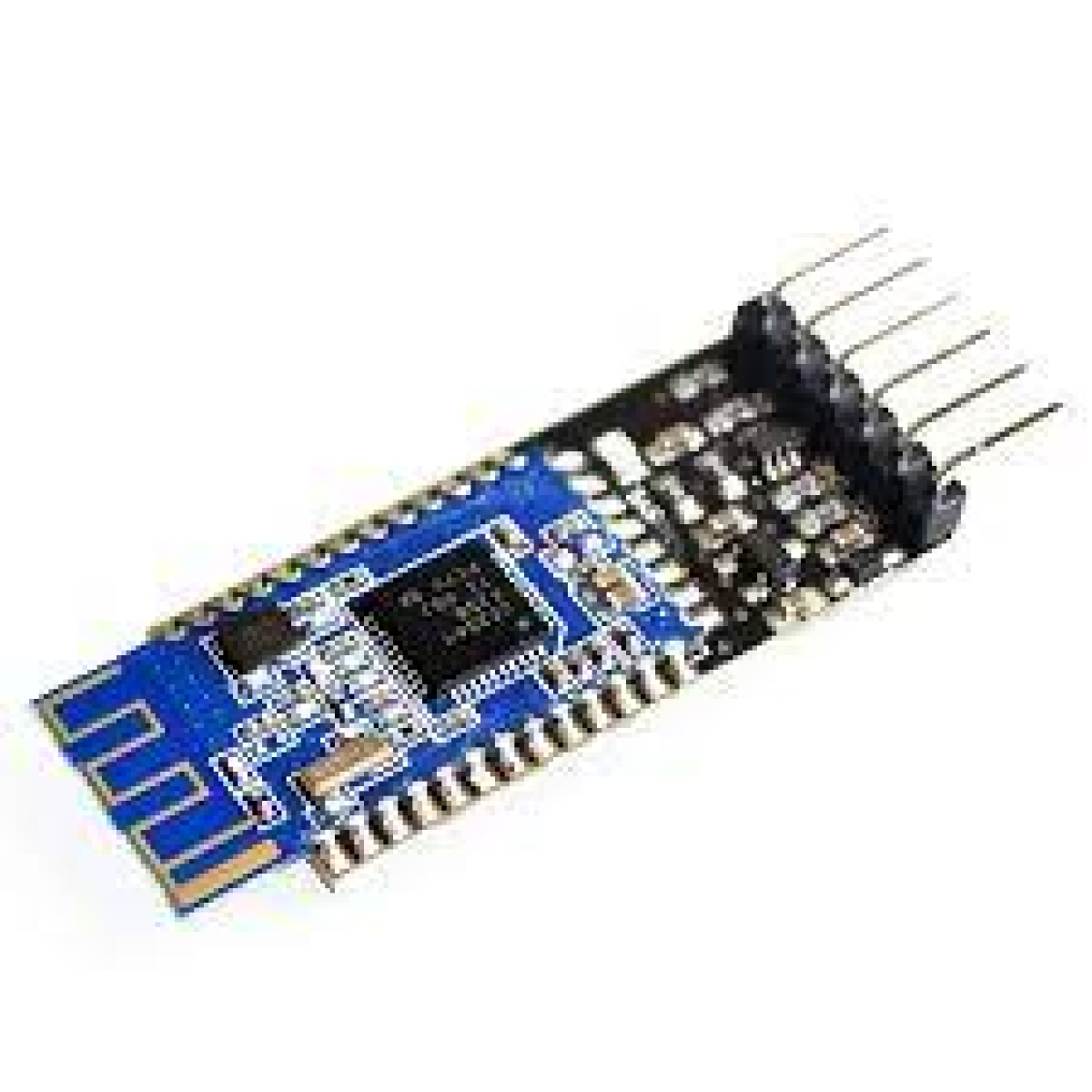

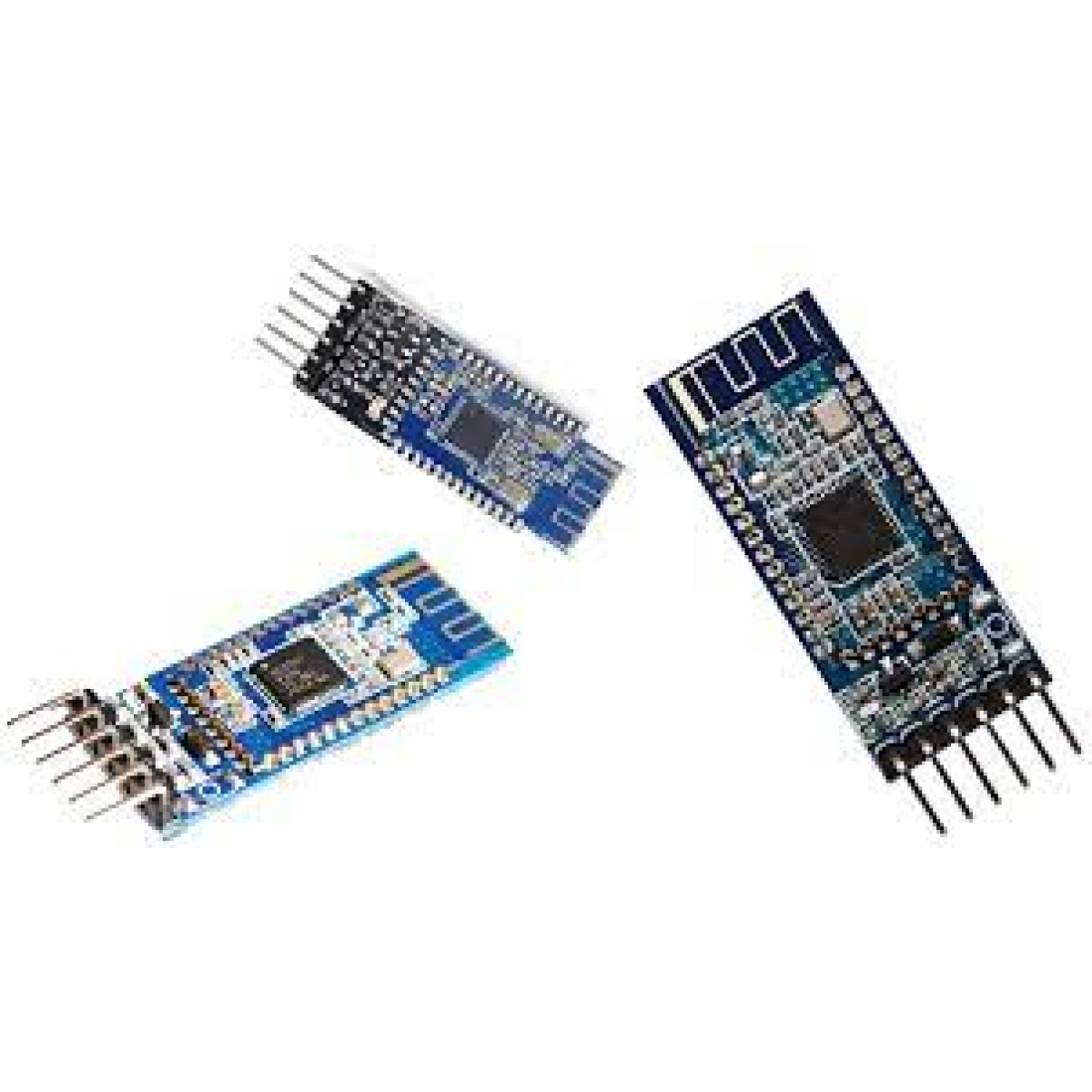

HM-10 BLE 4.0 Bluetooth Module with TTL

The HM-10 BLE 4.0 Bluetooth Module with TTL combines the powerful and programmable Texas Instruments CC2541 Chipset with the required components to start right away with your BLE development. The module offers an on-board voltage regulator and is TTL-level and 5 V tolerant. The Bluetooth-SoC can be accessed via UART interface and supports AT-Commands for setup. It supports full Bluetooth 4.0 standard and can be used for your Arduino or microcontroller to Android or iOS communication projects. This module can be used to replace HC-05, HC-06 and HC-07 devices. This module can also be configured and used as an iBeacon used with Apple devices.

Add to wishlist
Compare
19 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

  • BT Version: Bluetooth Specification V4.0 BLE
  • Send and receive no bytes limit.
  • RF Power: -23dbm, -6dbm, 0dbm, 6dbm, can modify through AT Command AT+POWE.
  • Speed : Asynchronous – 2.1Mbps(Max) / 160 kbps, Synchronous – 1Mbps/1Mbps(Max)
  • Long range: Open space have 100 Meters with iphone4s
  • Power: In sleep mode 400uA~1 .5mA, Active mode 8.5mA.
  • Interface: Dual USB 2-Port
  • support Central and Peripheral mode switch, modify by AT commander
  • UART interface and with baud rate setup function
Additional information
Input Supply voltage (V)

+3.3VDC
Input current (mA)

50
Operating Frequency

2.4GHz ISM band
Working temperature

–5 ~ +65 DegC
