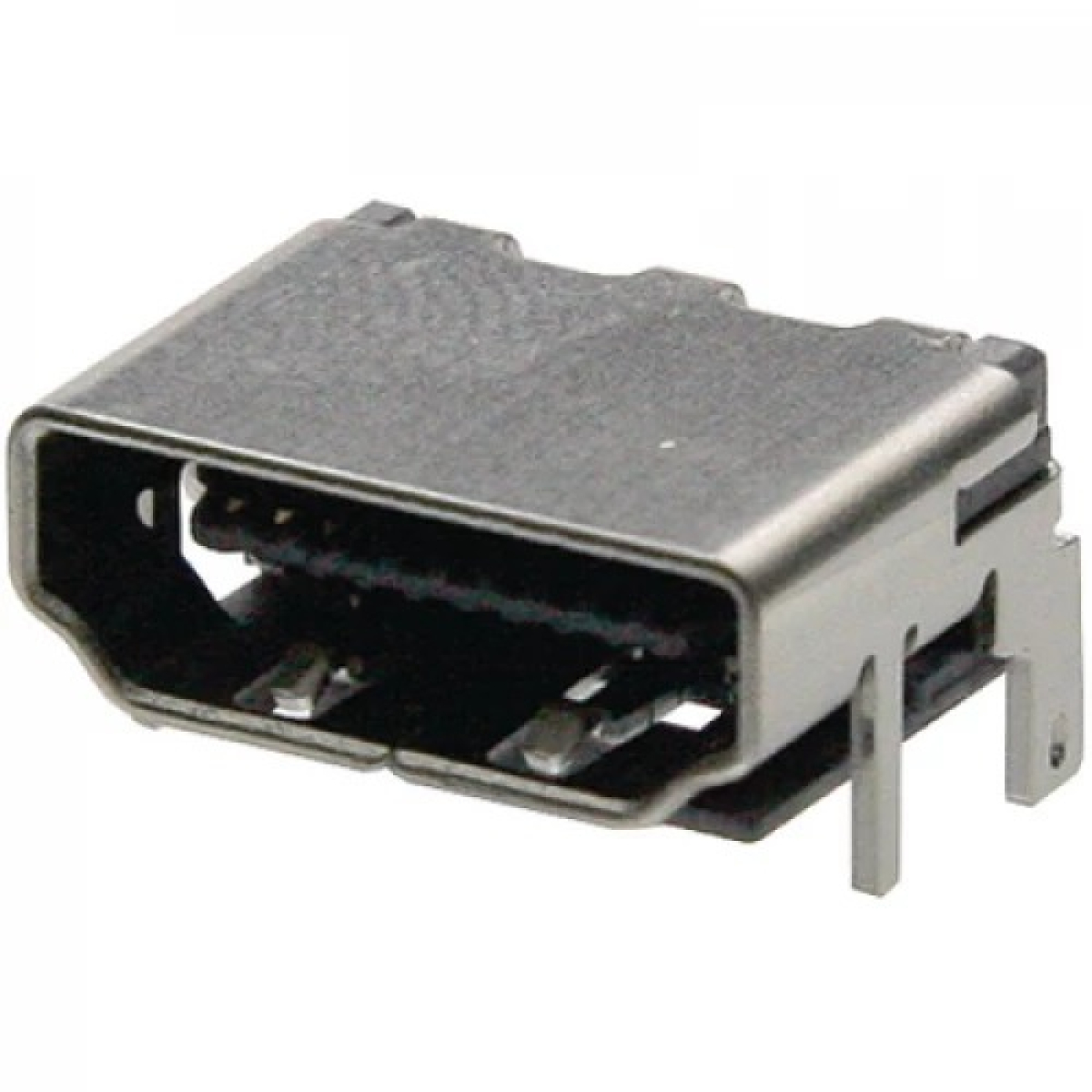

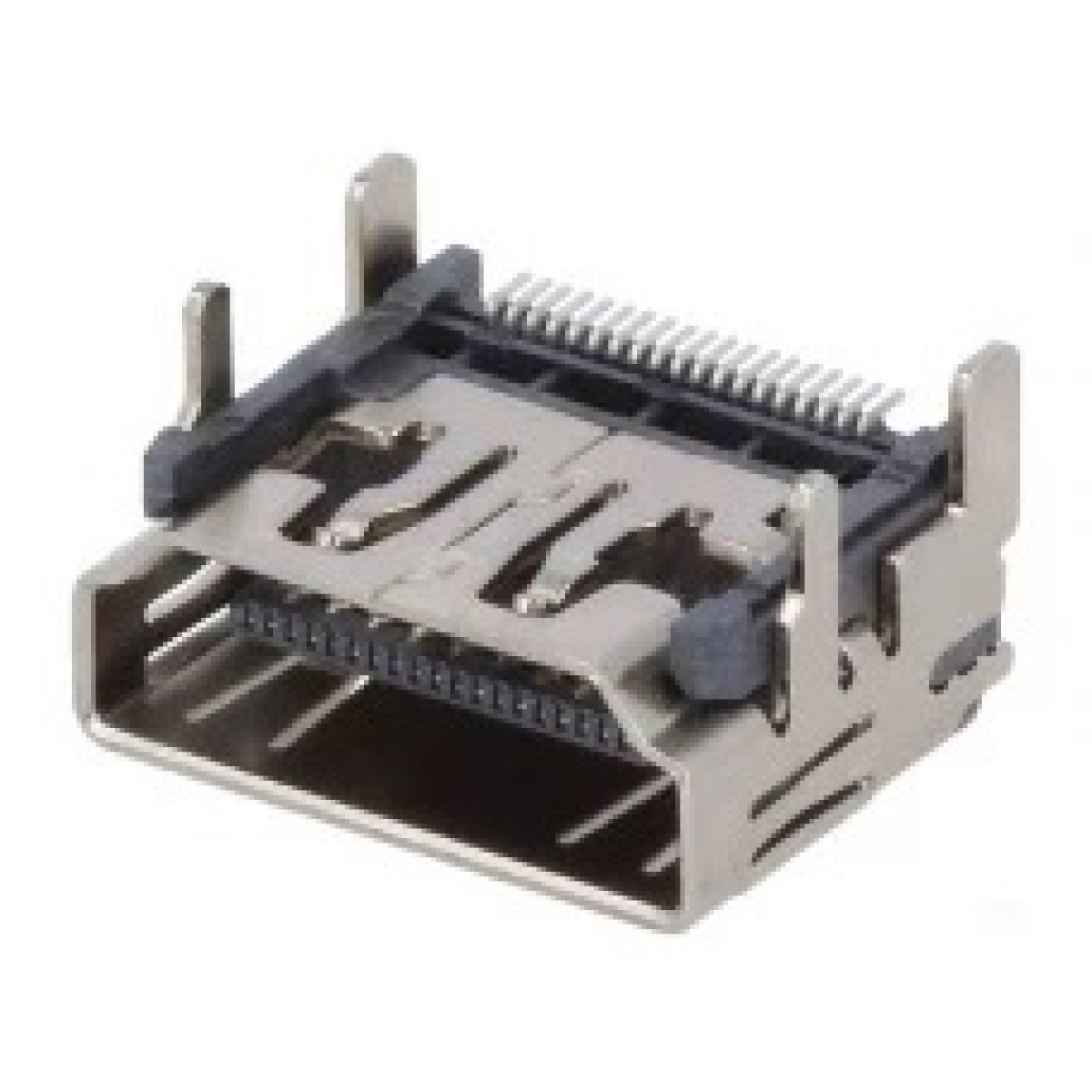

HDMI FEMALE SOCKET

HDMI connector 19P socket 90°C to PCB, SMD Contact resistance 50mOhm max. Insulation resistance 100M Ohm min

Add to wishlist
Compare
14 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

  • Contact resistance: 50mOhm max.
  • Insulation resistance: 100MOhm min.
  • Insulation material: thermoplastic
  • Contact material: Copper alloy
  • Operational temperature: -40°C .. 105°C
  • Female HDMI Socket
  • Number of Terminals: 19
  • Body Orientation: Right Angle
  • Maximum Current Rating (A): 0.5
  • Maximum Voltage Rating: 30VAC
Additional information
Contact resistance

50mOhm max.
Insulation resistance:

100MOhm min.
Operational temperature

-40°C .. 105°C
