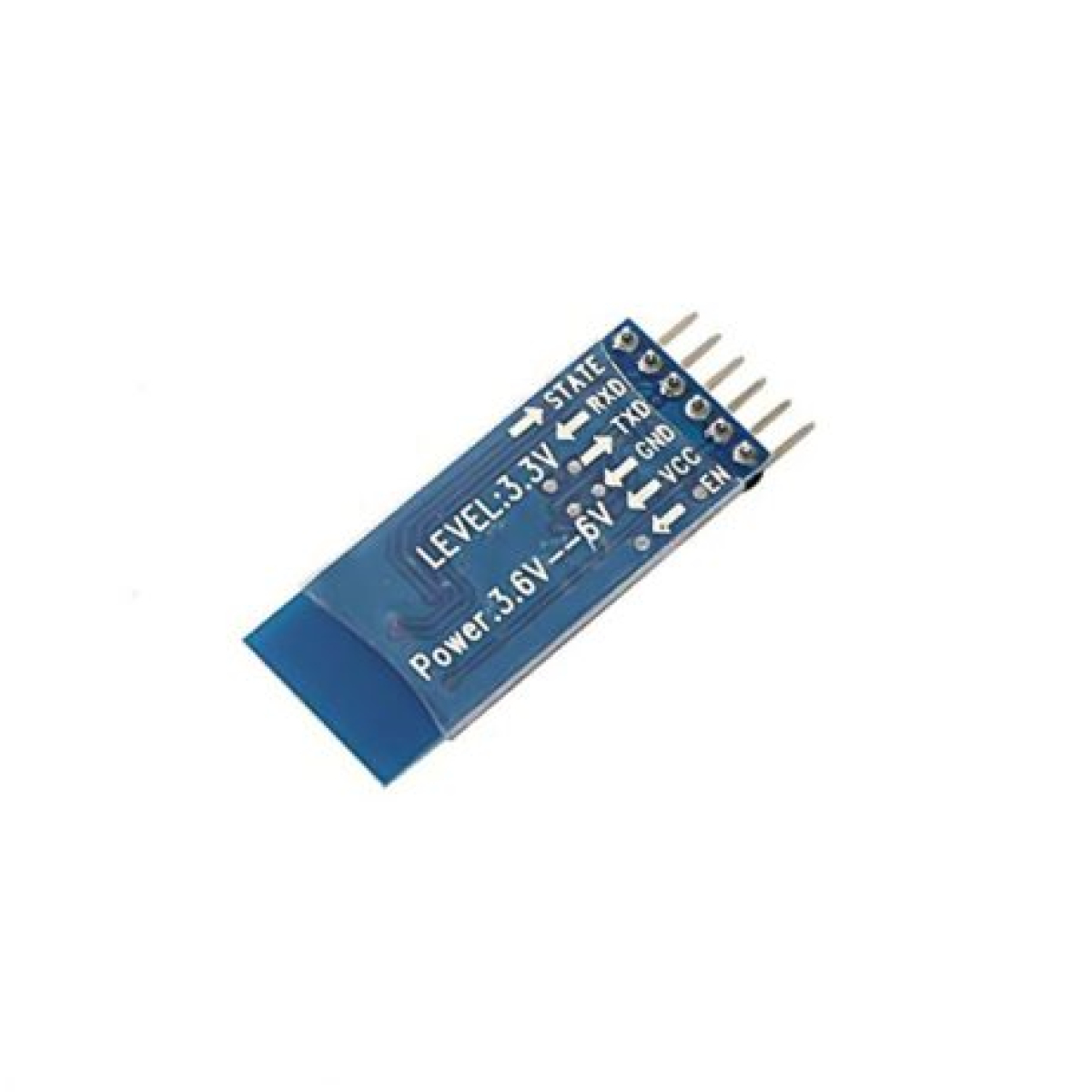

HC-06 TTL Bluetooth Transceiver Module

Name: HC-06 TTL Bluetooth Transceiver Module
SKU: 3349
Availability: InStock

The Bluetooth Transceiver HC-05 TTL Module with enable/disable button Breakout is the latest Bluetooth wireless serial cable! This version of the popular Bluetooth uses the HC-05/HC-06 module. These modems work as a serial (RX/TX) pipe.The remote unit can be powered from 3.3V up to 6V for easy battery attachment. All signal pins on the remote unit are 3V-6V tolerant. No level shifting is required.

Add to wishlist

Compare

13 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

CSR Bluetooth Chip Solution
Bluetooth Spec v2.0 EDR Compliant
Enhanced Data Rate (EDR) compliant with V2.0.E.2 of the specification for both 2Mbps and 3Mbps modulation modes
Full Speed Bluetooth Operation with Full Piconet Support and Scatternet Support
Incredible small size with 3.3V input, and RoHS Compliant
UART interface and with baud rate setup function
Support for 8Mbit External Flash Onboard
Support for 802.11Co-Existence.
A range of operation: 8 – 10 meter.
