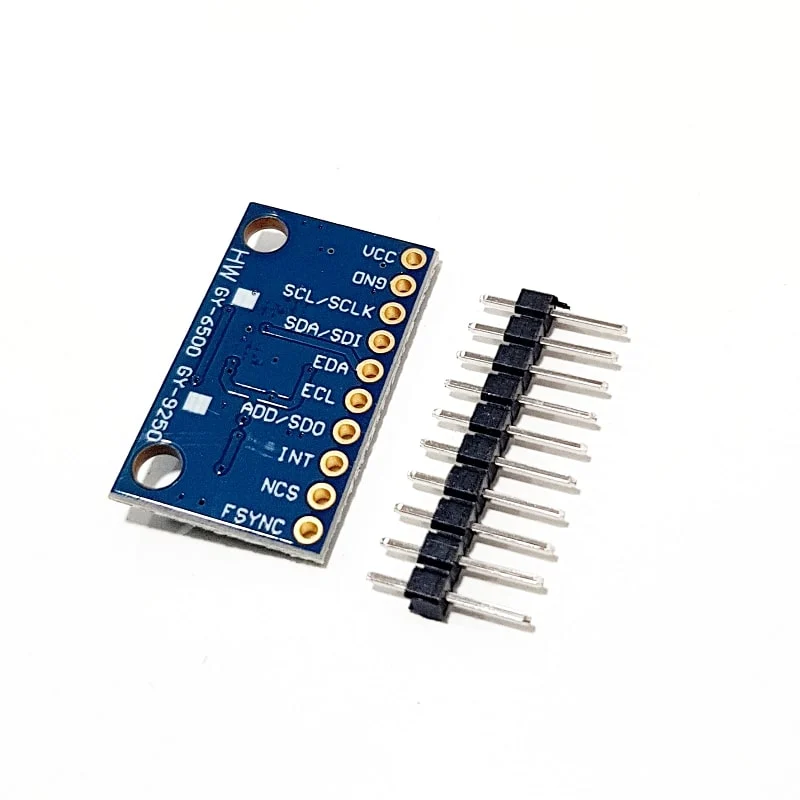

GY – 9250 MPU-9250 9 Axis Sensor Module Gyro+Accel+Magn

Name: GY - 9250 MPU-9250 9 Axis Sensor Module Gyro+Accel+Magn
SKU: 4618
Availability: InStock

MPU9250 9-Axis Attitude Gyro Accelerometer Magnetometer Sensor Module features the MPU-9250, which is a multi-chip module (MCM) consisting of two dies integrated into a single QFN package. One die houses the 3-Axis accelerometer and gyroscope. The other die houses the AK8963 3-Axis magnetometer. Hence, the MPU-9250 is a 9-axis Motion Tracking device that combines a 3-axis accelerometer, gyroscope and magnetometer, and a Digital Motion Processor (DMP). It is based on I2C Address, Address: 0x68 by default, 0x69 if AD0 is pulled high.

Add to wishlist

Compare

10 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

Accelerometer, Gyroscope, and Magnetometer
9 DOF module
Build-in ultra-low noise linear LDO voltage regulator.
Built-in onboard filters, which reduce noise from the motor and other high current electronics.
All sensors are connected to the I2C bus.
Build-in the Logic level converter for I2C.
Power indicator LED.
Using Immersion Gold PCB, machine welding process to ensure quality.
On-board pull-up resistors on SDA, SCL, and nCS
On-board pull-down resistors on FSYNC and AD0

Additional information

Power Supply	4.4 to 6.5 V or 3.3V (if you solder the solder jumper near the on-board voltage regulator)
Gyro range	± 250 500 1000 2000 ° / s
Acceleration range	± 2 ± 4 ± 8 ± 16g
Magnetic field range	± 4800uT
Degree of Freedom (DOF)	9
