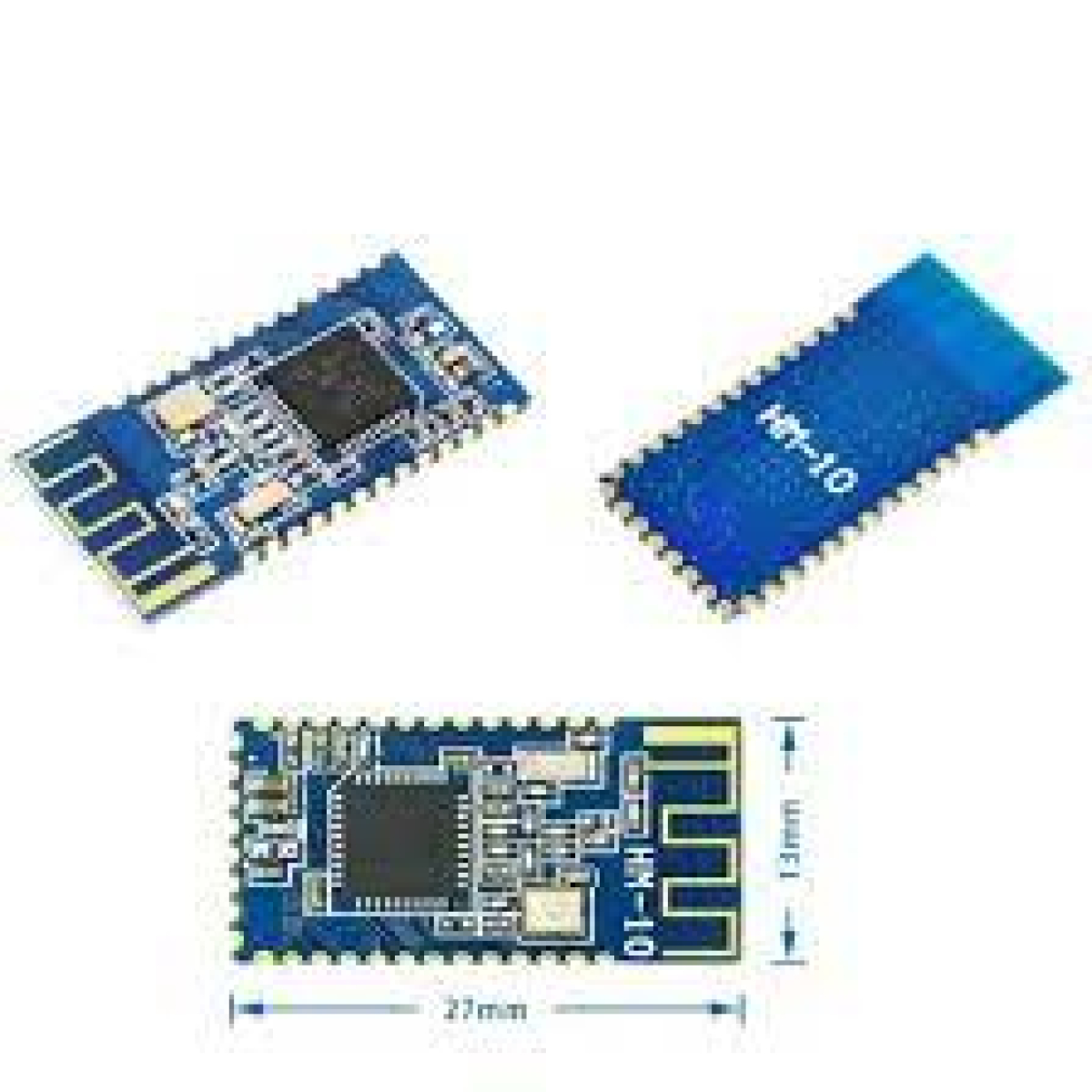

The HM-10 is a readily available Bluetooth 4.0 module, which can configure as either Master or slave. This module is used for establishing wireless data communication. The module is designed by using the Texas Instruments CC2540 or CC2541Bluetooth low energy(BLE) System on Chip (SoC). You can use it simply for a serial port replacement to establish connection between MCU, PC to your embedded project and etc.
Working Hours
| Brand | CHINA |
| Part Number | HM10 |
| Current | 14 A |
| Working Frequency | 2.4 GHz |
| Dimension | 15.2 x 15.2 x 5.1 cm |
| Model Number | HM-10 |
| Working Temperature | -5 ~ 65 Degree C |
| Voltage | 3.3 V to 5 V |
| Frequency | 20-50 kHz |
| BT Version |
V4.0 BLE |
|---|---|
| Working frequency |
2.4GHz ISM band |
| RF POWER |
-23dbm, -6dbm, 0dbm, 6dbm |
| POWER |
+2.5V~3.5VDC 50mA |
