FORCE SENSOR Round 12.7mm Chn

Name: FORCE SENSOR Round 12.7mm Chn
SKU: 4949
Availability: InStock

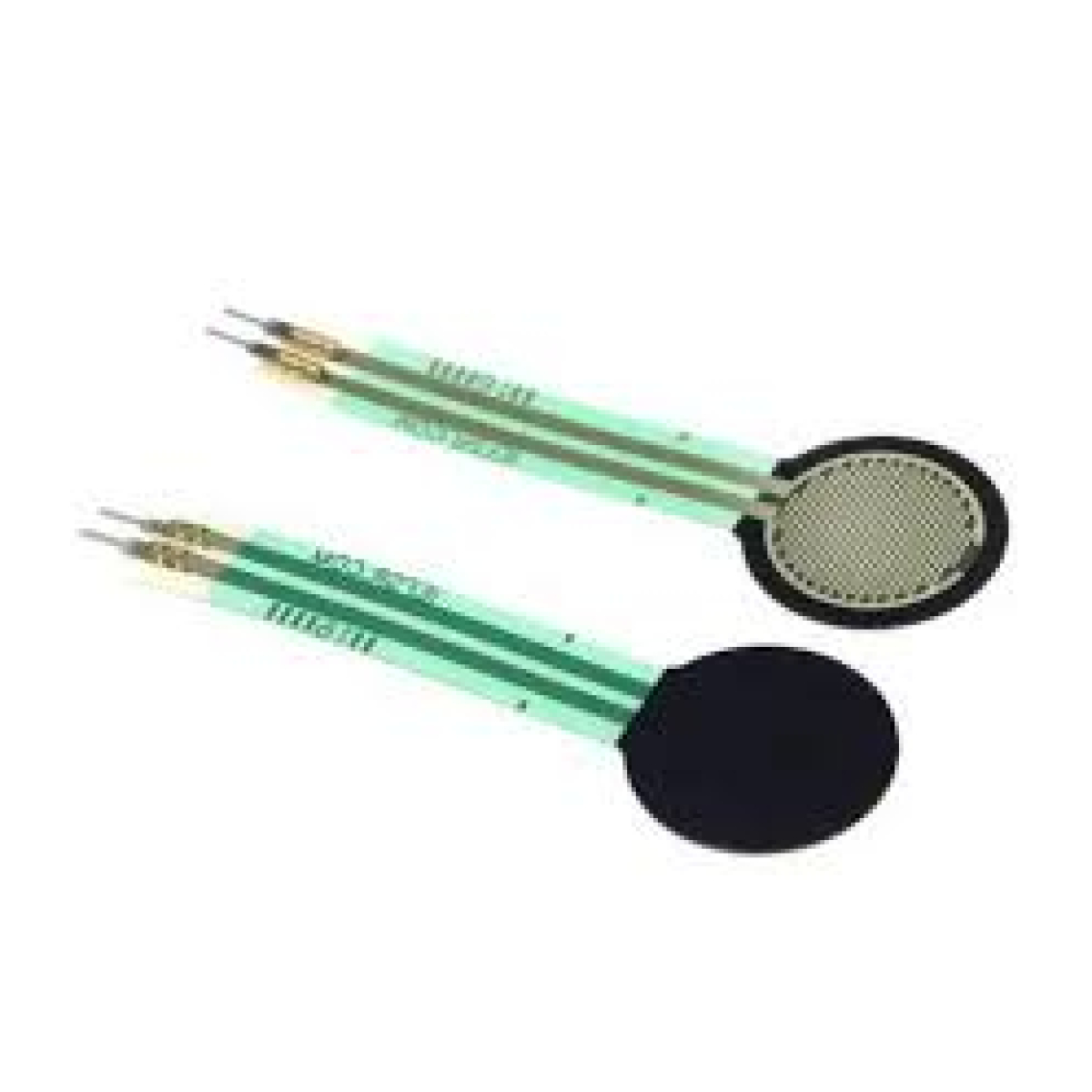

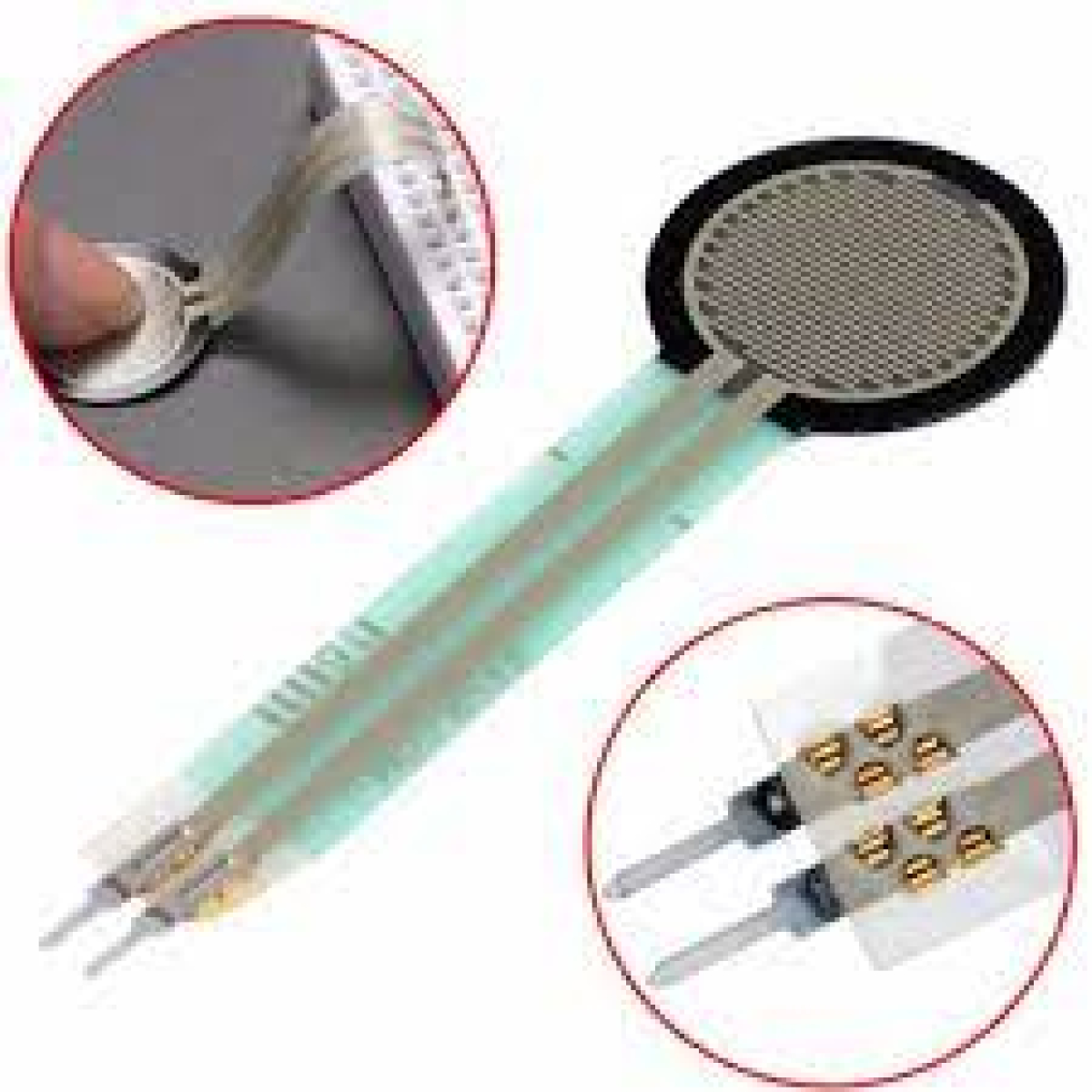

Get the high-quality Force pressure sensor 0.5-inch diameter at a low price. This is a force-sensitive resistor with a round, 0.5″ diameter, sensing area. This FSR will vary its resistance depending on how much pressure is being applied to the sensing area.

The harder the force, the lower the resistance. When no pressure is been apply to the FSR its resistance will be larger than 1MΩ. This FSR can sense applied force anywhere in the range of 100g-10kg.

Two pins extend from the bottom of the sensor with 0.1″ pitch making it bread friendly. There is a peel-and-stick rubber backing on the other side of the sensing area to mount the FSR. Just Connect a resistor to form a voltage divider and measure the voltage at the junction to find the force applied.

Add to wishlist

Compare

15 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

Easily customizable to a wide range of sizes.
Cost-effective.
Ultra-thin: 0.45 mm.
Robust: up to 10 million actuations.
Simple and easy to Integrate.
Actuation force as low as 0.1N and sensitivity range to 10N
Easily customizable to a wide range of sizes
Highly repeatable force reading; as low as 2% of initial reading with repeatable actuation system
TTL compatible and optically isolated input.
Simple and easy to integrate
Testing and Measurement Equipment
Embedded Electronics
OEM Development Kit
Consumer Electronics
Multimeter.
