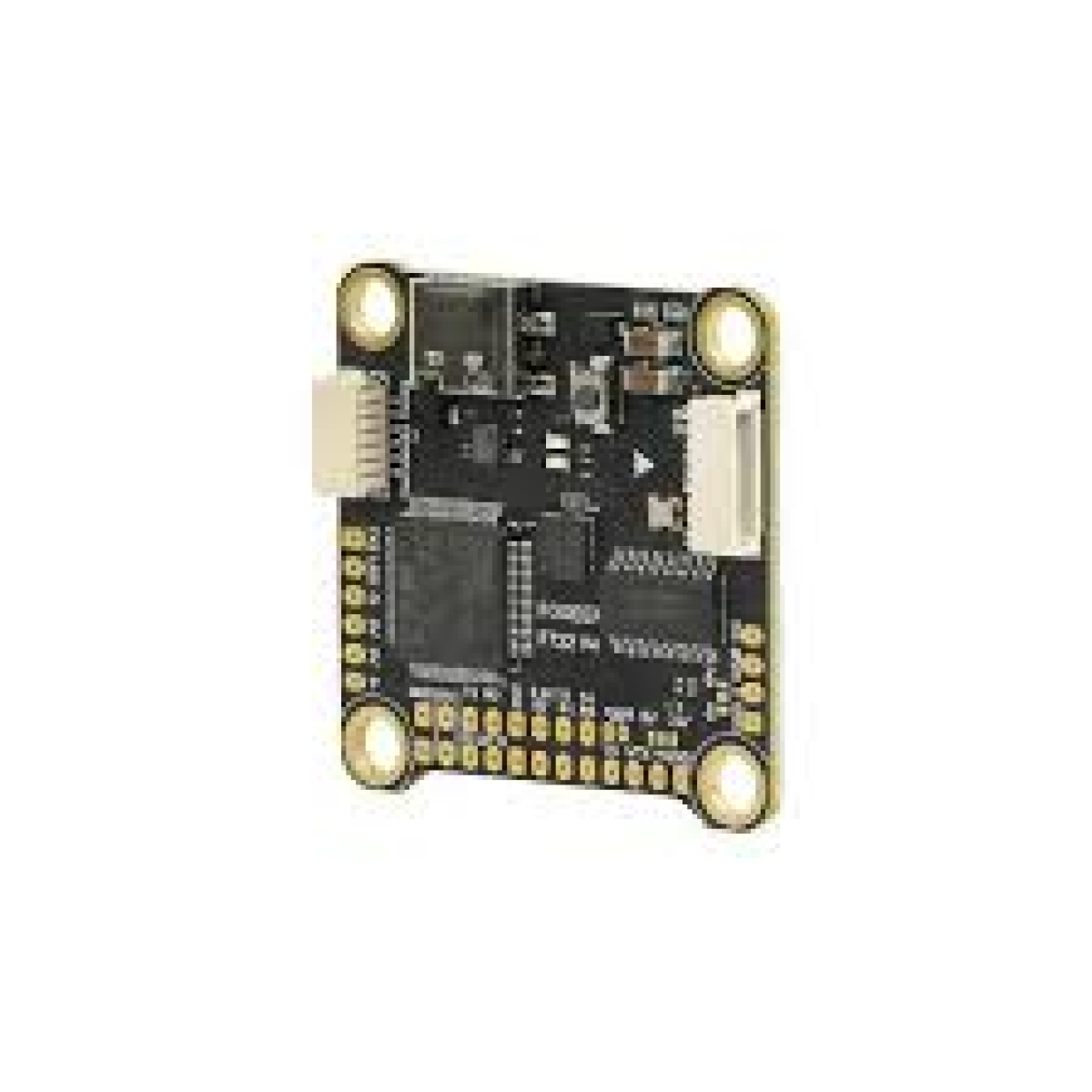

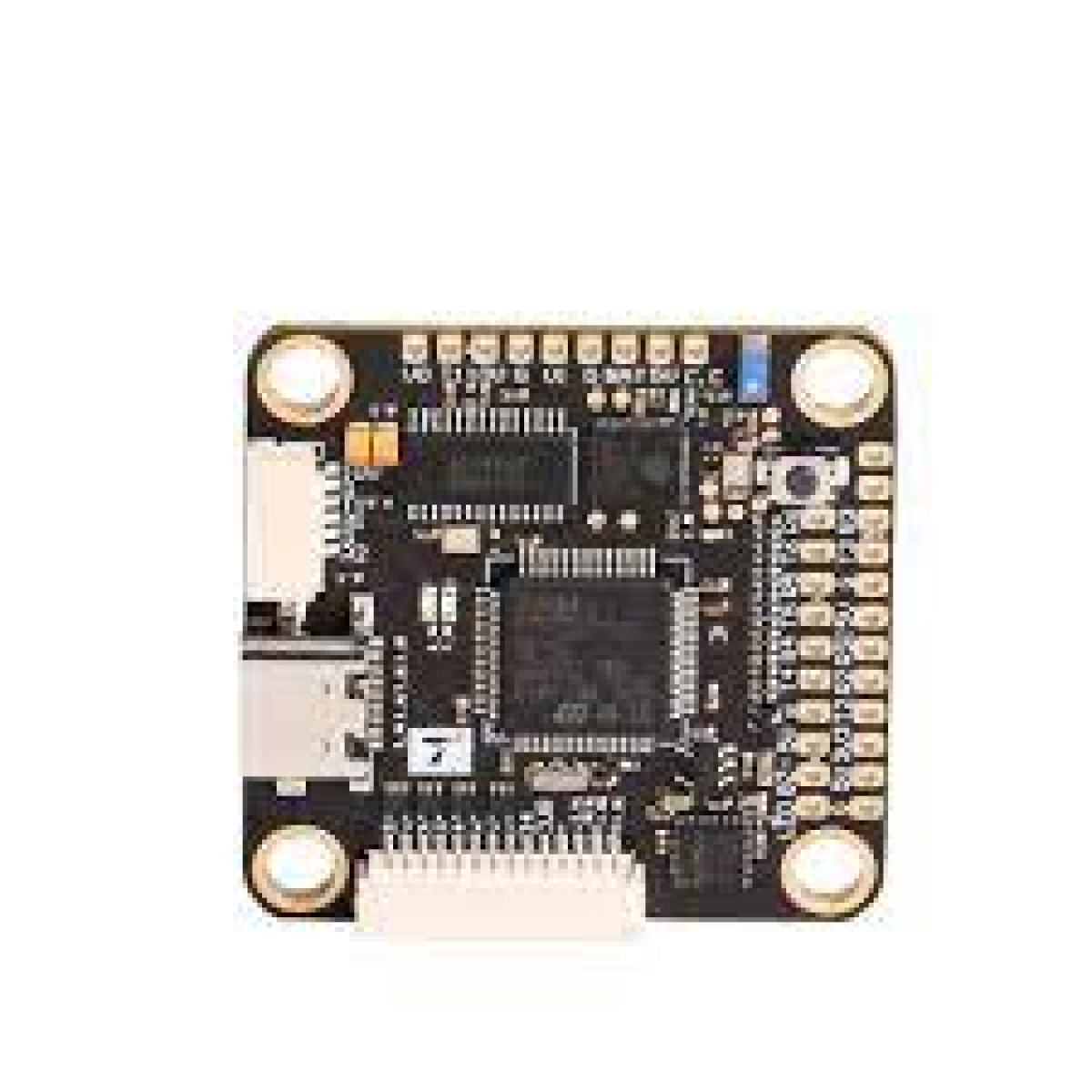

F7 flight controller

SKU: ARS- FC - 243
  1. It Supports 3S-6S Lipo battery voltage input
  2. Multiple connectivity options (UART, 12C, SPI)
  3. Integrated OSD for on-screen display
  4. Compact design for effortless installation in various drone frames
  5. Built-in buzzer for easy locating and recovering our drone

15 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

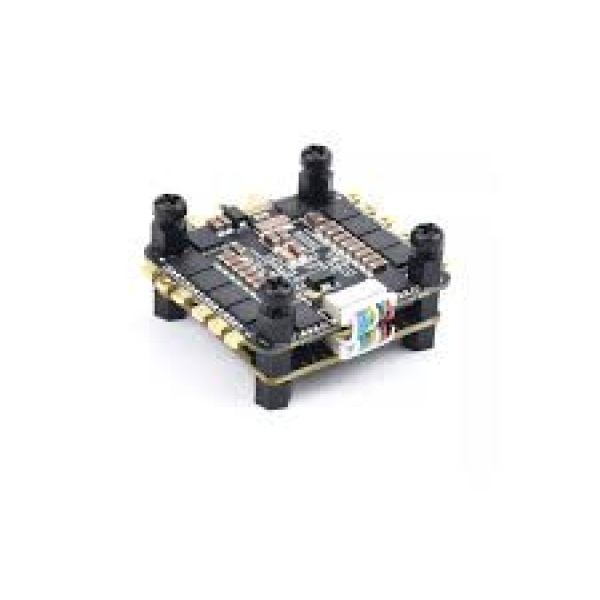

This product is a combo kit of a flight controller and an ESC (Electronic Speed Controller) that are designed to work efficiently in drones. We offer this combo kit at a cheaper price than the market rate. This high-performance flight controller can control your drone and model plane with 95% accuracy.

The ESC that comes with the kit is compatible with the flight controller and they work together seamlessly.

The flight controller uses the data collected by the sensors to calculate the desired speed for each of the four motors. It then sends this speed to the ESCs, which convert it into a signal that the motors can understand.

The MPU6500 is the most popular IMU (Inertial Measurement Unit) sensor and it is used in almost all of the best flight controllers. The reason for this is that it has a high tolerance for vibration and can sample the gyro at 8kHz over an SPI (Serial Peripheral Interface) interface.

Additional information
Barometer

BMP280

BLE Bluetooth

Supported.Used for Flight Controller configuration, built in a single 2.4 GHz Wi-Fi and Bluetooth combo chip

Mounting Hole Diameter (mm)

30.5 * 30.5mm(4mm hole diameter)

UART

5 sets( UART1, UART 2,UART 3, UART 4(For ESC Telemetry), UART 6)

INPUT POWER

3S – 6S Lipo
