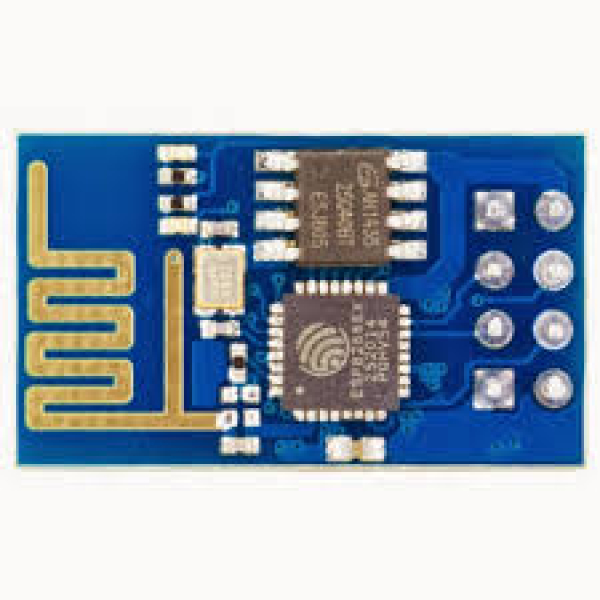

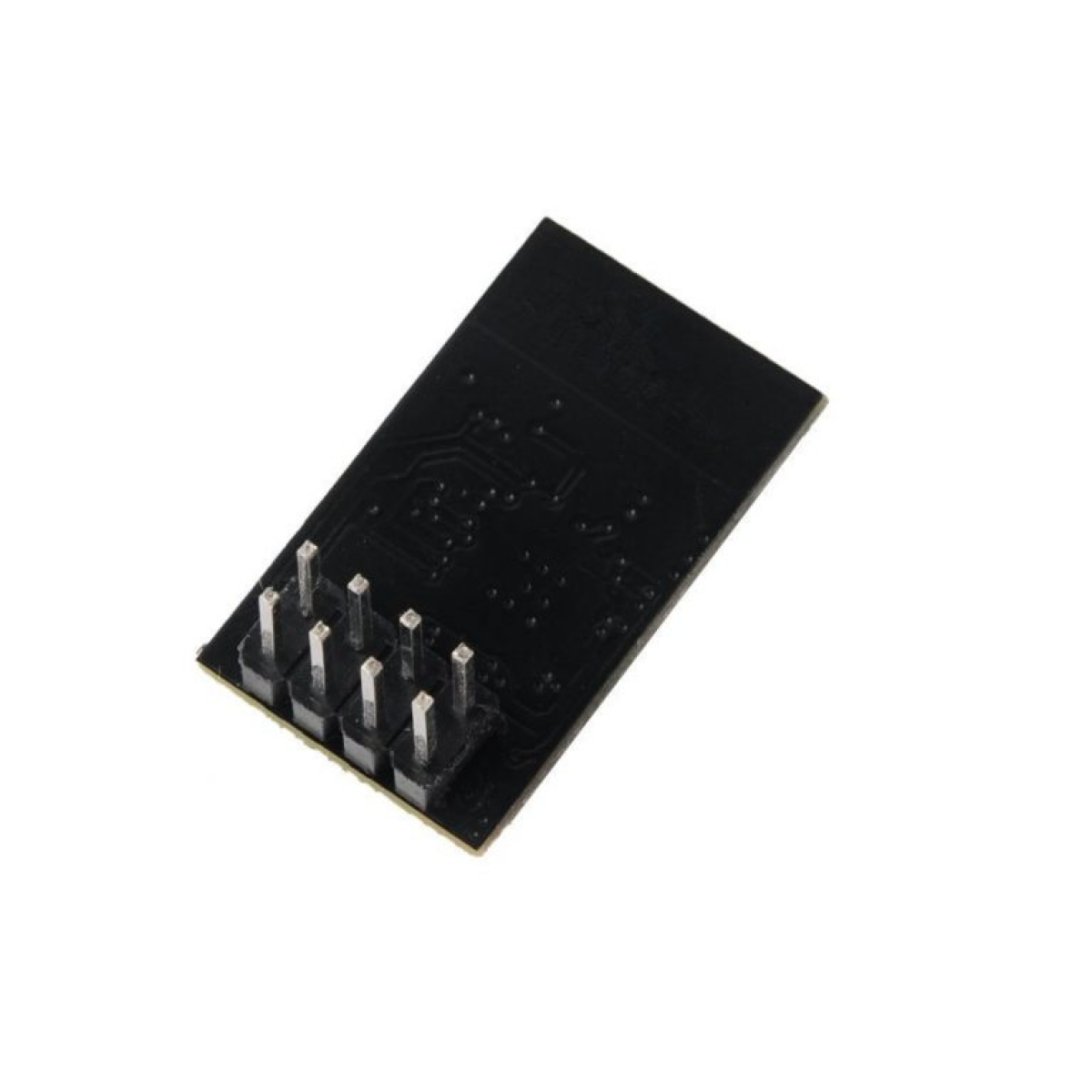

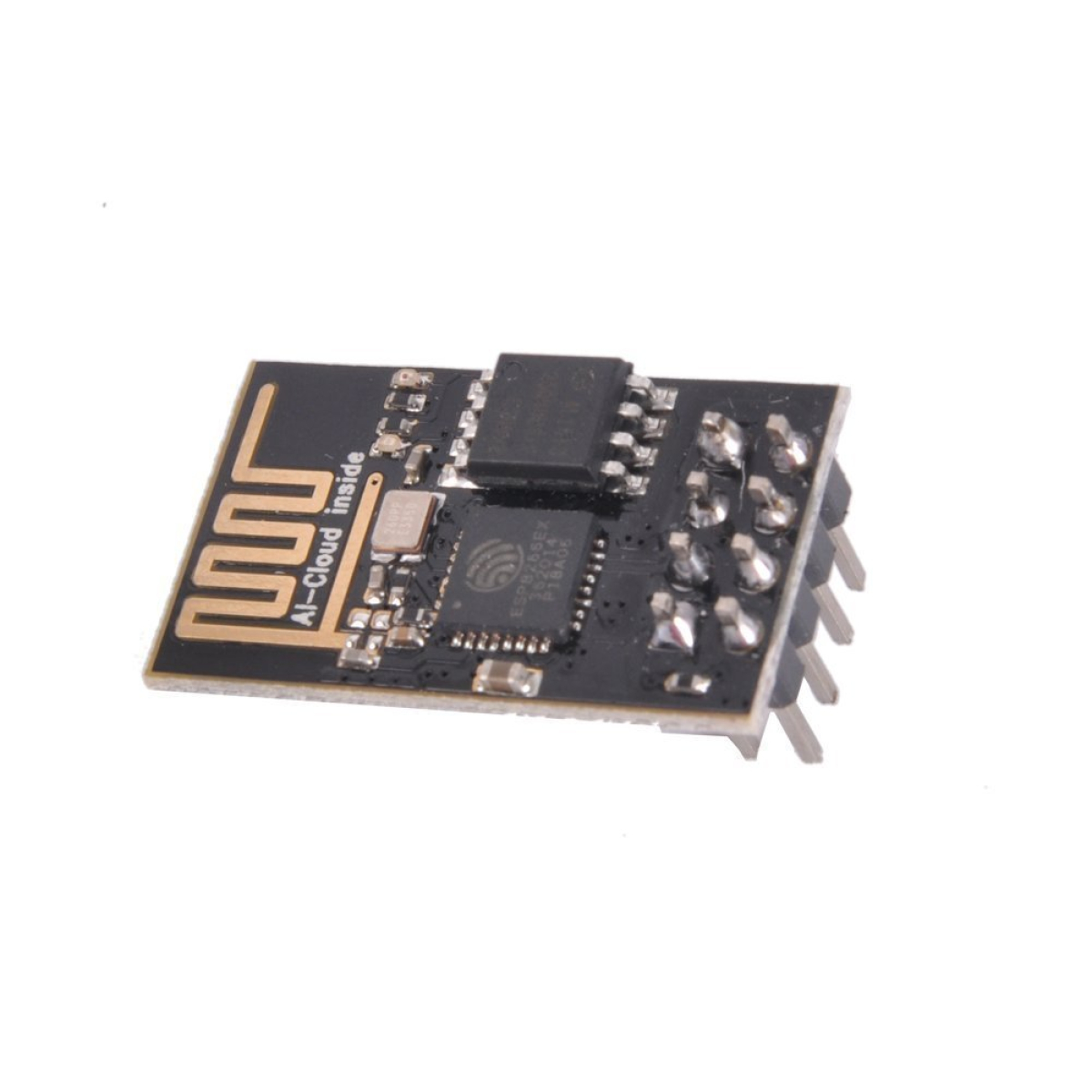

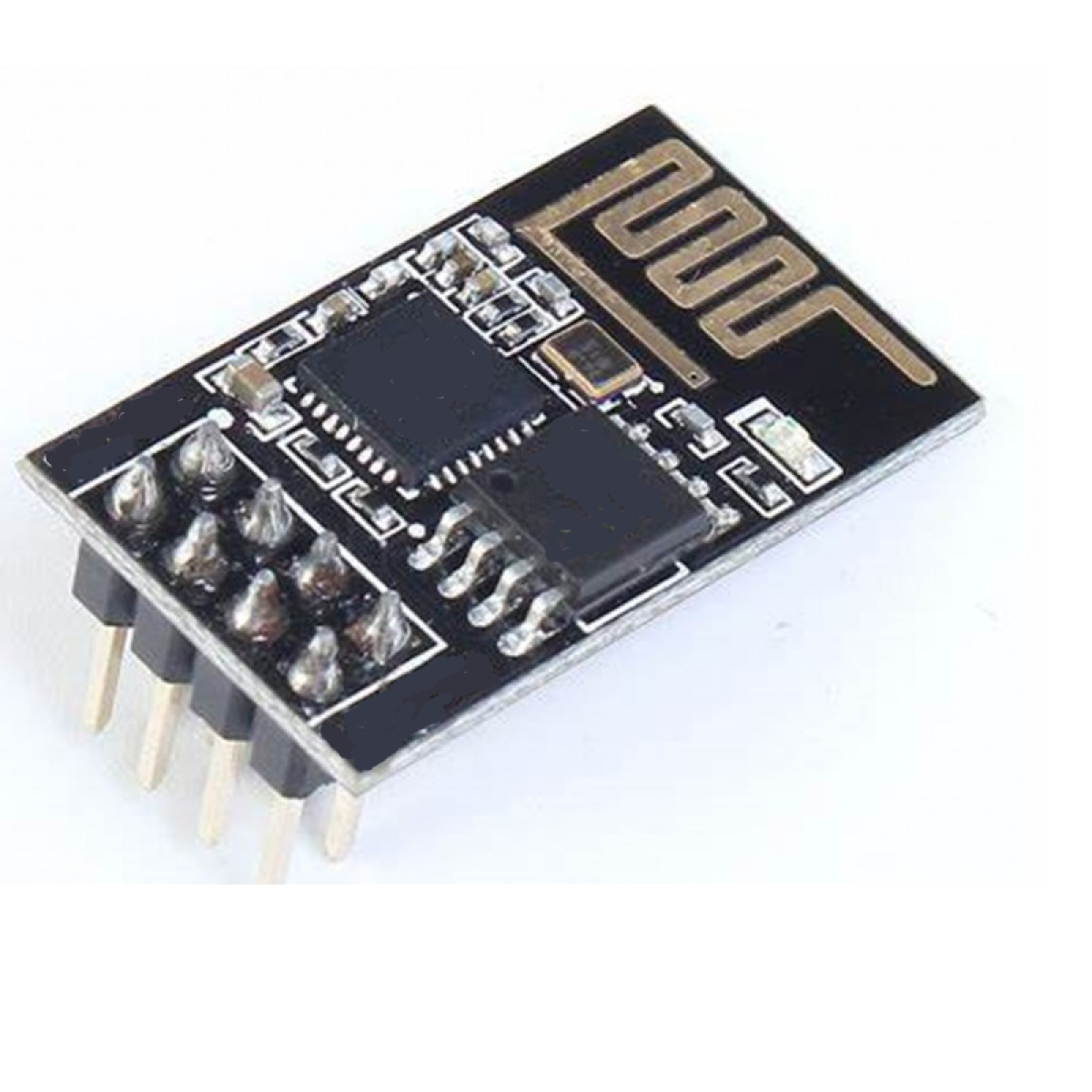

ESP8266 Serial Port To Wi-Fi Module, FL-M1S

Name: ESP8266 Serial Port To Wi-Fi Module, FL-M1S
SKU: HW-A008
Availability: InStock

SKU: HW-A008

This ESP8266 Serial Port To Wi-Fi Module, FL-M1S serial transceiver module, based on ESP8266 SoC with an integrated TCP/IP protocol stack It can either host the application or offload all Wi-Fi networking functions from another application processor.

ESP8266 has powerful onboard processing and storage capabilities allowing it to integrate with sensors and other devices through GPIOs with minimal development up-front and minimal loading during runtime.

Its high degree of on-chip integration allows for minimal external circuitry, and the entire solution, including the front-end module, is designed to occupy minimal PCB area.

Add to wishlist

Compare

15 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

SDIO 2.0, SPI, UART
Integrated RF switch, balun, 24dBm PA, DCXO, and PMU
It equips integrated RISC processor, on-chip memory and external memory interfaces
Featuring integrated MAC/baseband processors
I2S interface for high fidelity audio applications
On-chip low-dropout linear regulators for all internal supplies
Integrated WEP, TKIP, AES, and WAPI engines
Wi-Fi Direct (P2P), soft-AP
Integrated TCP/IP protocol stack
Integrated TR switch, balun, LNA, power amplifier and matching network
Integrated PLL, regulators, DCXO and power management units
Power down leakage current of <10uA
Integrated low power 32-bit CPU could be used as an application processor
SDIO 1.1/2.0, SPI, UART
STBC, 1×1 MIMO, 2×1 MIMO
A-MPDU & A-MSDU aggregation & 0.4ms guard interval
Wake up and transmit packets in < 2ms
Standby power consumption of < 1.0mW (DTIM3)
