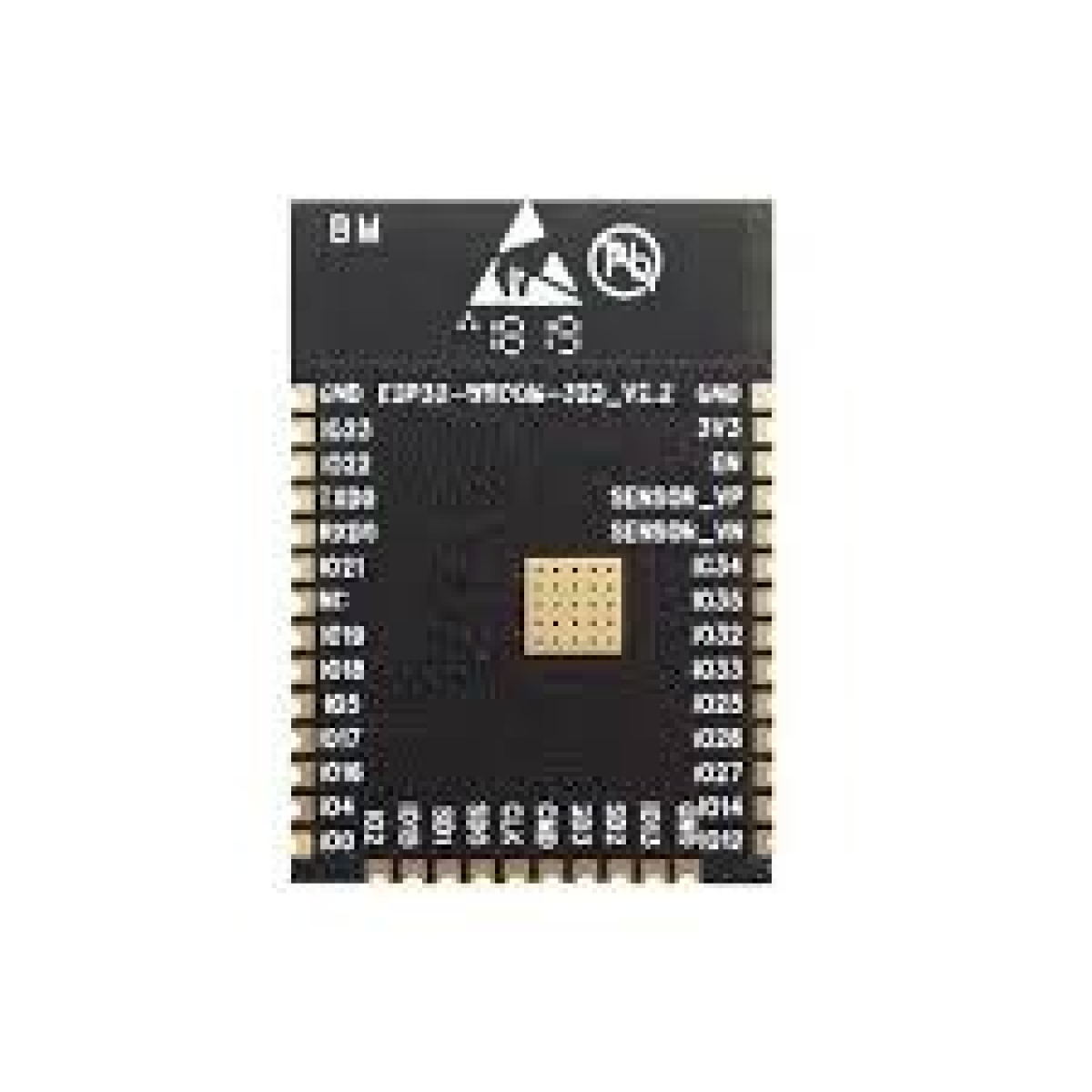

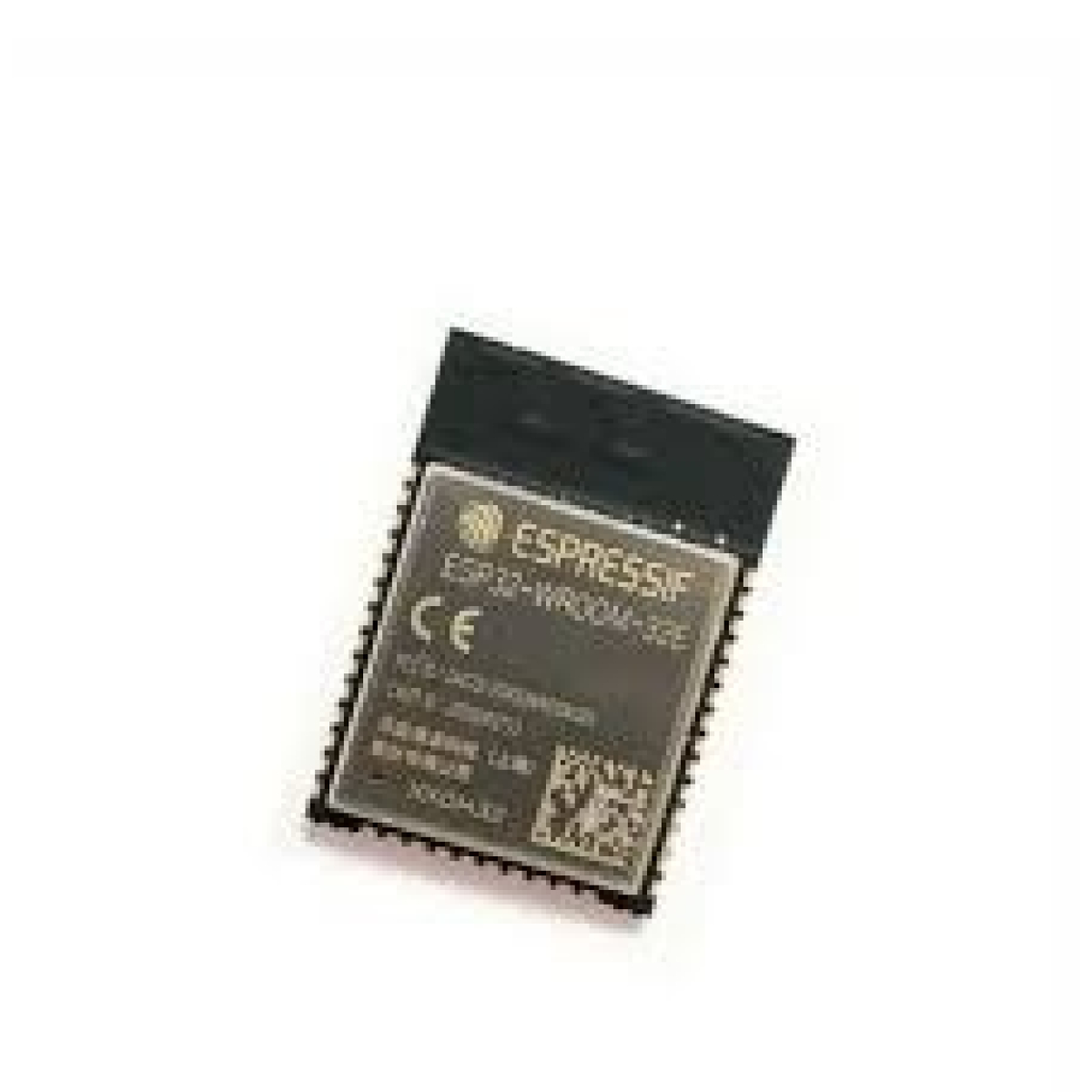

ESP32-WROOM-32E 4M

Features:

  1. ESP32-D0WD-V3 embedded, Xtensa dual-core
  2. 32-bit LX6 microprocessor, up to 240 MHz
  3. 448 KB ROM for booting and core functions
  4. 520 KB SRAM for data and instructions
  5. 16 KB SRAM in RTC
  6. Wi­Fi
    •802.11b/g/n
    • Bit rate: 802.11n up to 150 Mbps
    • A-MPDU and A-MSDU aggregation
    • 0.4 µs guard interval support
    • Center frequency range of operating channel: 2412 ~ 2484 MHz
  7. Bluetooth®
    • Bluetooth V4.2 BR/EDR and Bluetooth LE specification
    • Class-1, class-2 and class-3 transmitter
    • AFH
    • CVSD and SBC
  8. Hardware
    • Interfaces: SD card, UART, SPI, SDIO, I2C, LED, PWM, Motor PWM, I2S, IR, pulse counter, GPIO, capacitive touch sensor, ADC, DAC, Two-Wire Automotive Interface (TWAI, compatible with ISO11898-1)

Add to wishlist
Compare
10 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

ESP32-WROOM-32E is a Wi-Fi+BT+BLE MCU module that targets a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming, and MP3 decoding. ESP32-WROOM-32E comes with a PCB antenna for Bluetooth and Wifi connectivity. These modules are featured with a 4 to 16 MB external SPI flash.

There are a wide range of application for ESP32-WROOM-32E like,

  1.  Generic Low-power IoT Sensor Hub
  2. Generic Low-power IoT Data Loggers
  3. Cameras for Video Streaming
  4. Over-the-top (OTT) Devices
  5. Speech Recognition
  6. Image Recognition
  7. Mesh Network
  8. Home Automation
  9. Smart Building
  10. Industrial Automation
  11. Smart Agriculture
  12. Audio Applications
  13. Health Care Applications
  14. Wi-Fi-enabled Toys
  15. Wearable Electronics
  16. Retail & Catering Applications
Additional information
Operating Voltage (VDC)

3 ~ 3.6
ROM

448KB
Crystal Oscillator

40MHZ
Bluetooth Version

BLE, v4.2 BR/EDR
Current Consumption (mA)

80
