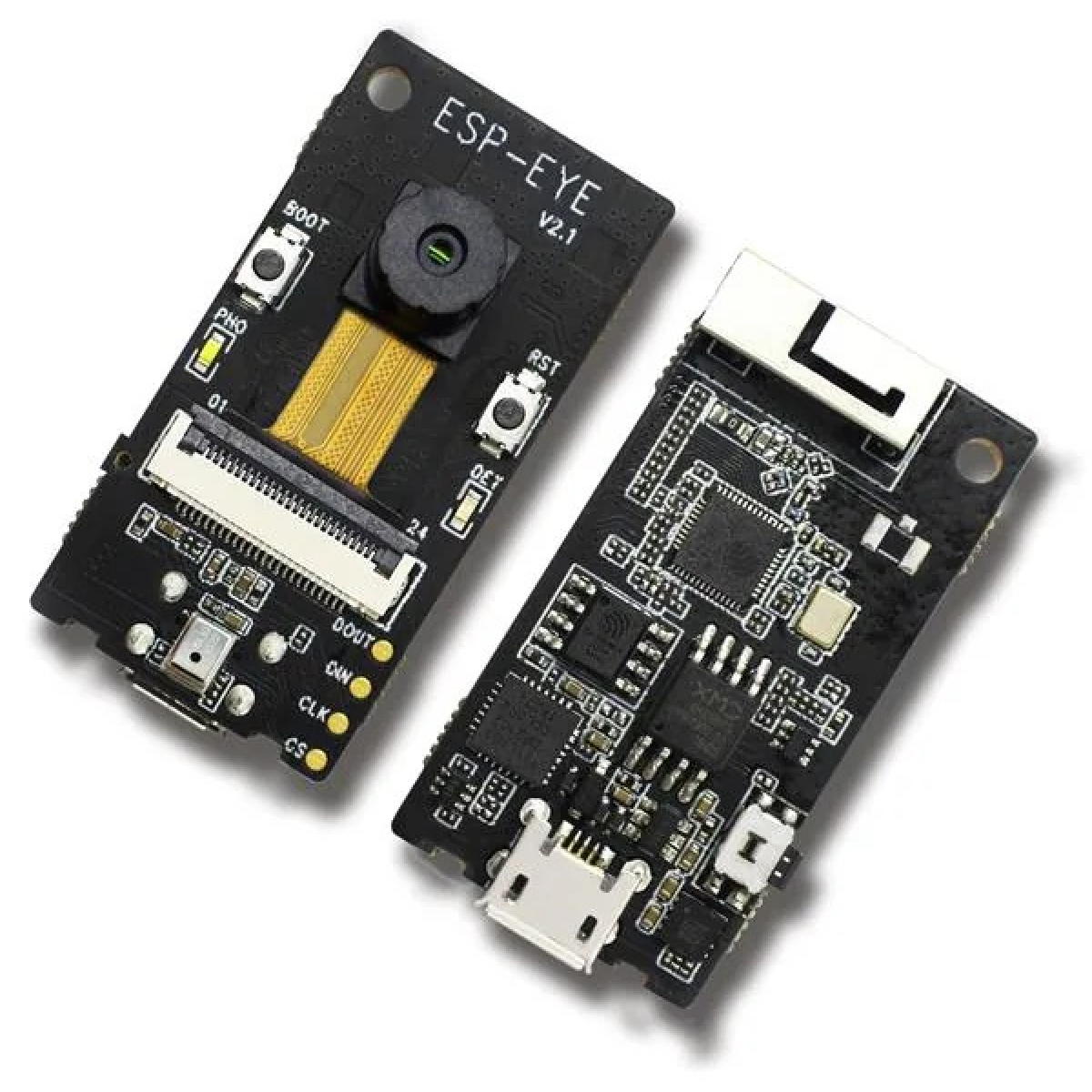

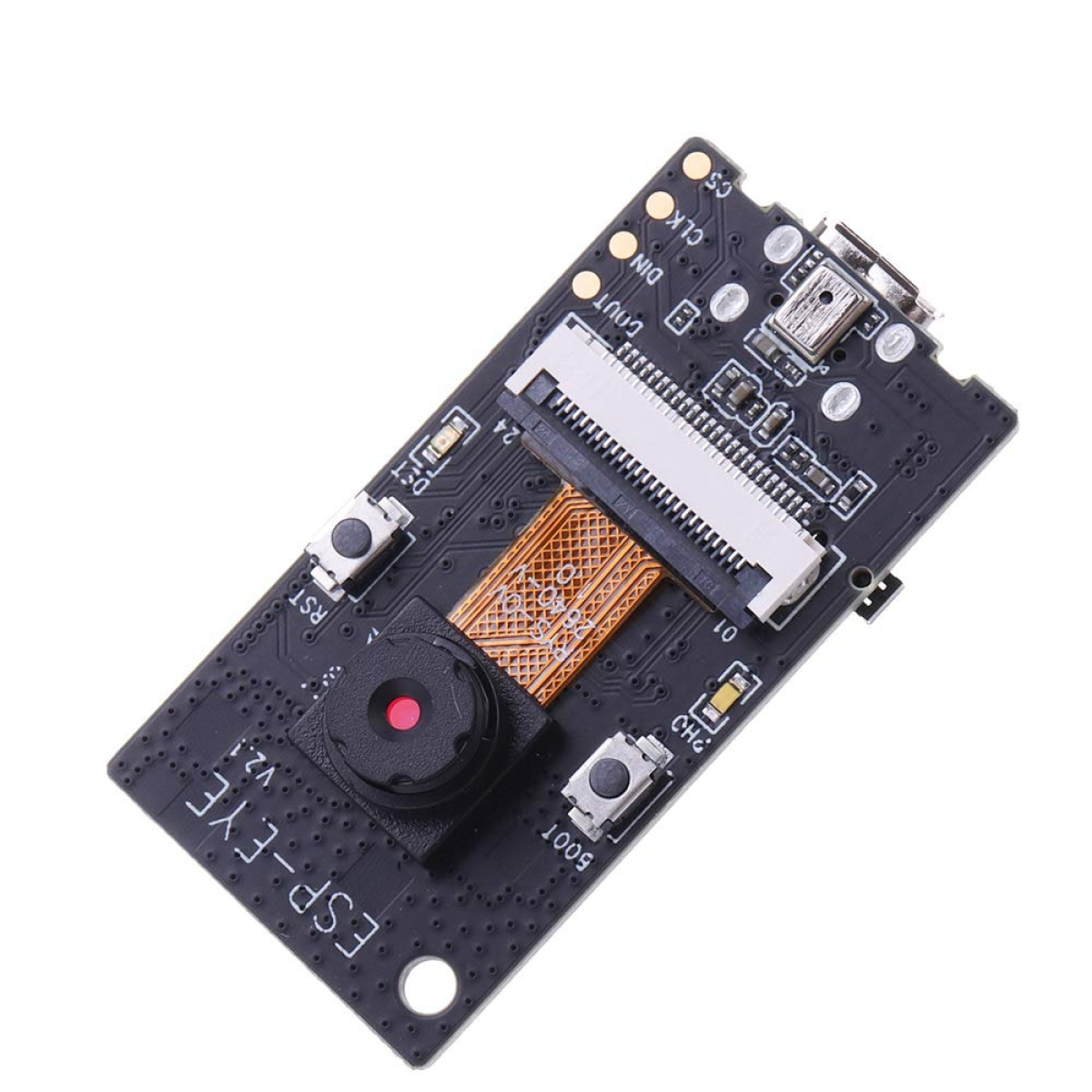

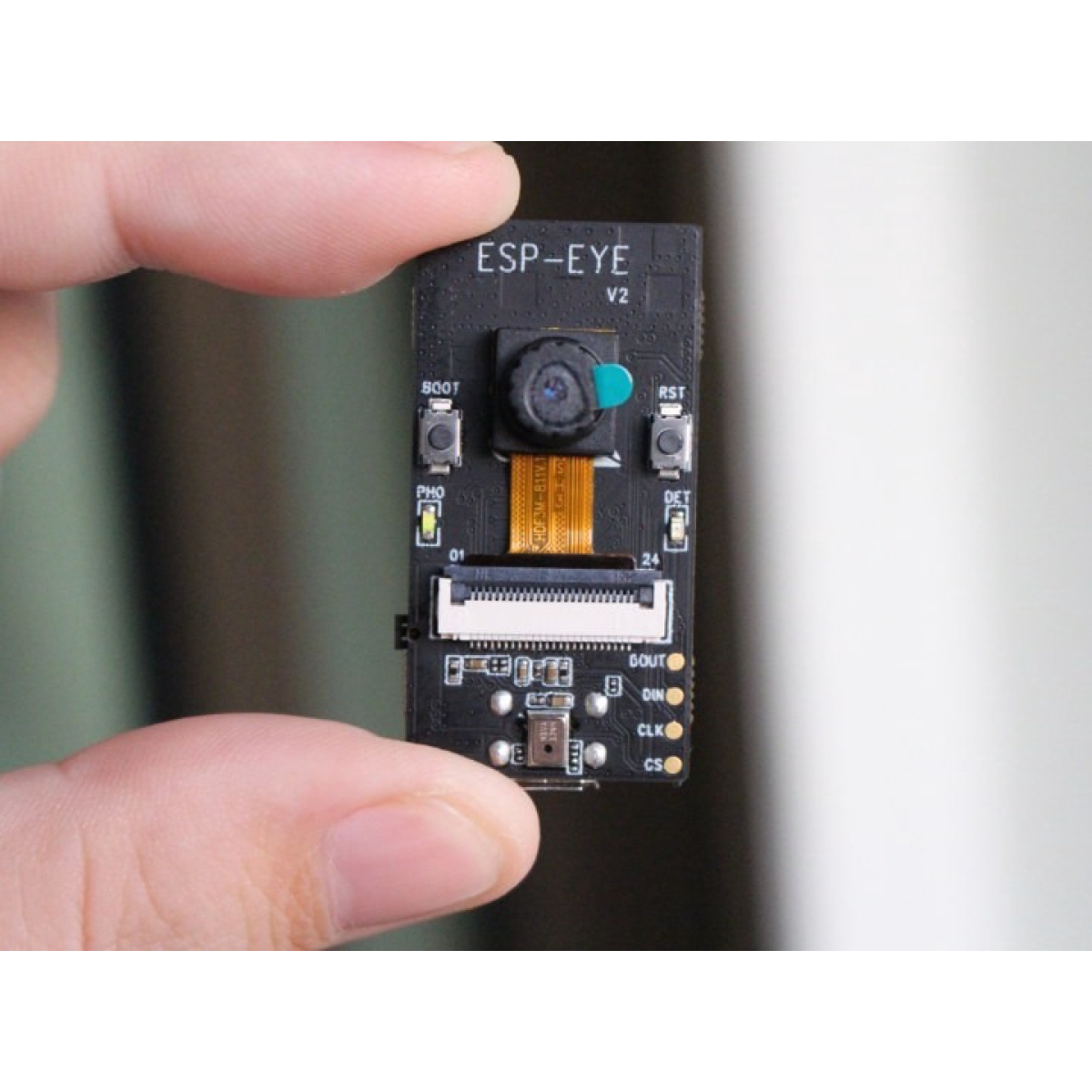

ESP32 EYE Org AI Board

SKU: XW541

ESP-EYE supports firmware downloading with a PC loaded with Linux, MacOs or Windows operating systems. For now, users must set up toolchain in the development environment before starting the software development.

As raised on Reddit  by some users, whether “Face detection is done on board or images are streamed to open CV somewhere,” ESP-EYE definitely do the face detection on board. The ESP-EYE is going to open up new applications for newer and existing projects in the areas of computer vision, imagine what you can do with hacking an Arduino to work together with the ESP-EYE. You can create a low-cost AI project. I need to get my hands on one now!

13 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

ESP-EYE is an upcoming AI development board from Espressif Systems with the hope of getting a grab of the already saturating machine learning ecosystem which is mostly optimized for ARM-based architectures. The ESP-EYE board which initially appeared on CNX SOFTWARE  doesn’t seem to be readily available for purchase.

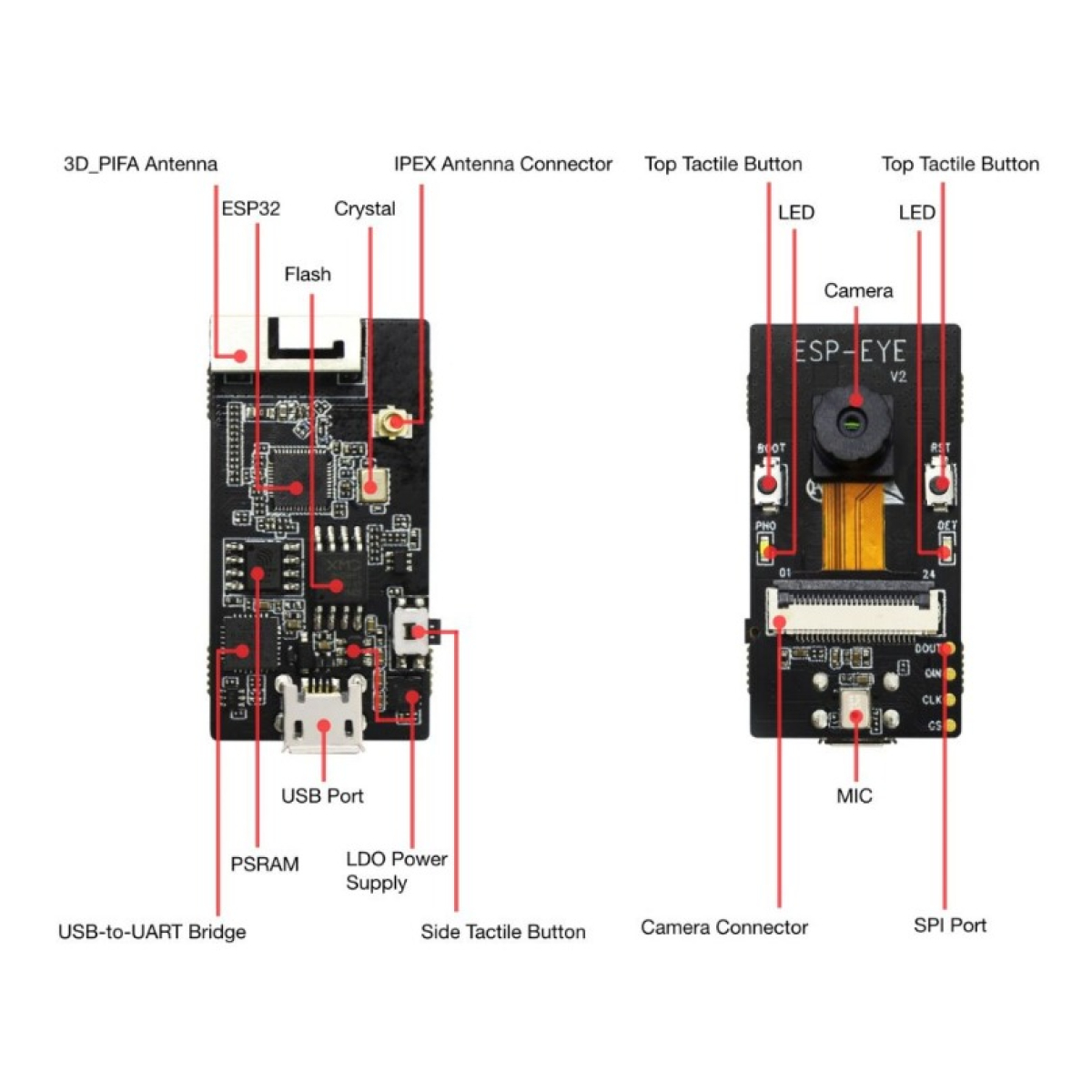

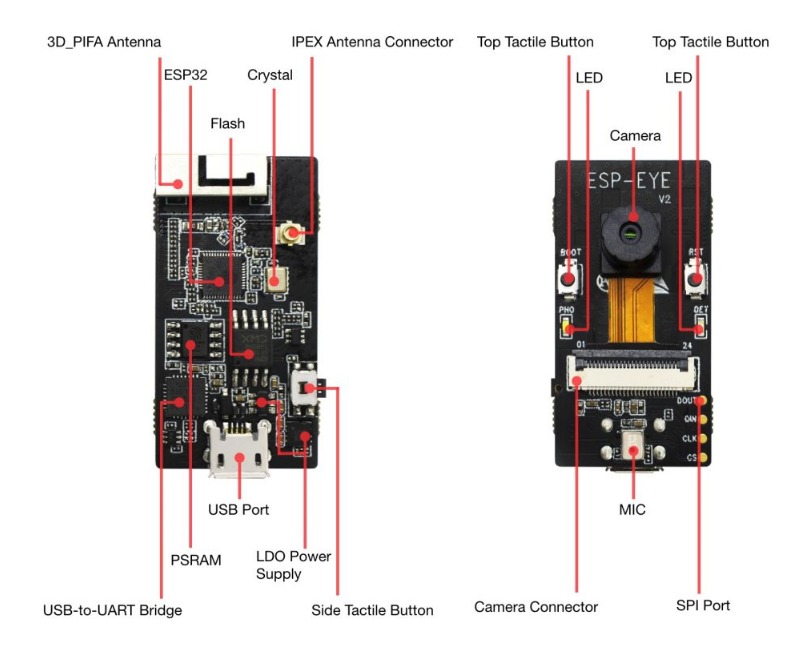

At the core of the board is the ESP32  dual core Tensilica LX6 processor, 8 MB PSRAM and a 4MB flash. The ESP EYE integrates a digital microphone as well as provides an external 2-million-pixel camera making it capable of AI features such as face detection, face recognition, speech recognition, and voice wake-up which are all supported out of the box. The board can also support image transmission over Wi-Fi and debugging using the Micro USB port, which enables user’s development of advanced AI solutions.

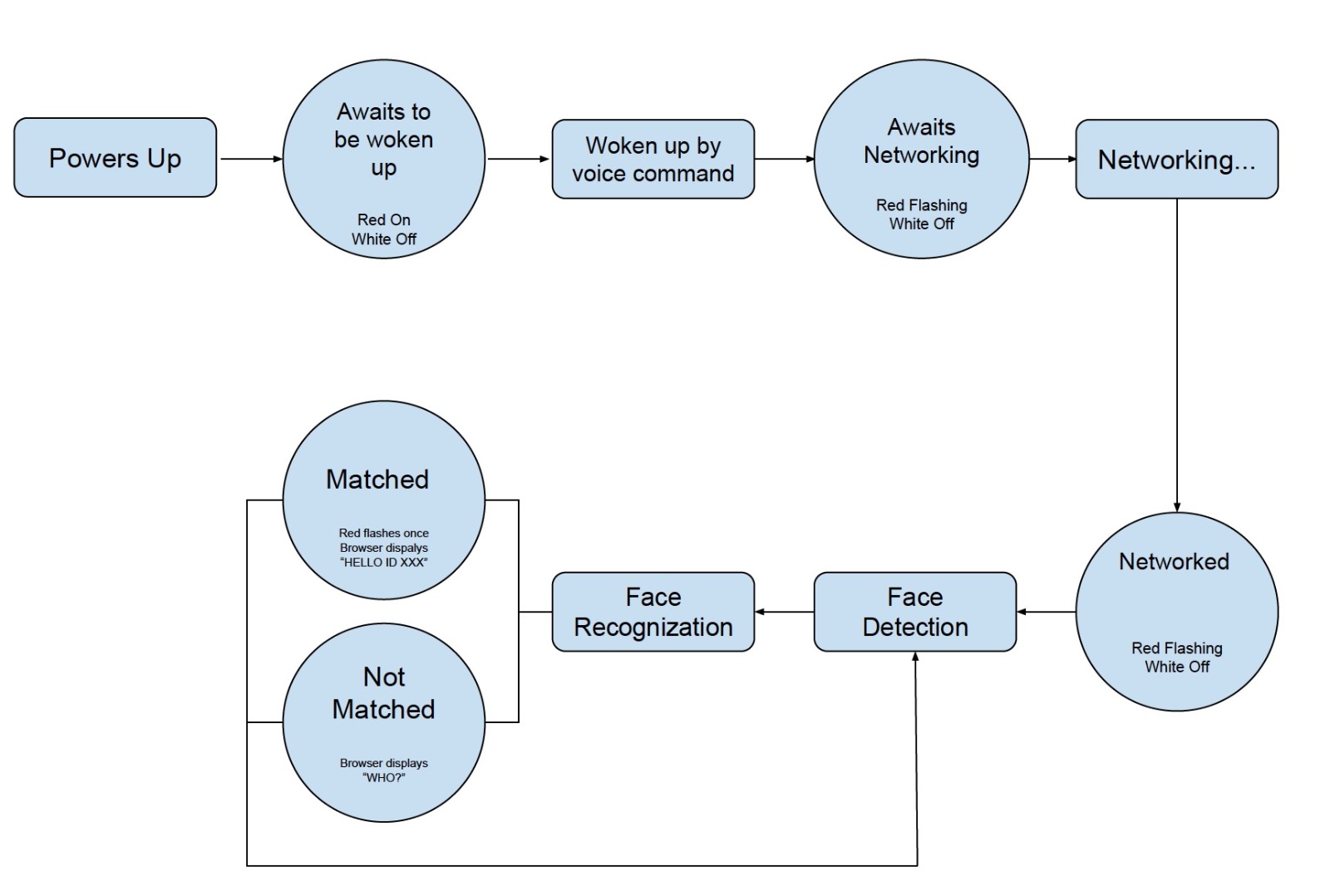

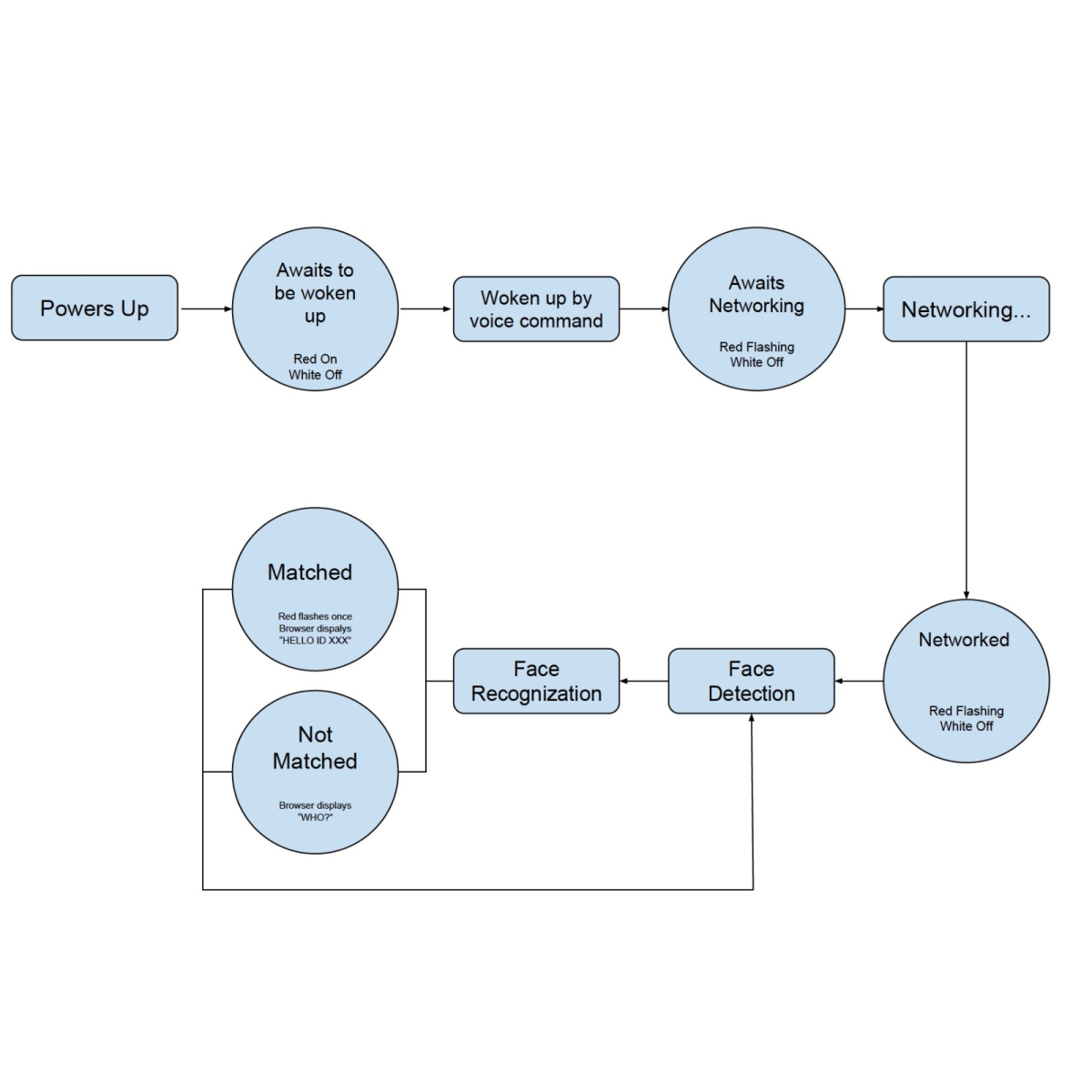

The board shares similar traits with the ESP32-CAM  camera board which includes a micro camera, only that it adds a microphone, it’s an “official” Espressif product which will translate to more software support, and it is smaller than the CAM board  as well.The software stack that will power the ESP-EYE is their own ESP-WHO framework  The voice wake-up command for the ESP EYE is “Hi Lexin,” and the board will successfully wake itself up by switching on the Red LED while the white LED goes off.

Additional information
WiSoC

ESP32 dual core Tensilica LX6 processor with WiFi and Bluetooth

Memory

8MB PSRAM

Storage

4MB flash

Camera

2MP OV2640 camera

Audio

Microphone

USB

1x micro USB port for power and programming

MISC

Reset, boot and function buttons, 2x LEDs
