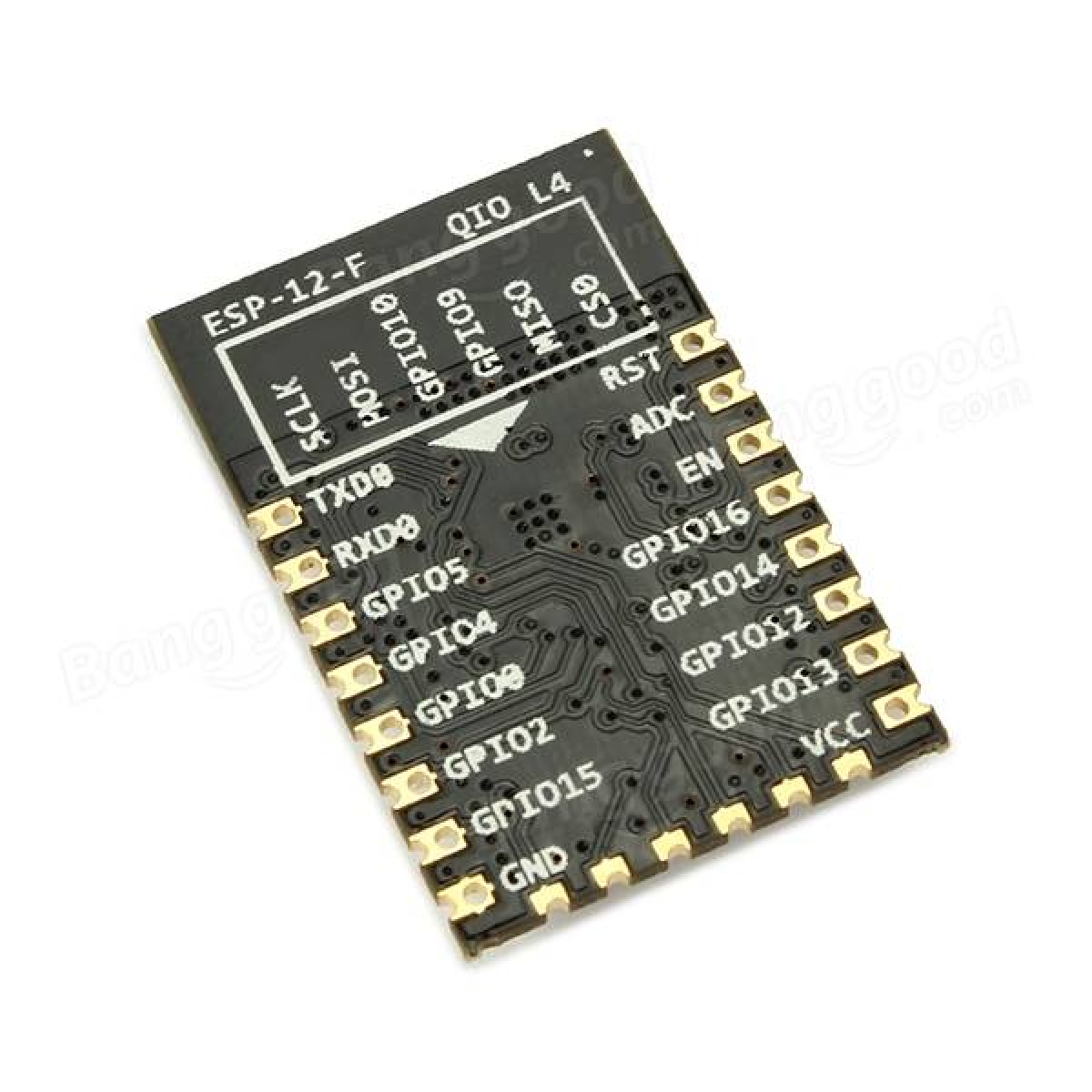

ESP-12F ESP8266 Wifi Wireless IoT Board Module

SKU: HW-313B

The Latest ESP-12F ESP8266 Wifi Module AP & Station Remote Serial Wireless IoT Board is an integrated chip designed for the needs of a new connected world. It can handle all the necessary overhead for communicating with your network, such as TCP/IP stack and communicating with your 802.11 networks.

It is completely addressable over SPI and UART protocols allowing you to connect your sensors or project directly to it through its GPIO’s. ESP8266 is a low-cost Wi-Fi chip with full TCP/IP stack and MCU (Micro Controller Unit) capability.

ESP8266 Serial Wifi Wireless Transceiver Module is a self-contained SOC with integrated TCP/IP protocol stack that can give any microcontroller access to your WiFi network. ESP8266 Serial Wifi Wireless Transceiver Module is capable of either hosting an application or offloading all Wi-Fi networking functions from another application processor.

Add to wishlist
Compare
10 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

  1. Compatible with ESP-12（ESP-202）
  2. WIFI @ 2.4 GHz, support for WPA / WPA2 security mode
  3. It is very easy to develop projects with AT commands
  4. Surface Mount Package with 2mm Pitch Pads
  5. Mulitple GPIO’s for all your sensor needs
  6. Wi-Fi Direct (P2P), soft-AP
  7. Integrated TCP/IP protocol stack
  8. Integrated TR switch, balun, LNA, power amplifier and matching network
  9. Integrated PLL, regulators, DCXO and power management units
  10. +19.5dBm output power
  11. Power down leakage current of <10uA
  12. Integrated low power 32-bit CPU could be used as an application processor
  13. SDIO 1.1/2.0, SPI, UART
  14. STBC, 1×1 MIMO, 2×1 MIMO
  15. A-MPDU & A-MSDU aggregation & 0.4ms guard interval
  16. Wake up and transmit packets in < 2ms
  17. Standby power consumption of < 1.0mW (DTIM3)
  18. Both SMD and Inline package are available, and the pin pitch is 2.0mm.
Additional information
Communication interface voltage(V)

3.3
Working current(mA)

240
Serial port baud rate

115200(can be modified)
Wireless criteria

802.11 b / g / n
