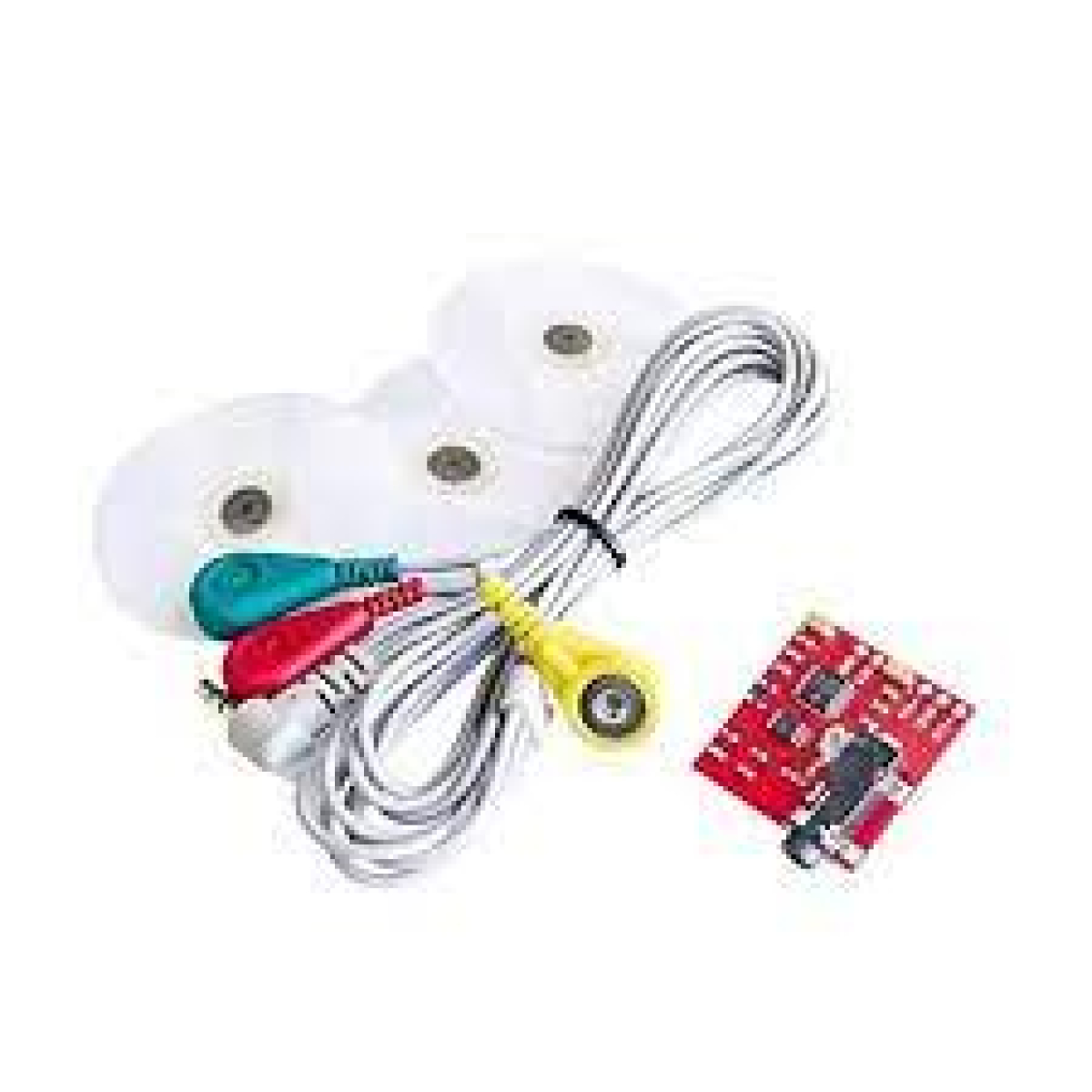

EMG Muscle Signal Sensor Kit With Professional EMG Cable

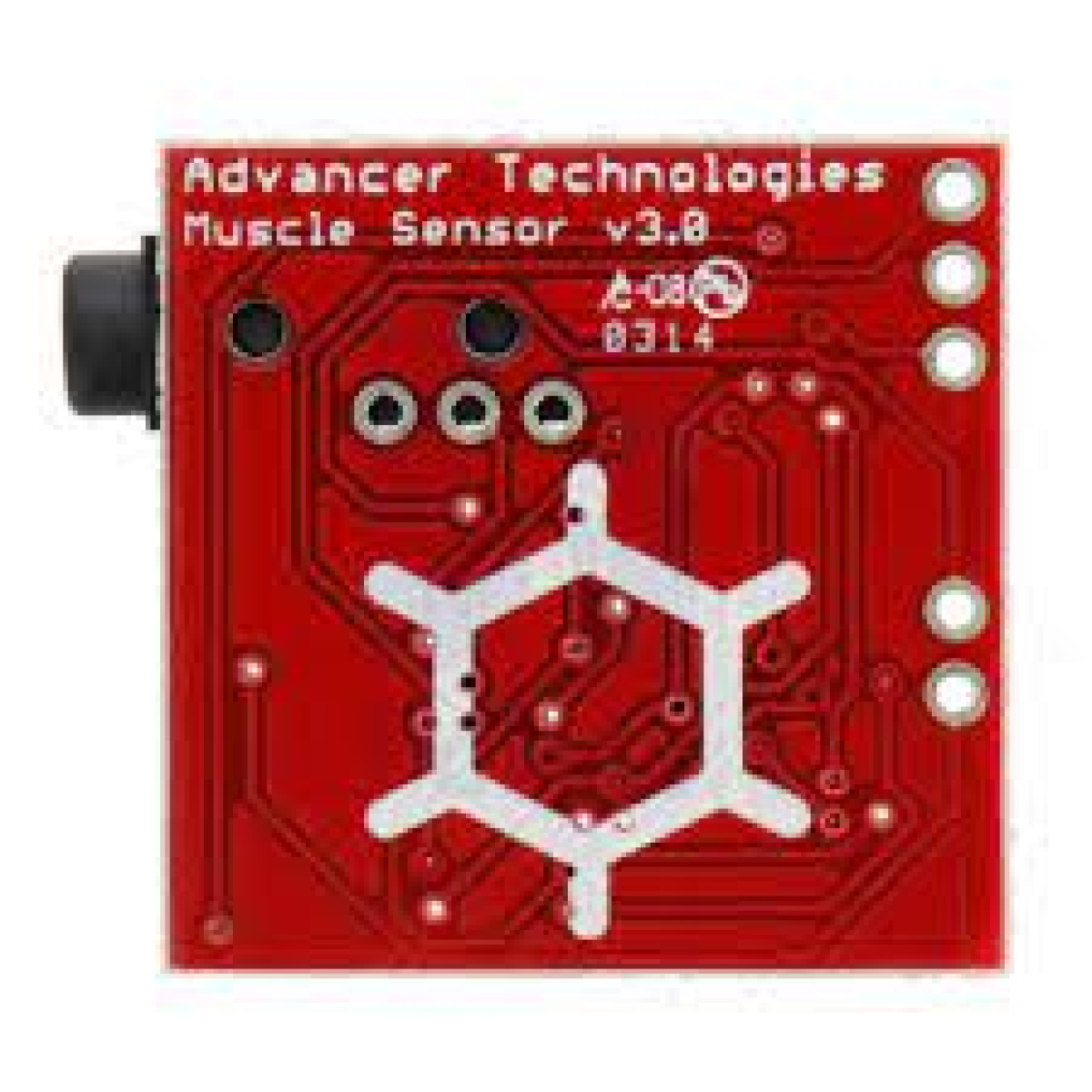

The Advance Technologies EMG Muscle Sensor V3.0 With Cable And Electrodes will measure the filtered and rectified electrical activity of a muscle outputting 0-Vs Volts depending on the amount of activity in the selected muscle, where Vs signifies the voltage of the power source. Power supply voltage: min. +-3.5V.

This Muscle Sensor v3 from Advancer Technologies measures, filters, rectifies, and amplifies the electrical activity of a muscle and produces an analog output signal that can easily be read by a microcontroller, enabling novel, muscle-controlled interfaces for your projects.

14 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

  1. The diameter of Electrode Pad: 52 mm
  2. Cable Length: 2 feet
  3. Weight: 30gm.
  4. Improved adjustable gain (more rugged)
  5. Onboard port for our new cables
    1. Connects to the board straight out of the box
  6. The reduced voltage needed (+-3.5V)
    Wiring Instructions:
    1. To use this sensor, the user must have three electrodes connected to the subject’s body.
    2. The reference electrode should be placed on an inactive section of the body, such as the bony portion of the elbow, shin, or forearm. This electrode should be connected to the black or brown cable.
    3. The two other electrodes should be placed along the muscle selected to be measured. The second electrode should be placed along the mid-length of the muscle; this electrode should be connected to the red cable.
    4. The last electrode should be placed at the end of the muscle and connected to the blue cable.
    5. Finally, connect pin SIG to an analog input pin of your microcontroller and the GND pin to the ground pin on your microcontroller.
Additional information
Operating voltage (v)

±5

Audio-style plug

3.5 mm jack

Shipping Weight

0.043 kg

Shipping Dimensions

11 × 8 × 1 cm
