Operating Voltage (VDC) |
3 ~ 5.5 |
---|---|
Operating Temperature (°C) |
-55 to 125 |
Accuracy |
±0.5°C |
- Each pin uses a heat-shrinkable tube to prevent short circuits, internal sealing glue, waterproof, moistureproof.
- Stainless steel tube encapsulation waterproof moistureproof prevents rust.

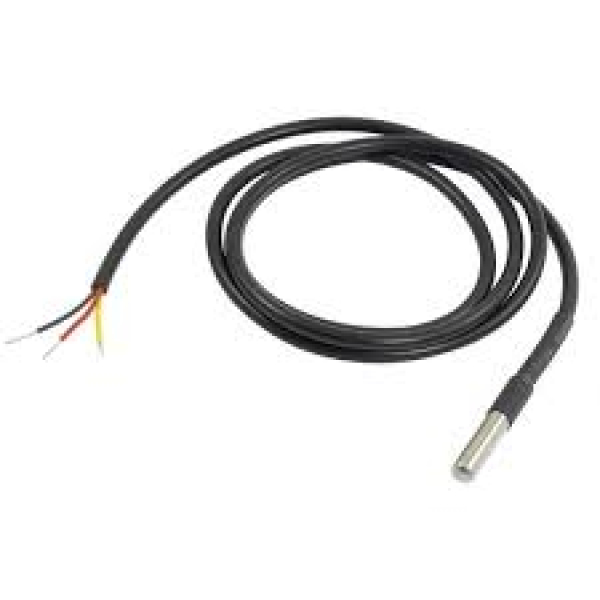

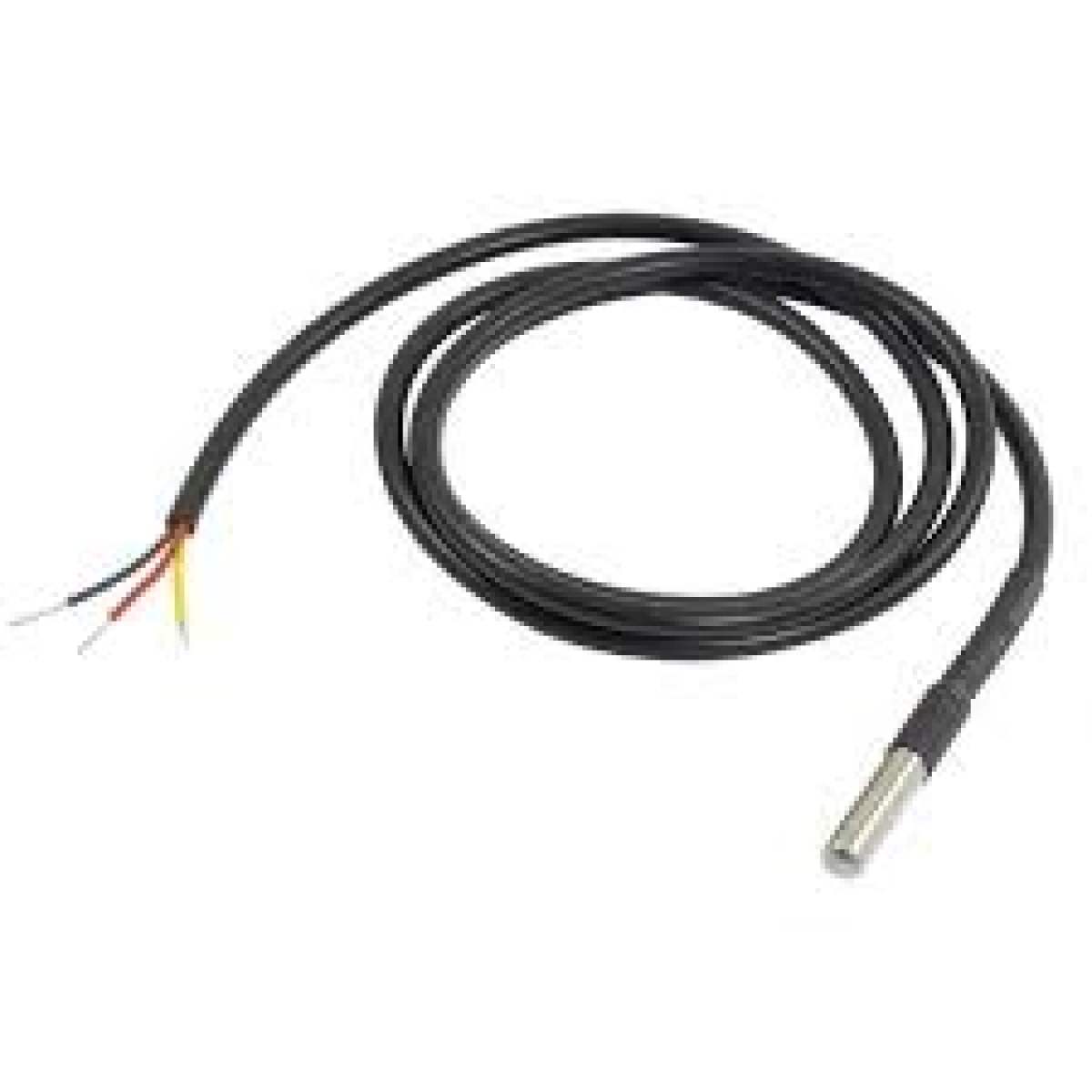

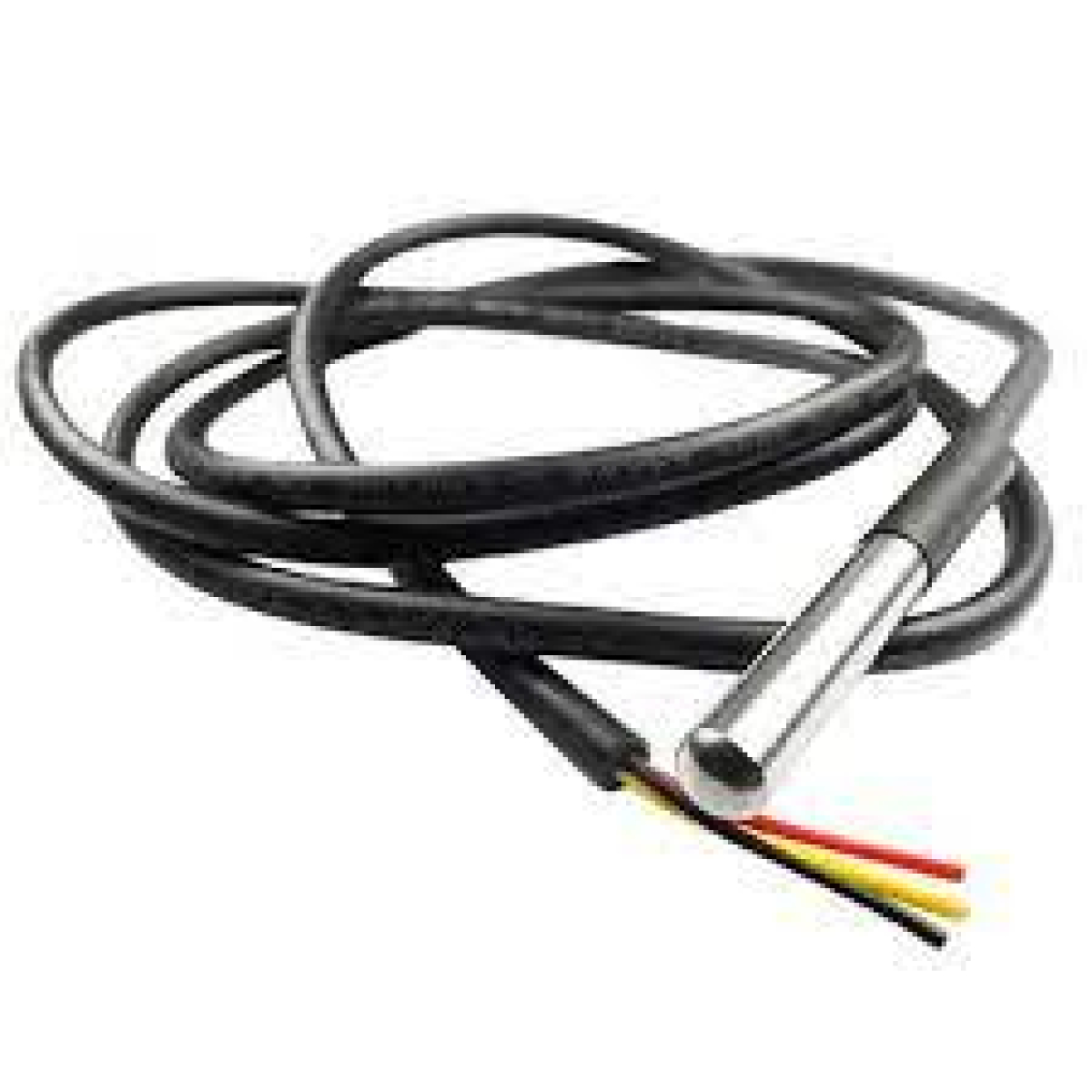

- Stainless steel tube 6mm diameter by 30mm long
- Contains DS18B20 temperature sensor
- 9 to 12-bit selectable resolution
- Uses 1-Wire interface- requires only one digital pin for communication
- Unique 64 bit ID burned into the chip
- Multiple sensors can share one pin
- Temperature-limit alarm system
- Query time is less than 750ms
- Without the external components, the unique single bus
