Ds0138 Diy Osc Kit)

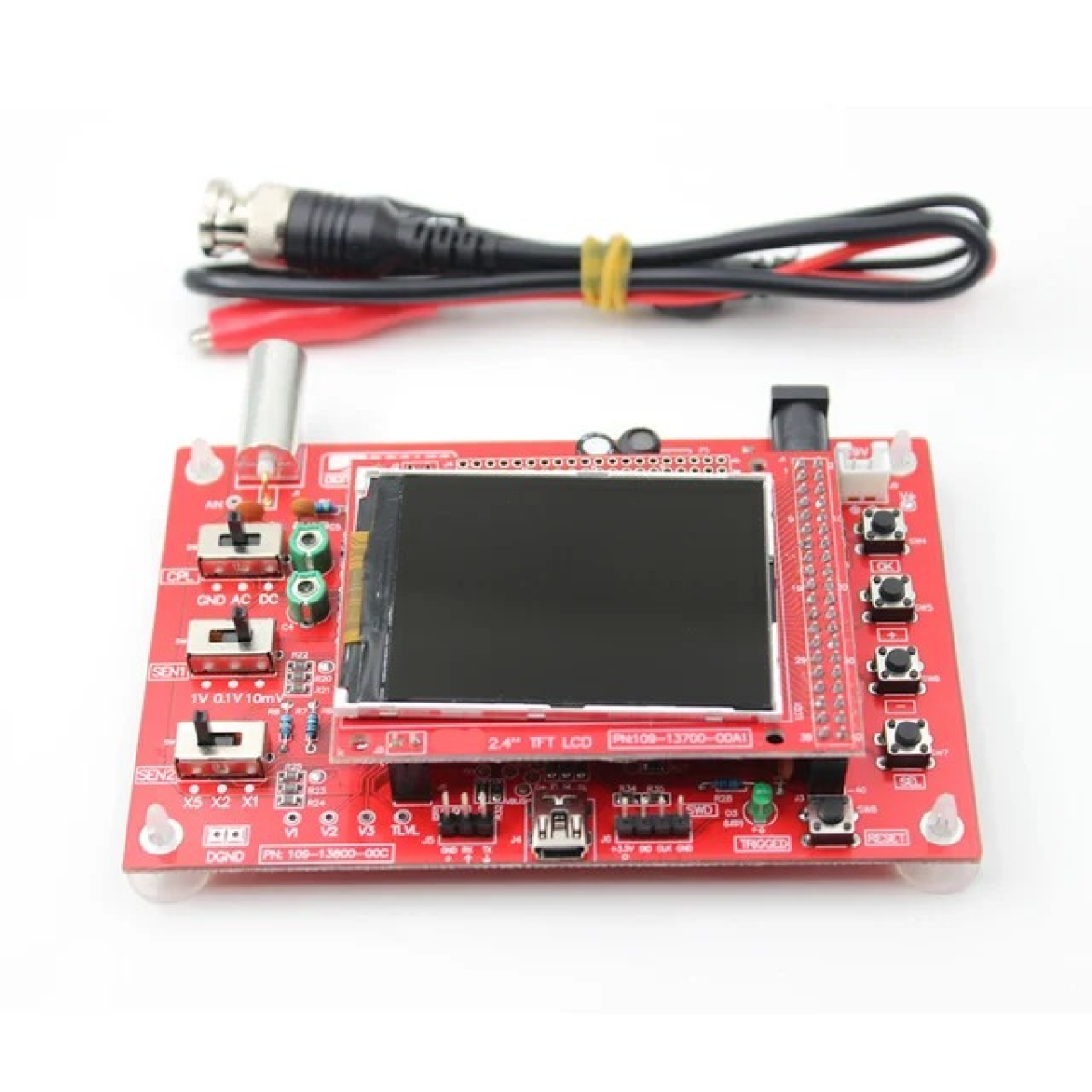

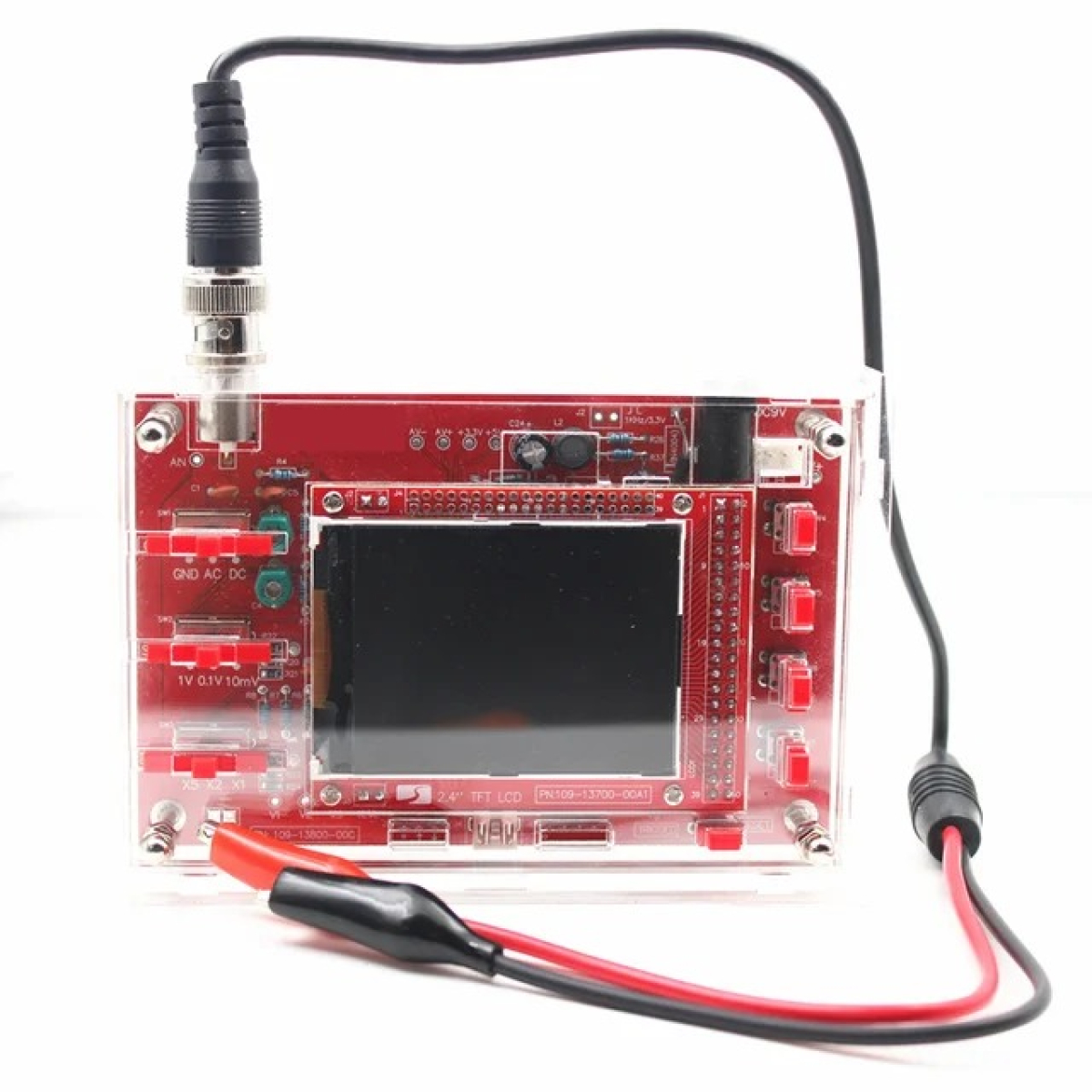

This is DSO138 2.4″ TFT Handheld Pocket-size Digital Oscilloscope Kit. This DSO138 digital oscilloscope kit adopts ARM Cortex-M3 processor and with 2.4-inch TFT screen.

It’s easy and reliable for circuit operation. It can display frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.

This boost converter is a great match for DSO138 oscilloscope kit.

19 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

  1. This kit uses ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4-inch color TFT display screen.
  2. Adjustable vertical displacement, and with instructions.
  3. With automatic, regular and one-shot modes, easy to capture the moment waveform.
  4. Available rising or falling edge trigger.
  5. Observable previous trigger waveform (negative delay).
  6. Can freeze at any time waveform display (the HOLD function).
  7. Maximum Real-time Sampling Rate: 1Msps
  8. Accuracy: 12Bit
  9. Sampling Buffer Depth: 1024 bytes
  10. Analog Bandwidth: 0-200KHz
Additional information
Input Supply Voltage (VDC)

9

Impedance (Ω)

1MΩ

Maximum Real-time Sampling Rate

1Msps

Vertical Sensitivity

10mV / Div – 5V / Div (1-2-5 progressive manner)
