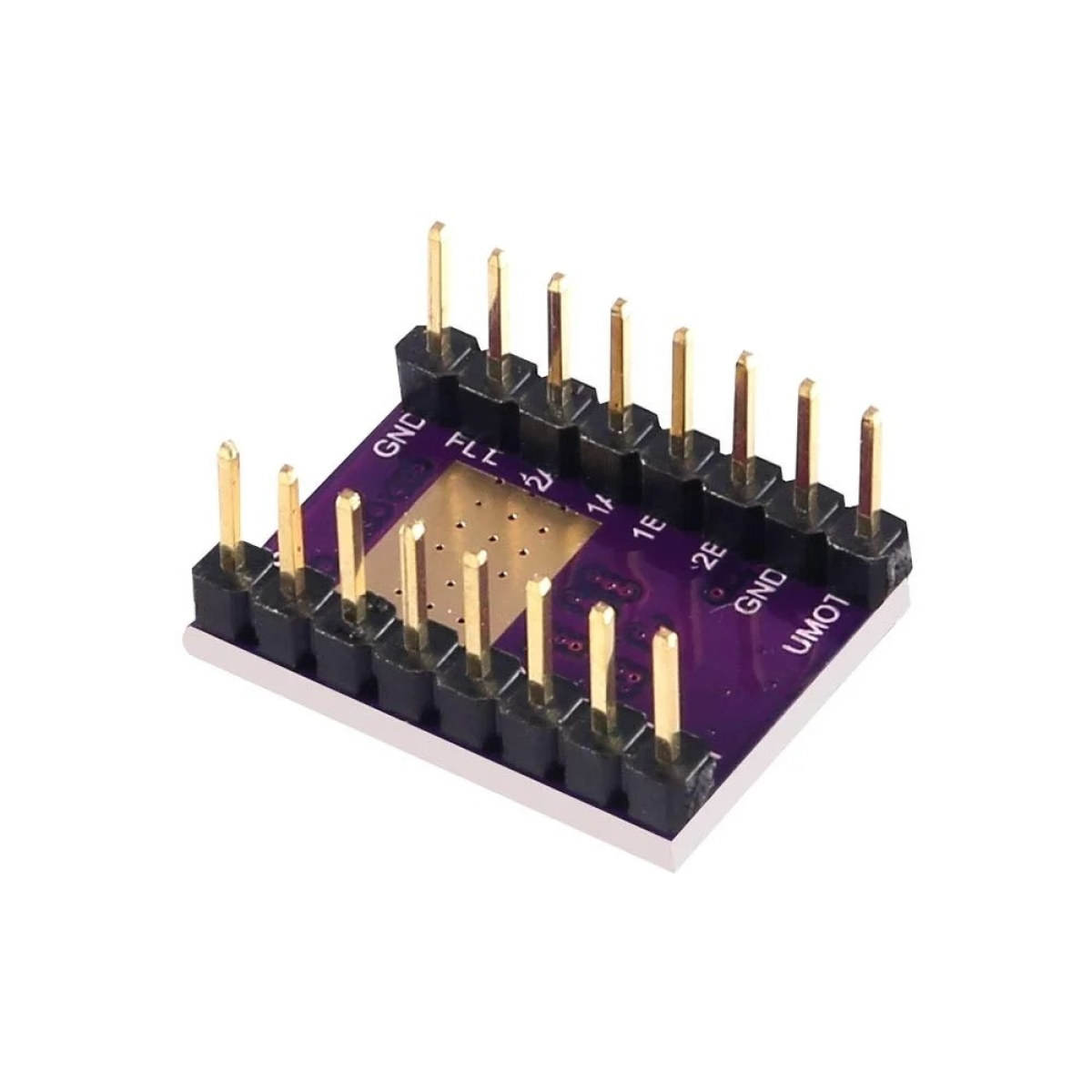

DRV8825 Stepper Motor Driver with Aluminum Heat Sink

The DRV8825 Stepper Motor Driver with Aluminum Heat Sink is a breakout board for TI’s DRV8825 microstepping bipolar stepper motor driver.

The module has a pinout and interface that are nearly identical to those of the A4988 stepper motor driver carriers, so it can be used as a higher-performance drop-in replacement for those boards in many applications.

Add to wishlist
Compare
13 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

  • Supply Voltage: 8.2 – 42 VDC.
  • Current Capacity : 2.2A max(24V).
  • Continuous current per phase: 1.5 A.
  • Minimum Logic voltage: 2.5V.
  • Maximum Logic Voltage: 5V.
  • Microstep resolutions: full, 1/2, 1/4, 1/8, 1/16, and 1/32.
  • Dimensions : 15 x 20 mm.
  • Weight: 4 gm.
Additional information
Current Handling Capacity (A)

2.2
Continuous Current (A)

1.5 ( PER PHASE )
Logic Input (V)

2.5 ~ 5
Shipping Dimensions

4 X 4 X 4 CM
