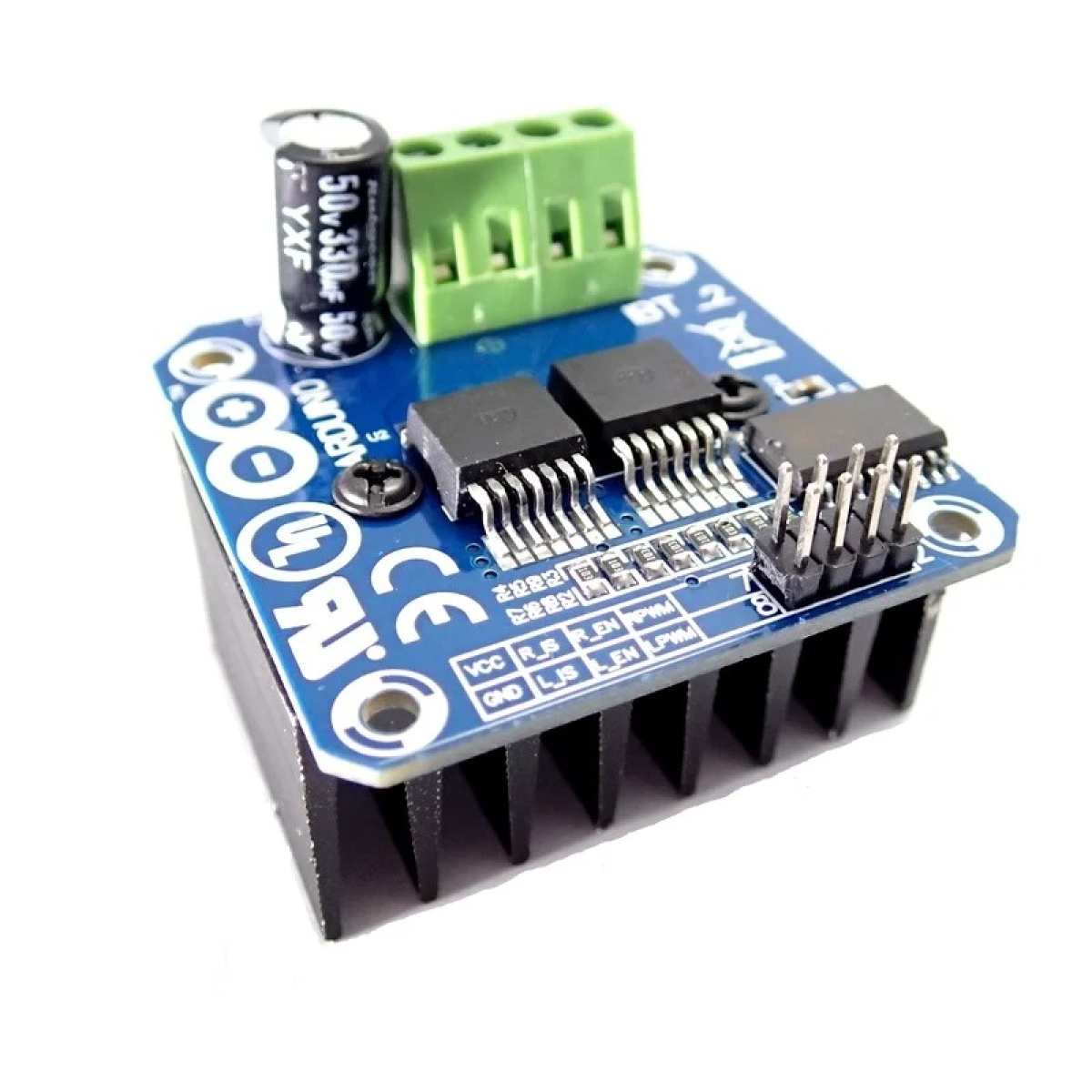

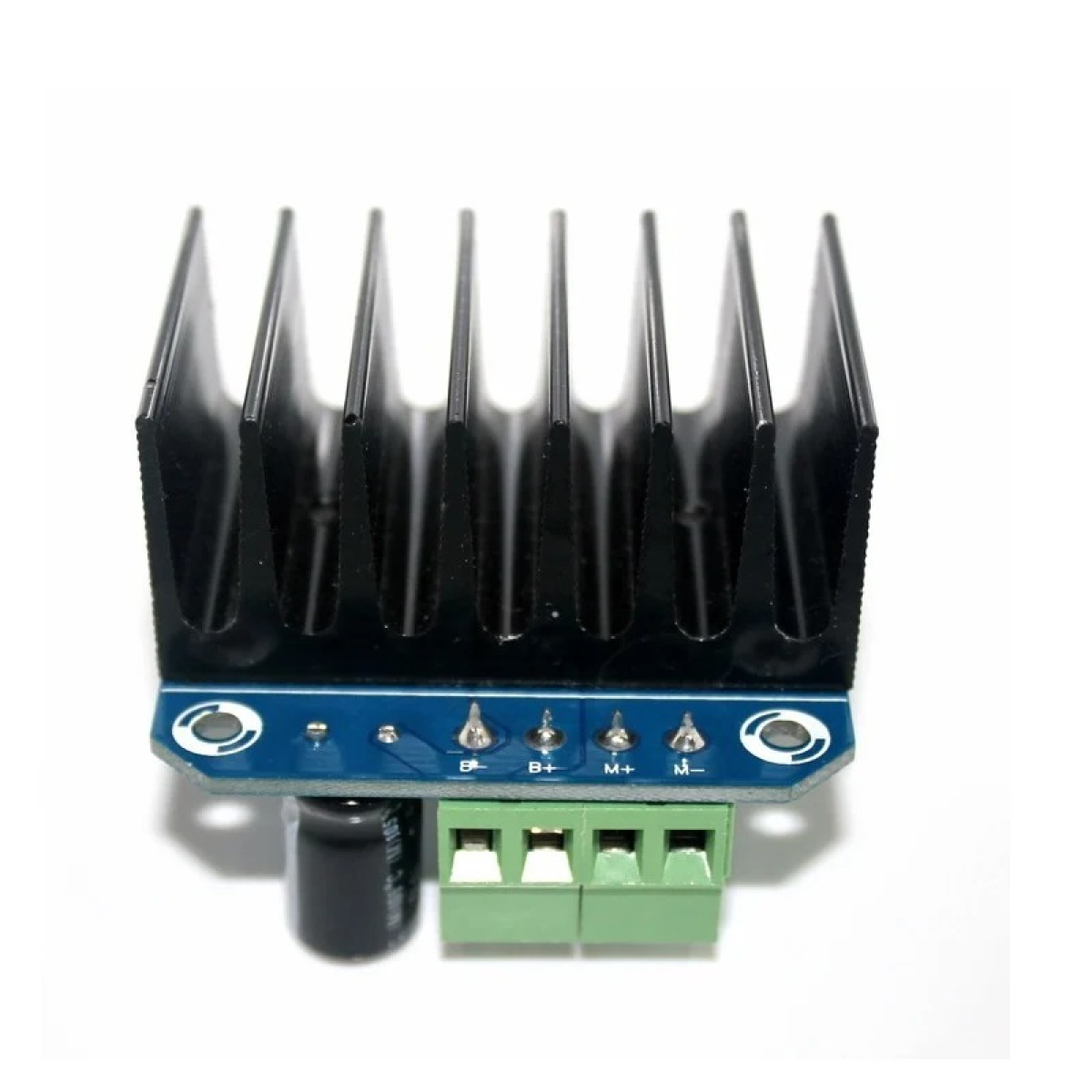

Double BTS7960 43A H-Bridge High-Power Stepper Motor Driver Module

SKU: HW-039

The Double BTS7960 43A H-Bridge High-Power Stepper Motor Driver Module is; a fully integrated high current H bridge for motor drive applications using the BTS7960 high current half bridge. the BTS7960 is part of the NovalithICTM family. This containing one p-channel high side MOSFET and one n-channel low side MOSFET; with an integrated driver IC in one package. Due to the p-channel high side switch; the need for a charge pump is eliminated thus minimizing EMI.

Add to wishlist
Compare
12 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

  • Input voltage(V): 6 – 27.
  • Maximum current(A): 43.
  • Input level(V): 3.3 – 5.
  • Duty cycle: 0 – 100%.
  • Path resistance: 16 mΩ at 25°C.
  • Low quiescent current: 7 µA at 25°C.
Additional information
Input level(V)

3.3 – 5
Path resistance

16 mΩ at 25°C.
Low quiescent current

7 µA at 25°C
Maximum current(A)

43
