Rated Voltage |
AC 220V/ DC 24V/ DC 12V |
---|---|
Power |
18W |
Pressure Range |
0~10kg |
Flow Size |
16mm |
Applicable Temperature |
0~100℃ |

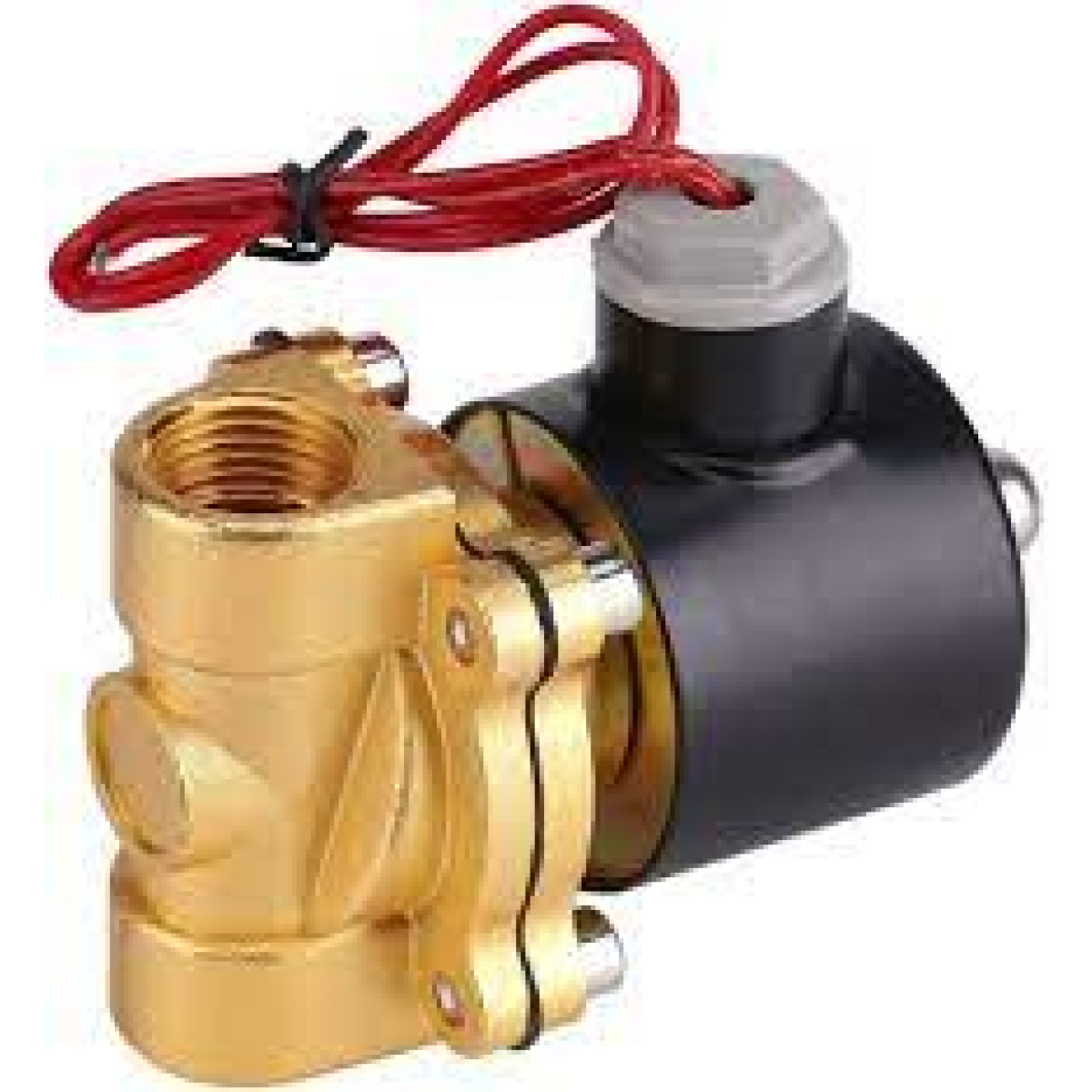

- This is a normally close type electric solenoid valve, power on to open it and power off to close it
- Suitable for use with pipelines in water, air, oil and low viscosity non-corrosive fluid applications
- There is an arrow sign on valve showing flow direction, please follow the sign to connect pipes
- This solenoid valve is designed to installed indoors horizontally in a dry environment. If used outdoors, the coil part should be well protected from water
- Body material: Body zinc alloy + copper coil
