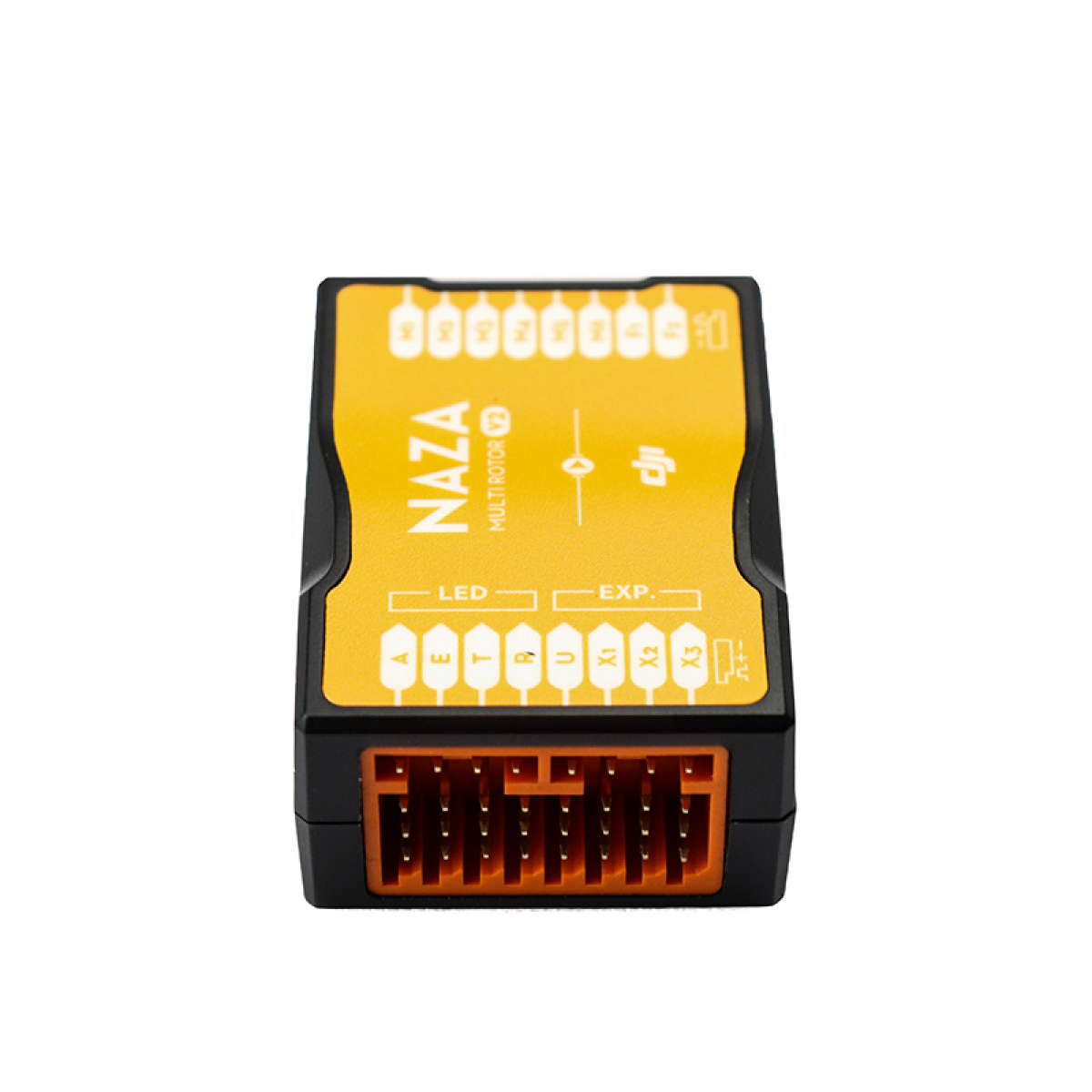

DJI NAZA M V2 Multirotor Autopilot Controller set with GPS

DJI NAZA-M V2 Multirotor Autopilot Controller set With GPS Supports nine multi-rotor configurations, the DJI NAZA-M V2 Multirotor Autopilot Controller set With GPS acts as the brains of the aircraft, managing pilot input and interpreting data from the various sensors, helping maintain a stable flying condition. There are four components to the system.

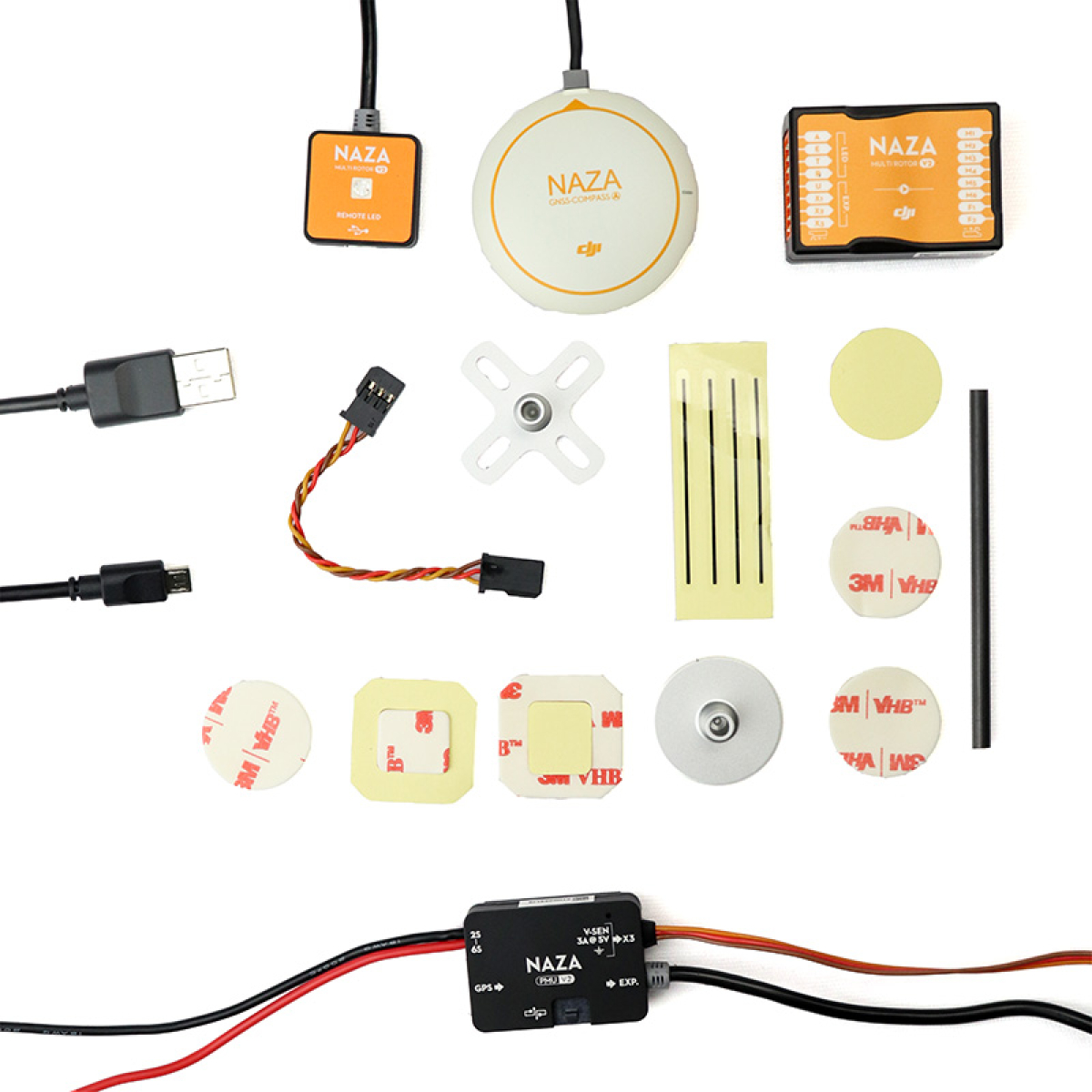

The MC (main controller) houses the flight computer and is at the heart of the flight control system. Then there is the PMU (power management unit), which serves to regulate how much power is sent to each of the four, six, or eight rotors. Finally, a GPUs receiver/compass combo is included, which enables a number of features, including Intelligent Orientation Control (IOC) and the Go Home failsafe.

11 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

  1. All-In-One Compact Multi-Rotor Autopilot System
  2. New Assistant Software for Smartphones
  3. Supported Multi-rotors Quad-rotor: I4, X4
  4. Hex-rotor: I6, X6, IY6, Y6
  5. Octo-rotor I8, V8, X8
  6. Free Ground Station
  7. Take-Off Assistance
  8. Multiple Flight Control Modes and Intelligent Switching
  9. GPS Module Available for Accurate Position Stabilization
  10. Intelligent Orientation Control (IOC)
  11. Supports General, PPM, and S-Bus Receivers
  12. Arm/Disarm Modes for Safe Motor Starting
  13. 2-Axis Gimbal Stabilization
  14. Two Levels of Low Voltage Warnings and Protection
  15. Single Motor Failure Protection
Additional information
Input Voltage (V)

MC: 4.8 to 5.5 V VU: 7.4 to 26.0 V (2S to 6S LiPo recommended)

Power Consumption (Watt)

1.5

Operating Temperature (°C)

-10 to 50

Dimensions (mm) LxWxH

MC: 45.5 x 32.5 x 18.5 mm PMU: 39.5 x 27.5 x 10 mm GPS & Compass: 46 (diameter) x 10 mm
