Digital Sensor TTP223B Module

SKU: HW-139

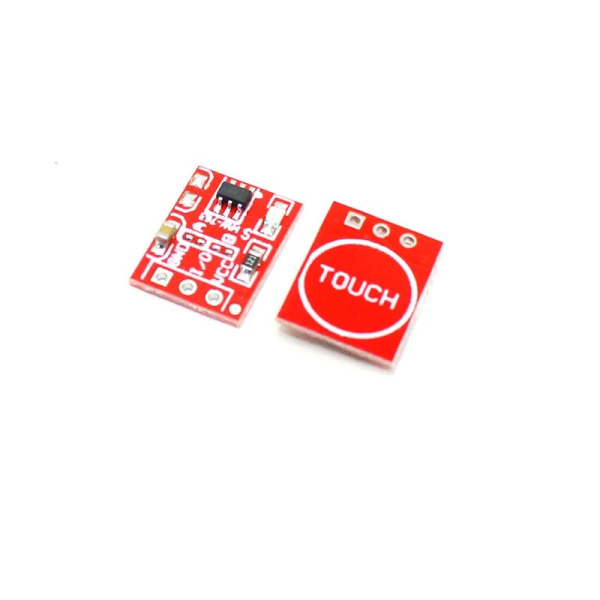

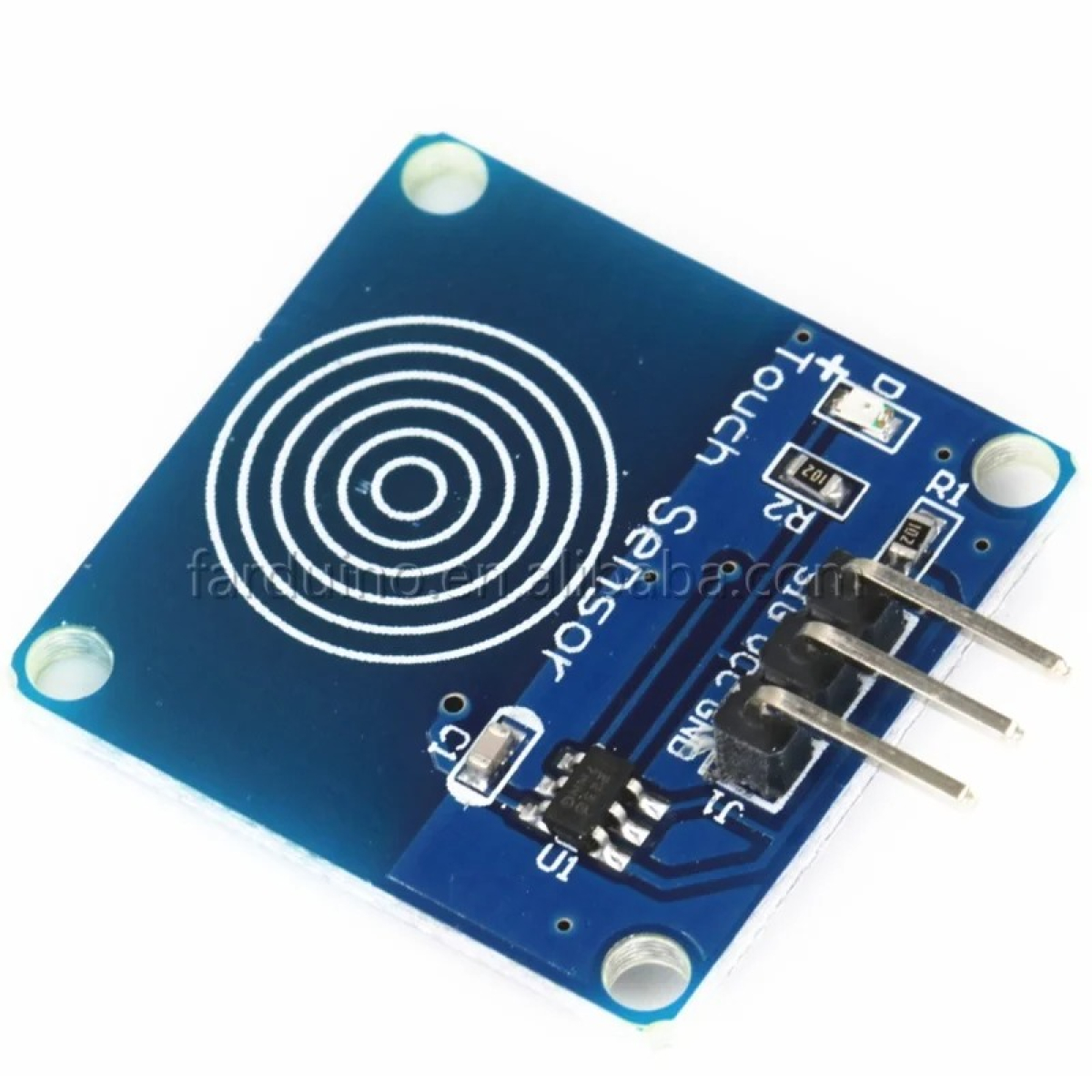

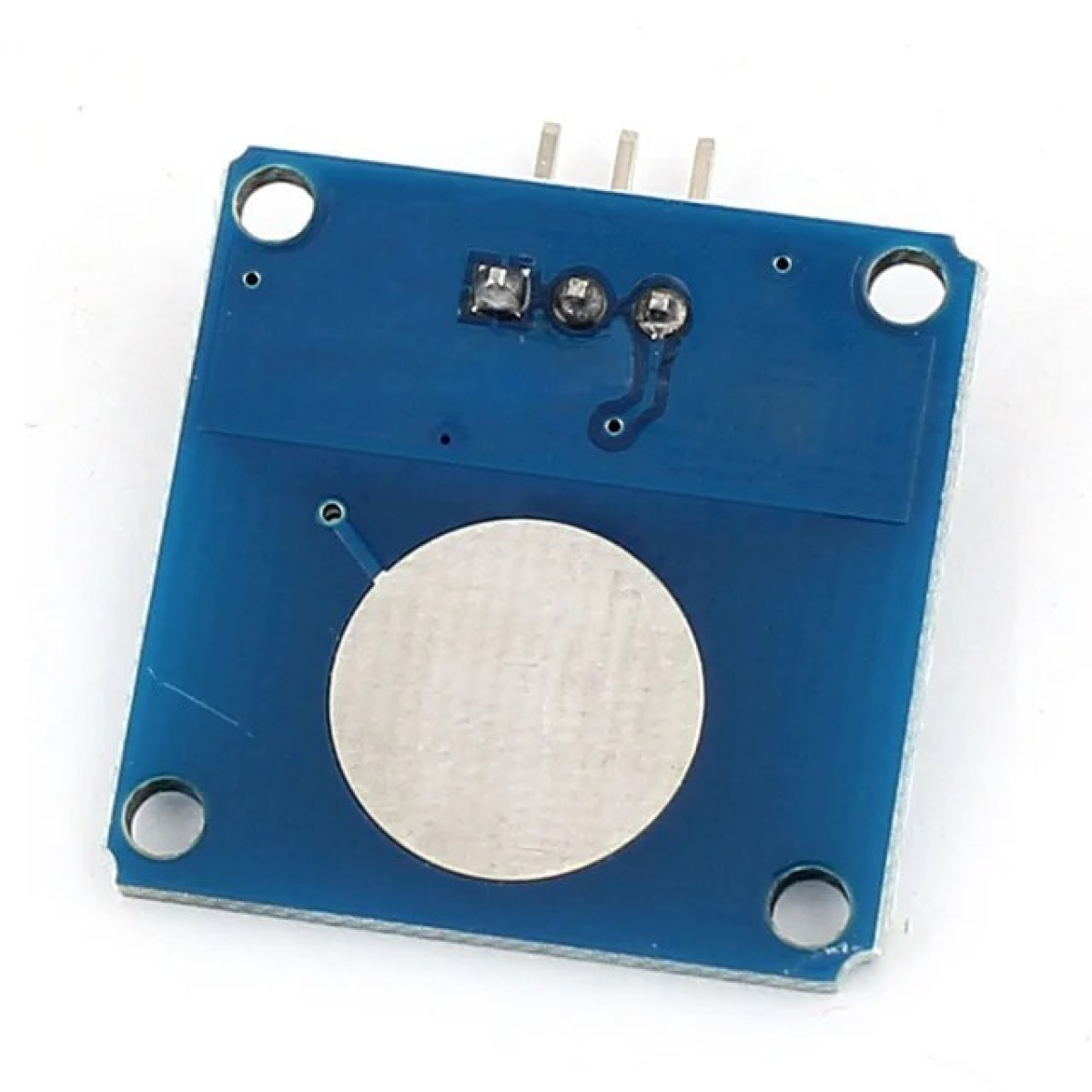

Digital Capacitive Touch Switch Module is based on TTP223B. Normally, it outputs low and keeps at low power state. When a touch is sensed on the circular marked region, it outputs high and switches to the quick response state. When not being touched for 12 seconds, it switches to low power state again.

Add to wishlist
Compare
10 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

  1. Power supply voltage(VCC): 2.0, 3, 5.5 V.
  2. Output high VOH: 0.8VCC V
  3. Output low VOL: 0.3VCC V
  4. Response time (touch mode) : 60 mS
  5. Response time (low power mode) : 220 mS
  6. Can replace the traditional touch of a button
  7. Four M2 screws positioning holes for easy installation
Additional information
Operating Voltage (VDC)

2 ~ 5.5
Response time (touch mode)

60 mS
Response time (low power mode)

220 mS
Shipping Dimensions

3 X 3 X 1 CM
