DB107

Mechanical Data:-

• Terminals: Plated leads solderable per MIL-STD-202, Method 208

• Polarity: as marked on case

• Mounting Position: Any

• Marking: Type Number

• Lead Free: For RoHS / Lead Free Version

Add to wishlist
Compare
12 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

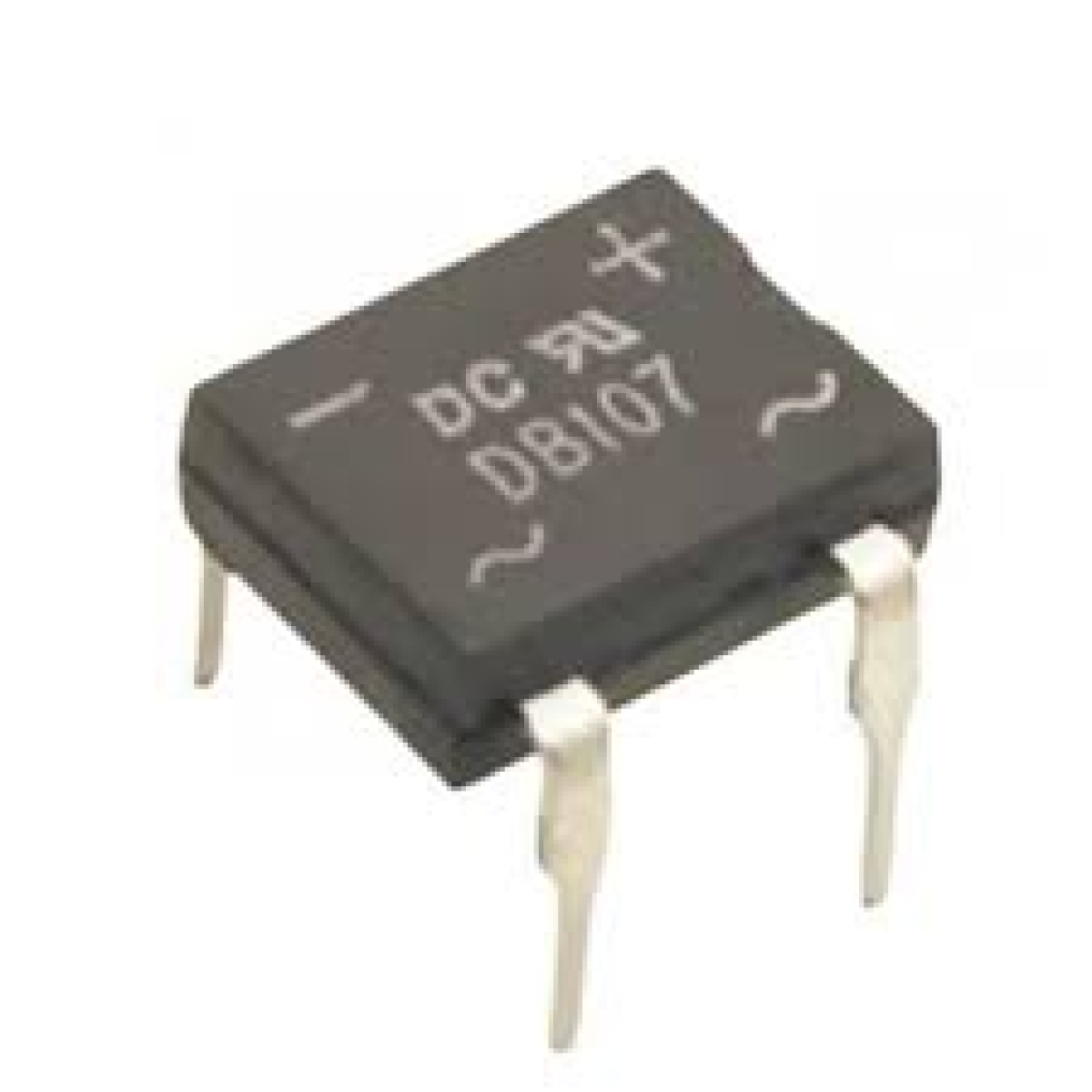

The DB107 is a single phase 1.0 Amp Glass Passivated Bridge Rectifier Case: DB-M, Molded plastic.

Features:-

• Glass passivated die construction

• Low forward voltage drop

• High current capability

• High surge current capability

• Plastic material-UL flammability 94V-0

• This is a Pb − Free Device

• “-HF” suffix is for Halogen Free Device

• All SMC parts are traceable to the wafer lot

• Additional testing can be offered upon request

Additional information
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage

1000V
RMS Reverse Voltage

700V
Non-Repetitive Peak Forward Surge Current A Single half sine-wave superimposed on rated load

45A
