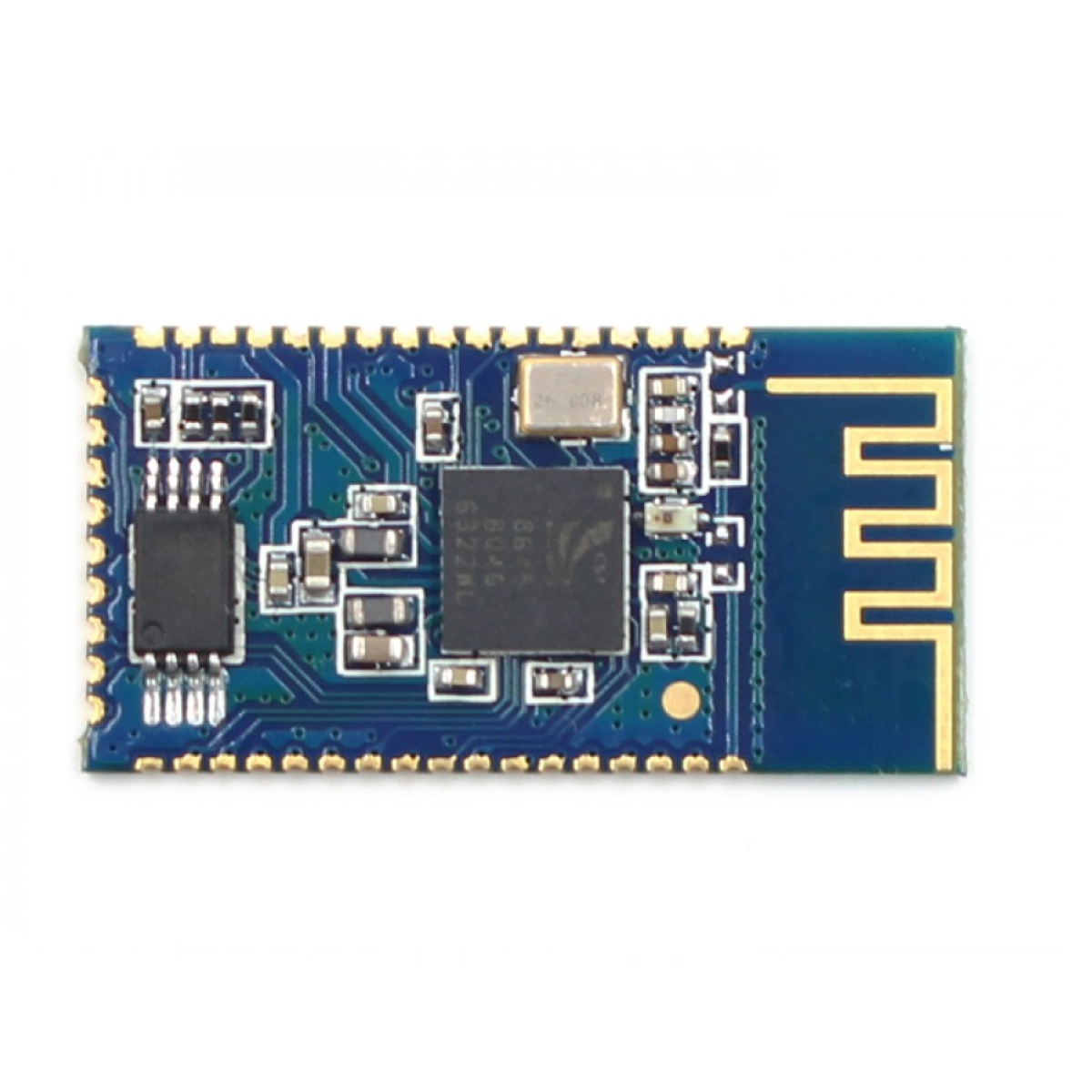

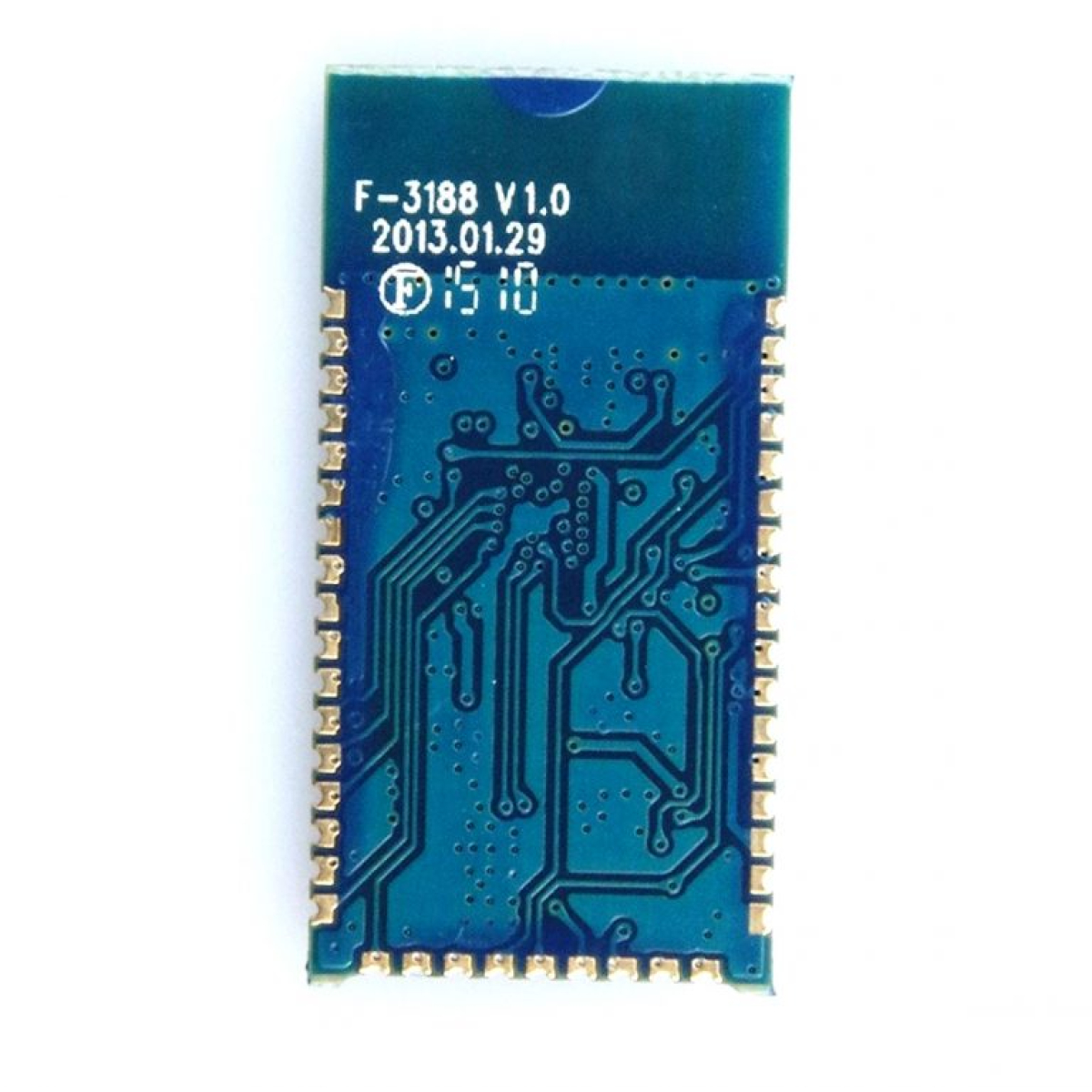

CSR8645 Low Power Bluetooth V4.0 Audio Amplifier Support aptX

This Bluetooth Audio Module based on the CSR8645, with latest Bluetooth V4.0. It is an Intelligent wireless audio data transmission product, low price, and high-efficiency stereo audio wireless transmission. With this module, you will easy to make your music wireless transmission, mainly used for short-distance transmission of music, you can easily connect Bluetooth laptop, cell phone, PDA and other digital products connected devices for wireless transmission of music.

It has a total of 6 function keys which is  POWER-EN, PLAY, VOL+, VOL-, PREV, NEXT.

Add to wishlist
Compare
13 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

Bluetooth Profiles:

  1. Bluetooth v4.0 specification support.
  2. HFP v1.6 wideband speech (HD voice ready).
  3. HSP v1.2.
  4. A2DP v1.2.
  5. AVRCP v1.4.
  6. Support for smartphone applications (apps).

Improved Audio Quality:

  1. 2-mic far-end audio enhancements.
  2. Near-end audio enhancements (noise suppression and AEQ).
  3. Wind noise reduction.
  4. Packet loss concealment.
  5. Bit error concealment.
  6. Automatic gain control and automatic volume control.
  7. Frequency expansion for improved speech intelligibility.
  8. mSBC codec support for wideband speech.

Music Enhancements:

  1. Configurable 5-band EQ for music playback (rock, pop, classical, jazz, dance etc).
  2. APTX, SBC, MP3, AAC, and Faststream decoder.
  3. Stereo widening (S3D).
  4. Volume Boost Additional Functionality Additional Functionality.
  5. Support for voice recognition.
  6. Support for multi-language programmable audio prompts.
  7. CSR’s proximity pairing and CSR’s proximity connection.
  8. Multipoint support for HFP connection to 2 handsets for voice.
  9. Multipoint support for A2DP connection to 2 A2DP sources for music playback.
  10. Talk-time extension.
Additional information
Input Voltage (V)

3.3 ~ 4.2
Bluetooth protocol

HFP V1.6/A2DP V1.2/AVRCP V1.4/HSP V1.2
Operating Temperature (℃)

-40 ~ +80
Frequency Range (GHz)

2.4 ~ 2.480
