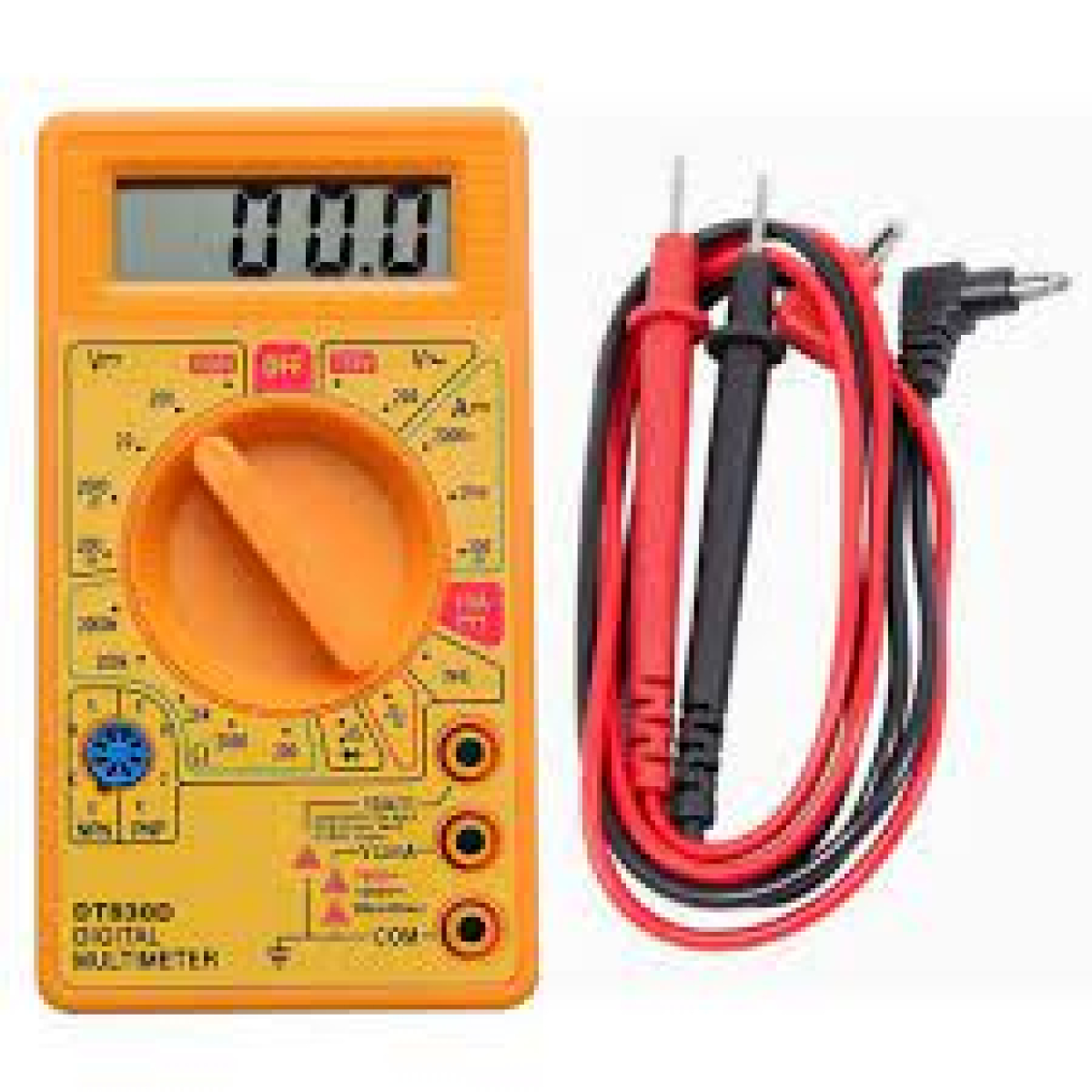

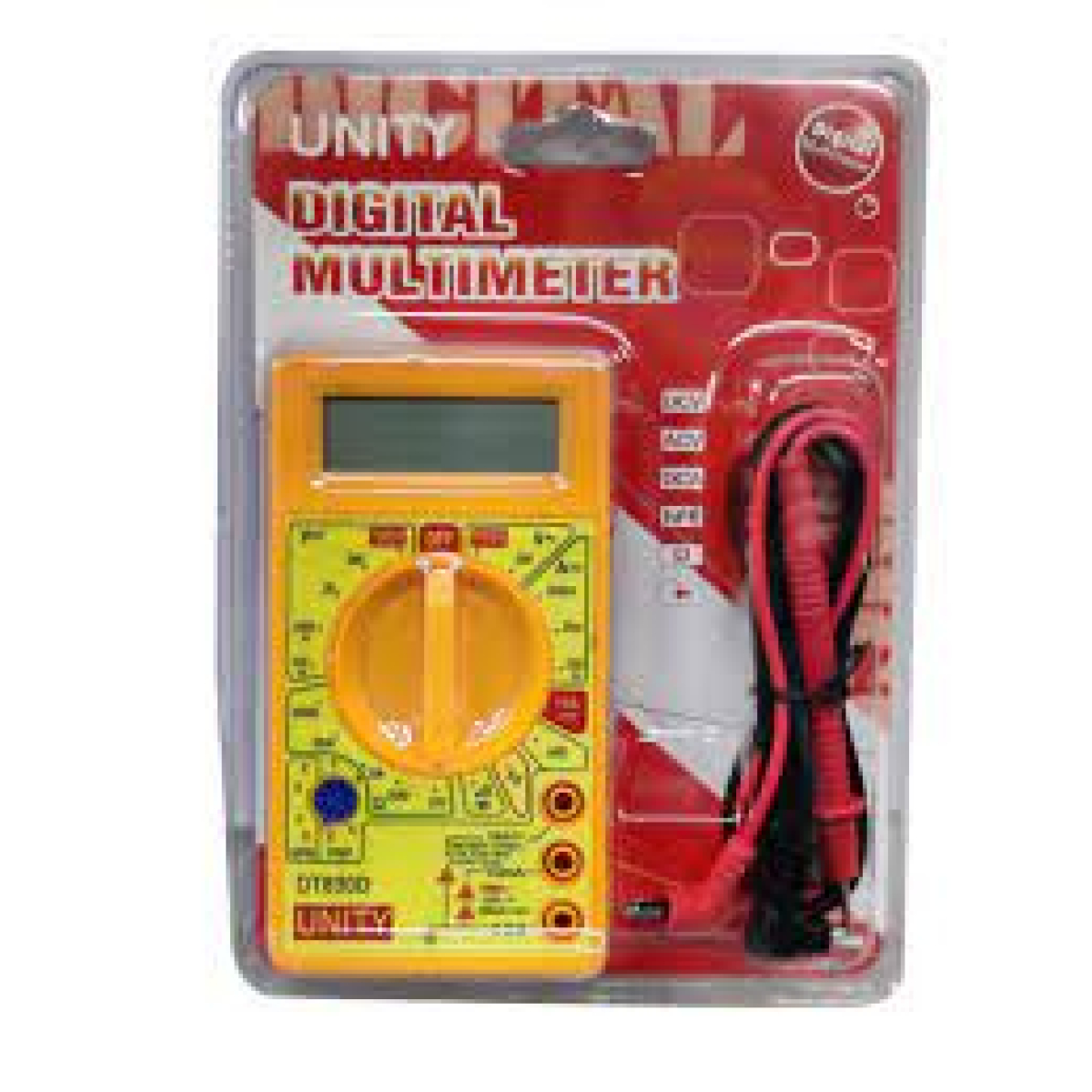

CHINA MULTIMETER DMM (YELLOW COLOR)

Dt-830D – When testing the temperature, connect the temperature probe to V 0 mA jack or COM jack. Please refer to the attached instruction manual for the operating instructions.
Ac Dc Measuring Voltage Current. – When testing dc voltage, ac voltage, dc current, resistance, diode, buzzer, and battery, connect the red test lead to the v 0 ma jack and the black test lead to the com jack
When testing the current more than 200ma, connect the red test lead to the load jack and the black test lead to the com jack
Small multi-meter for your day-to-day needs
Digital Yellow Multimeter has Square wave output: the frequency is 50Hz, and the voltage is approx 3Vp-p.The output jack is “V ohm mA” and “COM”

18 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

Digital Multimeter with 1M Ohm Impedance is Standard Diagnostic Tool to Measure Two or More Electrical Values Such as Voltage, Current and Resistance. It uses digital and logic technology using integrated circuit technology to offer additional test capabilities.

They are Widely Used in electrical measurements, AC and DC voltage, AC and DC current, and resistance, voltmeter, ammeter, and ohmmeter, voltages and voltage fluctuations in homes or offices.

Features:-

An Easy to Read 3.5 Digit LCD Display.
Ability to display Measured Electrical Values Quickly Without any Computations.
Auto-Polarity for Direct Current Readings.
Auto Ranging which Selects the Correct Range for the Quantity Under Test to Get Most Significant Digits.

Additional information

Voltage Rating	1000Vdc/750Vac Rms
SIZE	21X15X5cm
Impedance	1Mohm
CAPACITY	200 mV, 2000mV, 20V, 200V and 1000V (DC Voltage), 200µA, 2000µA, 20mA, 200mA and 10A (DC Current), 200V and 750V (AC Voltage), 200, 2000 Ohms, 20, 200 and 2000KOhms (Resistance).
