CC3000 WIFI SHIELD

  1. Arduino, Crowduino, Seeeduino, Arduino Mega and Crowduino Mega compatible
  2. Support SD card 2GB and 4GB
  3. Wireless network processor
    • IEEE 802.11 b/g ( 2.4GHz)
    • Embedded IPv4 TCP/IP stack
  4. Best-in-class radio performance
    • TX power: +18.0 dBm at 11 Mbps, CCK
    • RX sensitivity: –88 dBm, 8% PER, 11 Mbps
  5. Works with low MIPS and low-cost MCUs with compact memory footprint
    • Small code size (Flash and RAM) required for MCU
  6. FCC, IC, CE and TELEC certified reference design with a chip antenna
  7. Integrated crystal and power management
  8. Small form factor
    • 16.3 mm × 13.5 mm × 2 mm
  9. Operating temperature: –20°C to 70°C
  10. SmartConfig technology enables simple Wi-Fi configuration using a smartphone, tablet or PC
  11. Proven Wi-Fi interoperability; based on TI’s seventh generation of proven Wi-Fi solutions
  12. Complete platform solution including user and porting guides, API guide, sample applications, and support community

13 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

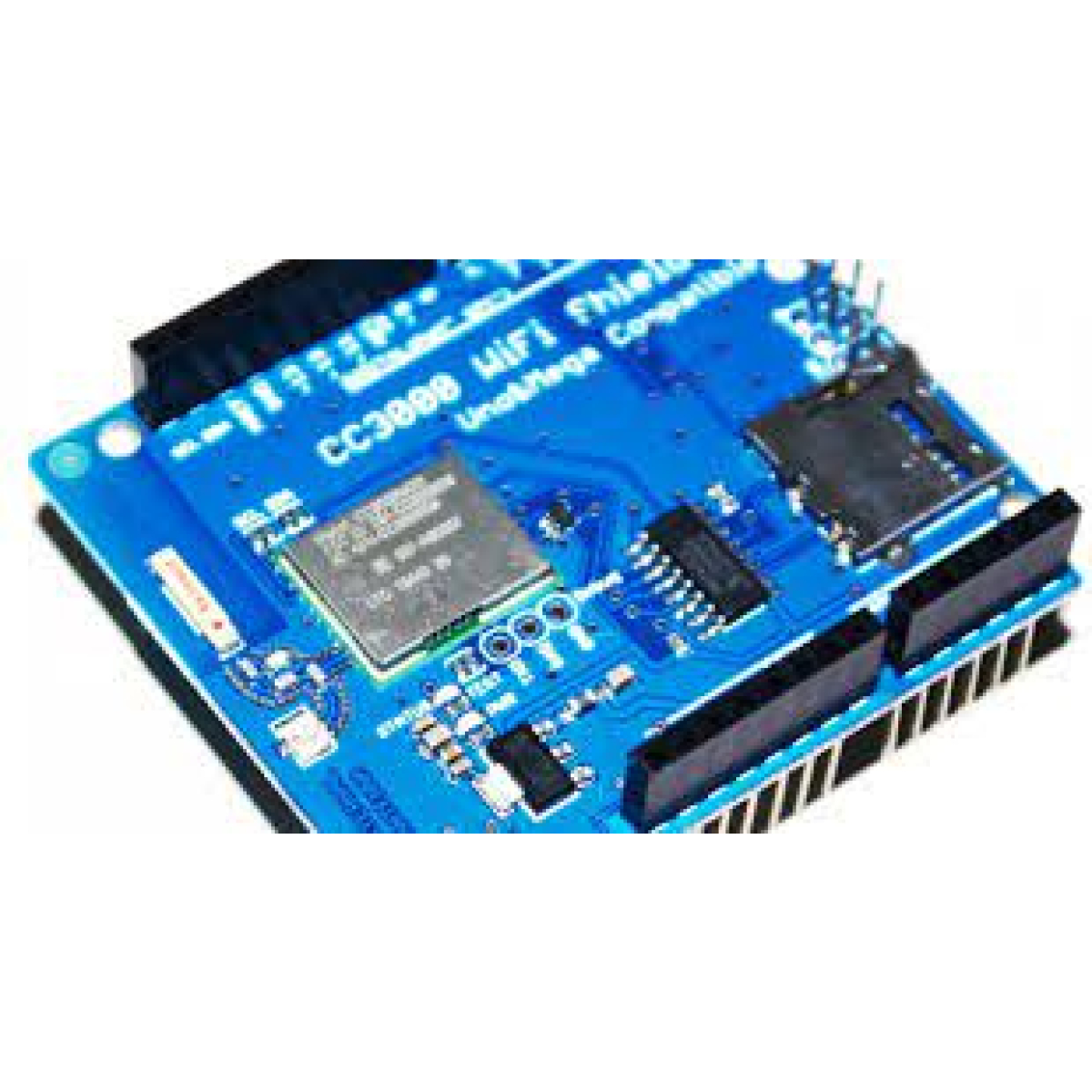

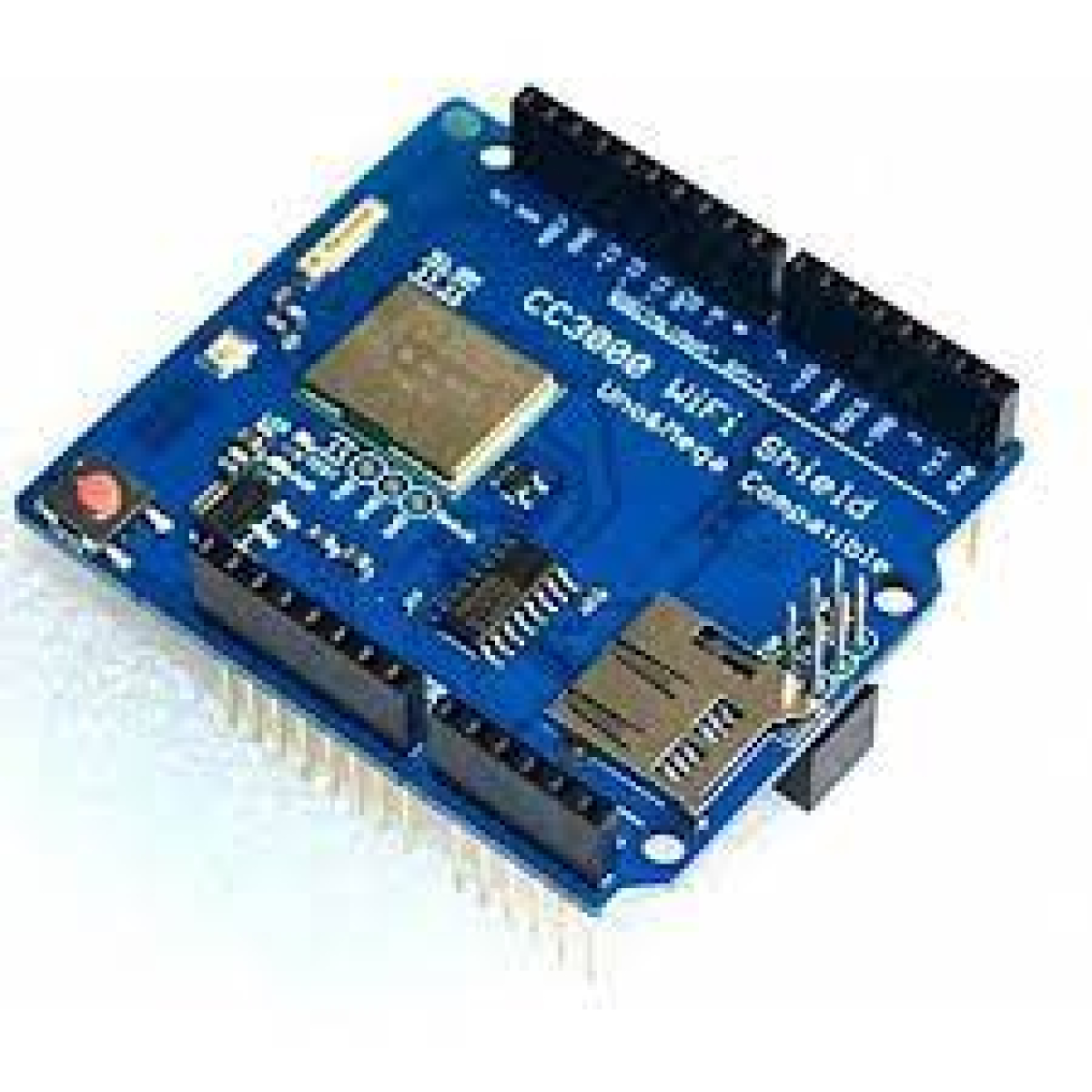

This is a shield for the CC3000 WiFi Module. The CC3000 from TI (Texas Instruments) is a self-contained wireless network processor that makes incorporating internet connectivity into your project simple.
Supply Voltage: 4.5V – 12V Host Interface: SPI @ 16MHZ Throughput (TCP): ~4Mbps
IEEE 802.11 b/g Compliant WEP, WPA/WPA2 (AES and TKIP – Personal) Security Modes
This shield even provides an optional feature that allows you to attach an external antenna, just in case you need a little extra power.
he CC3000 Shield has a standard Arduino shield layout with 2 rows of pins on either side.

Additional information
Required Code size

As low as 5KB Flash & 360B RAM

Host Interface

SPI at 16MHz

Power Modes

Active Mode (92mA typ RX current),
Shutdown Mode (<5uA)

Power Supply

2.9V – 4.8V

I/O Voltage

1.8V – 3.6V

Connections

4 Sockets (UDP or TCP)
(TCP) ~4 Mbps*
