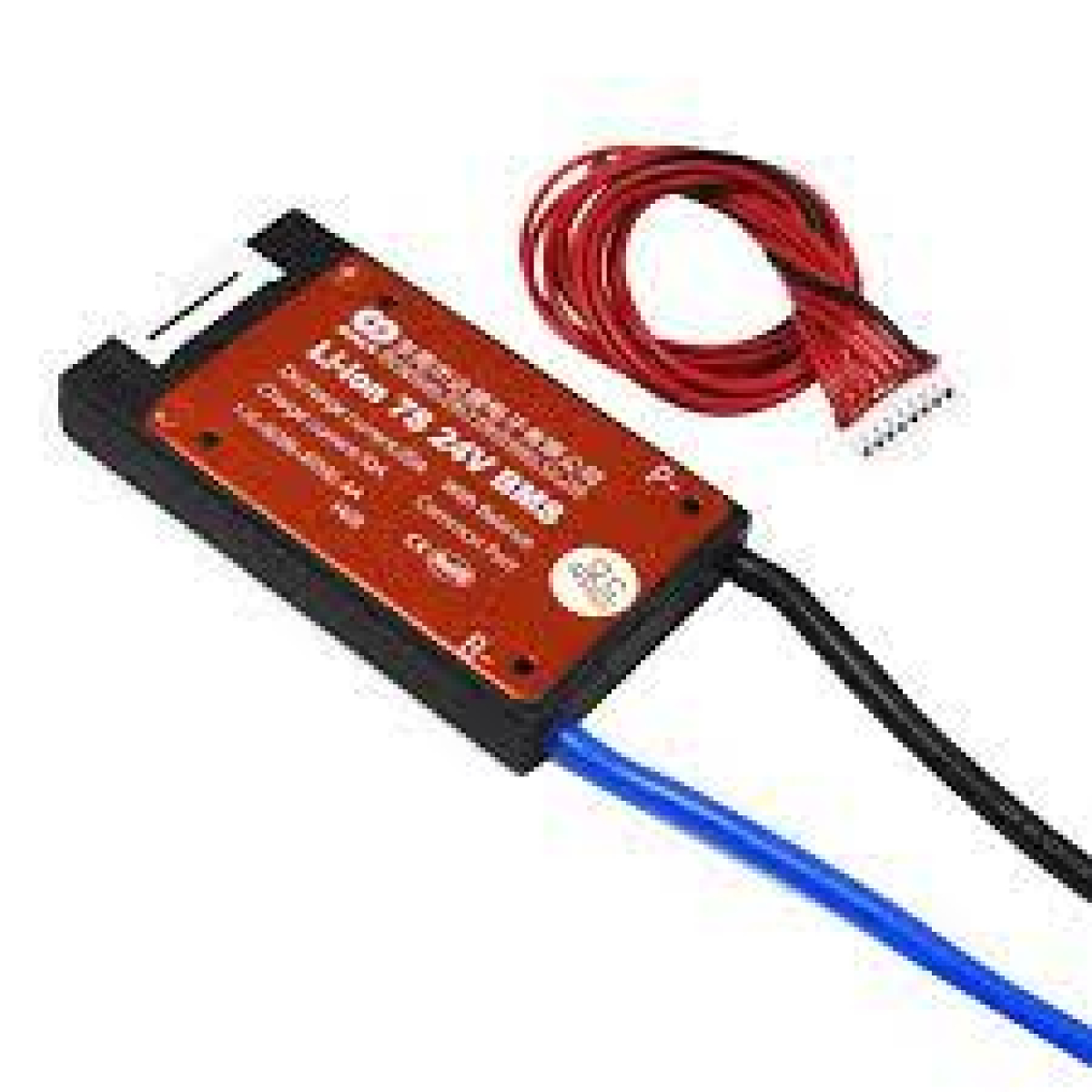

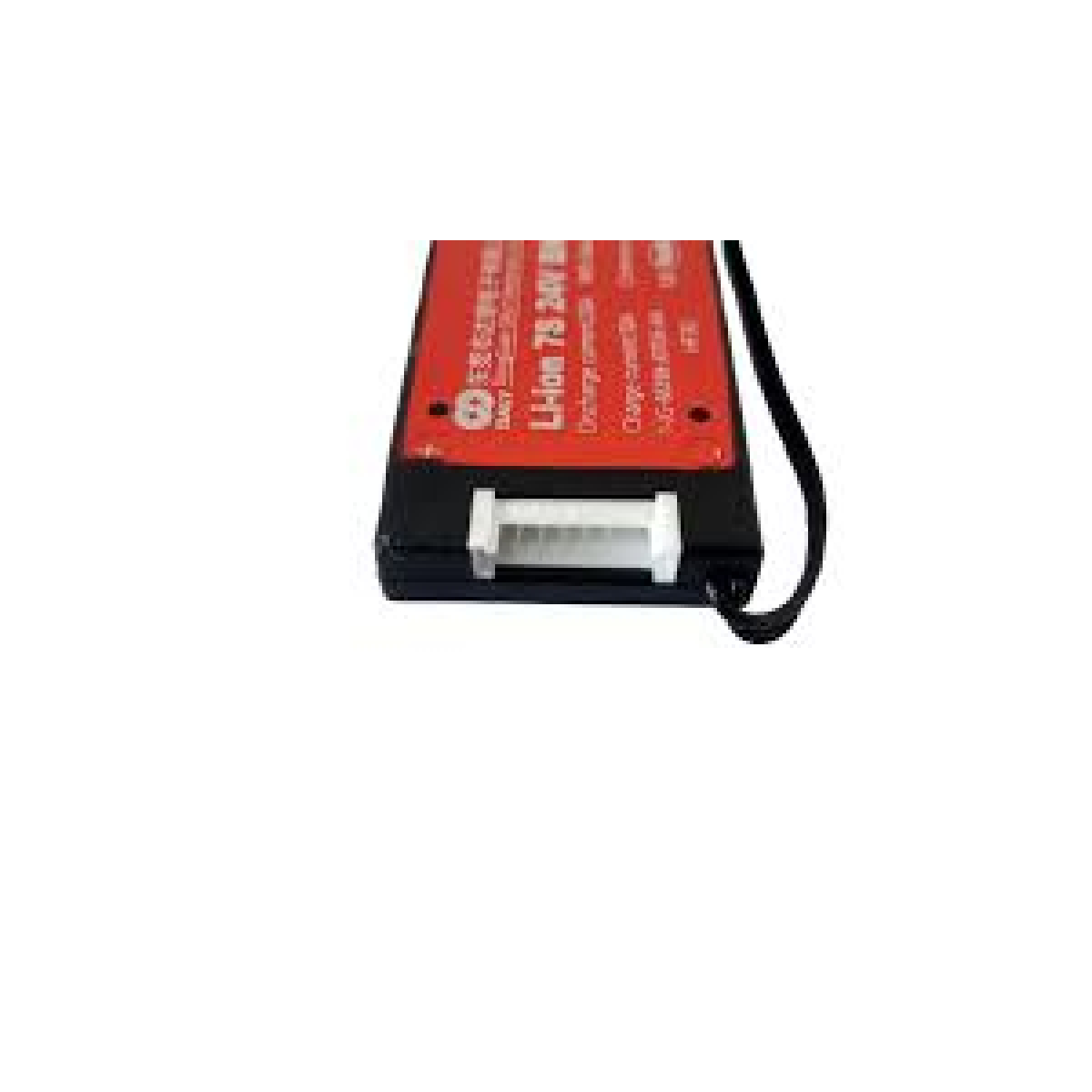

BMS – 7S – 24V 20A

  1. Use top quality (A-level) protective integrated circuit IC, from the solution of Seiko of Japan.
  2. Strong load ability, constant discharge current 10A/25/35A/45A/60A , use high voltage resistance, low inner
  3. resistance power Mosfet. The heat sink will greatly help cooling.
  4. IC itself has power balancing function. The circuit is simple and reliable.
  5. Typical voltage detection for each cell. So each battery will be prevented over charged or over discharged. Over current and short circuit protection
  6. Function is very reliable. Long time short circuit of the load won’t affect the PCB and the battery. Temperature protection during charging and discharging.
  7. Extreme low power consumption. The consumption of the whole device is less than 50uA.
  8. PCB use high anti-corrosion, high water resistance, high impedance ESD conformal Coating.

14 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

This product is designed specifically for lithium-ion batteries. It can collect, process and store the information data of the battery in real time and ensure the safety, availability and stability of the battery.
-There is a complete over-charge, over-discharge, over-current, short-circuit, balance function.
– Dust proof, shockproof, anti-squeezing and other protective functions.
– 2 wires only, Charge and discharge port share the same port.
– Standard wire with connector to reduce the wire complexity and number of solders.
– The appearance is sealed by injection molding process to improve moisture-proof and oxidation-proof components and prolong the service life of the products and batteries.

Additional information
Nominal Voltage

24V

Maximal continuous charging current

10A

Maximal continuous discharging current

20A

Charging voltage

24V
