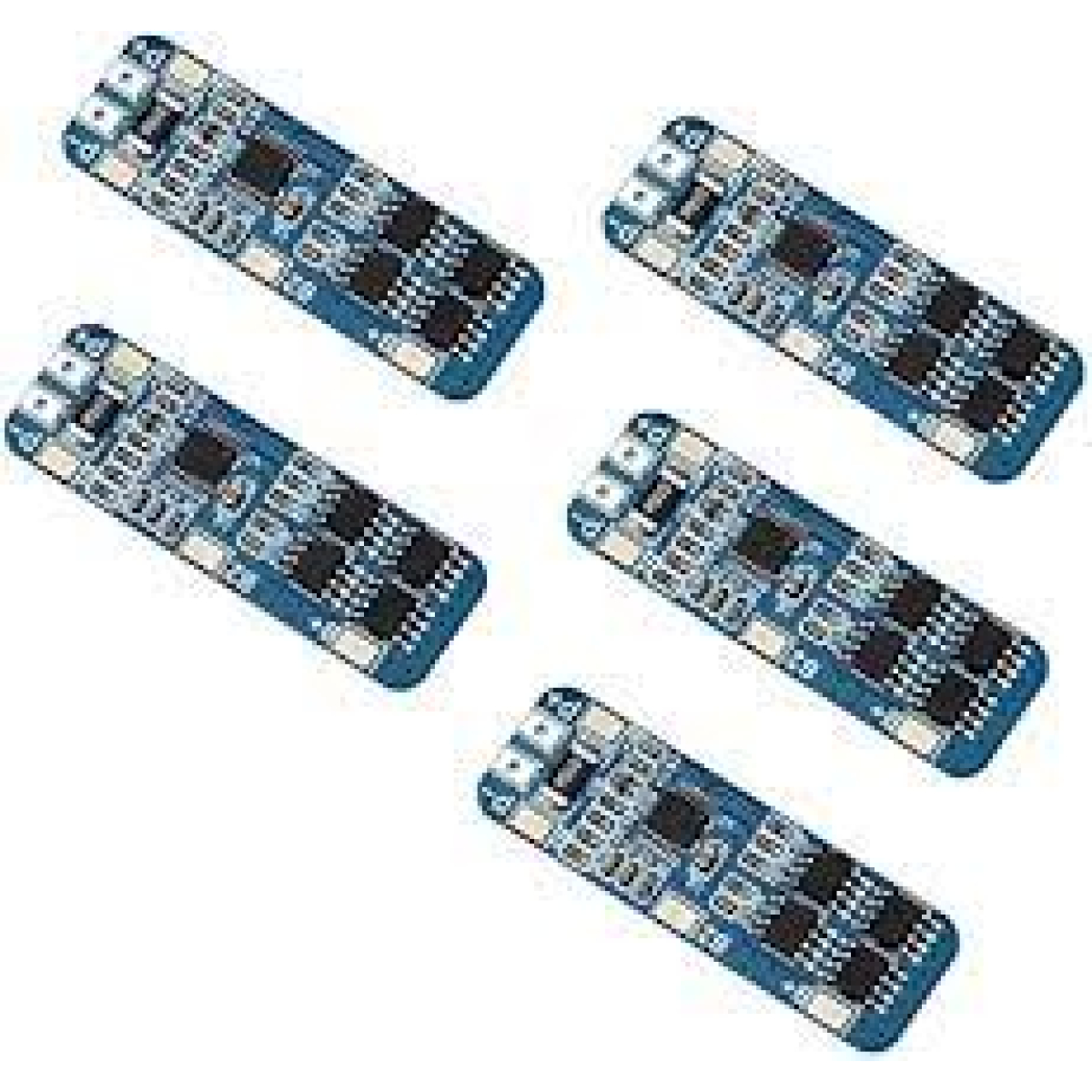

BMS -3S-HX-3S-01- ORG CHIP

Note:

  • The battery will heat when using it, it means the battery does not apply, please don’t keep using because the battery will be damaged soon.
  • The protection board can not be used for lithium iron phosphate battery, hernia lamp, hand drill battery pack, electric fish machine battery pack, electric bicycle battery pack, children’s car battery, 775 (4A)motor, 1W fish eye LED light!

Precautions:

  • Please strictly follow the wiring 0V (B -), 3.7V (B1), 7.4V (B2), 11.1V (B +), do not deliberately short circuit.
  • Please charge after connecting the line, then it will have output.
  • When connecting three groups of batteries, please ensure that the voltage of each group of batteries, if not the same, please fill each battery separately and then use it in series. The discharge test, the voltage drops quickly.

18 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

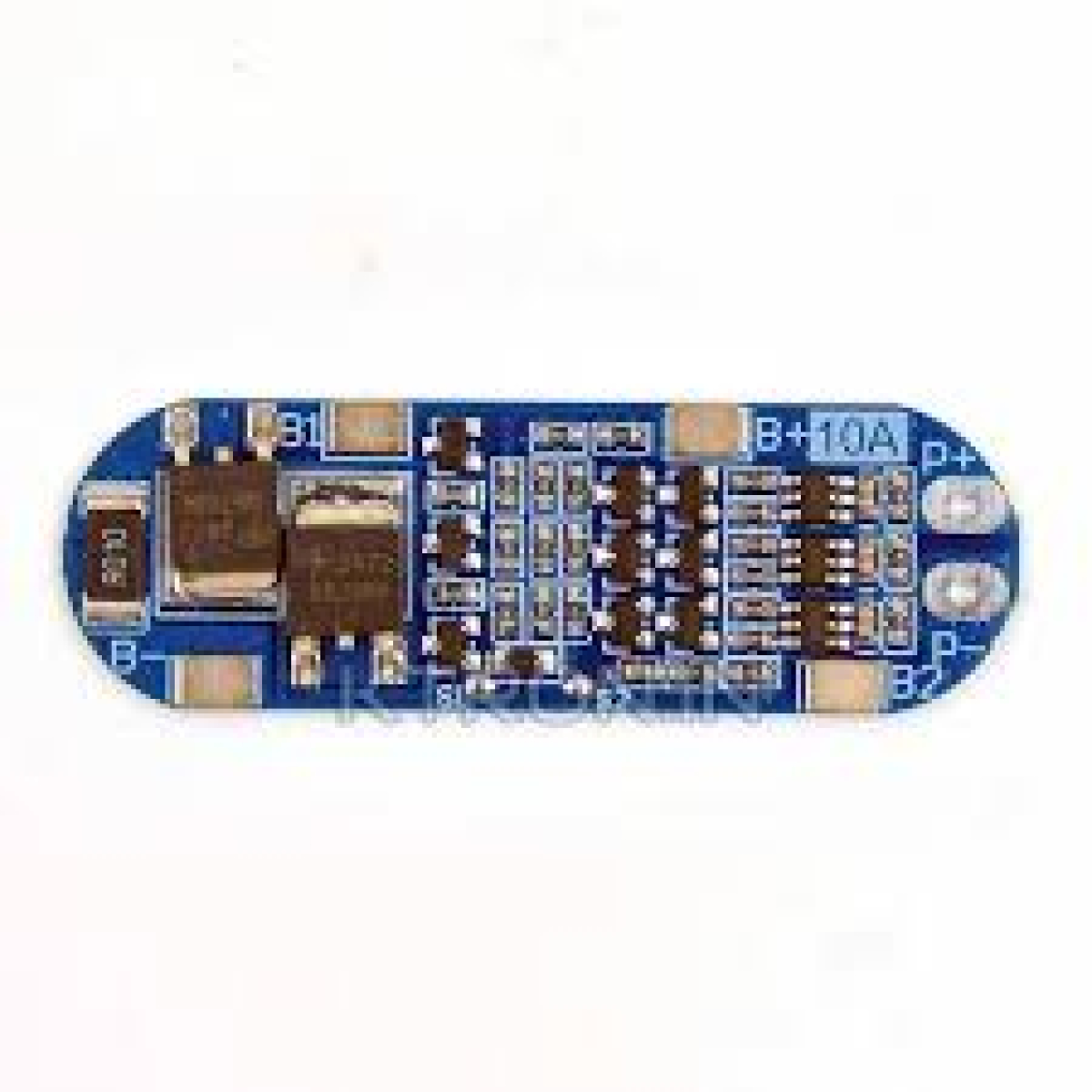

Battery Charger Protection Board is a 3S 10A board. Lithium Batteries BMS with 10.8V rated voltage for polymer battery, 11.1V 18650, or 3.7V lithium battery rated voltage and  12.6V lithium battery can be charged. And discharge 10A (referring to the maximum discharge current limit) Lithium battery protection board it also comes with over-charge, over-discharge, over-current, short circuit protection. A battery pack built together with a battery management system with an external communication data bus is a smart battery pack. A smart battery pack must be charged by a smart battery charger.

Features of PCB Battery Protection Module 3 Series 18650 Li-ion Lithium Battery:

  • Model no HX-3S-1
    100% Brand new and good quality.
  • Three series of lithium battery protection board.
  • Short-circuit protection: protection.
  • Self-recovery delay.
  • Components for the Seiko S-8254AA protection chip and genuine FDS 4435A.
Additional information
Useful life

more than 30,000 hours

Input voltage

12.6 V

Maximum operating current

5-8A

Maximum instantaneous current

9-10A

Operating temperature

-40 – +50 ℃
