BLHELI -30A ESC EMAX

SKU: E-004

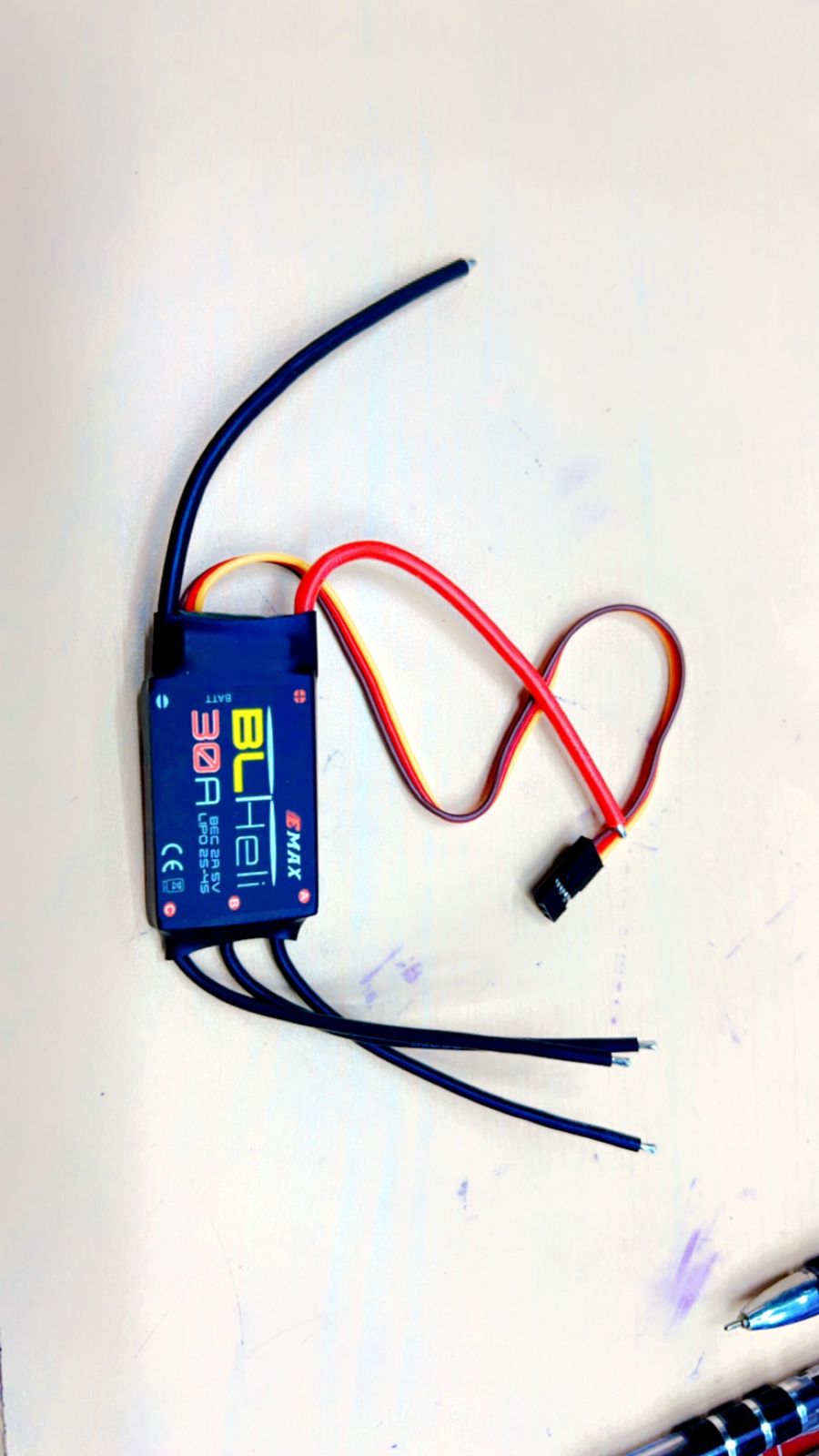

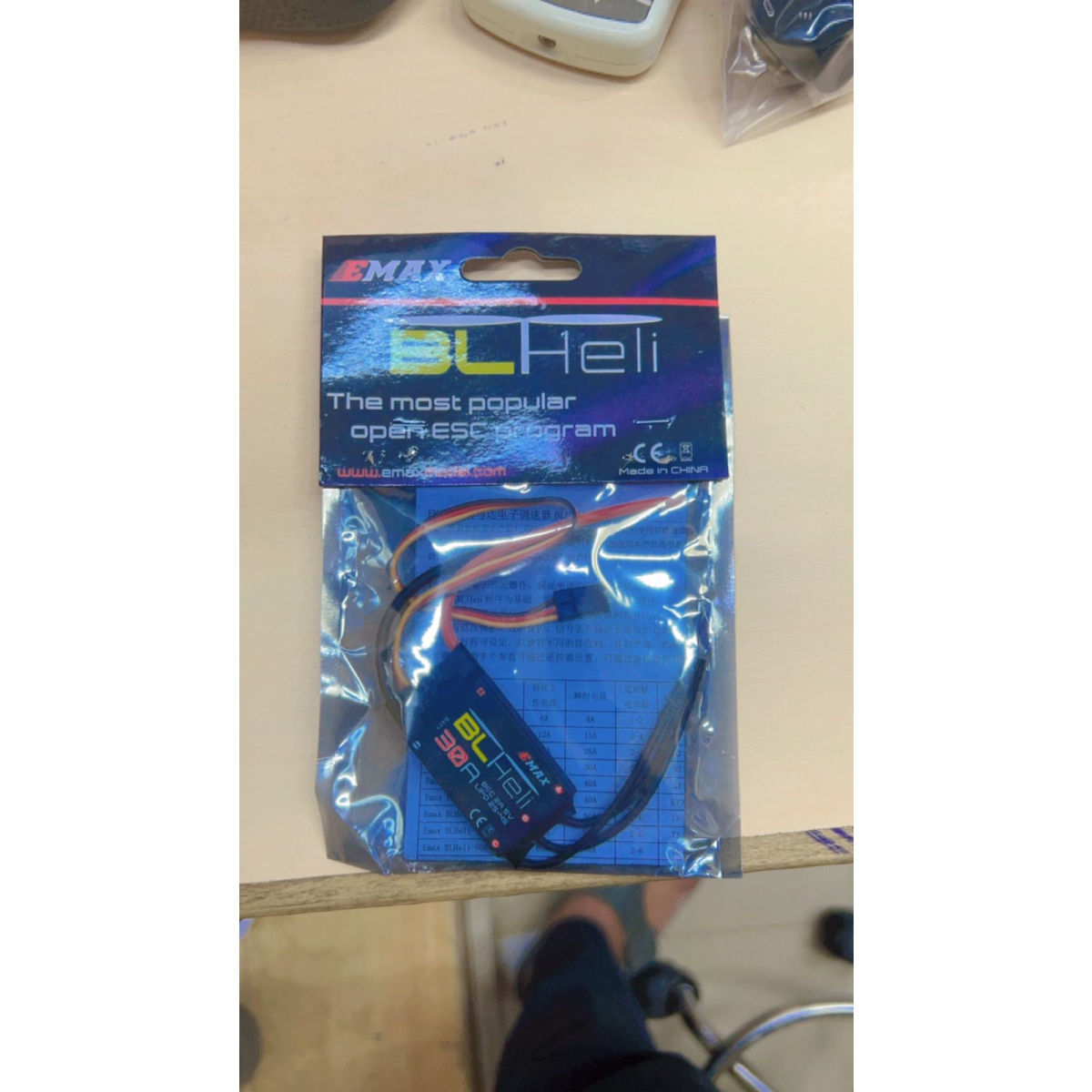

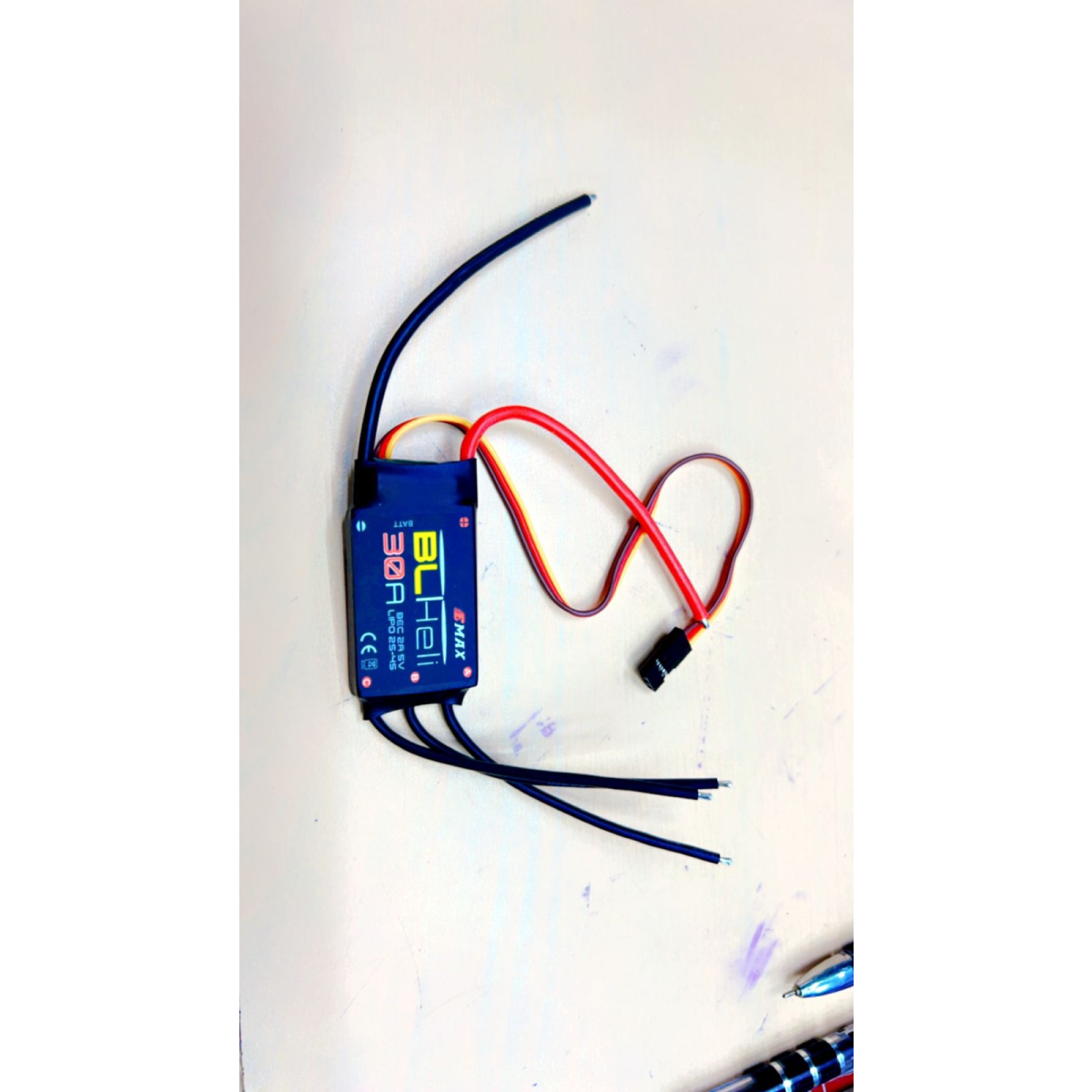

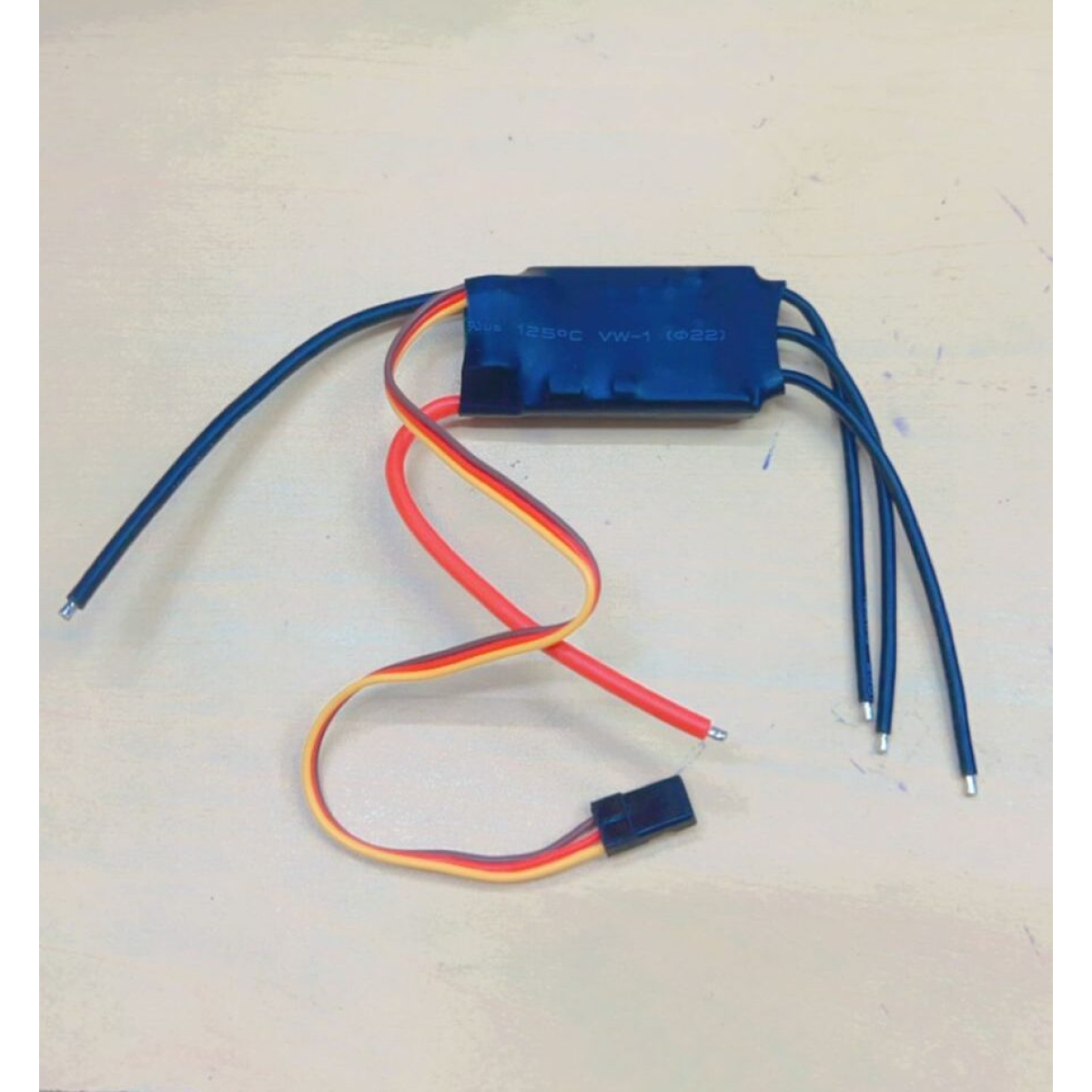

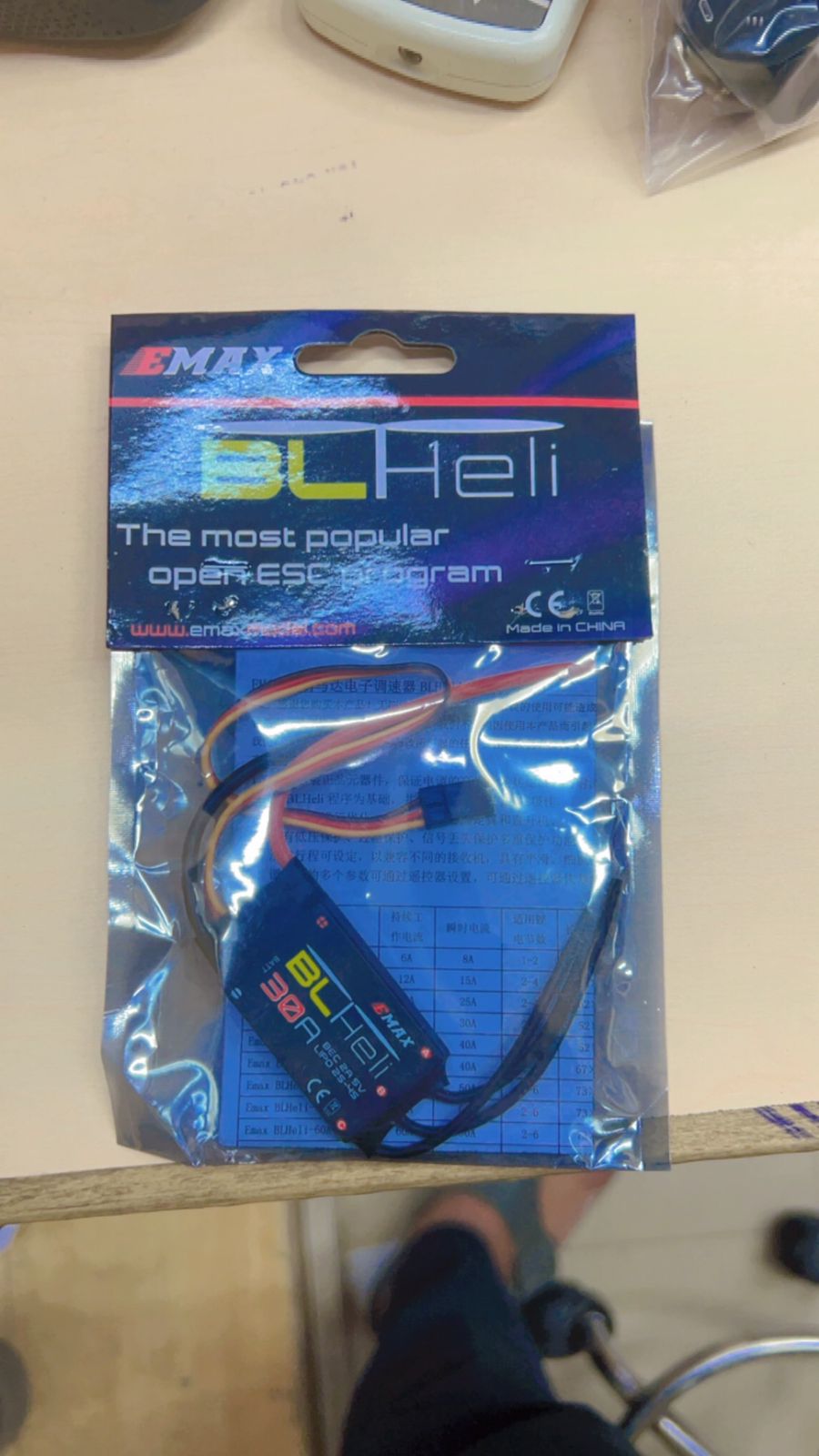

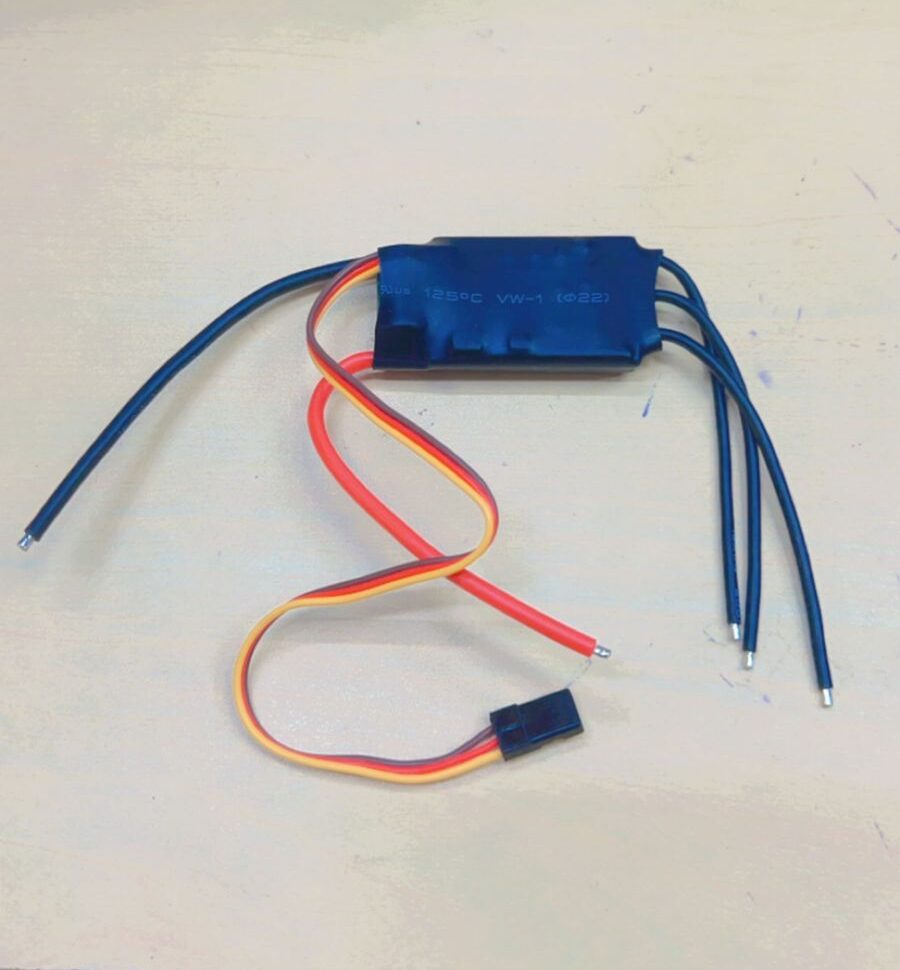

EMAX BLHELI SERIES 30A ESC is a brushless dc motor speed controller. The low output resistance greatly enhances power stability, and this will improve the great battery life. The EMAX BLHELI ESC is programmed to start the brushless dc motor. This ESC has a greater current handling capacity which is 30A continuous and the peak current is 40A for the last 10 seconds only.

15 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

Features :

  1. Based on BLHeli firmware, further optimized to the perfect drive performance.
  2. Low-voltage protection, over-heat protection, and throttle signal loss protection.
  3. Separate power supply for MCU and BEC, enhancing the ESC’s ability to eliminate magnetic interference.
  4. Parameters of the ESC can be set via a program card or transmitter.
  5. Throttle range can be set to be compatible with different receivers.
  6. Equipped with built-in linear BEC or switch BEC.
  7. Max speed: 210,000 rpm for 2-pole, 70,000 rpm for 6-pole, 35,000 rpm for 12-pole.
Additional information
Burst Current (A)

40

Constant Current (A)

30

Suitable Lipo Batteries

2 ~ 4S

Dimensions (mm) LxWxH

52 x 26 x 7

Weight (gm)

28
