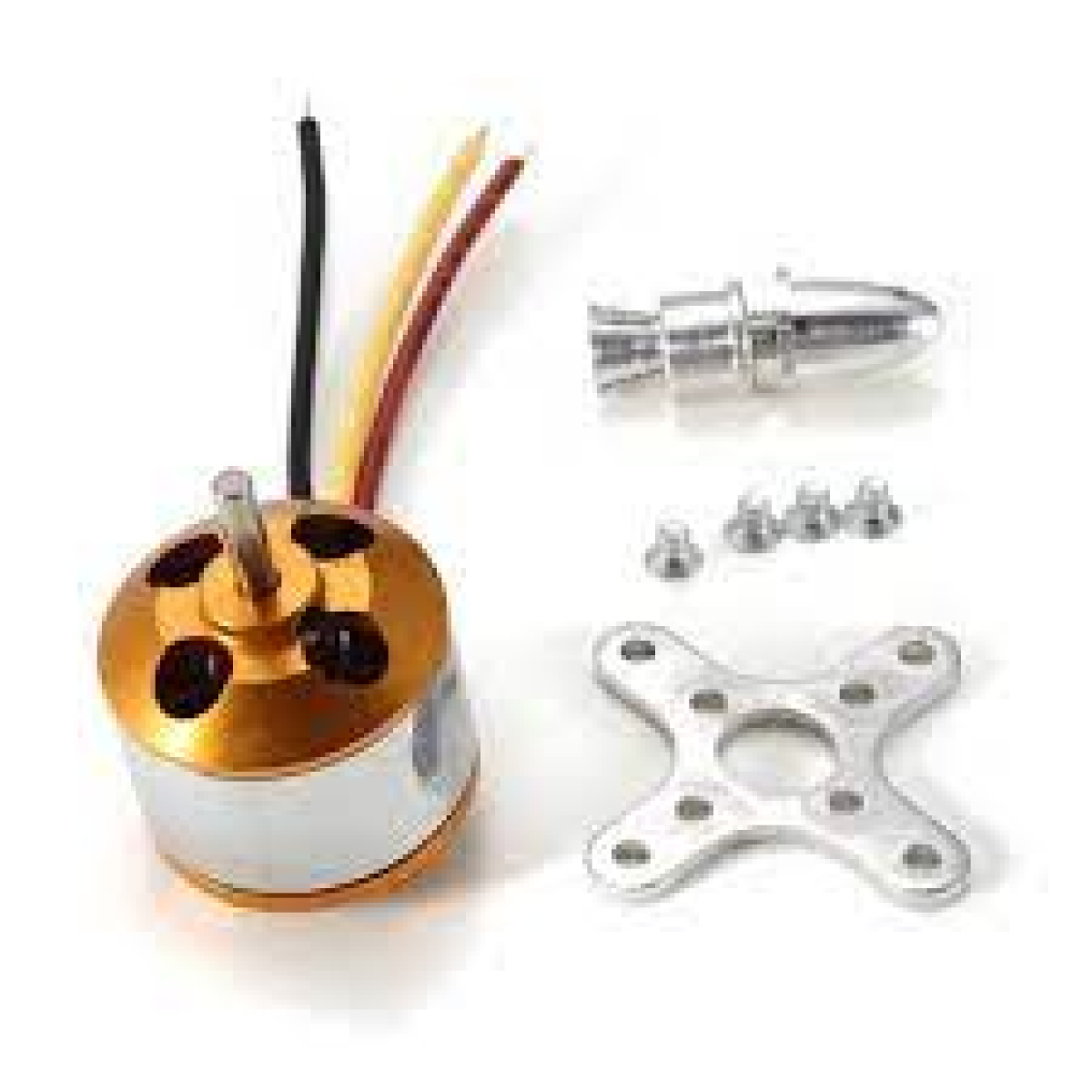

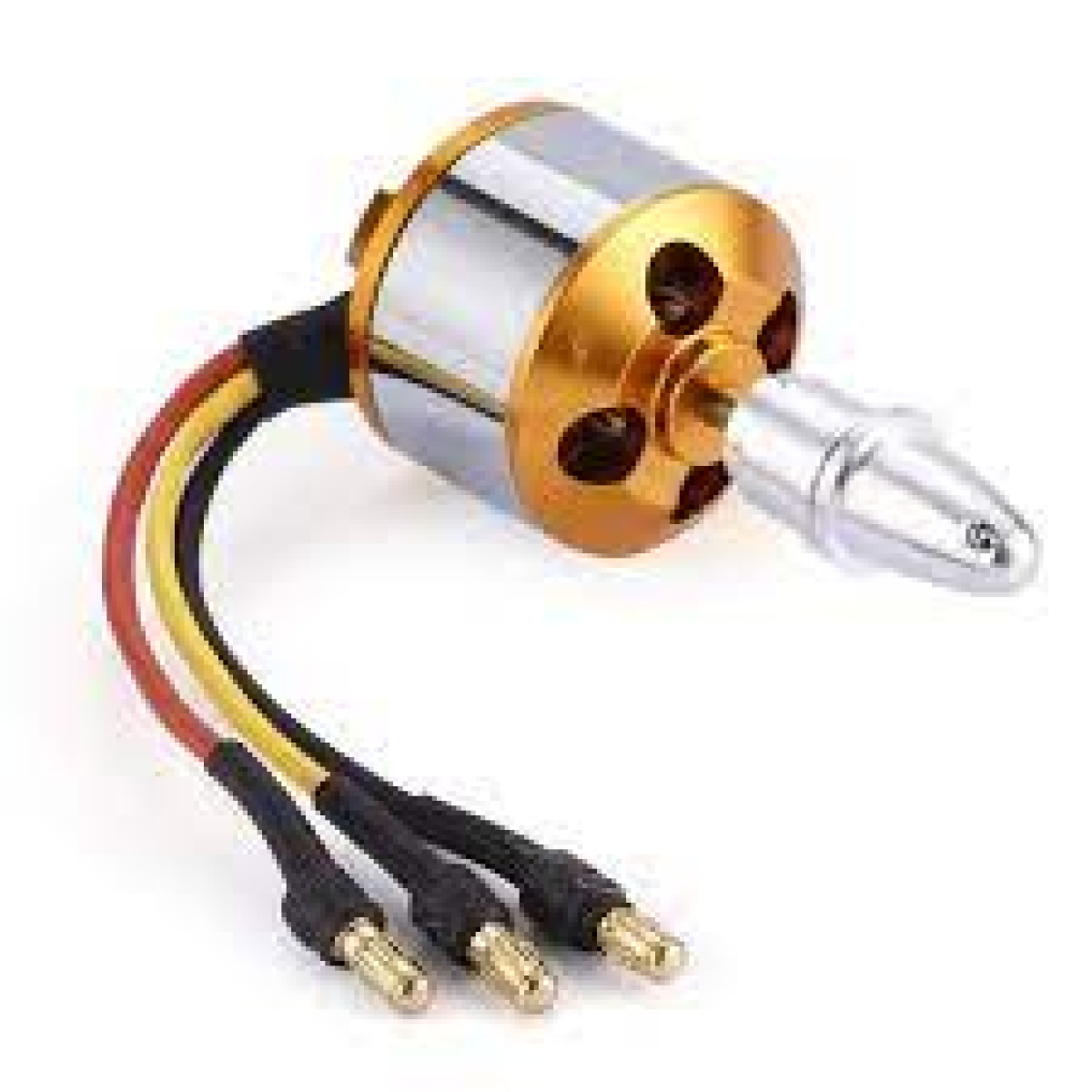

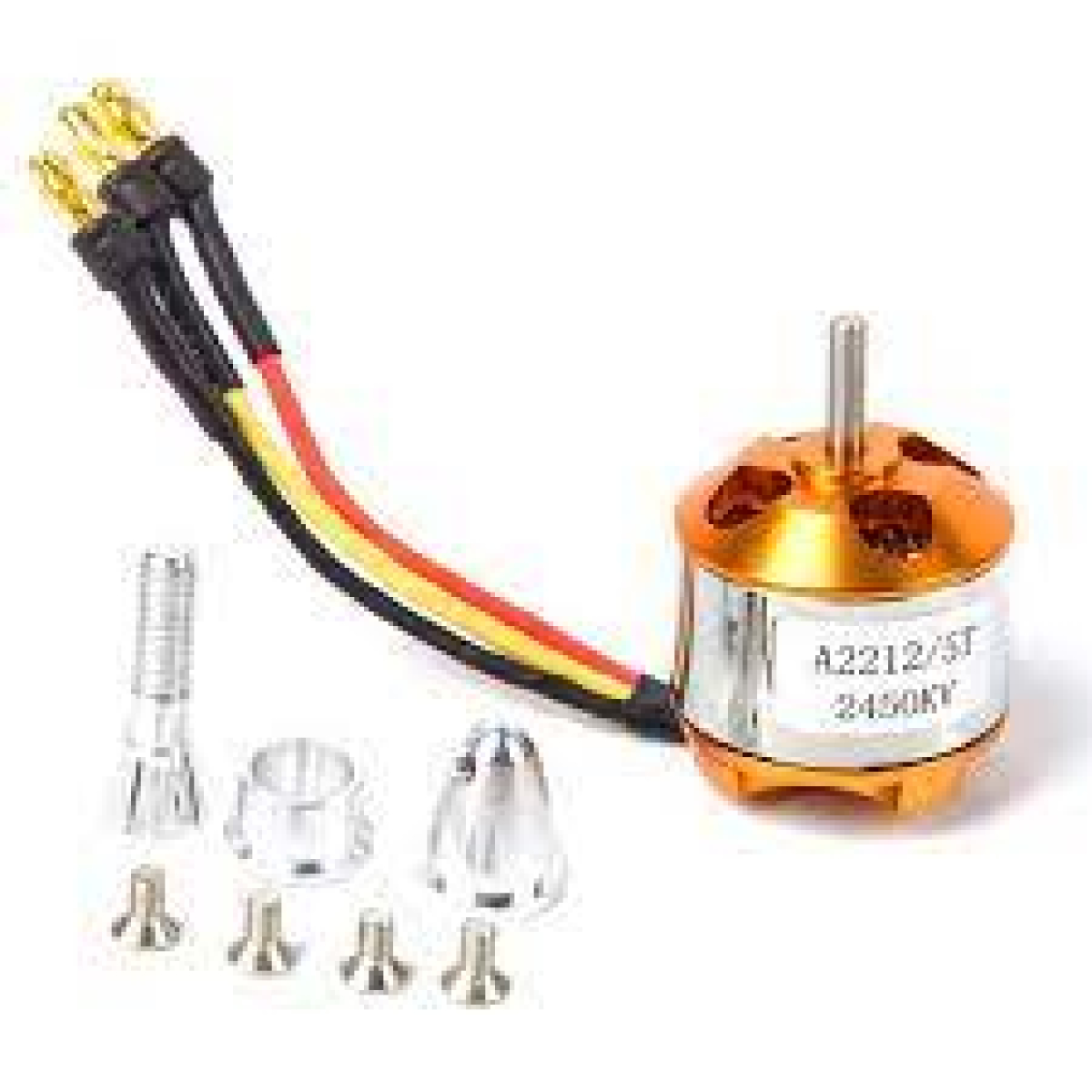

BLDC motor A2212 2450kv

A2212 is a brushless outrunner DC motor specifically made to power Quadcopters and Multirotors. It is a 2450kV motor. It provides high performance, super power and brilliant efficiency. These motors are perfect for medium size quadcopters with 8 inch to 10 inch propellers. Use this to build powerful and efficient quadcopters.

Perfect with our F450 quadcopter frame. Our 30A ESCs can be used to drive the motor.

Add to wishlist
Compare
12 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

  • KV: 2450 kV
  • No load Current : 10 V : 0.5 A.
  • Current Capacity: 12A/60s
  • No Load Current @ 10V: 0.5A
  • No. Of Cells: 2-3 Li-Poly
  • Motor Dimensions: 27.5 x 30mm
  • Shaft Diameter: 934;3.17mm
  • Shaft diameter : 3.175mm.
  • Minimum ESC Specification: 18A (30A Suggested)
  • Thrust @ 3S with 1045 propeller: 1300 gms approx
  • Thrust @ 3S with 0945 propeller: 850 gms approx
  • Thrust @ 3S with 0845 propeller: 750 gms approx
Additional information
KV

2450
Operating voltage

7.2V to 12V (2 to 3Li-poly)
Maximum current

13Amp for 60Sec
