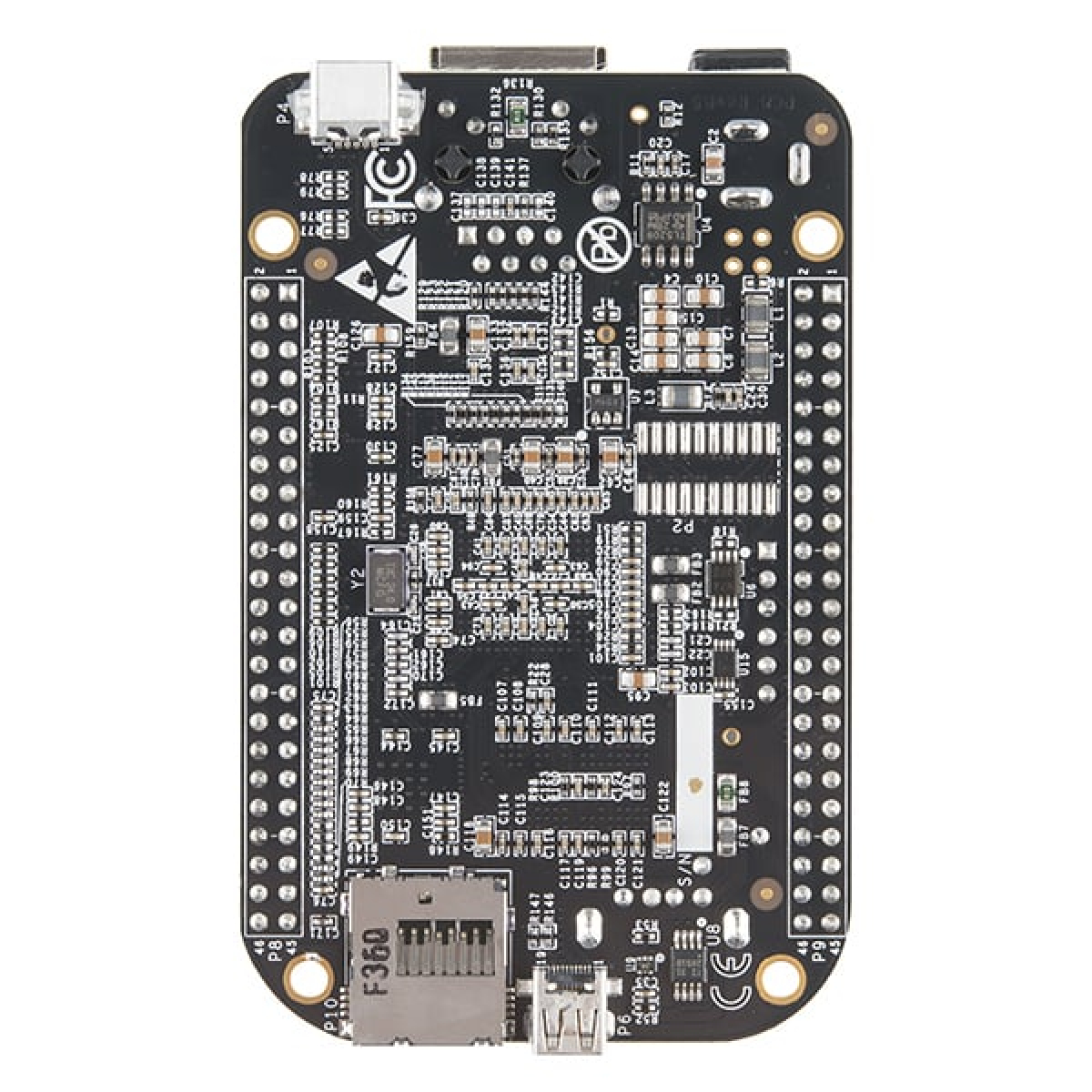

BeagleBone Black REV C

BeagleBone Black is the newest member of the BeagleBoard family and is a lower-cost, high-expansion focused BeagleBone, featuring the Sitara AM3358BZCZ100 ARM Cortex-A8 32-Bit RISC microprocessor from Texas Instruments. It is similar to the BeagleBone but with some previous features removed to make way for the excellent new features.

Add to wishlist
Compare
18 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

  1. Sitara AM3358BZCZ100 ARM Cortex-A8 32-Bit RISC microprocessor, up to 1GHz
  2. Onboard HDMI to connect directly to TVs and monitors
  3. More and faster memory now with 512MB DDR3L 400MHz SDRAM, 4GB eMMC Memory
  4. Onboard storage frees up the microSD card slot for greater expansion
  5. Support for existing Cape plug-in boards
  6. TPS65217C PMIC regulator and one additional LDO
  7. Debug support: Optional onboard 20-pin CTI JTAG
  8. HS USB 2.0 Client and Host ports
  9. Serial port: UART0 access via 6-pin 3.3V TTL header
  10. 10/100 RJ45 Ethernet
Additional information
Processor

Sitara AM3358BZCZ100 1GHz, 2000 MIPS
Debug Support

Optional Onboard 20-pin CTI JTAG, Serial Header
Power Source

miniUSB USB or DC Jack, 5VDC External Via Expansion Header
Onboard Flash

4GB, 8bit Embedded MMC
