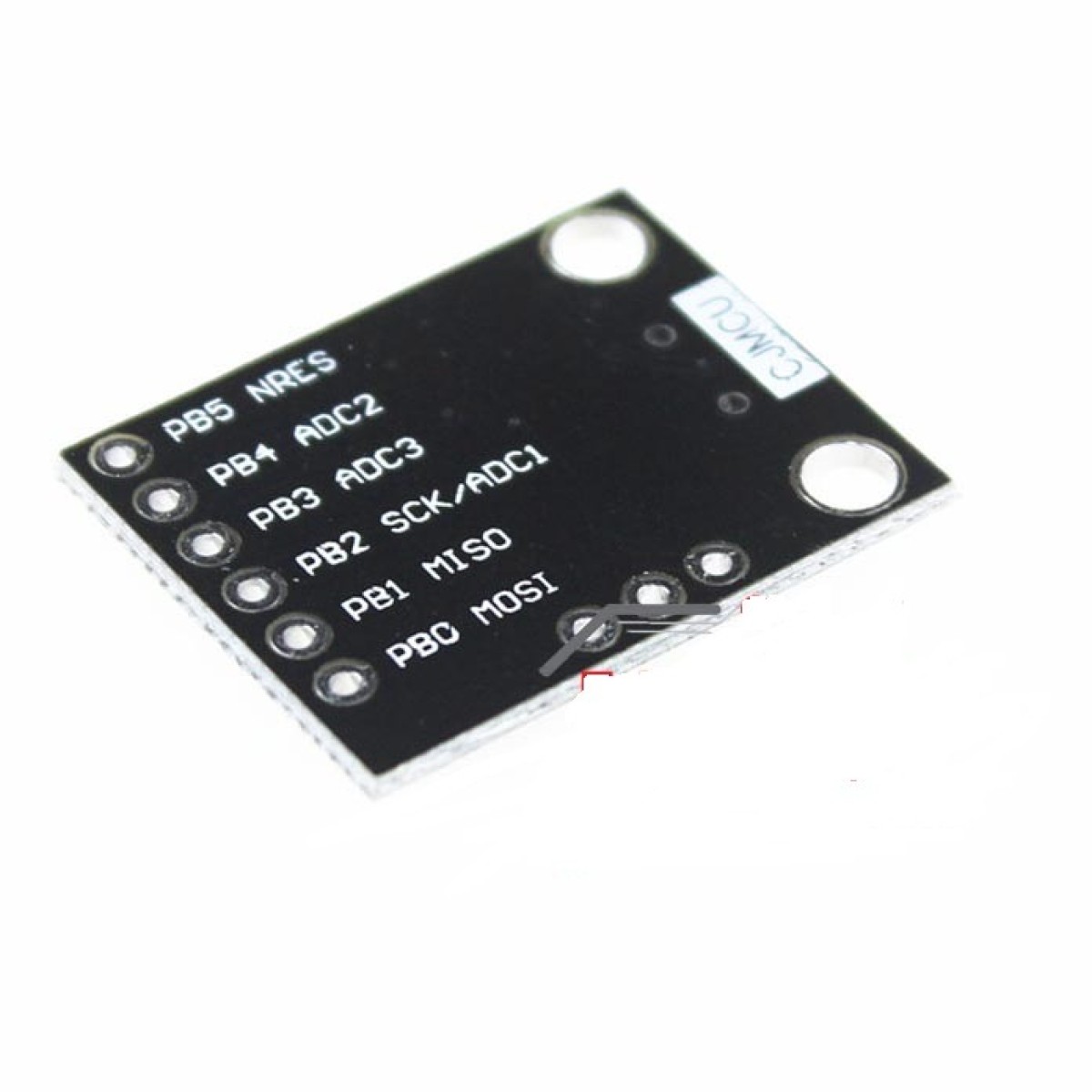

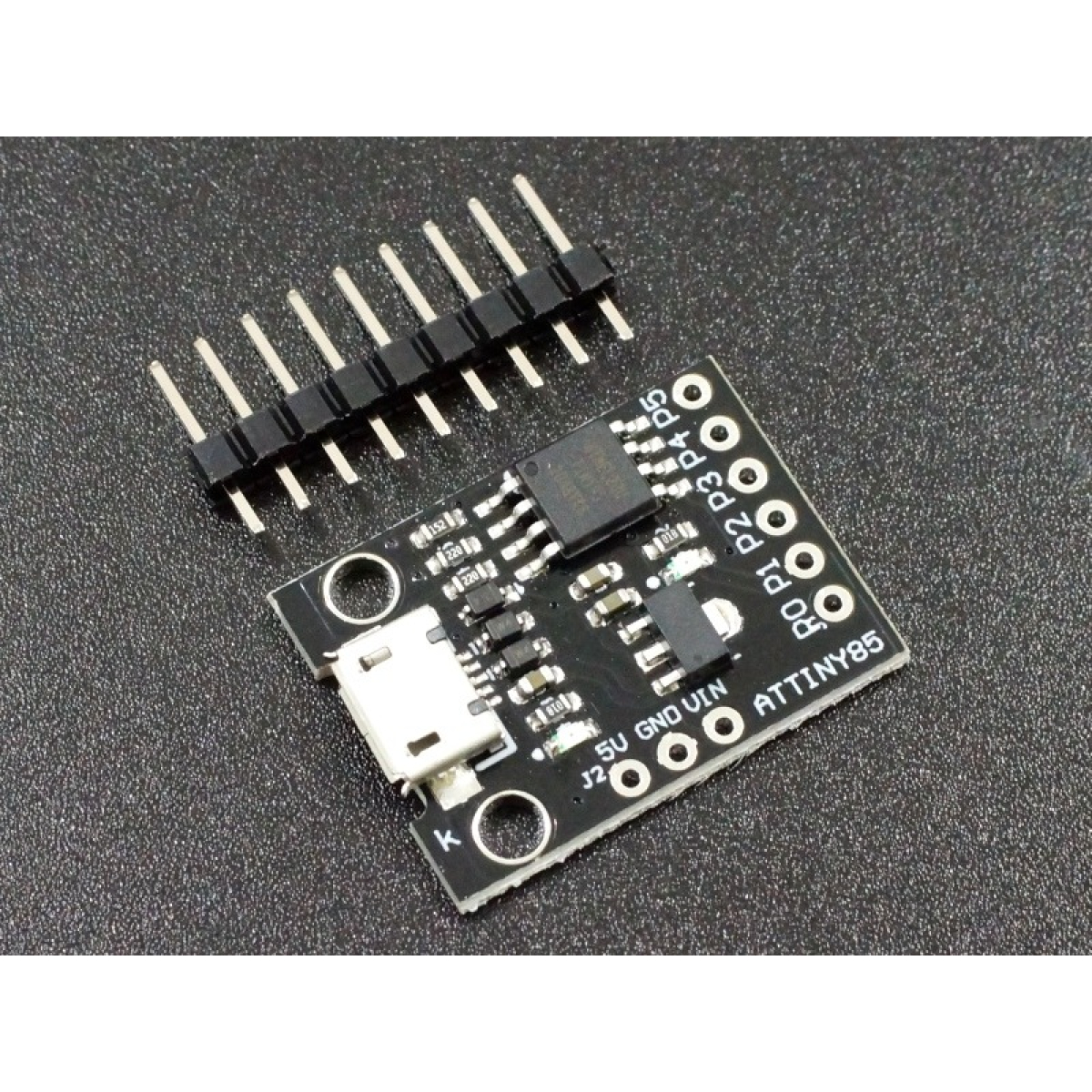

ATTINY 85 BOARD MICRO USB

SKU: HW019 A

Features :

High Performance, Low Power AVR® 8-Bit Microcontroller
Non-volatile Program and Data Memories
8K Bytes of In-System Programmable Program Memory Flash
Endurance: 10,000 Write/Erase Cycles
512 Bytes In-System Programmable EEPROM
512 Bytes Internal SRAM
Peripheral Features
Two High-Frequency PWM Outputs with Separate Output Compare Registers
USI – Universal Serial Interface (12C, SPI, 1-wire) with Start Condition Detector
10-bit ADC
4 Single Ended Channels
Two Differential ADC Channel Pairs with Programmable Gain (1x, 20x)
Speed Grade
0 – 10 MHz @ 2.7 – 5.5V, 0 – 20 MHz @ 4.5 – 5.5V
Industrial Temperature Range
Low Power Consumption
Active Mode:1 MHz, 1.8V: 300 µA

Add to wishlist

Compare

12 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

Although small in size, great in capabilities. The Digispark ATTINY85 Mini USB Development Board is similar to the Arduino but cheaper and smaller (of course a bit less powerful). With a whole host of shields to extend its functionality and the ability to use the familiar Arduino IDE, this board is a great way to jump into microcontroller electronics.

Complete USB Development board Cheap Enough to Leave in a Project. If you have never heard of the Digispark ATtiny board before, it may take you more than a moment to understand its full power and potential. So read this carefully:

Firstly, it’s a 20MHz, AVR 8-bit microcontroller with 8 KB flash, 512 bytes of RAM

You get up to 5 GPIOs, 4 ADCs, 2 PWMs, 1 SPI, and 1 I2C[*]

Secondly, it’s fully compatible with Arduino

Thirdly, it can be directly programmed via USB without needing any other programmer

And finally, it is available at a cheap price!!

The Digispark is shipped fully assembled except for the two included and easy to solder headers.
