ARDUINO YUN

This board can be powered via the micro-USB connection with 5VDC voltage. If the board is powered through the Vin pin, a regulated 5VDC must be applied. There is no on-board voltage regulator for higher voltages, which will damage the board. The Yún is also compatible with PoE power supply but in order to use this feature, a PoE module is mounted on the board or a pre-assembled board can be used.

This board is an ideal solution when designing connected devices and Internet of Things (IoT) projects. It is a combination of the power of Linux and the ease of use of Arduino. In addition to Linux commands like the cURL, the user can write own shell and python scripts for robust interactions.

20 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

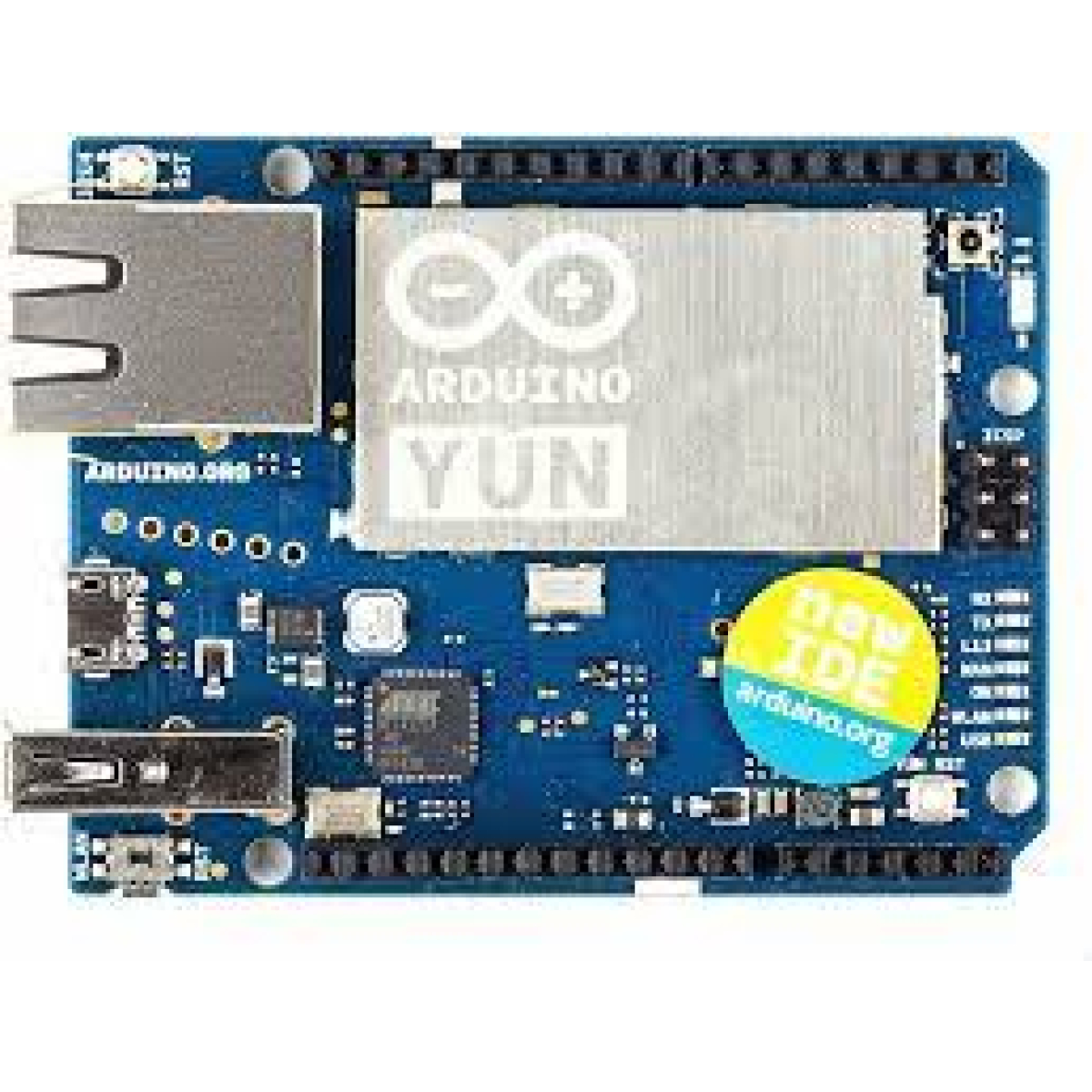

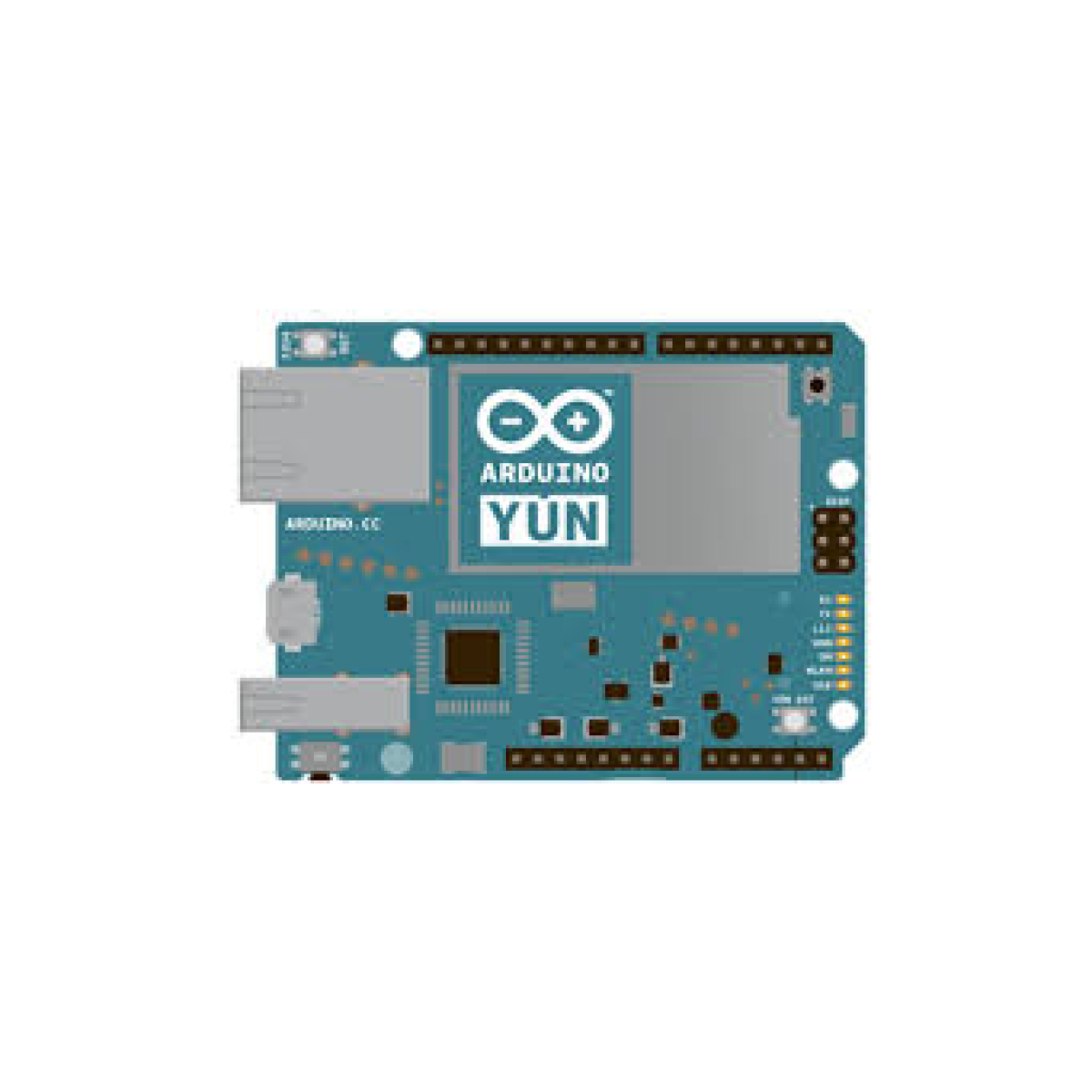

The Arduino Yún is a microcontroller board based on the ATmega32u4 and the Atheros AR9331. The Atheros processor supports a Linux distribution based on OpenWrt named Linino OS. The board has built-in Ethernet and WiFi support, a USB-A port, micro-SD card slot, 20 digital input/output pins (7 of them can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, an ICSP header, and 3 reset buttons.

NB : In some countries, it is prohibited to sell WiFi enabled devices without government approval. While waiting for proper certification, some local distributors are disabling WiFi functionality. Check with your dealer before purchasing a Yún if you believe you may live in such a country.

The Yún distinguishes itself from other Arduino boards by its ability to communicate with the Linux distribution onboard, offering a powerful networked computer with the ease of an Arduino. In addition to Linux commands like the cURL, you can write your own shell and Python® scripts for robust interactions. The Yún is similar to the Leonardo with the ATmega32u4, except that it has Linux on board. (has built-in USB communication, eliminating the need for a secondary processor).

  • The power supply system provides 5V on AREF;
  • The layout has been modified, adding two holes for USB signals and two holes for GP6 and GPIO13(LED2).
Additional information
Operating Voltage

5V

Input Voltage

5V

Digital I/O Pins

20

Analog Input Pins

12
