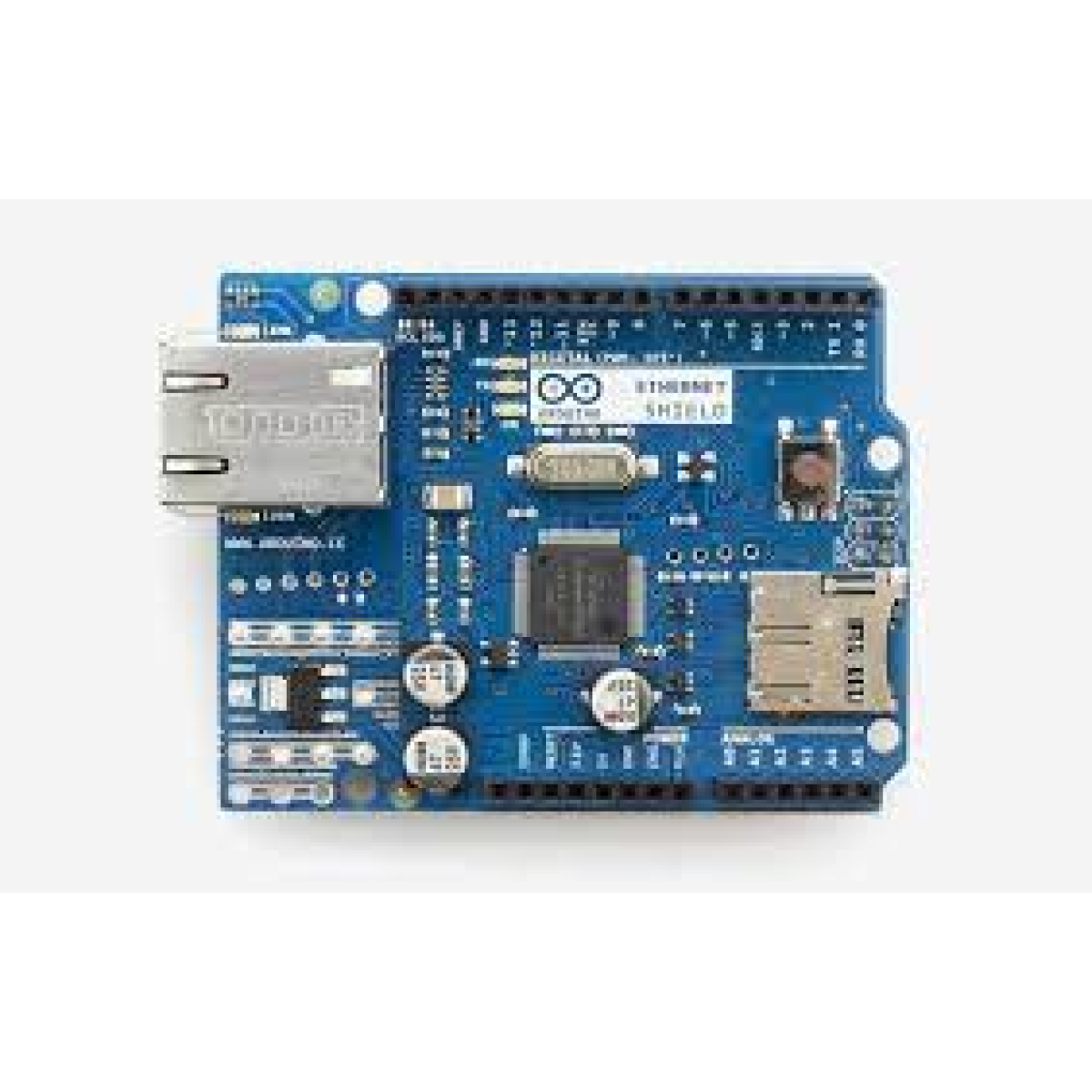

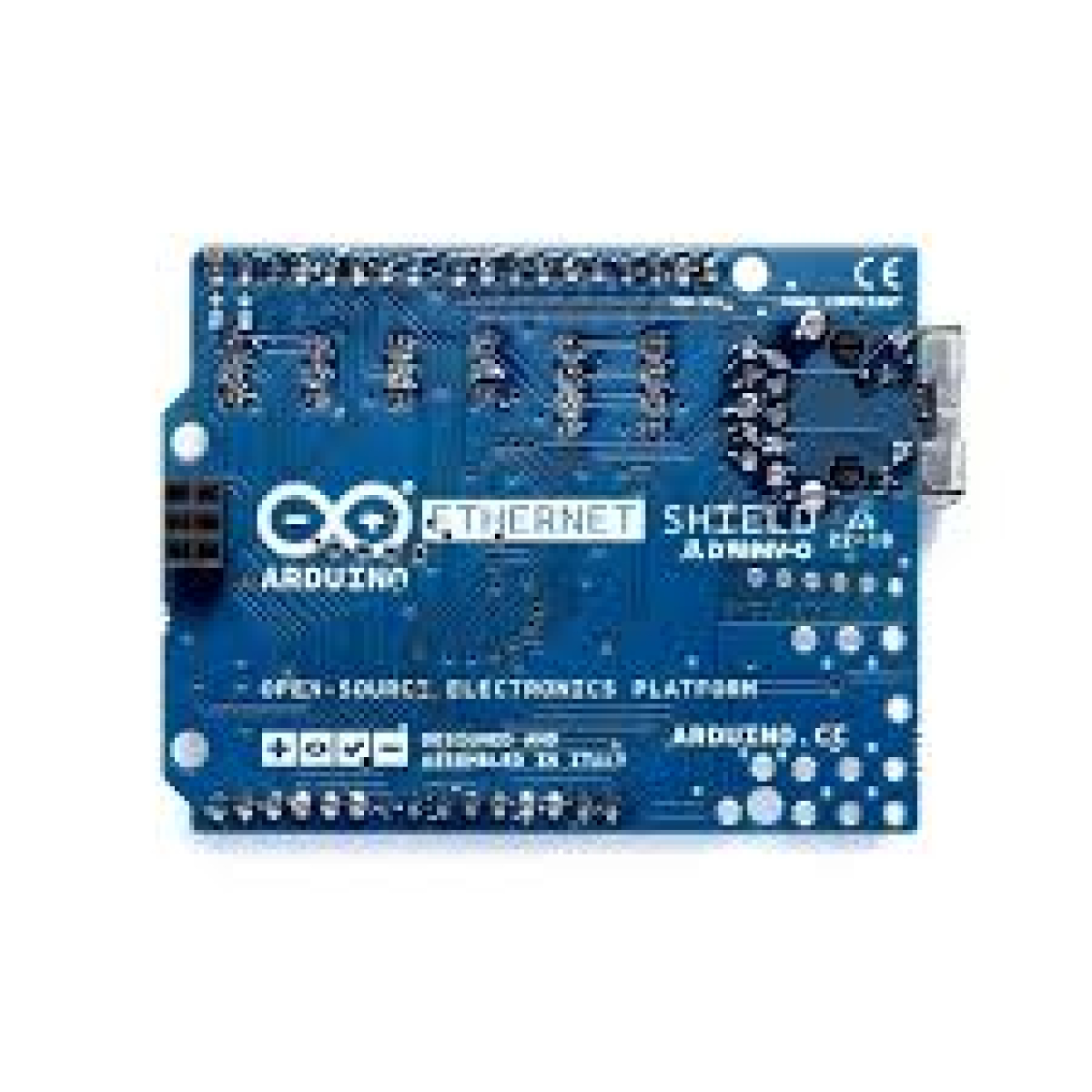

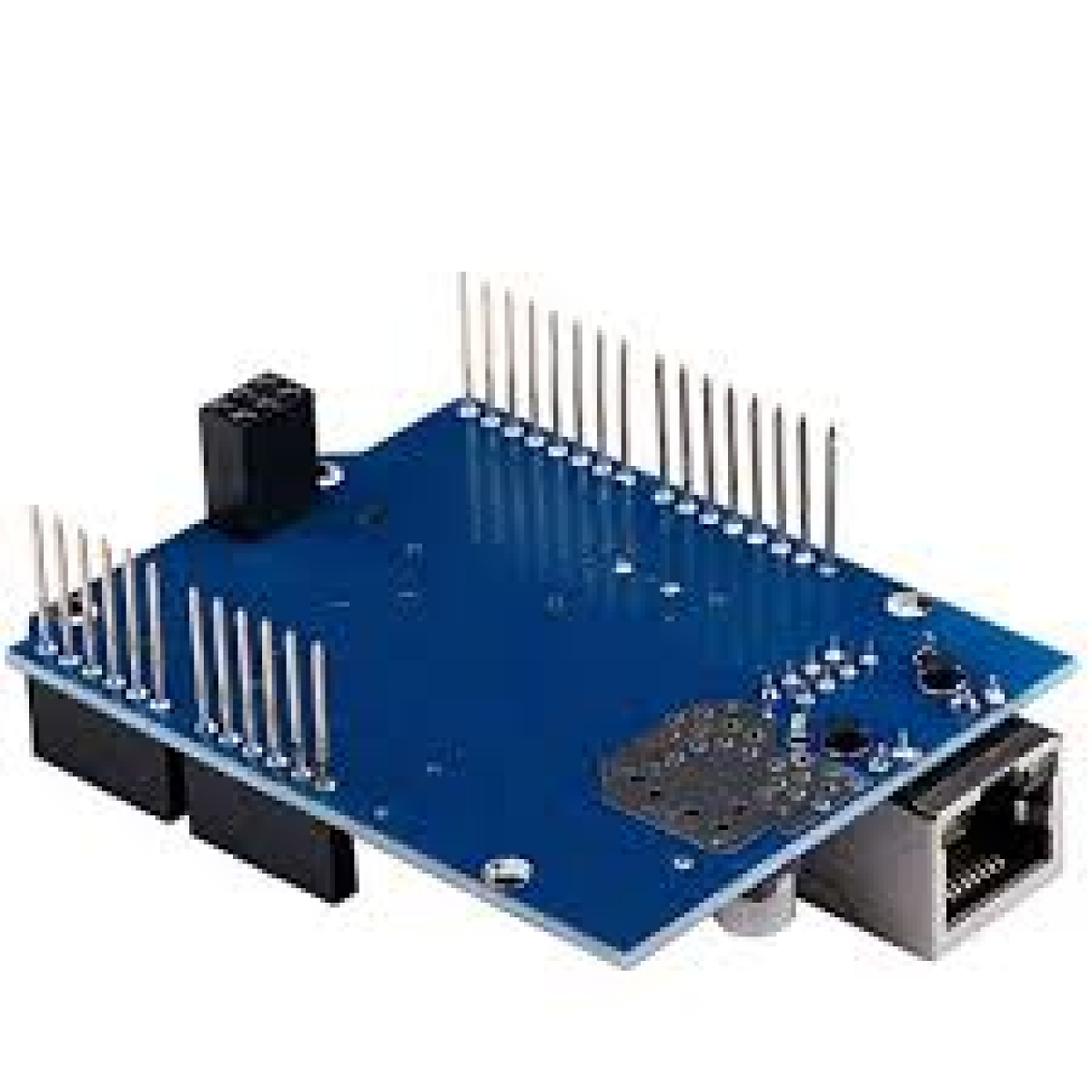

ARDUINO ETHERNET SHEILD

  • The Shield provides a standard RJ45 Ethernet jack.
  • The reset button on the Shield resets both the W5500 and the Arduino Board.
  • The Shield contains a number of information LEDs:
  • ON: indicates that the Board and Shield are powered
  • 13 is the Arduino standard built in LED
  • ACT: flashes when RX or TX activity is present
  • LINK: indicates the presence of a network link and flashes when the Shield transmits or receives data

12 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

The most recent revision of the board exposes the 1.0 pinout on rev 3 of the Arduino UNO board.

The Ethernet Shield V1 has a standard RJ-45 connection, with an integrated line transformer and Power over Ethernet enabled.

There is an onboard micro-SD card slot, which can be used to store files for serving over the network. It is compatible with all the Arduino/Genuino boards. The on-board micro SD card reader is accessible through the SD Library. When working with this library, SS is on Pin 4. The original revision of the shield contained a full-size SD card slot; this is not supported.

The shield also includes a reset controller, to ensure that the W5100 Ethernet module is properly reset on power-up. Previous revisions of the shield were not compatible with the Mega and need to be manually reset after power-up

Additional information
Input Voltage Range

36 ~ 57

Output Voltage (VDC)

12

Connection Speed

10/100Mb

Main Chip

W5500 with internal 32K buffer
