APDS 9930 MODULE

Name: APDS 9930 MODULE
SKU: HW-325B
Availability: InStock

SKU: HW-325B

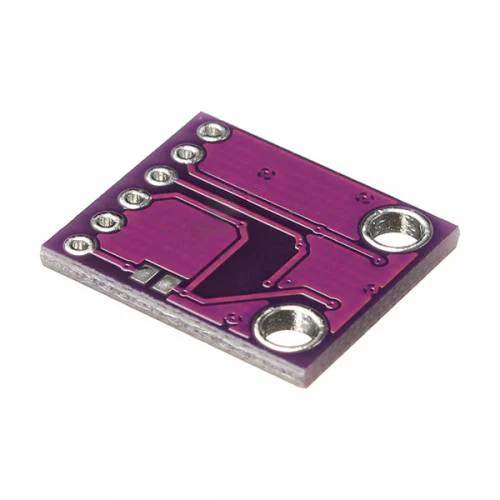

This is CJMCU 9930 APDS-9930 Digital Proximity And Ambient Light Sensor For Arduino. The APDS-9930 provides digital ambient light sensing (ALS), IR LED and a complete proximity detection system in a single 8 pin package. The proximity function offers plug and play detection to 100 mm (without front glass) thus eliminating the need for factory calibration of the end equipment or sub-assembly.

The proximity detection feature operates well from bright sunlight to dark rooms. The wide dynamic range also allows for operation in short distance detection behind dark glass such as a cell phone.

Add to wishlist

Compare

19 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

Optical modules integrated with ALS, infrared LEDs and proximity detectors
Ambient Light Sensing (ALS)
– Approximate human visual response
– Programmable interrupt capability with upper and lower thresholds
– Up to 16-bit resolution
– High sensitivity operation behind dark glass
– 0.01lux low lumen performance
Proximity detection
– Fully calibrated to 100 mm detection
– Integrated infrared LED and synchronous LED driver
– Eliminates factory calibration of the proximity sensor
Programmable wait timer
– Wait for state power consumption – 90μA typical
– Programmable range from 2.7 ms to more than 8 seconds
I2C interface compatible
– Up to 400kHz (I2C fast mode)
– Dedicated interrupt pin.
