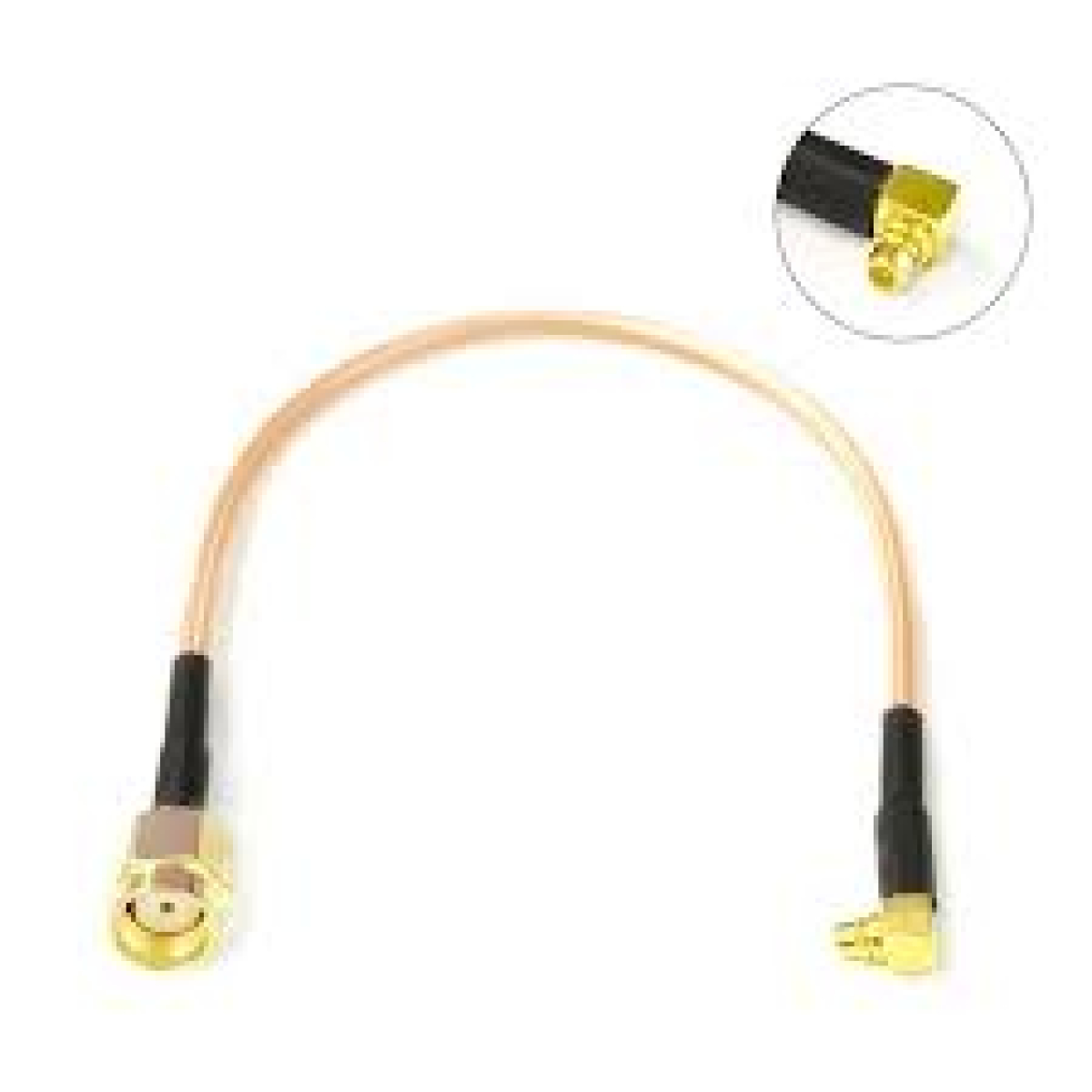

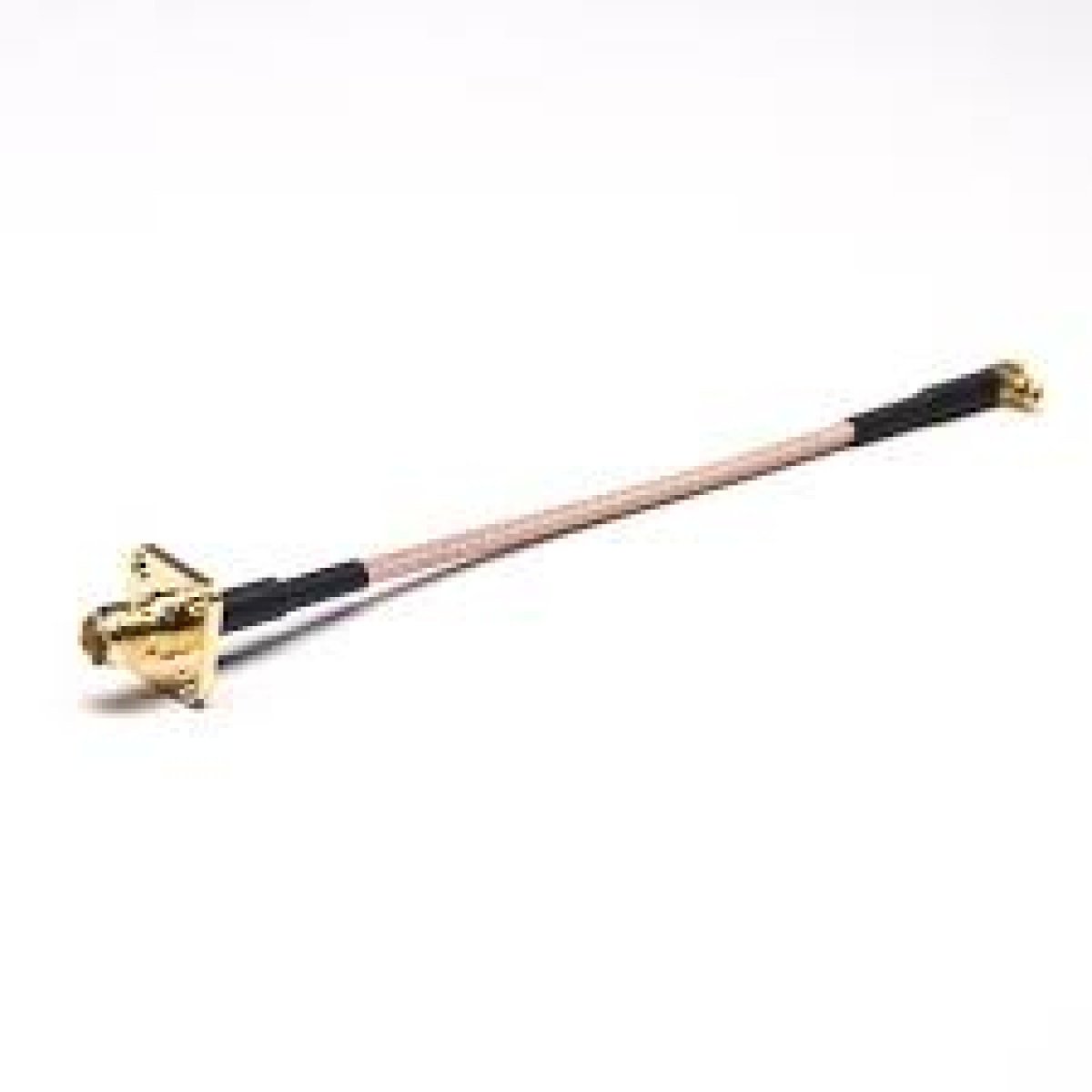

Angle MMCX TO SMA (inner hole)

SKU: ARS-AN-049
  • Radio communication systems
  • Aerospace industry for accurate communication equipments
  • Military and space application
  • Ships and navy communication systems
  • Satellite communications
  • RF equipment in medicine and healthcare.

11 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

RF cable, also known as radio frequency cable, is a type of coaxial cable that is used to transmit radio frequency signals.RF cable is characterized by its ability to transmit high-frequency signals with minimal signal loss and interference.

It is constructed with a center conductor, an insulating layer, a braided or foil shield, and an outer jacket. The different components of the cable are designed to provide maximum signal integrity and protect the signal from external interference.Type: RG316 SMA female to MMCX male Low Loss cable Cable Length: 1m/4 Inches . Connector 1: SMA FEMALE. Connector 2: MMCX MALE RIGHT ANGLE. Max Frequency: 12.4GHz. Diameter: 10cm/0.39 Inches. Rated Voltage: 335V . Temperature Range: -65-+165 degree centigrades. Contact Resistance Between Internal conductors: less than or equal to 0.003 ohm. Contact Resistance Between Outer Conductors: less than or equal to 0.002 ohm. Insulation Resistance: More than or equal to 5000M ohm. Withstand Voltage: 1000V. Insertion Loss: less than or equal to 0.16dB/6GHz. Electrical life:more 500 times. Quantity: 1PC. These pigtails are maded of high quality material. long using life. Easy and convenient to use This pigtail work with all cards that utilize the MMCX connector such as: the SR2, Ubiquiti XR2, Ubiquiti XR5, XR9, SR71-A, SR71-12, SR71-15, DCMA-82, DCMA-82IT, AWPCI085H, WLM54-SA26, EMP-8603, R5H, and WMR-400 miniPCI cards,and works with with with the 2511 CD PLUS EXT2 PCMCIA card, the 2011 CD PLUS EXT2, Proxim, Aironet, Cisco, Arlan and Symbol cards

Additional information
RATED VOLTAGE

3.3V

USAGE

Wi-Fi,WLAN,Wireless Ethernet,RFID,UWB,WiMAX,iBurst,Zigbee Bluetooth Wireless,MIMO,etc.

Length

1m/4 inches . Diameter: 10cm/0.39 Inches.

Electrical life

500 times
