Anderson Connector 50a Chn

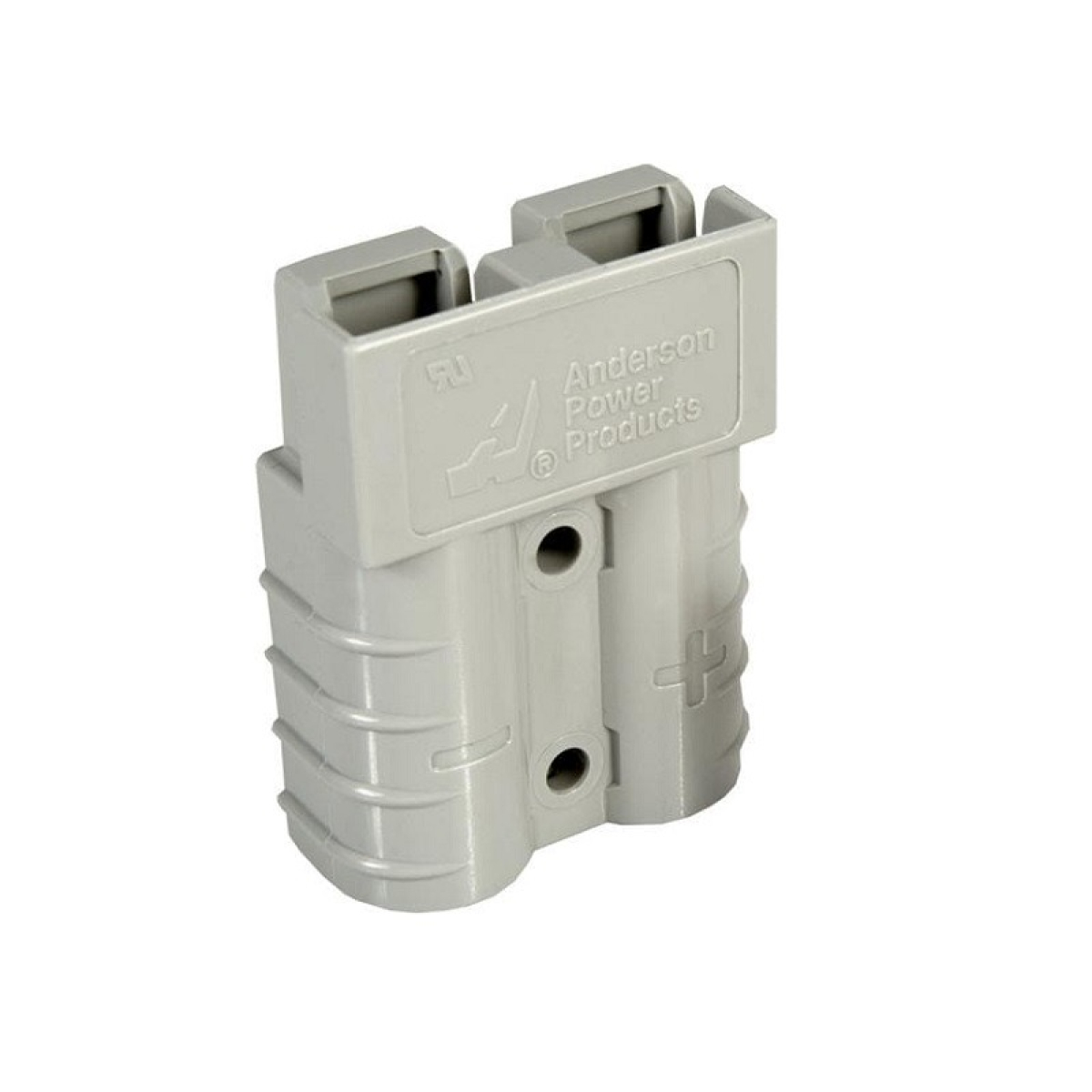

SB50 Anderson Power Connector – 600V 50A Grey Anderson plugs are a dedicated electrical part used by campers on their vehicles, trailers, and caravans as part of a 12-volt, high-current, dual battery system. Their main benefit is that they allow auxiliary batteries to be charged while driving. This product is known as SB50 Anderson Power Connector, SB50 Power Connector, SB50 Connector, SB50 Battery Connector, SB50 Heavy duty connector, and Anderson Power Products 940 Connector.

11 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

  • Manufacturer: Anderson Power Products
  • Series: SB50
  • Manufacturer Part No:992
  • Current Rating: 50 A
  • Voltage Rating: 600 V
  • Operating Temperature Range: -20°C to 105°C
  • Product Type: Heavy-Duty Power Connectors
  • Housing Material: Polycarbonate (PC)
  • Contact material: Pure copper silver plating
  • Product: Housings
  • Wire Gauge: 16 AWG ~ 6 AWG
  • Cable size: (up to 13.3 sq mm)
  • Vibration resistance: Excellent
  • Color: Grey
  • Length: 48 mm
  • Width: 35.5 mm
  • Height: 16 mm
  • Unit Weight: 25 gm
Additional information
VOLTAGE RATING

600V

Current Rating (Amps)

50A

Material - Insulation

Polycarbonate(pc)

Operating Tempt

-20°C ~ 105°C
