Input Voltage (V) |
5 |
---|---|
Input / Output Pins |
100 |
EEPROM chip |
8Kbit EPCS4 |
Oscillator Frequency (MHz) |
50 |
FPGA IO voltage (V) |
3.3 |

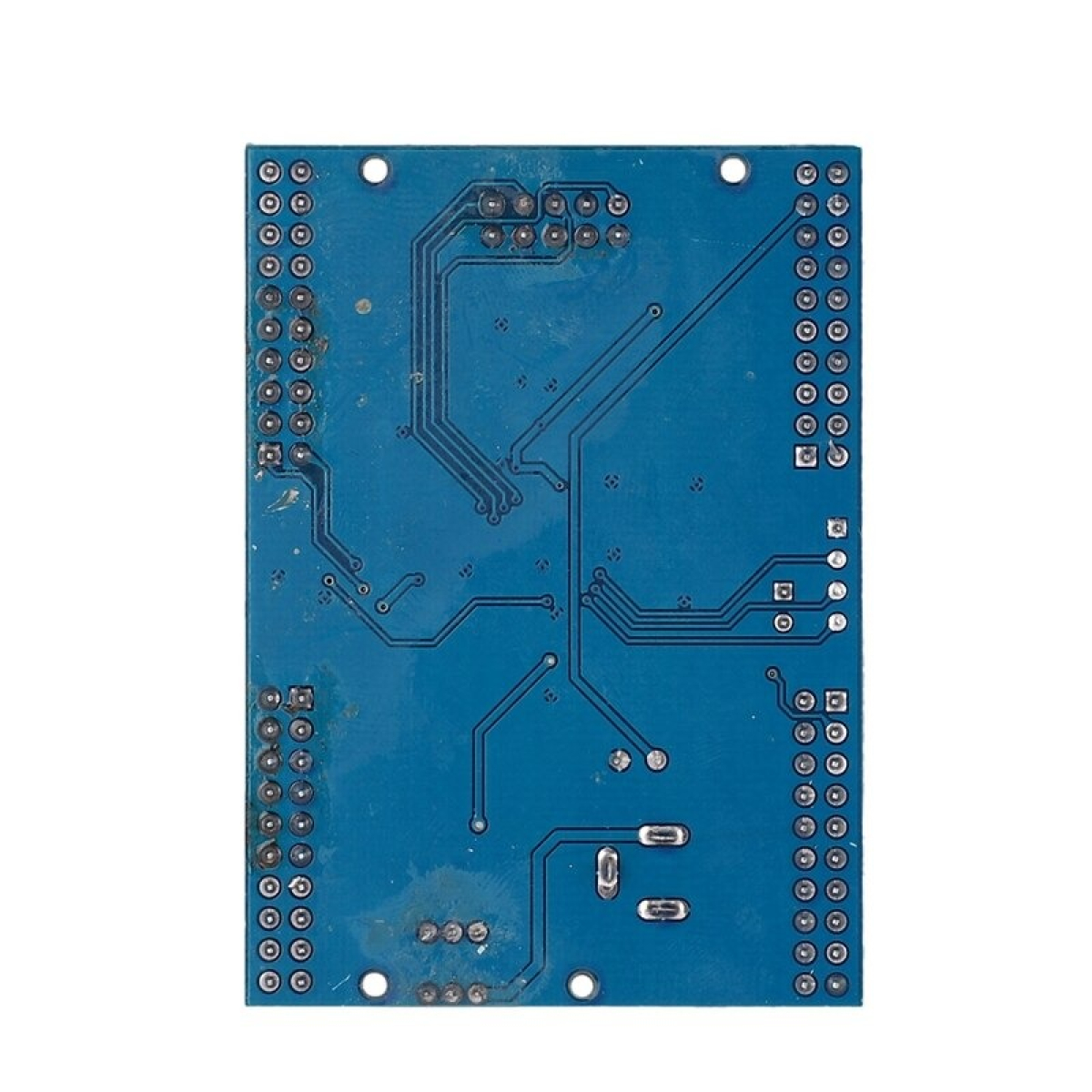

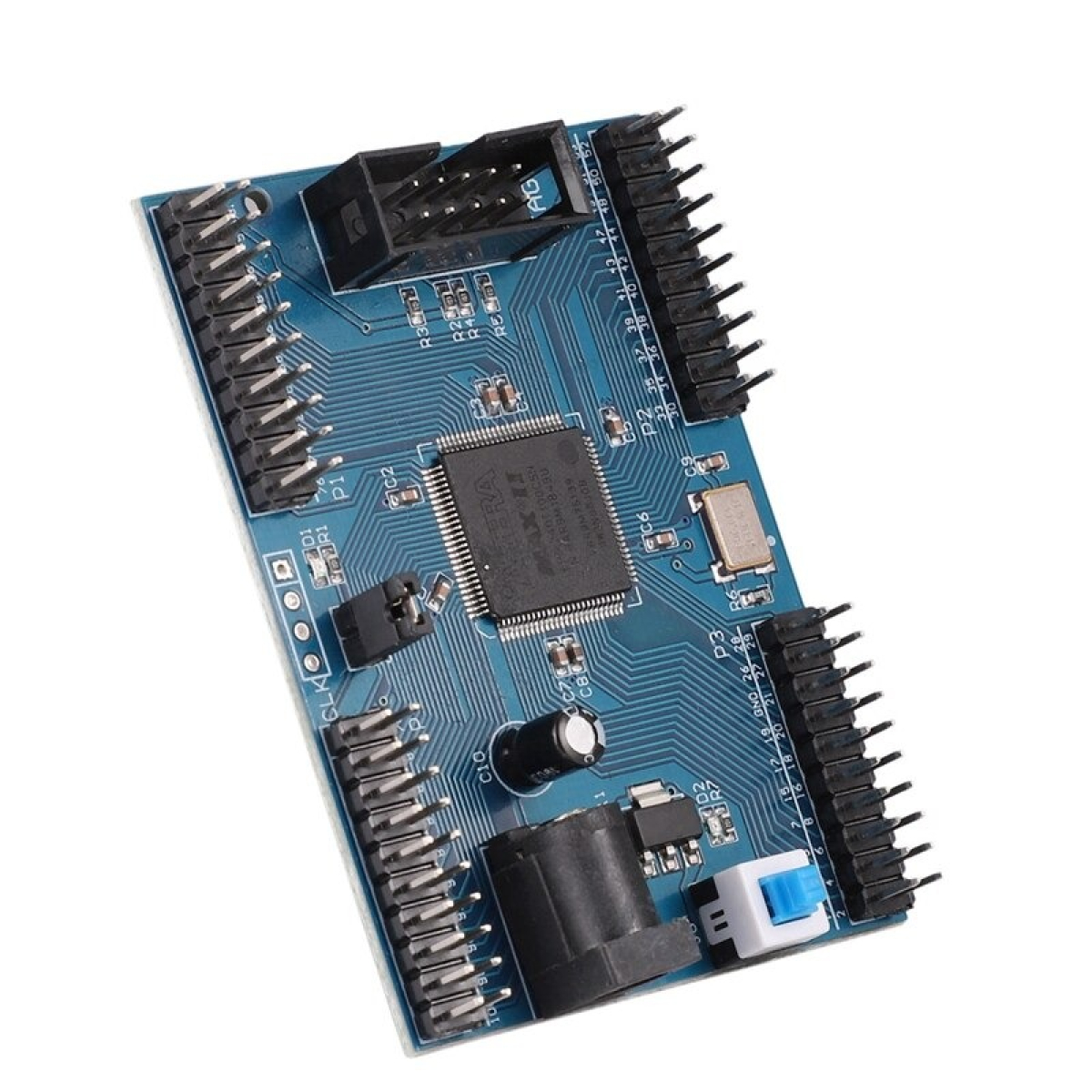

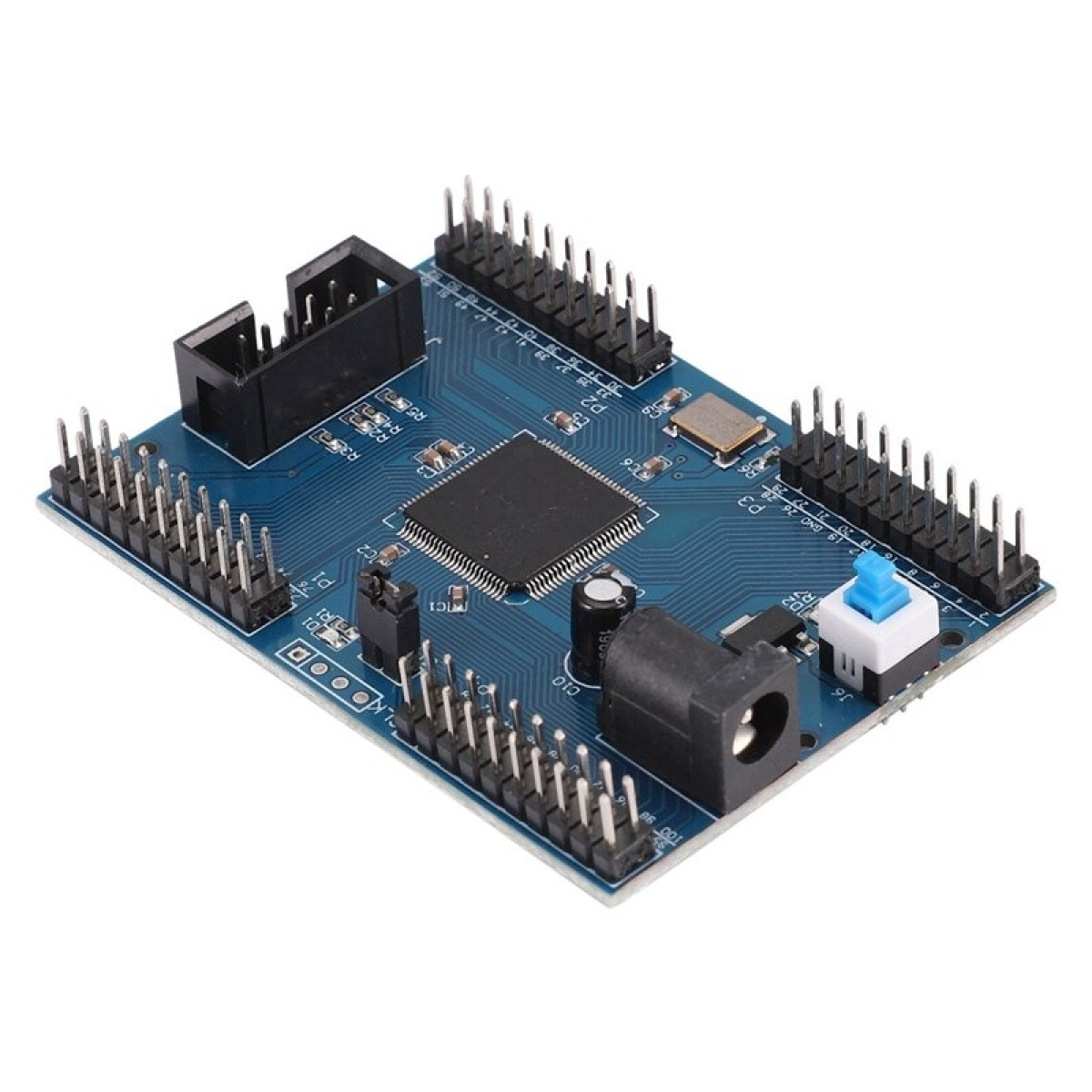

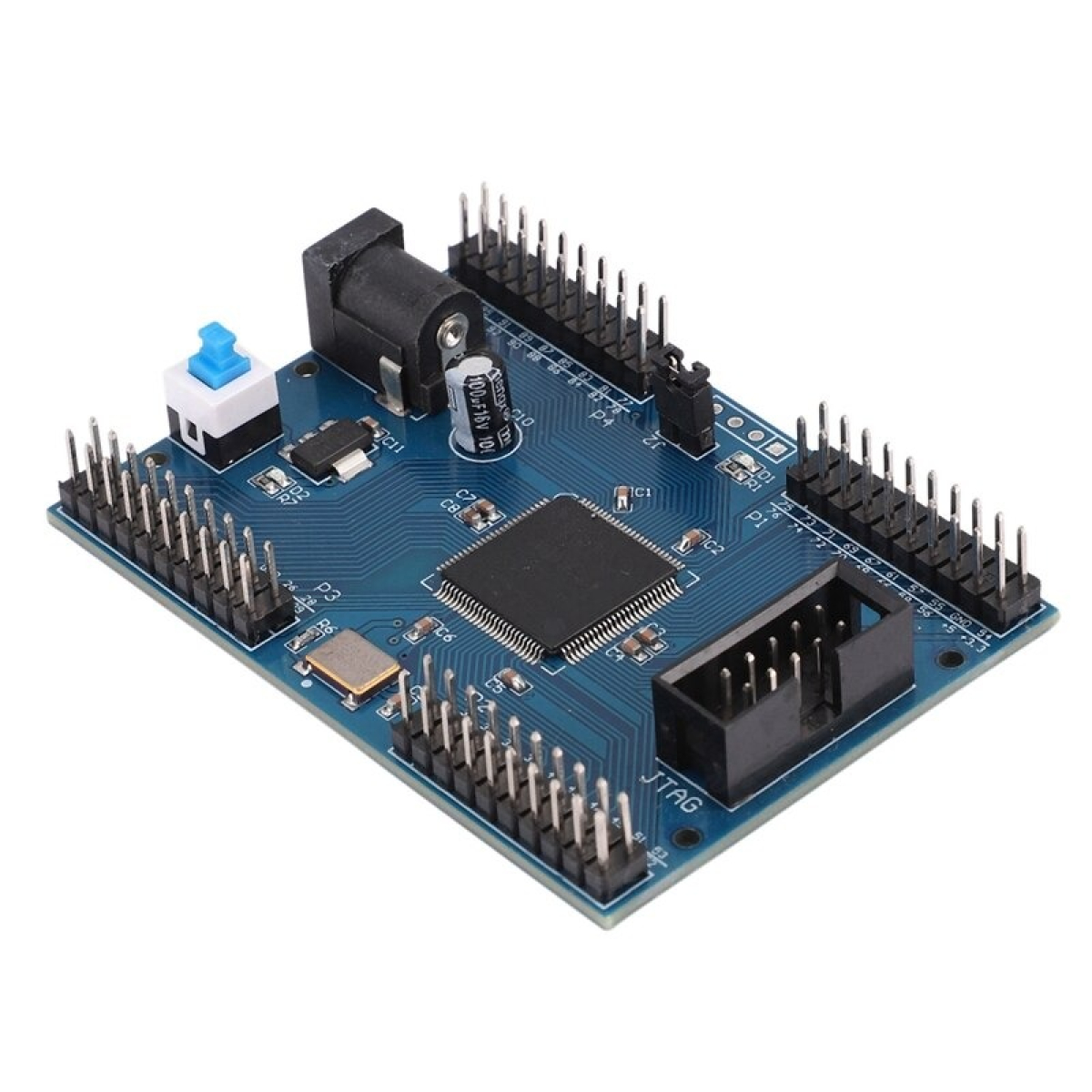

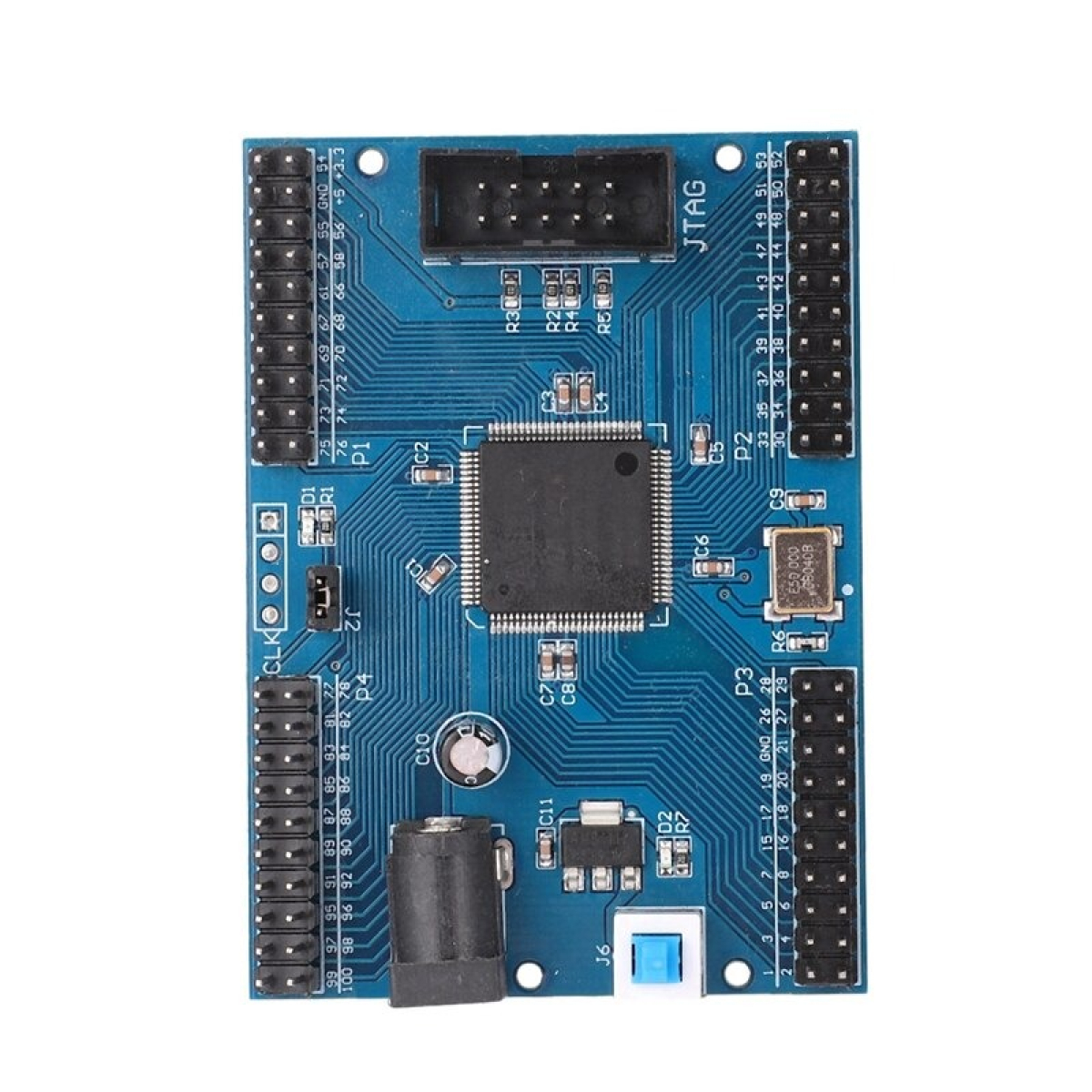

The Altera MAX II EPM240 CPLD Development Board is from ALTERA MAX II family CPLD chip EPM240T100C5N minimum system board, with a byte-blaster and usb-blaster download for product validation and development.
JTAG and power supply interface board set aside and led all pins, just connect the 5V power supply, it can work, extremely convenient to use.
CPLD chip is very suitable for the input of low-cost CPLD / FPGA, the user leads the expansion of external circuits according to the IO port of the core plate: LED lights, digital tube, LCD liquid crystal, serial communication, etc.
