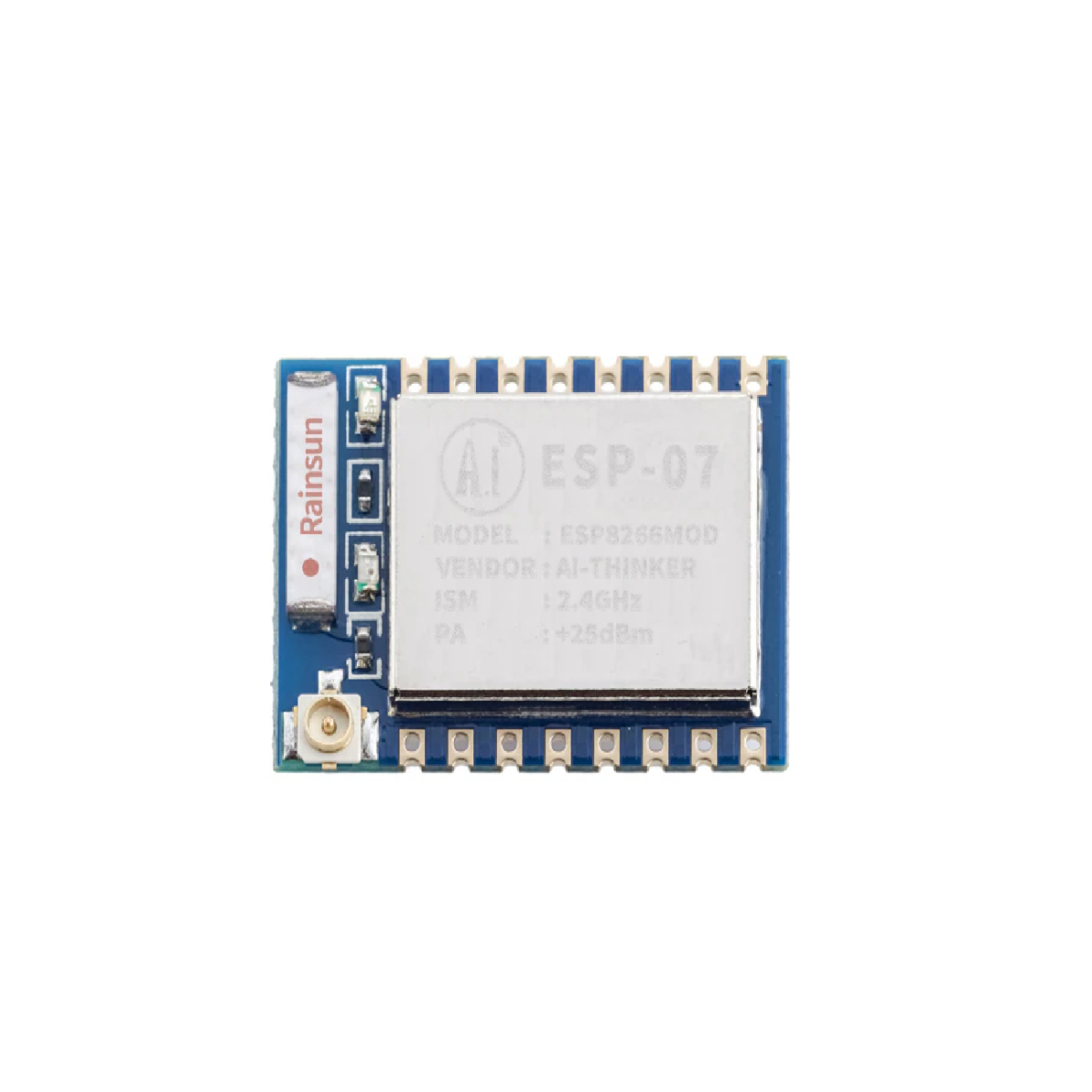

Ai Thinker ESP-07 ESP8266 Serial WiFi Module

Name: Ai Thinker ESP-07 ESP8266 Serial WiFi Module
SKU: HW-350
Availability: InStock

SKU: HW-350

Ai Thinker ESP-07 ESP8266 Serial WiFi Module has a highly competitive package size and ultra-low power technology. ESP-07 can be widely used in a variety of networking, for home automation, industrial wireless control, baby monitors, wearable electronic products, wireless location sensing devices, wireless positioning system signals, and other networking applications. Ai Thinker ESP-07 ESP8266 Serial WiFi Module is packaged in SMD, through the standard SMT equipment to achieve rapid production of products, to provide customers with high reliability of the connection, especially for automation, large-scale, low-cost modern production methods, It’s suitable for all kinds of Internet of things hardware terminal occasion

Add to wishlist

Compare

17 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

The smallest 802.11b/g/n Wi-Fi SOC module
Low power 32-bit CPU, can also serve as the application processor
Up to 160MHz clock speed
Built-in 10 bit high precision ADC

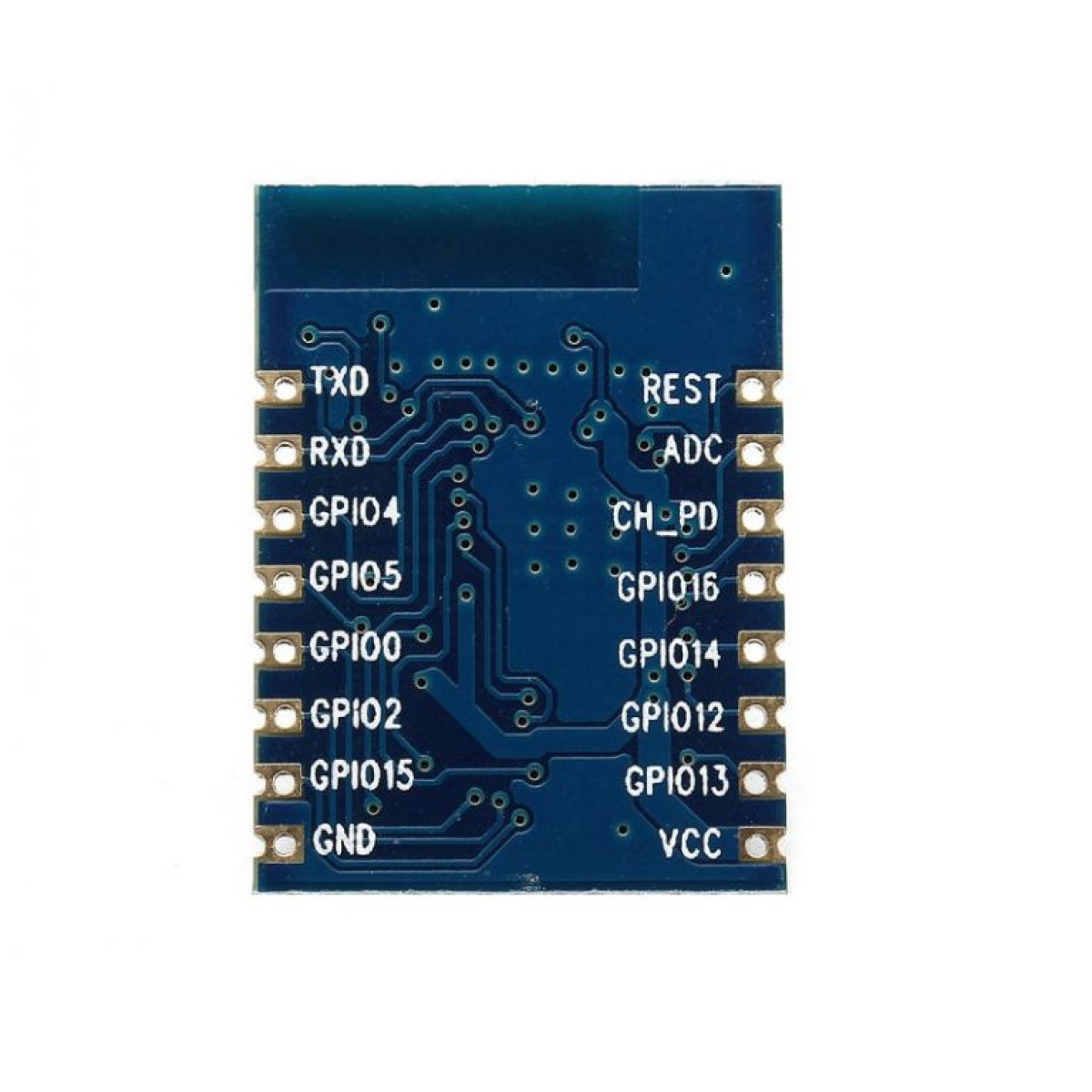

Supports UART/GPIO/IIC/PWM/ADC
SMD-16 package for easy welding
Integrated Wi-Fi MAC/BB/RF/PA/LNA
Deep sleep current as low as 20uA
Embedded lwIP protocol stack
Supports STA/AP/STA + AP operation mode
Support Smart Config/AirKiss technology
UART baudrate up to 4Mbps
General AT commands can be used quickly
Supports remote firmware upgrade (FOTA)

Additional information

Input Supply Range (VDC)	3.0 ~ 3.6
Transmit Power (dBm)	802.11b: 16±2 dBm (@11Mbps), 802.11g: 14±2 dBm (@54Mbps), 802.11n: 13±2 dBm (@HT20, MCS7)
Receiving Sensitivity	54 Mbps (3/4 64-QAM): -70dBm, 6 Mbps (1/2 BPSK): -88dBm, CCK, 1 Mbps : -90dBm, CCK, 11 Mbps: -85dBm, HT20, MCS7 (65 Mbps, 72.2 Mbps): -67dBm
Operating Temperature (°C)	-20 to 85
