| Sensitivity |
100mV/A |
|---|---|
| Length (mm): |
27 |
| Width (mm): |
12 |
| Height (mm): |
13.5 |

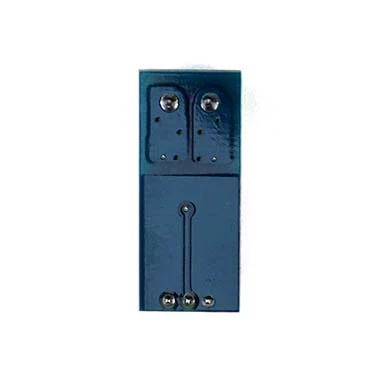

The 30A range Current Sensor Module ACS712 consists of a precise, low-offset, linear Hall circuit with a copper conduction path located near the surface of the die. Applied current flowing through this copper conduction path generates a magnetic field in which the Hall IC converts into a proportional voltage.
- Low-noise analog signal path
- Device bandwidth is set via the new FILTER pin
- 5 µs output rise time in response to step input current
- Small footprint, low-profile SOIC8 package
- 2.1 kVRMS minimum isolation voltage from pins 1-4 to pins 5-8
- Supply Voltage: 4.5V~5.5V DC
- Measure Current Range: 30A
- Sensitivity: 100mV/A
