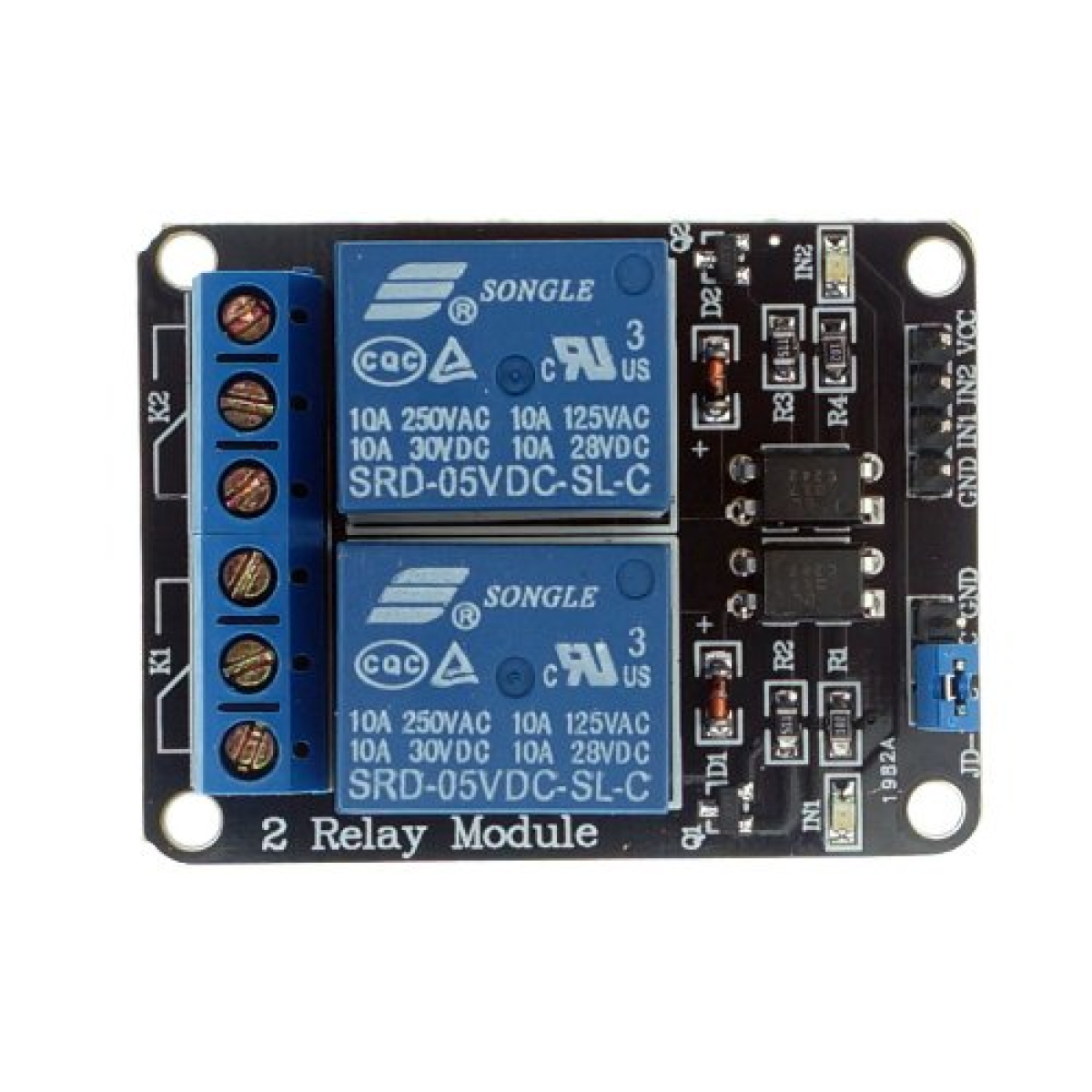

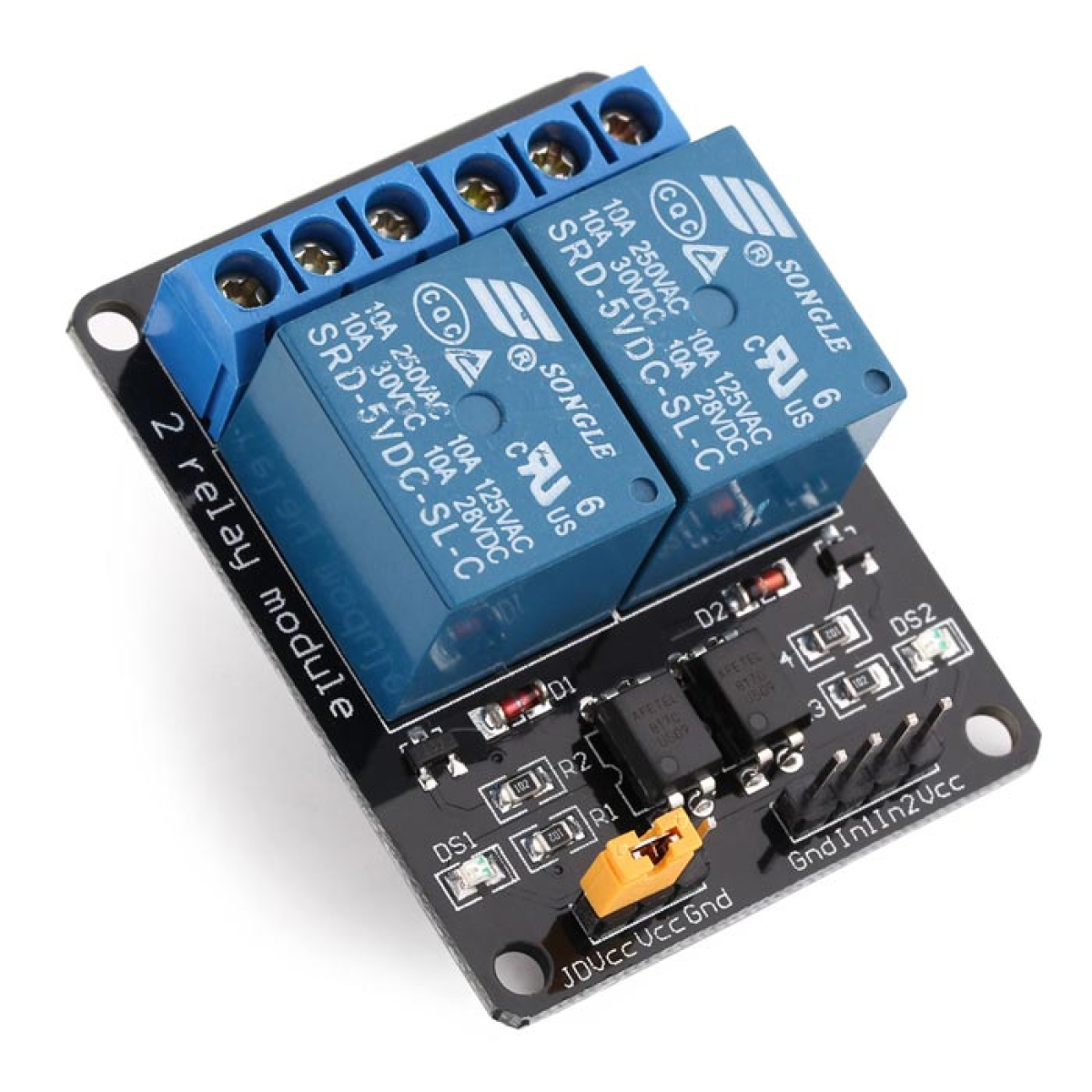

5V Dual Channel Relay Module

SKU: HW-383A

This is a 5V Dual Channel Relay Module with Optocoupler for Arduino PIC ARM. It can be used to control various appliances and other types of equipment with a large current. It can be controlled directly with 3.3V or 5V logic signals from a microcontroller (Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).

This 5V Dual Channel Relay Module has a 1×4 (2.54mm pitch) pin header for connecting power (5V and 0V), and for controlling the 2 relays.

10 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

  1. 2 LEDs to indicate when relays are ON.
  2. Works with logic level signals from 3.3V or 5V devices
  3. Opto isolation circuitry
  4. Module with diode current protection, short response time
  5. Around the board with 4 mounting holes, hole diameter 3. 1 mm, easy installation and fixing
Additional information
Logic Input (V)

3.3 ~ 5

Trigger Voltage (VDC)

5

Switching Voltage (VAC)

250@10A

Switching Voltage (VDC)

30@10A
