5V 1 Channel Relay

SKU: HW-307A

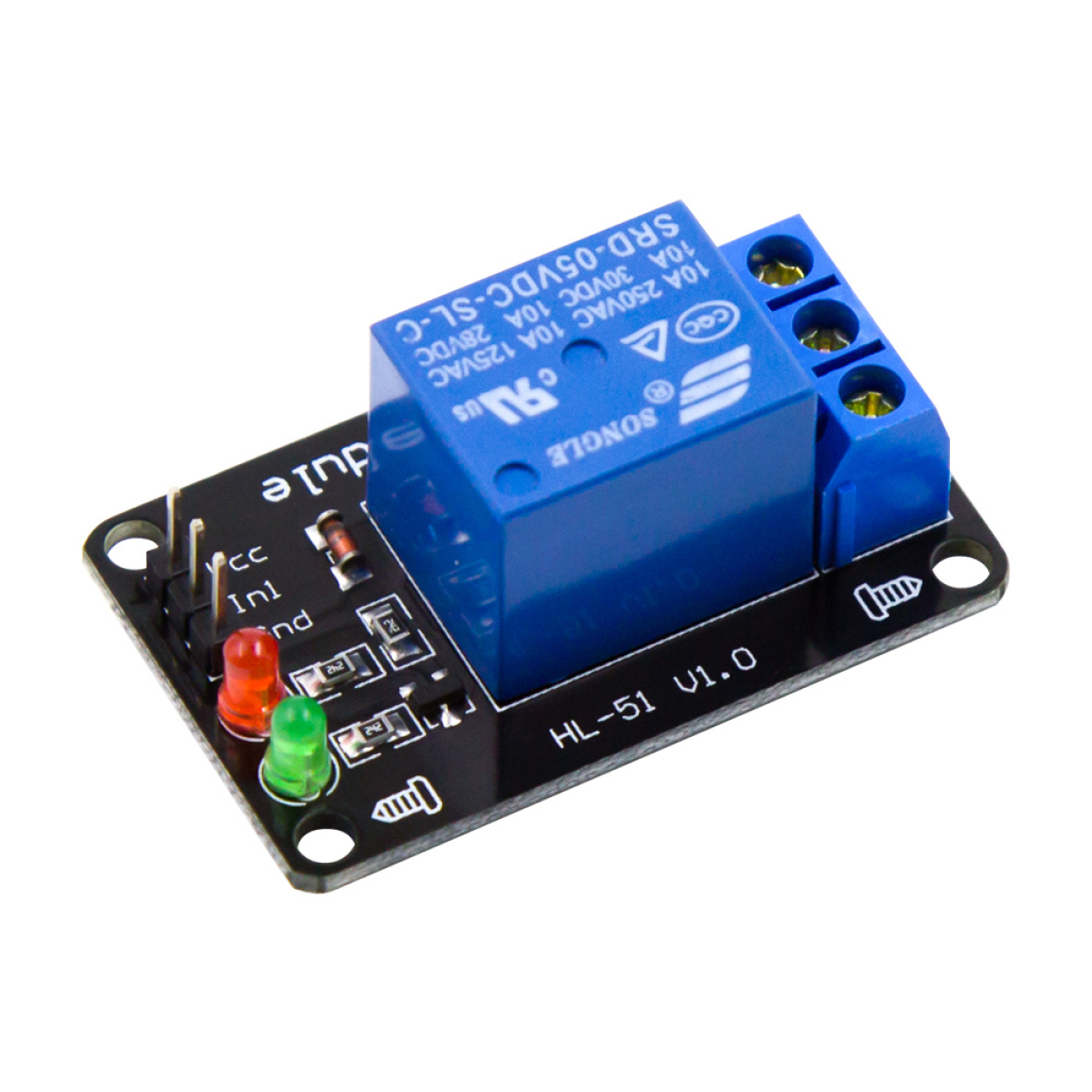

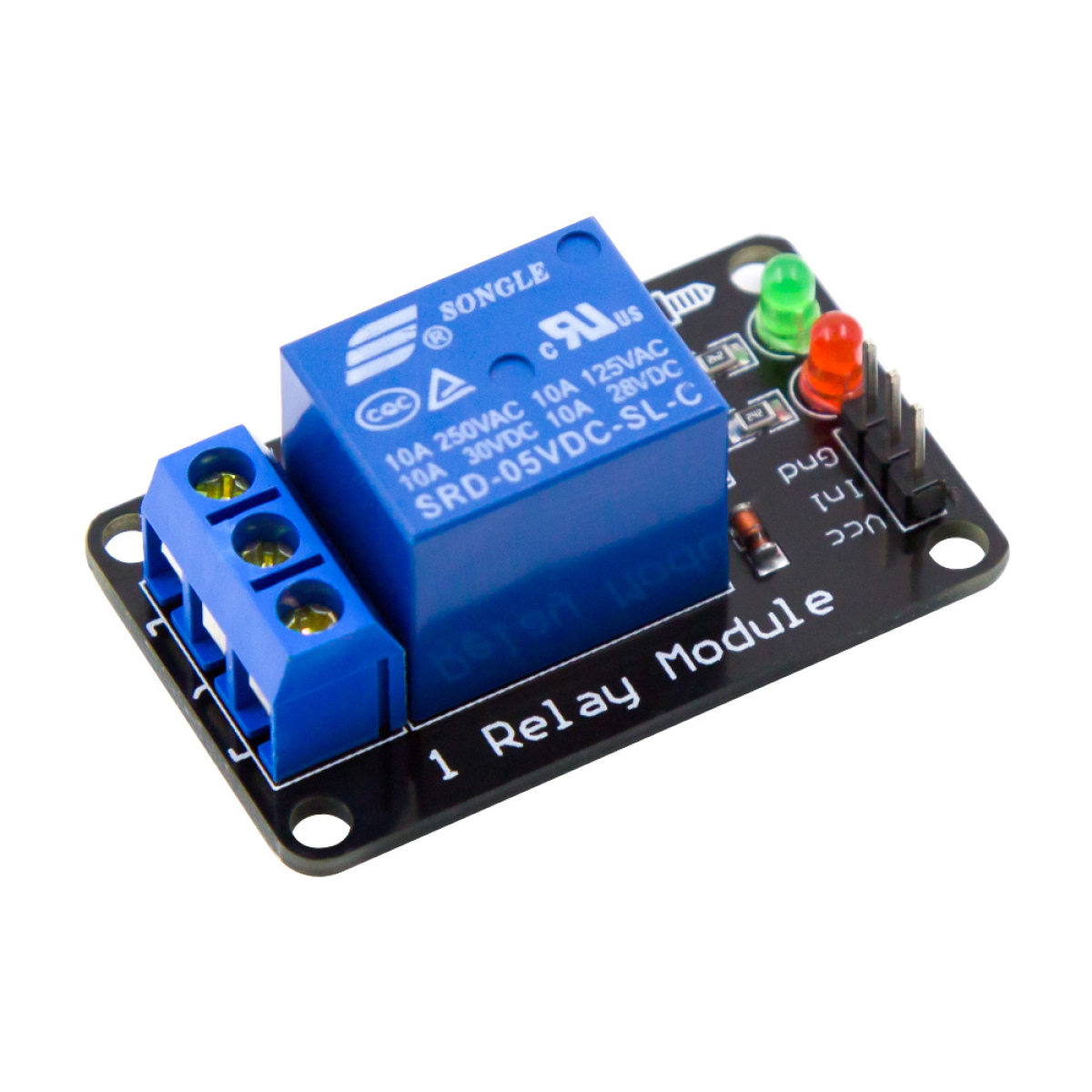

It is a 5V 1 Channel Without Light Coupling Relay. The relay normally open interface maximum load: AC 250V/10A, DC 30V/10A. It has a trigger current of 5mA, and module working voltage of DC 5V. Each channel of the module can be triggered by a jumper to set a high level or a low level. Fault-tolerant design, even if the control line is disconnected, the relay will not move. With status indicator: power (green), 1-channel relay status indicator (red). All module size interfaces can be directly connected through the terminal block, which is convenient and practical.

14 People watching this product now!

6000 +

Products

10:00am - 7pm

Working Hours

Genuine Products

Guaranteed

Description

  1. The 8550 transistor drive, driveability.
  2. A fixed bolt holes for easy installation.
  3. It has a relay status indicator led Power LED(Green), 1 relay status indicator LED(Red)
  4. Relay control interface by single-chip IO.
  5. Low-level suction close, high-level release.
  6. Easy to use, simple 3 line structure.
Additional information
Operating Voltage (VDC)

3 ~ 5

Operating Temperature (°C):

-40 to 85

Opt. Relative Humidity(RH)

20% ~ 85%

Storage condition (℃)

– 65 to 175
